Old 10-05-2014, 01:30 AM   #61
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by whinin View Post
Just sucks I got it this way. I'm sure it can be fixed but I wanted to have the car running by now...
I know the feeling.
aidandj is offline   Reply With Quote
Old 10-05-2014, 01:36 AM   #62
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

It shows .70
whinin is offline   Reply With Quote
Old 10-05-2014, 01:41 AM   #63
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I think that could be a short. I would email diy autotune. Do you have a soldering iron? Where are you located?
aidandj is offline   Reply With Quote
Old 10-05-2014, 01:48 AM   #64
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

I have a soldering iron but not a very steady hand, and I'm over in SC.

I was reading on msextra and DIY said the right leg should be 5v and the left should be 12v.
Megasquirt Support Forum (MSEXTRA) • board voltage wrong (View topic)
3rd post down
whinin is offline   Reply With Quote
Old 10-05-2014, 01:50 AM   #65
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Yeah that could be right I'm going off memory. But either way you weren't getting voltage there right?
aidandj is offline   Reply With Quote
Old 10-05-2014, 01:57 AM   #66
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

No sir.
whinin is offline   Reply With Quote
Old 10-05-2014, 02:15 AM   #67
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by whinin View Post
No sir.
Yeah, u5 could be shot. or it could be something on the way to u5. Either way someone else knows more than me.
aidandj is offline   Reply With Quote
Old 10-05-2014, 10:47 AM   #68
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

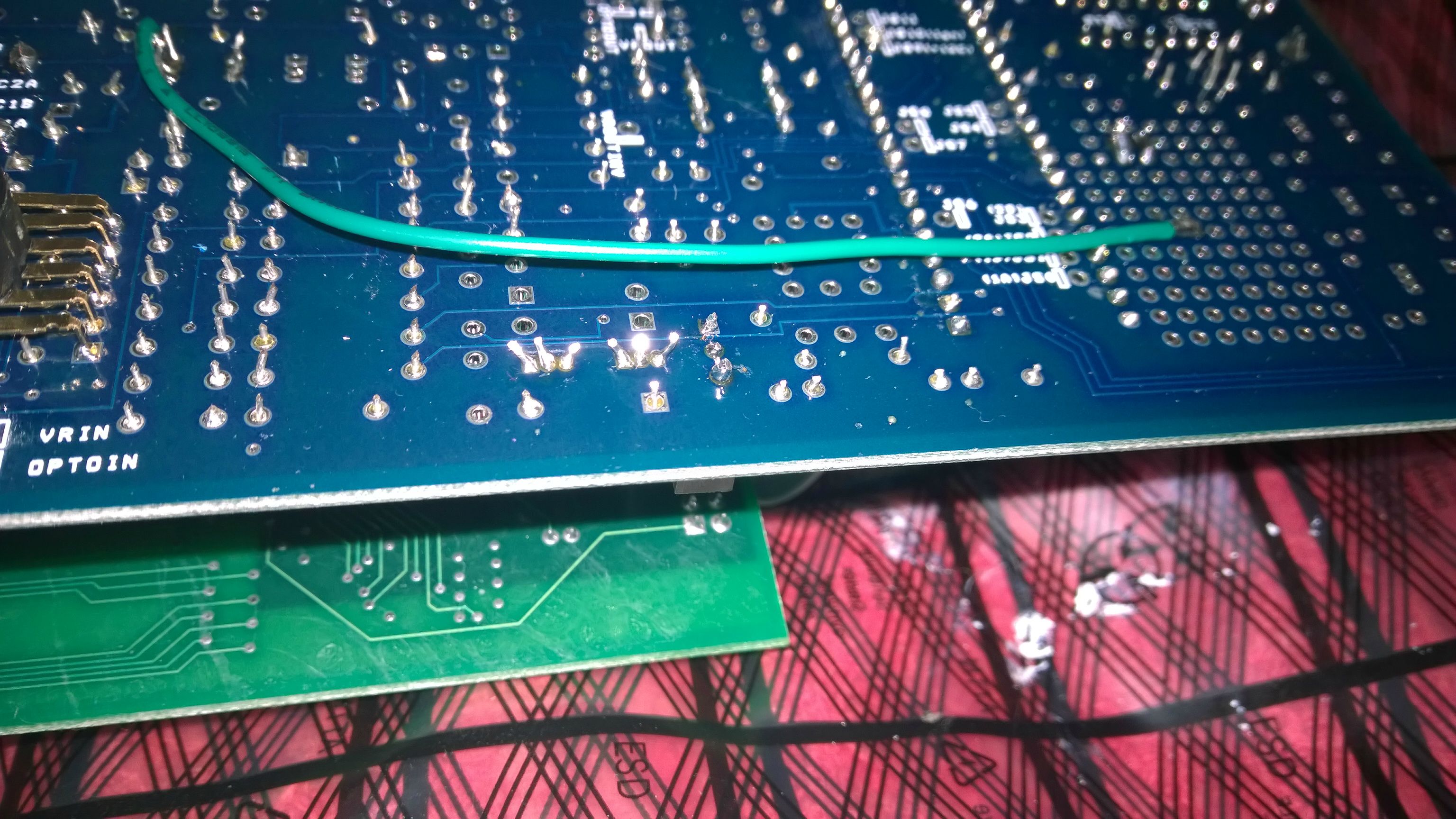

Nothing looks burnt, nothing looks jointed except for these two.



q23 and q22

Also q2 and q19 look the same. The solder is touching on these.
whinin is offline   Reply With Quote
Old 10-05-2014, 10:49 AM   #69
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

did I build this ms?
Braineack is offline   Reply With Quote
Old 10-05-2014, 10:51 AM   #70
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

The guy I bought it from said you did.

https://www.miataturbo.net/miata-par...9/#post1169300
whinin is offline   Reply With Quote
Old 10-05-2014, 11:17 AM   #71
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

i didnt read the thread, i just saw that last pic. looks like it's mine.

im going to assume harv did something to the MS and why he sold it...
Braineack is offline   Reply With Quote
Old 10-05-2014, 11:22 AM   #72
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Any suggestions?
whinin is offline   Reply With Quote
Old 10-05-2014, 11:30 AM   #73
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

have you installed the vTPS yet? if not, did you unplug the stock tps switch? if not, do that.
Braineack is offline   Reply With Quote
Old 10-05-2014, 11:33 AM   #74
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Yeah the VTPS is installed already.
whinin is offline   Reply With Quote
Old 10-05-2014, 11:35 AM   #75
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Wait wait wait....

The MS3x uses the same ground as the stock ecu right? I think I just figured it out.....

I'm going to shoot myself in the foot, brb.
whinin is offline   Reply With Quote
Old 10-05-2014, 11:39 AM   #76
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

it grounds directly through the oem harness. unplug the vTPS if you didnt figure it out. if wired wrong that will introduce a 5v fault to ground and the MS wont connect and have power just like youre seeing.
Braineack is offline   Reply With Quote
Old 10-05-2014, 11:46 AM   #77
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

I think my problem is I have the ground unhooked on the back of the head.
whinin is offline   Reply With Quote
Old 10-05-2014, 11:47 AM   #78
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

If this isn't it I will try to unplug the vtps.
whinin is offline   Reply With Quote
Old 10-05-2014, 12:07 PM   #79
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

**** me. It was the ground.

Here is the tune that's loaded on the ms3x. You think this would be OK to try and start my '92?
550cc injectors
greddy turbo
no afm
no cat
Attached Files
File Type: msq 2014-10-05_10.56.38.msq (177.0 KB, 124 views)
whinin is offline   Reply With Quote
Old 10-12-2014, 10:34 AM   #80
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Ok so let this rest for a week. I apologize for my stupidity, something so simple.

Anyways, I need to know where on the AFM connector I need to push these two wires in for the GM IAT sensor, and on a MS3x, do I need to worry about the fuel pump not coming on? Or do I need to do something with that circuit as well?
whinin is offline   Reply With Quote
