Default First MegaSquirt 3 datalog and msq

So last night got an MSQ file setup for MS3 without any conflicts. I then promptly stole it and got my car started on it.

Today I modified his msq with my timing settings and put in my fuel and spark tables. I then went out and burned them to my ms3. Car then started up after a few cranks and seemed to idle well. Next on my to-do list is to check and make sure my timing is set correctly and then work on startup settings and tune.

Here are links to my datalog and MSQ files if anyone is interested in looking at them.

Datalog
MSQ file

I take no responsibility if you use the MSQ and blow your motor.
shuiend is offline   Reply With Quote
Old 03-26-2010, 01:27 PM   #2
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Nice

This is the first running installation from the first batch of MS3s released. Though I expect there will be some more after this weekend.
Ben is offline   Reply With Quote
Old 03-26-2010, 01:37 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

damn. he used MY map...I would be running it today as well but I got called into work :(
Braineack is offline   Reply With Quote
Old 03-26-2010, 01:56 PM   #4
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Ben View Post
Nice

This is the first running installation from the first batch of MS3s released. Though I expect there will be some more after this weekend.
I was simply shooting to get the first Miata running on MS3. Knowing I most likely have the first running one on a car out of the production batch makes me feel even more special. I am going to go get myself a cookie.

Hopefully tonight and this weekend I get some road time on the car and can iron out some more bugs with it.
shuiend is offline   Reply With Quote
Old 03-26-2010, 02:44 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

link to thread on why MS3 is so awesome?
hustler is offline   Reply With Quote
Old 03-26-2010, 02:46 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

MegaSquirt-3 Features

Quote:
Speed-density, alpha-n or MAF for fuelling calculations
16x16 fuel tables in 0.1% steps with true interpolation and movable rows/columns
16x16 spark tables in 0.1 degree steps with true interpolation and movable rows/columns
Wall-wetting transient fuel control for better driveability
On board datalogging to SDcard (max 333Hz sample rate)
Tuning by serial or built-in USB-serial port.
8 channels sequential fuel (hi-z injectors or low-z with external resistors)
2 additional fuel channels (hi-z or low-z)
8 channels sequential spark (logic level output)
6 channels mid current output for small solenoids or relays
2 'spare' conditioned 0-5V analogue inputs (+2 more raw)
Two wideband oxygen sensor input (external controller required)
(Up to eight widebands supported via external data capture)
GM-style stepper idle control
2 and 3 wire PWM idle control
Closed loop idle control
Closed loop mixture control - ideally with wideband
Closed loop boost control
Various boost control systems (gear, time, speed based)
Two stage variable nitrous control
2 step type launch control
CAN communications to interconnect other Megasquirt products e.g. transmission controller
Supports external data capture boards (e.g. for external EGT boards)
EGT data support (with external amplifier)
Staged injection
Dual fuel (e.g. LPG)
Table switching, (mainly for dual fuel use)
Water/Meth injection
Individual cylinder injector trim
Injector phase timing
Individual cylinder spark trim
Support for numerous OEM trigger wheel patterns.
Magnetic (VR), Hall, Opto crank sensor input
Magnetic (VR), Hall, Opto cam sensor input
Braineack is offline   Reply With Quote
Old 03-26-2010, 02:53 PM   #7
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by shuiend View Post
I was simply shooting to get the first Miata running on MS3. Knowing I most likely have the first running one on a car out of the production batch makes me feel even more special. I am going to go get myself a cookie.

Hopefully tonight and this weekend I get some road time on the car and can iron out some more bugs with it.
Someone else might already have their production MS3 running, but if so, they haven't told us about it. Yours is the first known.

Scott, it actually doesn't just have a 2-step, but has a 3-step launch with burnout mode.
Ben is offline   Reply With Quote
Old 03-26-2010, 02:56 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

in for ms3 pnp.
hustler is offline   Reply With Quote
Old 03-26-2010, 02:59 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I'll just consider mine running first cause he straight up loaded the damn MSQ i sent him

I think Hustler would like the AFR safety system.
Braineack is offline   Reply With Quote
Old 03-26-2010, 03:00 PM   #10
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
in for ms3 pnp.
Braineack takes paypal. He should be be able to build you one once some more production units get built and are for sale.
shuiend is offline   Reply With Quote
Old 03-26-2010, 03:01 PM   #11
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Brain, when will you start accepting MS1's to be upgraded to MS3?
Bryce is offline   Reply With Quote
Old 03-26-2010, 03:01 PM   #12
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Braineack View Post
I'll just consider mine running first cause he straight up loaded the damn MSQ i sent him

I think Hustler would like the AFR safety system.
Yah but yours was not in a car. Running on a STIM does not count.
shuiend is offline   Reply With Quote
Old 03-26-2010, 03:02 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Bryce View Post
Brain, when will you start accepting MS1's to be upgraded to MS3?
not much to it, soon as you can buy them.
Braineack is offline   Reply With Quote
Old 03-26-2010, 03:24 PM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

wtf.afr safety system? I don't really need that, but I'd like some more ve table accuracy. I guess there is nothing new for knock detection?
hustler is offline   Reply With Quote
Old 03-26-2010, 03:27 PM   #15
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by hustler View Post
wtf.afr safety system? I don't really need that, but I'd like some more ve table accuracy. I guess there is nothing new for knock detection?
Actually starting with MS2 there is software selectable knock input parameters. You could take a TXS knocklite and plug its digital output directly into the MS (at least in theory). Once I upgrade, I plan to test it out.

Edit: I'm also thinking about building a little circuit to convert the TXS output into something MS1 can use. Nothing fancy, just a little 555 timer similar to the one in the MSExtra hardware manual. In the event that it works, I'll post a write up.

Last edited by Jeff_Ciesielski; 03-26-2010 at 03:31 PM. Reason: I suck at life.
Jeff_Ciesielski is offline   Reply With Quote
Old 03-26-2010, 03:33 PM   #16
Senior Member
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

God, if I knew it'd take me this long to put in my new motor, I'd have waited for the MS3...so, uh, anyone wanna buy a MS2 daughter board?
TrickerZ is offline   Reply With Quote
Old 03-26-2010, 03:40 PM   #17
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
Actually starting with MS2 there is software selectable knock input parameters. You could take a TXS knocklite and plug its digital output directly into the MS (at least in theory). Once I upgrade, I plan to test it out.

Edit: I'm also thinking about building a little circuit to convert the TXS output into something MS1 can use. Nothing fancy, just a little 555 timer similar to the one in the MSExtra hardware manual. In the event that it works, I'll post a write up.
Sure, but if you can't set a period prior to spark time per cylinder then its a waste of time. Real knock detection would make MS so much more attractive...but I'm not sure that I'm willing to put any effort into it. I've already demonstrated with lap times that I have my hands full at 250whp.
hustler is offline   Reply With Quote
Old 03-26-2010, 04:27 PM   #18
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
Actually starting with MS2 there is software selectable knock input parameters. You could take a TXS knocklite and plug its digital output directly into the MS (at least in theory). Once I upgrade, I plan to test it out.

Edit: I'm also thinking about building a little circuit to convert the TXS output into something MS1 can use. Nothing fancy, just a little 555 timer similar to the one in the MSExtra hardware manual. In the event that it works, I'll post a write up.
Daymn, I've been planning to do this for quite some time!! I've just been lazy scoping the output.

Got any specifics on the output?

Cheers!
richyvrlimited is offline   Reply With Quote
Old 03-26-2010, 05:09 PM   #19
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by richyvrlimited View Post
Daymn, I've been planning to do this for quite some time!! I've just been lazy scoping the output.

Got any specifics on the output?

Cheers!
I haz no scope :(. I called TXS a while ago, and according to the engineer I got in touch with, it "outputs a standard digital signal, one for rpm, and one for knock" I'm assuming that would mean a high/low 5v signal , although the knocklite itself has 2 different levels of detected knock so that would take some tinkering.

The way I figure it, as long as it is outputting what it sounds like it is, at most the signal might need to be inverted and trigger a timer to hold the line low for a few hundred uS.
Jeff_Ciesielski is offline   Reply With Quote
Old 03-26-2010, 05:35 PM   #20
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by hustler View Post
in for ms3 pnp.

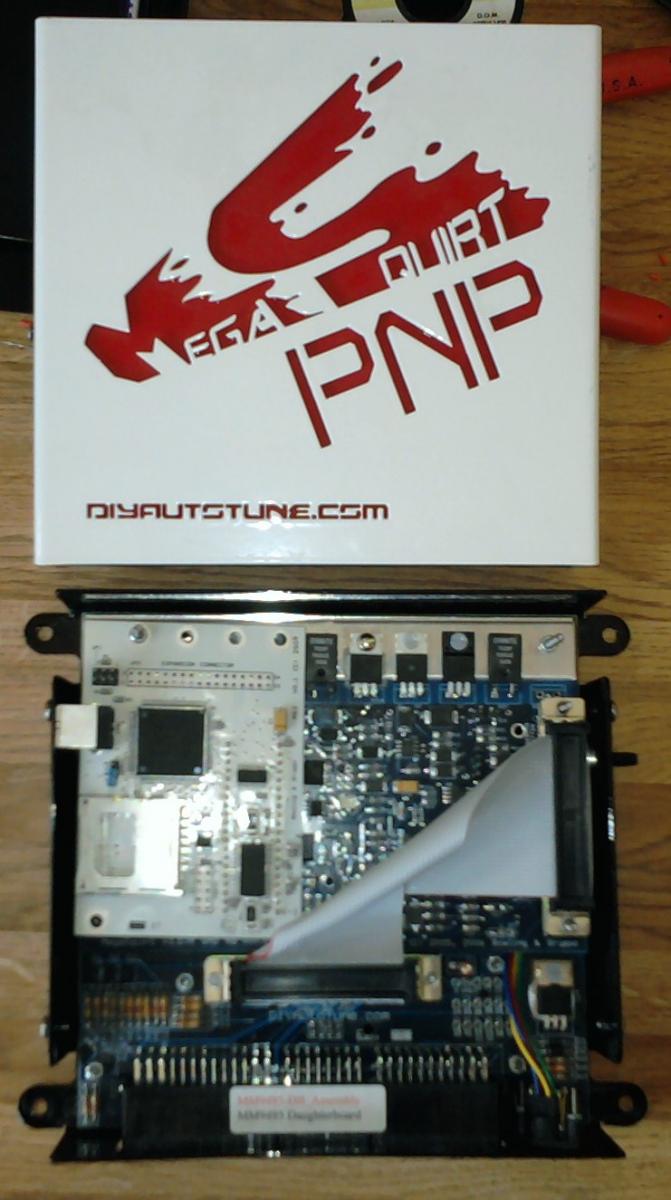

You would need to relocate the power filter capacitor, the case would need to be clearanced for the USB port, and it might be a little bit tough to work with the SD card slot, but it looks otherwise easily doable for anyone who wanted to upgrade their MSPNP.
Attached Thumbnails
First MegaSquirt 3 datalog and msq-2010-03-26-15.49.32.jpg
Ben is offline   Reply With Quote
