Old 11-14-2011, 06:58 PM   #41
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,884
Total Cats: 1,790
Default





so im at 12.5 by 4psi...it works.
Attached Thumbnails
Good AFR target table?-afr_tablez.jpg   Good AFR target table?-timing_table.jpg
Braineack is online now   Reply With Quote
Old 11-14-2011, 07:47 PM   #42
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default


hosting images

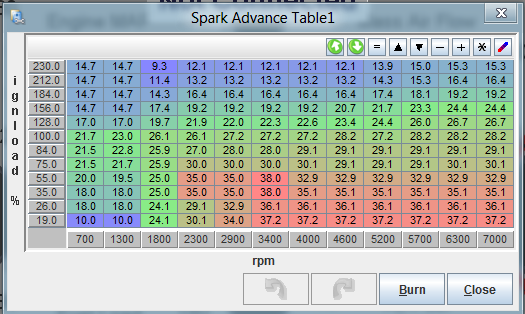

Most of it still DIYautotunes map expect for some slow areas and around 7psi > above 5k rpms
Attached Thumbnails
Good AFR target table?-timing.png
Techsalvager is offline   Reply With Quote
Old 11-20-2011, 03:25 PM   #43
Junior Member
iTrader: (2)

Join Date: Sep 2011
Posts: 320
Total Cats: -1
Default

Help. I cant get my car to idle very well with an afr leaner than 14:1
Attached Files
File Type: msq CurrentTune.msq (36.7 KB, 120 views)
tottestad is offline   Reply With Quote
Old 11-20-2011, 03:33 PM   #44
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

datalogs with tune
if no logs, datalog next time or any time you mess around.
Techsalvager is offline   Reply With Quote
Old 11-20-2011, 03:47 PM   #45
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,884
Total Cats: 1,790
Default

Quote:
Originally Posted by tottestad View Post
Help. I cant get my car to idle very well with an afr leaner than 14:1
this is not the place for this. make a new thread. include the details of your setup.
Braineack is online now   Reply With Quote
Old 11-20-2011, 03:49 PM   #46
Junior Member
iTrader: (2)

Join Date: Sep 2011
Posts: 320
Total Cats: -1
Default

This was the last one i took with the .msg it was logging. The .msq i posted previously is after running ve analyze live. Ve analyze constantly wants to make alot of changes. The car runs pretty darn good. Driveabilty is fantastic.

Thank you all for you looking.
Attached Files
File Type: msq turbo iac fans.msq (36.7 KB, 112 views)
File Type: msl 2011-11-19_11.37.54.msl (1.48 MB, 183 views)
tottestad is offline   Reply With Quote
Old 11-20-2011, 03:52 PM   #47
Junior Member
iTrader: (2)

Join Date: Sep 2011
Posts: 320
Total Cats: -1
Default

Quote:
Originally Posted by Braineack View Post
this is not the place for this. make a new thread. include the details of your setup.
Oh. Sorry. Will do.
tottestad is offline   Reply With Quote
Old 06-22-2012, 11:31 AM   #48
Junior Member
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

Is there any way to expand an AFR table and add more rows/columns?
TheDriver is offline   Reply With Quote
Old 06-22-2012, 11:32 AM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,884
Total Cats: 1,790
Default

Quote:
Is there any way to expand an AFR table and add more rows/columns?
ms3.



honestly, you dont need it.
Braineack is online now   Reply With Quote
Old 06-22-2012, 11:36 AM   #50
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I found that overall PW was shorter if I went fatter in the cruise cells from 16:1 to 15.4 on my 1994 daily. This was done with an inclinometer on my phone, cruise control, EGO correction, and adjusting spark.
hustler is offline   Reply With Quote
Old 06-22-2012, 11:49 AM   #51
Junior Member
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

Quote:
Originally Posted by Braineack View Post
ms3.



honestly, you dont need it.
Thanks, I'll take a screen shot when I get home...theres probably only 5-7 rows and 5-7 columns which is tiny compared to the charts I'm seeing on the forum

and I can't figure out how to switch it from lambda to AFR, went into project properties and tried a few other things FFFUUUUU
TheDriver is offline   Reply With Quote
Old 06-22-2012, 12:05 PM   #52
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

which ms unit do you have?
Techsalvager is offline   Reply With Quote
Old 06-22-2012, 06:09 PM   #53
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Sounds like MS0.5 ....... ?!?!
gslender is offline   Reply With Quote
Old 06-22-2012, 06:29 PM   #54
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Wasn't it the MS1 that had the 6x6 AFR target table?
Oscar is offline   Reply With Quote
Old 06-22-2012, 06:40 PM   #55
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,884
Total Cats: 1,790
Default

yea
Braineack is online now   Reply With Quote
Old 06-23-2012, 03:16 PM   #56
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by hustler View Post
I found that overall PW was shorter if I went fatter in the cruise cells from 16:1 to 15.4 on my 1994 daily. This was done with an inclinometer on my phone, cruise control, EGO correction, and adjusting spark.
Post your spark table. I want to analyze it.

FYI: If hustler posts his table it is for a low comp motor.
miatauser884 is offline   Reply With Quote
Old 06-26-2012, 11:59 AM   #57
Junior Member
iTrader: (2)

Join Date: Oct 2011
Posts: 207
Total Cats: -14
Default

Quote:
Originally Posted by Oscar View Post
Wasn't it the MS1 that had the 6x6 AFR target table?
I think it is MS1 actually

What are my options?
TheDriver is offline   Reply With Quote
Old 06-26-2012, 12:07 PM   #58
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,884
Total Cats: 1,790
Default

you dont need a larger afr targets table. just set it up well, you have interpolatation, so you can techincally use just 2 rows for boost.

for example you can have the top row 130kPa as 11.8 across, and the second row down as 100kPa and 14.5 across. You now have 4 rows to fine tune the cruise areas.
Braineack is online now   Reply With Quote
Old 06-26-2012, 12:22 PM   #59
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Why not have 100 for the top row and turn off EGO correction above that? This way you have 6 rows for AFR targets in cruise. I don't remember anyone on MS1 that used EGO correction in boost.
Saml01 is offline   Reply With Quote
Old 06-26-2012, 12:23 PM   #60
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,884
Total Cats: 1,790
Default

You want at least 1 boosted row for autotuning in boost...you shouldnt use EGO in boost ms1,2,3.
Braineack is online now   Reply With Quote
