Old 11-10-2011, 01:07 PM   #21
Junior Member

Join Date: May 2011
Location: UK
Posts: 47
Total Cats: 0
Default

so this begs the question - is 80kPa n/a the same as 80kPa boosted? i guess it is - as you say, load / BMEP will remain the same, the only difference is that n/a your throttle will be open letting the air in, and boosted the charger will be pushing the same amount of air past the 20% open throttle.
skinny is offline   Reply With Quote
Old 11-10-2011, 03:24 PM   #22
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by Braineack View Post
im hardly at wot and 100kPa, I'm probably at 15-20% TPS.
what if you were at 10 psi at 30% TPS? 15:1 afr?
y8s is offline   Reply With Quote
Old 11-10-2011, 03:44 PM   #23
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by skinny View Post
so this begs the question - is 80kPa n/a the same as 80kPa boosted? i guess it is - as you say, load / BMEP will remain the same, the only difference is that n/a your throttle will be open letting the air in, and boosted the charger will be pushing the same amount of air past the 20% open throttle.
Exactly that, 80kpa is 80kpa, throttle position is completely irellevant.

Hell some engineds don't even have a throttle plate, what AFR do they run?
richyvrlimited is offline   Reply With Quote
Old 11-10-2011, 04:09 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,835
Total Cats: 1,786
Default

Quote:
Originally Posted by y8s View Post
what if you were at 10 psi at 30% TPS? 15:1 afr?
no. but ive tuned this way since 2006 not getting knock because of it, and im getting decent gas mileage...
Braineack is online now   Reply With Quote
Old 11-11-2011, 01:06 AM   #25
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,435
Total Cats: 58
Default

Quote:
Originally Posted by Oscar View Post
Currently running this with 0 problems. N/A with bolt-ons and exhintake swap though FWIW.
How's your gas mileage with this? I may try it on my unboosted '94.
Enginerd is offline   Reply With Quote
Old 11-11-2011, 03:00 AM   #26
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

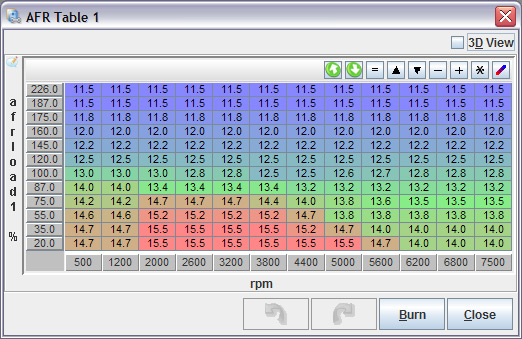

This is basically the table I use on my n/a 94. Haven't messed with boosted rows but 100 kPa and below works good. Change the 15.2 cells to also be 15.5. You can extend the 15.5 cruise region to higher rpm if you need, but I don't often cruise at 85 mph. I've changed a couple of other cells by a tenth or two but nothing major.



12.5:1 around peak torque, leaning out a few tenths at higher rpm for a tad more powah. I got ~33 mpg highway cruising with this target table on MS2, which is 2-3 mpg better than I ever got on the stock ECU. I haven't done any extended highway driving since going to MS3 and adjusting the injection timing table, but I made improvements there too, on the order of a few %. I'm optimistic that may net another ~1 mpg hwy. I get 25-28 around town with a fair bit of stop & go. You could run it a bit leaner than 15.5 in cruise if you're desperate, but it's good enough for me. If I go to 16.0 then it loses some smoothness during accel/decel transitions. It might help if I gave EAE another shot.
ScottFW is offline   Reply With Quote
Old 11-11-2011, 05:39 AM   #27
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by cymx5 View Post
How's your gas mileage with this? I may try it on my unboosted '94.
Wouldn't know honestly. Car sat for 14 months before I fixed it and did a trackday. Burned through 3/4 tank in 3-ish hours on a pretty warm day.
Oscar is offline   Reply With Quote
Old 11-11-2011, 11:11 AM   #28
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

since I'm a hater I thought I'd post mine too.




Since I use VE Analyze a lot, I didnt want to pull the "lean" down into the 2000 rpms and screw up my idle coast down region. Plus I don't really cruise that slow anyway.

The only change I'd maybe consider making to improve things is to richen up the low boost a bit but I'm not going to sweat it.
Attached Thumbnails
Good AFR target table?-afrtable_11-11-11.png
y8s is offline   Reply With Quote
Old 11-11-2011, 01:13 PM   #29
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

^ my kind of a hater!
Reverant is offline   Reply With Quote
Old 11-11-2011, 01:17 PM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,835
Total Cats: 1,786
Default

mine looks more like y8s than anything, just if you bumped the 80 and above up one row.
Braineack is online now   Reply With Quote
Old 11-11-2011, 01:38 PM   #31
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I would still recommend below 12.0:1 above 100kPa.
Reverant is offline   Reply With Quote
Old 11-11-2011, 02:04 PM   #32
Junior Member

Join Date: Aug 2009
Posts: 186
Total Cats: 1
Default

Never knew you can change the target AFRs. Is this all on MS? My Hondata for my other car only lets me change values for closed loop and open loop.

Anyone know what kpa it switches to open? 1.6L if it matters, it gets stupid rich when in open loop, but that's to be expected.
greeenteeee is offline   Reply With Quote
Old 11-14-2011, 09:35 AM   #33
Junior Member

Join Date: Apr 2010
Posts: 107
Total Cats: 0
Default

Quote:
Originally Posted by greeenteeee View Post
Never knew you can change the target AFRs. Is this all on MS? My Hondata for my other car only lets me change values for closed loop and open loop.

Anyone know what kpa it switches to open? 1.6L if it matters, it gets stupid rich when in open loop, but that's to be expected.
This is all for the megasquirt. It switches to open loop where you tell it to, just adjust the EGO window.
bearda is offline   Reply With Quote
Old 11-14-2011, 11:12 AM   #34
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

since everybody's showing theirs, I'll show mine

Attached Thumbnails

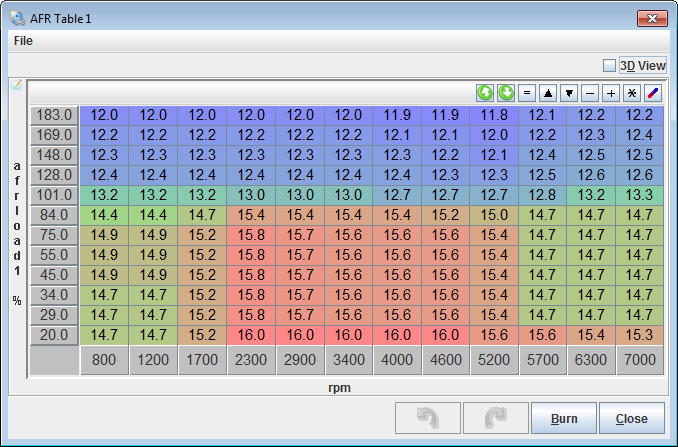

Good AFR target table?-afr.png
WestfieldMX5 is offline   Reply With Quote
Old 11-14-2011, 11:18 AM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,835
Total Cats: 1,786
Default

are you finding the drivablilty okay below 2500RPM? My car doesn't like to be that lean that slow.
Braineack is online now   Reply With Quote
Old 11-14-2011, 04:10 PM   #36
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default


By Techsalvager at 2011-11-13
Attached Thumbnails

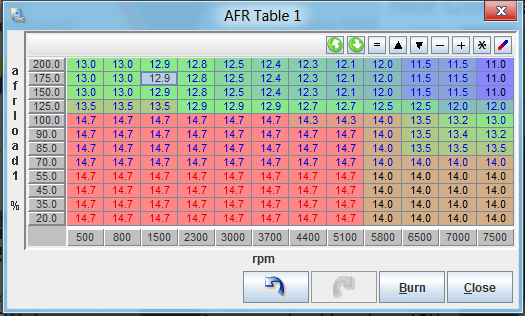

Good AFR target table?-afrtable.png
Techsalvager is offline   Reply With Quote
Old 11-14-2011, 04:12 PM   #37
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
are you finding the drivablilty okay below 2500RPM? My car doesn't like to be that lean that slow.
I run around 16.5 in my cruise area there between 2k to 3k
What timing are you running around 2500rpm or less
Techsalvager is offline   Reply With Quote
Old 11-14-2011, 04:21 PM   #38
Junior Member

Join Date: Aug 2009
Posts: 186
Total Cats: 1
Default

Quote:
Originally Posted by bearda View Post
This is all for the megasquirt. It switches to open loop where you tell it to, just adjust the EGO window.
Yes I understand.. it is a nice feature of MS, but was wondering if anyone knew of the switching point to open loop on a stock setup.

I notice a few of you still like to run the engine in the 14.x at 100kpa... pretty lean..
greeenteeee is offline   Reply With Quote
Old 11-14-2011, 04:58 PM   #39
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,835
Total Cats: 1,786
Default

Quote:
Originally Posted by Techsalvager View Post
I run around 16.5 in my cruise area there between 2k to 3k
What timing are you running around 2500rpm or less

ill post my AFR targets and timing map next time I'm on my laptop. But I'm never really "cruising" under 2500 and under 70kPa...ya know?
Braineack is online now   Reply With Quote
Old 11-14-2011, 05:01 PM   #40
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

haha well I meant in town driving around 35mph-45mph or so
Techsalvager is offline   Reply With Quote
