Help! Engine cutting out - Page 2 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



MEGAsquirt A place to collectively sort out this megasquirt gizmo

Reply



LinkBack Thread Tools
Old 04-30-2011, 08:19 PM   #21
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

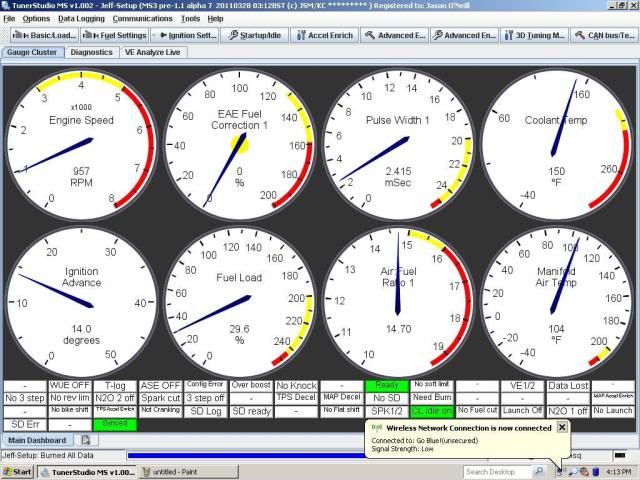

Here it is.

Name:  screencapture.jpg
Views: 0
Size:  66.5 KB
JayL is offline   Reply With Quote
Old 04-30-2011, 08:38 PM   #22
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Ok I see the logs. There are random pulses on both the crank as well as the cam input. Definitely something very wrong.
Reverant is offline   Reply With Quote
Old 04-30-2011, 09:01 PM   #23
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

What cam and crank input circuit are in that box?

(I'm a fan of alpha 6 for solid VVT or alpha 9 for solid everything BUT VVT for what it's worth)
y8s is offline   Reply With Quote
Old 04-30-2011, 09:09 PM   #24
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

DIYPNP-style inputs.
Reverant is offline   Reply With Quote
Old 05-01-2011, 12:20 PM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

go back to alpha 6.
Braineack is offline   Reply With Quote
Old 05-01-2011, 12:42 PM   #26
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

I was using it on alpha7 with no problems at all. Alpha6 has a bug where there is no spark if your cranking rpm is less than ~160. I'm pretty sure its a hardware problem with the inputs circuit.
Reverant is offline   Reply With Quote
Old 05-01-2011, 03:53 PM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

(zack morris's phone)

Who cranks below 160? Atleast go. To 9. 7 had issues...y8s saw weird **** with ve live.
Braineack is offline   Reply With Quote
Old 05-01-2011, 04:03 PM   #28
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Braineack View Post
(zack morris's phone)

Who cranks below 160?
Me with my hacked up starter motor harness.
Reverant is offline   Reply With Quote
Old 05-02-2011, 11:01 PM   #29
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Played around with it again today. Made sure there wasn't anything loose in the cases and also went through the wiring harness again. Wish I had the knowledge to go through it and pinpoint the exact fault. The car has progressively gotten worse so I removed all the MS components from the car and went back to the oem ecu. Car not only runs like a champ, but feels so much more powerful both at low and high revs. I expected to get the low end back, but the way it pulls up top is also much improved. Any other ideas?
JayL is offline   Reply With Quote
Old 05-03-2011, 03:23 AM   #30
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Did you remove the connectorboard from inside the DIYBOB as already discussed?
Reverant is offline   Reply With Quote
Old 05-03-2011, 09:12 AM   #31
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Sure did, no change while driving with it outside the case.
JayL is offline   Reply With Quote
