Default High VE Table after New Intercooler

Having recently installed a new intercooler i'm now seeing IAT temps of 25-30 deg c which is great compared to previous. The problem i'm encountering now seems to be the MSLog Viewer VE Analyse wants to throw loads of fuel in compared to the previous setup. Having searched around I can't seem to see anyones VE table this high and am wondering if this is likely to be an issue rather than a correct result from autotune.

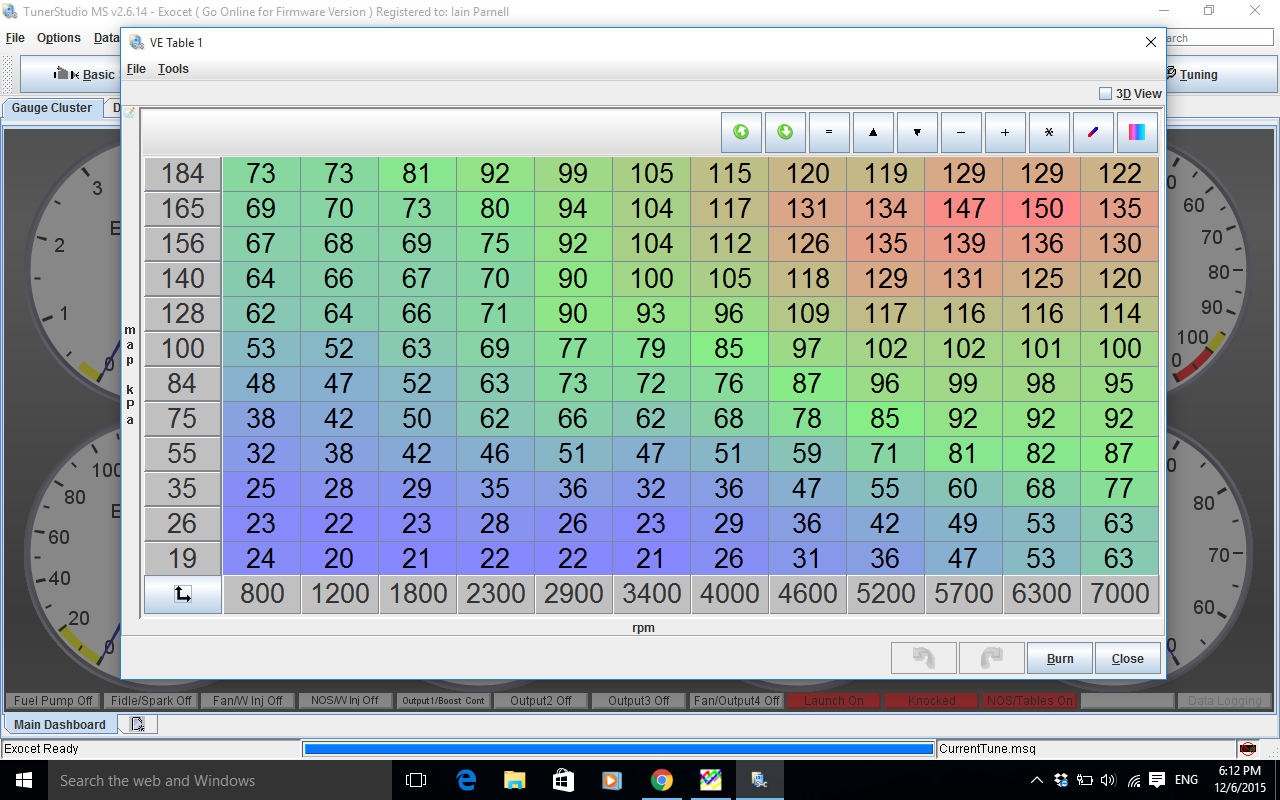

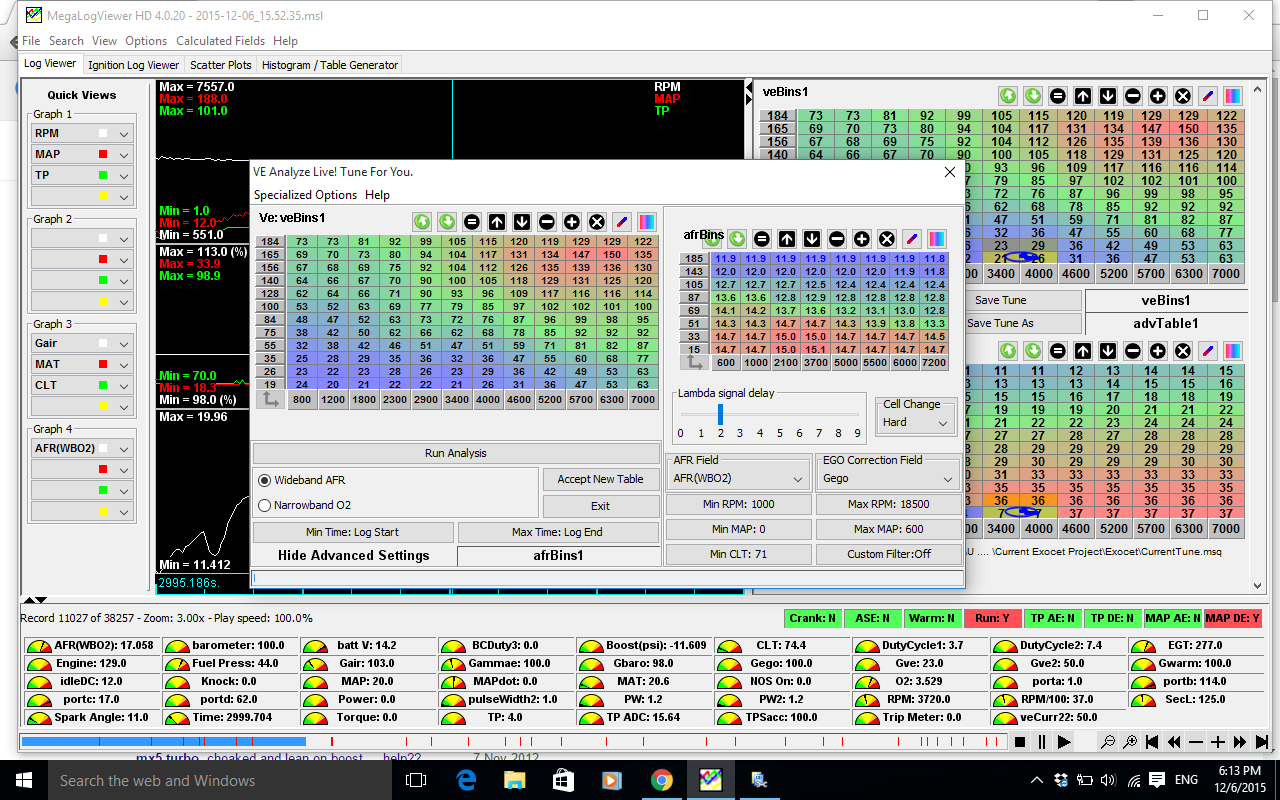

I've attached the current VE Table and AFR table used for autotune for information.




Attached Thumbnails
High VE Table after New Intercooler-80-screenshot_2015_12_06_18_12_16_b8342a8c58a2004071471b3c2776452806a912ef.png   High VE Table after New Intercooler-80-screenshot_2015_12_06_18_13_00_5b40de1808ebee607f724dac38127cc98d9939aa.png
iparnell is offline   Reply With Quote
Old 12-06-2015, 05:51 PM   #2
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 875
Total Cats: 93
Default

How lean was it before you ran autotune?
acedeuce802 is offline   Reply With Quote
Old 12-06-2015, 05:59 PM   #3
Newb
Thread Starter

Join Date: Mar 2015
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by acedeuce802 View Post
How lean was it before you ran autotune?

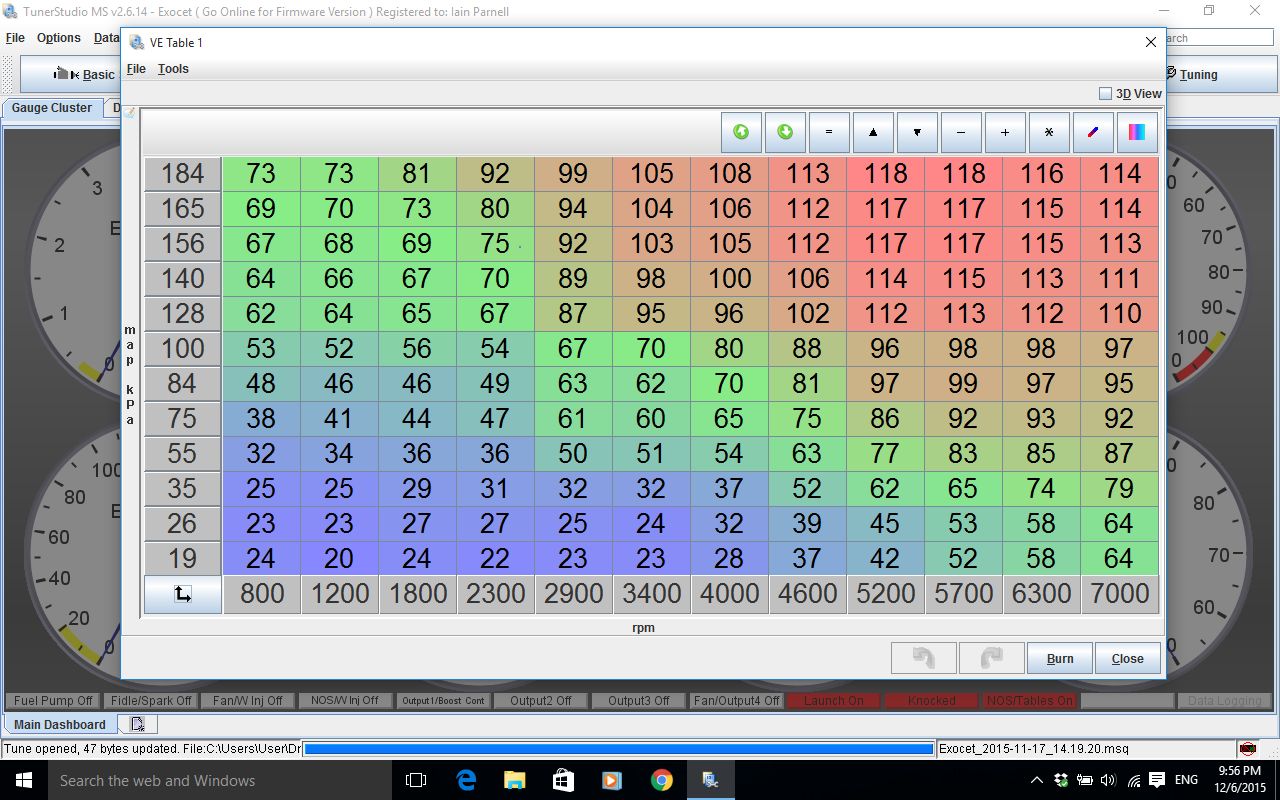

This was the VE Table before running autotune with the new intercooler and low IAT temps.

Attached Thumbnails
High VE Table after New Intercooler-80-screenshot_2015_12_06_21_56_52_4934862f29f54b14d038b388a941ee78fafa7e8b.png
iparnell is offline   Reply With Quote
Old 12-06-2015, 07:09 PM   #4
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

The results are correct.

What you have done with the IC is allowed the engine to gulp more air (cooler air is denser assuming the pressure is the same). With more air, you need more fuel.

The numbers in the VE table are dimensionless. Basically, the fuel injector pulse ends up being (VE Table x Req. Fuel. x Various Corrections). The maximum value allowed in a VE Table cell is 255 (8 bits), and you are far away from that, so no worries.

A little Megasquirt secret is that you actually want to lower Req. Fuel to increase the numbers in the VE Table so they are nice and high while also comfortably below 255. By doing this, you essentially increase your fueling resolution. You can "think" of Req. Fuel as your minimum pulse width, and you would like the minimum to be as small as possible for best control.

So, you went up from ~117 to 150. That's a nice power gain.
hornetball is offline   Reply With Quote
Old 12-06-2015, 07:34 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

If you went lean you're making more power.
Braineack is offline   Reply With Quote
Old 12-06-2015, 07:37 PM   #6
Newb
Thread Starter

Join Date: Mar 2015
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by hornetball View Post
The results are correct.

What you have done with the IC is allowed the engine to gulp more air (cooler air is denser assuming the pressure is the same). With more air, you need more fuel.

The numbers in the VE table are dimensionless. Basically, the fuel injector pulse ends up being (VE Table x Req. Fuel. x Various Corrections). The maximum value allowed in a VE Table cell is 255 (8 bits), and you are far away from that, so no worries.

A little Megasquirt secret is that you actually want to lower Req. Fuel to increase the numbers in the VE Table so they are nice and high while also comfortably below 255. By doing this, you essentially increase your fueling resolution. You can "think" of Req. Fuel as your minimum pulse width, and you would like the minimum to be as small as possible for best control.

So, you went up from ~117 to 150. That's a nice power gain.
Thanks for that it makes sense, however what happens when it gets warmer here and as such my IAT's will increase taking into account the ambient temperature. Surely i don't have to get it re-tuned at this time? Is this when the hard coded gas law settings will come into effect? Or will i need to go closed loop and allow EGO correction to adjust for variable IAT temps?

Cheers
iparnell is offline   Reply With Quote
Old 12-06-2015, 07:51 PM   #7
Newb
Thread Starter

Join Date: Mar 2015
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
If you went lean you're making more power.
Once i had installed the intercooler i did several runs and noticed that the AFR's under boost using the existing old VE table. Once i got home i plugged the log into VEAL and it generated the higher VE table which i assume will richen up the AFR's on the next run.

Do you reckon i should disable the MAT correction whilst doing the log runs or not?

Cheers

Iain
iparnell is offline   Reply With Quote
Old 12-06-2015, 08:54 PM   #8
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

Why would you disable mat?
sixshooter is offline   Reply With Quote
Old 12-06-2015, 08:58 PM   #9
Newb
Thread Starter

Join Date: Mar 2015
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by sixshooter View Post
Why would you disable mat?
Just to try and take a variable out of the equation...although looking at the setting for MAT correction it stops at 3k rpm so it should not have any effect in boost so i guess it can stay on.

Looks like it a trip back to Nick to get a re-tune having now installed the intercooler and the IAT being so much lower than when it was originally tuned.
