Default Hot start issues with MS3

Hi guys,
I've been having this issue randomly, but more often then I think I should.

If I start the car 5-10 minutes after driving for a while (like getting gas, or stopping at a local store), I get high rev idle that goes up and down between 2300 -1800 RPM and just keeps doing that until I turn the car back off and restart. Sometimes have to restart 2-3 times before it corrects.

Attached is a datalog of the issue.

Anyone have any ideas?
Attached Files
File Type: msl 2013-06-20_19.14.18.msl (72.8 KB, 64 views)
tuckermon is offline   Reply With Quote
Old 06-21-2013, 02:21 PM   #2
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

your oscillation seems to be caused by acceleration enrichments. it looks like you are using mapdot instead of tpsdot for enrichment.
soviet is offline   Reply With Quote
Old 06-21-2013, 02:27 PM   #3
Junior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2010
Location: Maine
Posts: 407
Total Cats: -19
Default

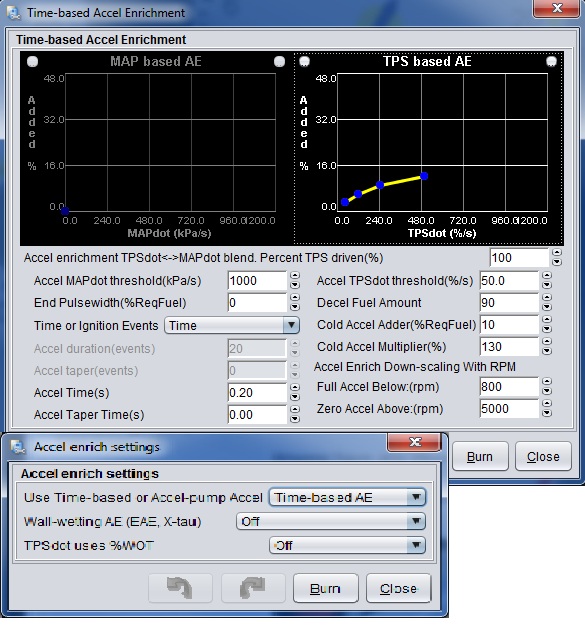

Here are my settings.
Attached Thumbnails
Hot start issues with MS3-accel.jpg
tuckermon is offline   Reply With Quote
Old 06-21-2013, 02:56 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

use the accel pump, but those settings dont like that would cause oscillation...I'd have to look at the log later.
Braineack is offline   Reply With Quote
Old 06-21-2013, 03:13 PM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Sounds like you have high cranking PWM duty, which gets you high enough RPMs to get stuck in overrun fuel cut - no cut - cut - no cut. Reduce your cranking PWM duty values when warm.
Reverant is online now   Reply With Quote
Old 06-21-2013, 03:34 PM   #6
Junior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2010
Location: Maine
Posts: 407
Total Cats: -19
Default

Quote:
Originally Posted by Reverant View Post
Sounds like you have high cranking PWM duty, which gets you high enough RPMs to get stuck in overrun fuel cut - no cut - cut - no cut. Reduce your cranking PWM duty values when warm.
Thank you, That makes sense. I see the fuel cut light in tunerstudio when this is happening.

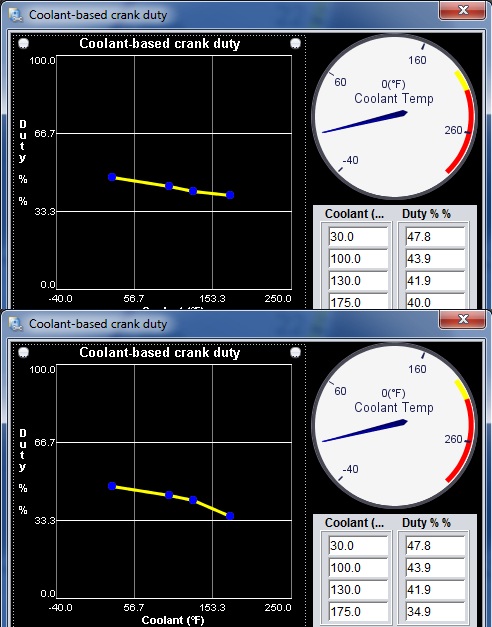

Before and after attached. Look correct? I'll test it this weekend and check back.
Attached Thumbnails
Hot start issues with MS3-crank.jpg
tuckermon is offline   Reply With Quote
Old 06-21-2013, 03:39 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

what idle duty do you normally idle at after the car is warmed up?
Braineack is offline   Reply With Quote
Old 06-21-2013, 04:28 PM   #8
Junior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2010
Location: Maine
Posts: 407
Total Cats: -19
Default

Quote:
Originally Posted by Braineack View Post
what idle duty do you normally idle at after the car is warmed up?
I'm using closed loop idle, "Idle Open Duty(%) = 80"
Attached Thumbnails
Hot start issues with MS3-idle.jpg
tuckermon is offline   Reply With Quote
Old 06-21-2013, 04:31 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

that's not what I asked. That's the maximum duty cycle that closed loop will be able to drive the valve. What I want to know is what duty cycle does the MS typically demand from the idle valve to maintain your target idle speed once the car is warmed. hint: you have to log it or look at the idle pwn% gauge.
Braineack is offline   Reply With Quote
Old 06-21-2013, 04:35 PM   #10
Junior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2010
Location: Maine
Posts: 407
Total Cats: -19
Default

Rev,
Which did you want me to change:

Cranking Pulse

OR

PWM idle cranking duty
tuckermon is offline   Reply With Quote
Old 06-21-2013, 04:40 PM   #11
Junior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2010
Location: Maine
Posts: 407
Total Cats: -19
Default

Quote:
Originally Posted by Braineack View Post
that's not what I asked. That's the maximum duty cycle that closed loop will be able to drive the valve. What I want to know is what duty cycle does the MS typically demand from the idle valve to maintain your target idle speed once the car is warmed. hint: you have to log it or look at the idle pwn% gauge.
I have a log available to view. What "value/code" do I need to select form the graph choices to get you the info you are asking about?

PWM Idle duty?
Duty Cycle1?
Attached Thumbnails
Hot start issues with MS3-idle2.jpg
tuckermon is offline   Reply With Quote
Old 06-21-2013, 04:53 PM   #12
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Reduce the PWM idle cranking duty.
Reverant is online now   Reply With Quote
Old 07-05-2013, 12:19 PM   #13
Junior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2010
Location: Maine
Posts: 407
Total Cats: -19
Default

This has helped a tremendous amount. Now just to fix the cold start timing issues.
