Default Just got my MSPNP2 Need help with AFR

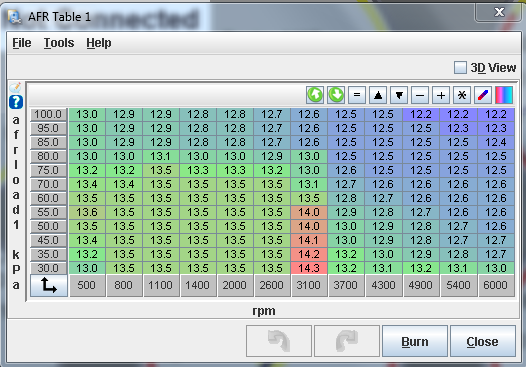

hi guys i recently just got my mspnp2 and im trying to "tune" my afr and VE table (used autotune for this) my idle seems to be very high at around 11-1100-1200rpms and im trying to lower it down. my AFR table is




Thanks guys! any help is appreciated
Attached Thumbnails
Just got my MSPNP2 Need help with AFR-capture.png   Just got my MSPNP2 Need help with AFR-80-capture_be70264f78f14b9bdaa0523f5582c943dea8cefb.png

Last edited by RuckRider; 04-09-2016 at 06:03 PM.
RuckRider is offline   Reply With Quote
Old 04-09-2016, 06:49 PM   #2
Newb

Join Date: Dec 2015
Location: Charlotte NC
Posts: 29
Total Cats: -2
Default

that looks really rich, why max rpm 6k not 7k

i can send you mine but i dont know how to get a picture of it?
LyonsMiata27 is offline   Reply With Quote
Old 04-09-2016, 06:51 PM   #3
Newb
Thread Starter

Join Date: Sep 2015
Posts: 28
Total Cats: 0
Default

it was the defaul, i didnt change anything in that table.
RuckRider is offline   Reply With Quote
Old 04-09-2016, 06:57 PM   #4
Newb

Join Date: Dec 2015
Location: Charlotte NC
Posts: 29
Total Cats: -2
Default

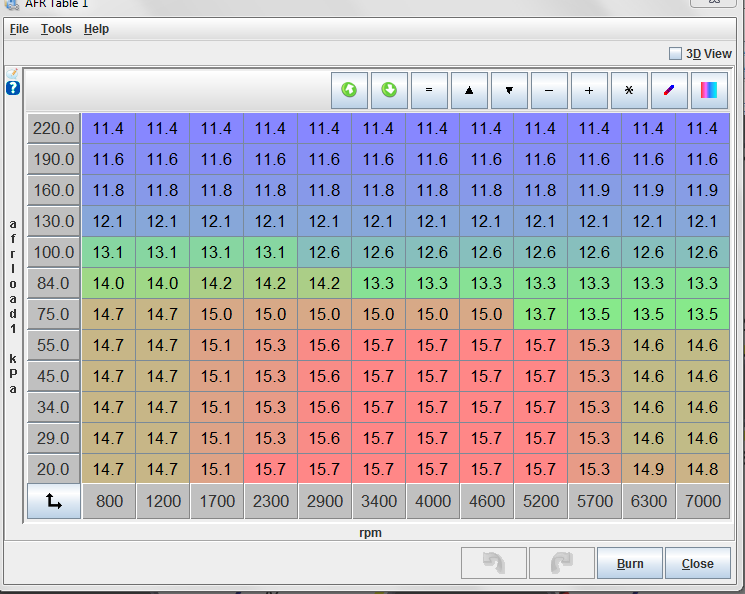

here it is, might not be perfect but car drives pretty good
Attached Thumbnails
Just got my MSPNP2 Need help with AFR-afr-table.png
LyonsMiata27 is offline   Reply With Quote
Old 04-09-2016, 06:59 PM   #5
Newb

Join Date: Dec 2015
Location: Charlotte NC
Posts: 29
Total Cats: -2
Default

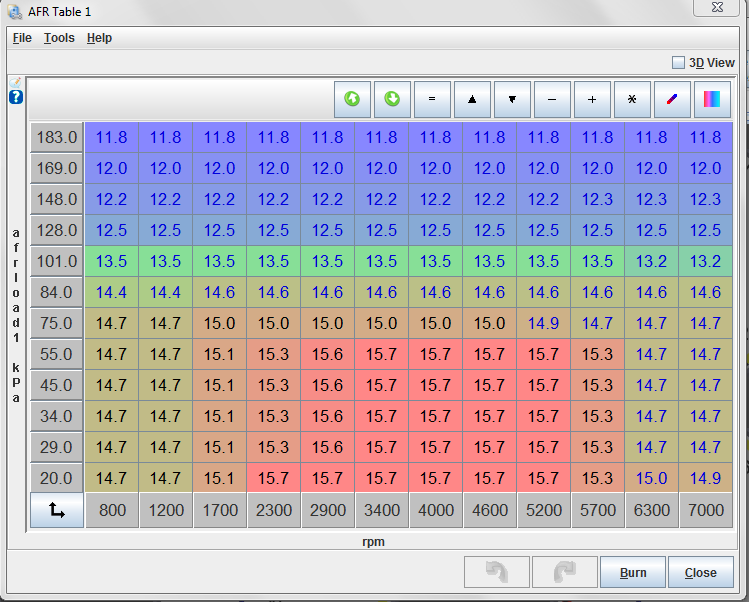

here is the map that came on my ms3x.

i would start with this one...
Attached Thumbnails
Just got my MSPNP2 Need help with AFR-braineak.png
LyonsMiata27 is offline   Reply With Quote
Old 04-09-2016, 07:36 PM   #6
Newb
Thread Starter

Join Date: Sep 2015
Posts: 28
Total Cats: 0
Default

does the autotune in tune alanlyze fixes ur afr aswell? or just the ve table
RuckRider is offline   Reply With Quote
Old 04-09-2016, 07:45 PM   #7
Newb

Join Date: Dec 2015
Location: Charlotte NC
Posts: 29
Total Cats: -2
Default

it will tune your ve table only, you need to pick what afr you want.

start with the second table i posted its from braineak, it will put you close to where you want to be.

idle tuning will take you some time to figure out, just keep researching, youll get it

Good Luck
LyonsMiata27 is offline   Reply With Quote
Old 04-10-2016, 10:46 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

i actually like the first table you posted a bit better.
Braineack is offline   Reply With Quote
