Default MegaSquirt 2 V3 Board, D1 & D2 Jumper?

I bought a MS2 V3, that was set up for FORD EDIS (D1 & D2 Jumpered)

Im running this on a 90 1.6L Miata. What should I change D1 & D2 to?

I can't tell if I need to un-jumper both of them, or it looks like I may need a 1N4001 in D2
racoonfrenzy is offline   Reply With Quote
Old 05-12-2014, 03:03 AM   #2
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Crank input


Cam input
WestfieldMX5 is offline   Reply With Quote
Old 05-12-2014, 11:00 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

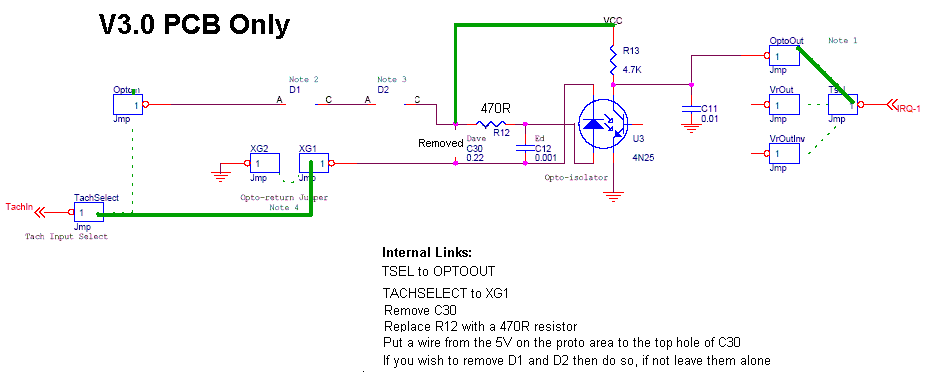

D1 and D2 have to do with the CAS input, not the ignition output.
