Default Ms-ii

So if I picked up a MS-II that was previously not used for a miata, what all do I need to do? I have a 96 that is stock besides test pipe, headers, and exhaust, but I am putting my turbo on as soon as I get a manifold and downpipe and intercooler. So, I was wondering where I can get a basemap for my current conditions, and advise on what to do when I put my turbo on.
hackerchris is offline   Reply With Quote
Old 03-20-2008, 02:40 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

needs to be modded for miata inputs.
Braineack is offline   Reply With Quote
Old 03-20-2008, 02:41 PM   #3
Senior Member
Thread Starter
iTrader: (13)

Join Date: Mar 2008
Location: Uniontown, OH
Posts: 510
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
needs to be modded for miata inputs.
What kind of modding? It would be a v 3.0 also if it matters.
hackerchris is offline   Reply With Quote
Old 03-20-2008, 03:41 PM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

http://www.msextra.com/ms2extra/MS2-Extra_4g63.htm

Or you could use a Ford EDIS setup which is a bit better tested but needs some more fabrication.
Matt Cramer is offline   Reply With Quote
Old 03-20-2008, 04:14 PM   #5
Senior Member
Thread Starter
iTrader: (13)

Join Date: Mar 2008
Location: Uniontown, OH
Posts: 510
Total Cats: 0
Default

Quote:
Originally Posted by Matt Cramer View Post
http://www.msextra.com/ms2extra/MS2-Extra_4g63.htm

Or you could use a Ford EDIS setup which is a bit better tested but needs some more fabrication.
What kind of "fabrication" are we talking about? And does it connect with my wiring harness I currently have? If not, how?
hackerchris is offline   Reply With Quote
Old 03-21-2008, 09:19 AM   #6
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

You'd need to attach a Ford-style crank trigger (like these) to your crankshaft pulley and fabricate a bracket for a sensor. EDIS would not wire up to your stock wiring; you'd have to make a new harness for it.
Matt Cramer is offline   Reply With Quote
Old 03-21-2008, 01:18 PM   #7
Junior Member

Join Date: Aug 2005
Location: So Cal
Posts: 125
Total Cats: 0
Default

some very old pics:

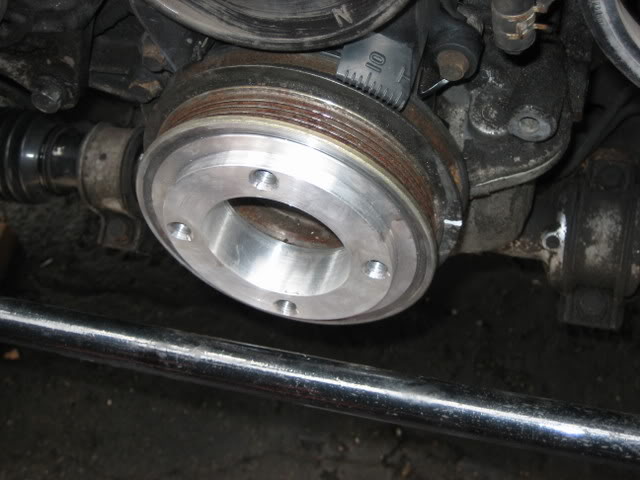

Name:  IMG_1964.jpg
Views: 2
Size:  47.0 KB

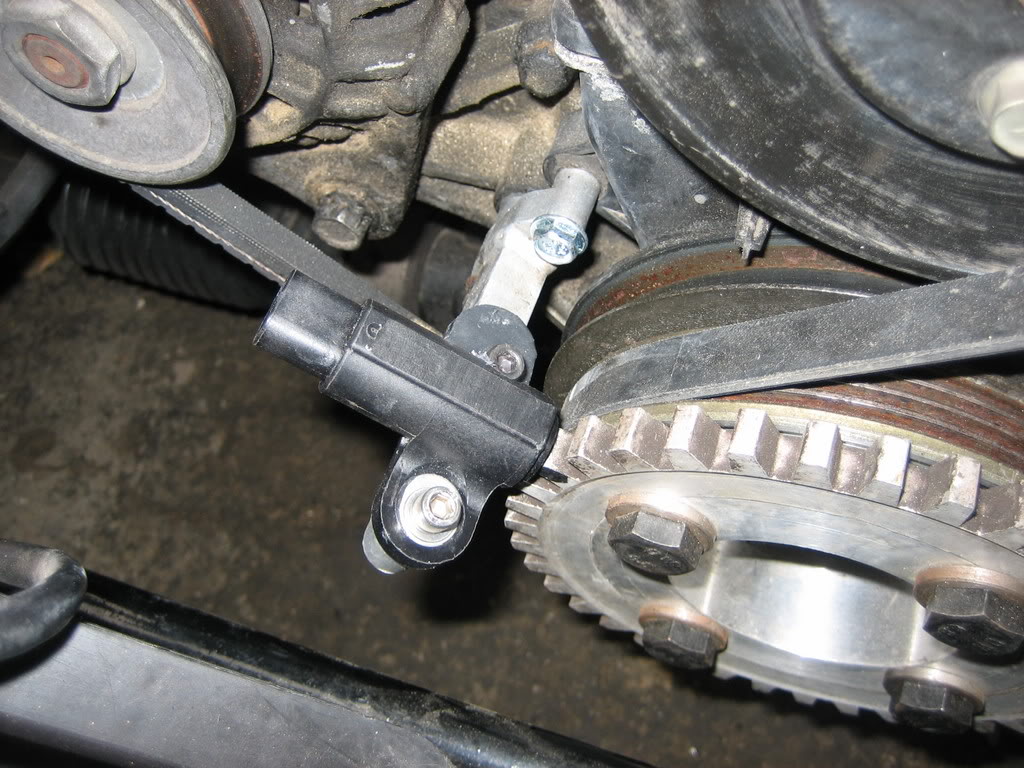

Name:  IMG_2036.jpg
Views: 2
Size:  157.4 KB
RdSnake is offline   Reply With Quote
Old 03-22-2008, 01:35 PM   #8
Senior Member
Thread Starter
iTrader: (13)

Join Date: Mar 2008
Location: Uniontown, OH
Posts: 510
Total Cats: 0
Default

Well, I am a complete noob at this, so bare with me. Why do I want this Ford-style crank trigger? Does everyone who uses a Megasquirt have to use one? What is the other thing right near it in the second picture?
hackerchris is offline   Reply With Quote
Old 03-24-2008, 12:07 PM   #9
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by hackerchris View Post
Well, I am a complete noob at this, so bare with me. Why do I want this Ford-style crank trigger?
It lets you use a Ford EDIS ignition module. This is the most popular and best tested way to get distributorless ignition control with MS-II.

Quote:
Does everyone who uses a Megasquirt have to use one?
No. We've had Megasquirt-I models running on stock Miata sensors for quite a while, and the MS2/Extra code has the ability to run the Miata sensors in the latest beta.

Quote:
What is the other thing right near it in the second picture?
Looks like it's the sensor on a machined bracket.
