Old 01-11-2013, 10:27 AM   #21
Elite Member
Thread Starter
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Very easy to change an afr table instead of trying yo dial in a new ve table.
miatauser884 is offline   Reply With Quote
Old 01-11-2013, 10:40 AM   #22
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
it wasn't until, *cringe*, techsalvager kept bring it up recently where I started doing more reading on it
Same, I cringed too, the bloody fool was actually right about something
richyvrlimited is offline   Reply With Quote
Old 01-12-2013, 02:36 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

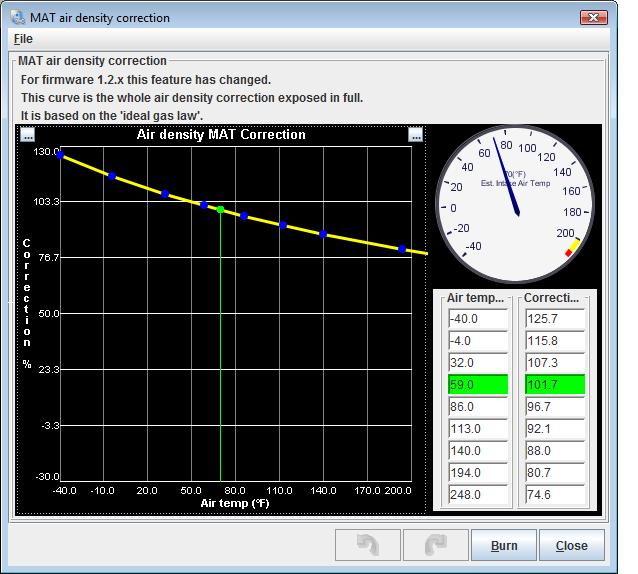

Okay, so here's the default curve:


This would be what it would look like with 50% correction from before:

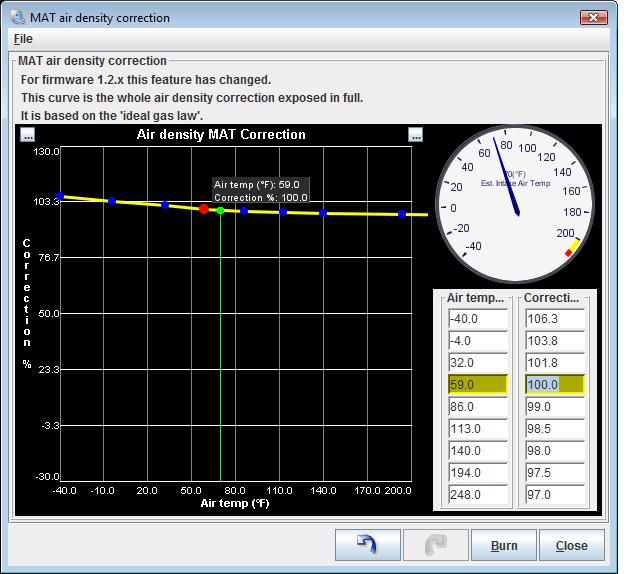

and here's what I'm going to start out with:


Not quite zeroed out, but far less aggressive pulling fuel in the warmer AIT temps. I'll fine tune from here to keep AFRs stable based on AIT temps at idle.
Attached Thumbnails
MS3 MAP setting FYI-ideal_mat_curve.jpg   MS3 MAP setting FYI-ideal_mat_curve_50.jpg   MS3 MAP setting FYI-ideal_mat_curve_custom.jpg
Braineack is offline   Reply With Quote
Old 01-12-2013, 02:38 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

I don't see an issue with "Use Event Min" for the MAP sampling, but the curve and settings need to be repopulated for our motors.
Braineack is offline   Reply With Quote
Old 01-12-2013, 06:04 PM   #25
Elite Member
Thread Starter
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Why dont you adjust the new curve to represent your old mat correctoon table?
miatauser884 is offline   Reply With Quote
Old 01-12-2013, 06:08 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

then the curve would be 100% across My previous MAT corrections table was an anti-corrections corrections table which nullified any enrichments.

We'll see how this goes; car is running it now.
Braineack is offline   Reply With Quote
