Default Orange wire

i have just bought a megasquirt premade for a 93 miata off of mt.net. it all looks good but in the harness adapter there is one orange wire that is unplugged... i was wondering if this is important.... any help is much appreciated!
Attached Thumbnails

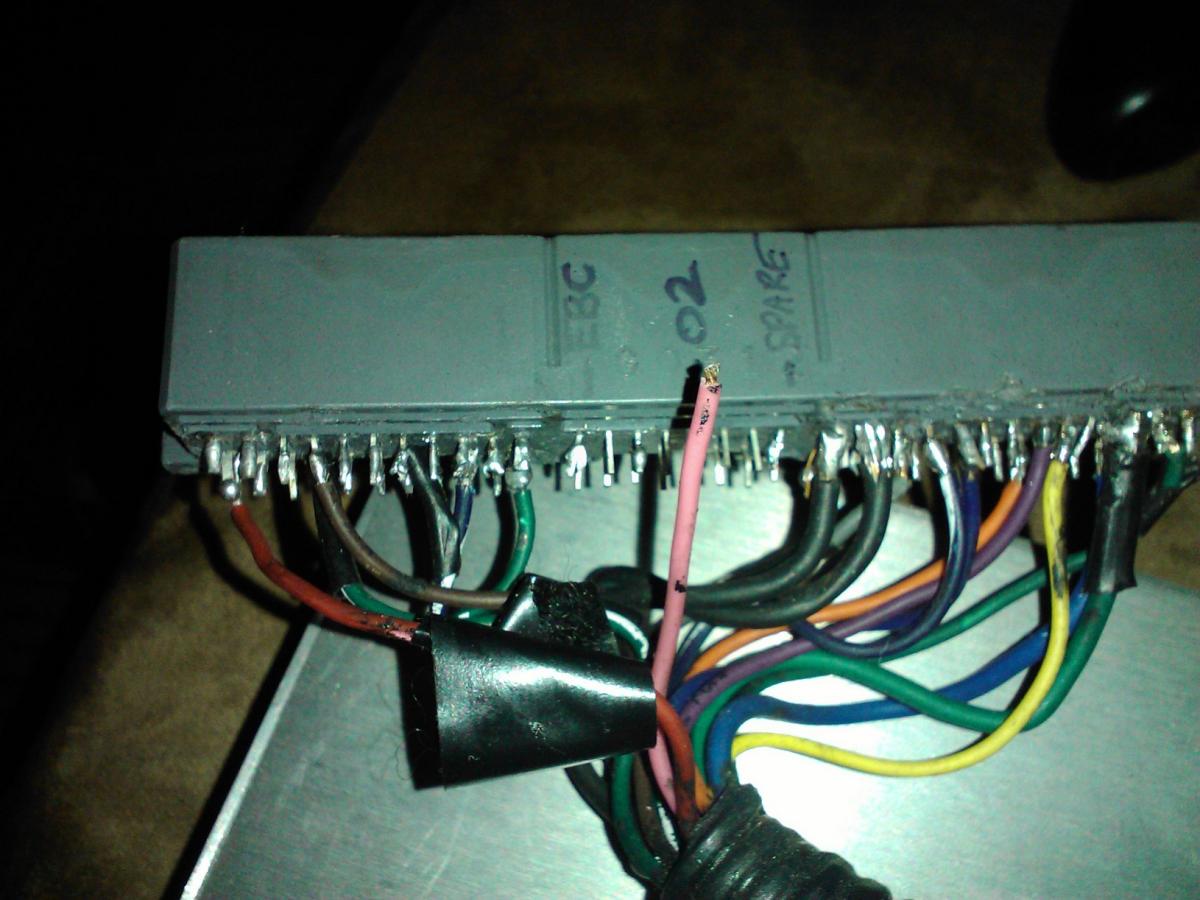

Orange wire-s__7e11.jpg
rapids0 is offline   Reply With Quote
Old 01-15-2013, 02:37 AM   #2
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Without even clicking on the photo and enlarging it, I'd say...WBO2 input?
thirdgen is offline   Reply With Quote
Old 01-15-2013, 02:55 AM   #3
Newb
Thread Starter

Join Date: Nov 2012
Posts: 34
Total Cats: -9
Default

so its not needed.... its a wideband input?
rapids0 is offline   Reply With Quote
Old 01-15-2013, 05:10 AM   #4
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

Looking at how the wires are soldered on to that connector, I'd literally de-solder the whole thing, get some heatshrink, and redo the whole thing. The solder joints look hideous.

Looks like stock o2 wire, which is PINK for a megasquirt harness (if you buy the wires from diyautotune). where it's hooked up to, you'll have to check on the pins itself. I believe stock O2 is pin 23 on the mainboard. I would double check it just in case after seeing the condition of that connector.

Orange should be airtemp I think

WIDEBAND if you're using megasquirt should be required. get a wideband sensor and connect it to that
bmxfuel007 is offline   Reply With Quote
Old 01-15-2013, 07:17 AM   #5
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

Are you colorblind?

That's a pink wire, and judging by that, and the marker on the connector that says "O2" I think it's a safe bet...

And that plug is scary. And RTFM. You def need 02 input
tasty danish is offline   Reply With Quote
Old 01-15-2013, 09:11 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Someone suffers from protanopia colorblindness.

That's the pink o2 input.


but omfg somone butchered that harness i had made...
Braineack is offline   Reply With Quote
Old 01-15-2013, 08:05 PM   #7
Newb
Thread Starter

Join Date: Nov 2012
Posts: 34
Total Cats: -9
Default

so its a o2 input... for a wideband? i plug the wideband to this?
rapids0 is offline   Reply With Quote
Old 01-15-2013, 08:16 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

Holy ****, that thing is a mess.
Savington is offline   Reply With Quote
Old 01-15-2013, 08:19 PM   #9
Newb
Thread Starter

Join Date: Nov 2012
Posts: 34
Total Cats: -9
Default

yeah im just gonna cut all the wires and desolder it and start from scratch. that way i can learn a little better. I bought this off of this forum i just forget the guys username...
rapids0 is offline   Reply With Quote
Old 01-15-2013, 09:02 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

yes and please.
Braineack is offline   Reply With Quote
Old 01-15-2013, 09:26 PM   #11
Newb
Thread Starter

Join Date: Nov 2012
Posts: 34
Total Cats: -9
Default

alrighty will post pics when finished probably gonna be a couple days to teach myself about and how to solder etc..
rapids0 is offline   Reply With Quote
