Talking Simple favor (engine grounds)

So I installed a 1.8 engine in my 90 miata(retaining the 1.6 wiring harness) and it runs okay but i think i may have a grounding issue, it being my megasquirt likes to randomly reset sometimes. Would someone be so kind as to describe to me what the wires look like that are the engine grounds for the 1990 wiring harness (black w/stripe, green w/polka dots,etc...) Or even better a picture would be amazing. ThankS!!
cheesecow1 is offline   Reply With Quote
Old 02-06-2008, 06:54 AM   #2
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Ben is offline   Reply With Quote
Old 02-06-2008, 11:37 AM   #3
Junior Member
iTrader: (1)

Join Date: Dec 2007
Location: Los Angeles
Posts: 143
Total Cats: 2
Default

an interesting follow-up. the wiring diagrams list a number like G111 next to each ground point and give a vague description of where it might be. is there any chart showing a more specific location? Probably in the FSM?
thebeerbaron is offline   Reply With Quote
Old 02-06-2008, 11:43 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Braineack is offline   Reply With Quote
Old 02-06-2008, 11:24 PM   #5
Junior Member
Thread Starter

Join Date: Apr 2006
Location: santabarbara,ca
Posts: 97
Total Cats: 1
Default

i take it those are the ground points, thanks Brain, wherever do you find all this delicious info?
cheesecow1 is offline   Reply With Quote
Old 02-06-2008, 11:30 PM   #6
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

he draws it in his spare time
Zabac is offline   Reply With Quote
Old 02-07-2008, 02:15 AM   #7
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Quote:
Originally Posted by cheesecow1 View Post
i take it those are the ground points, thanks Brain, wherever do you find all this delicious info?
You know that Japanese dude that designed the car, I think it was he in disguise...
miatamania is offline   Reply With Quote
Old 02-07-2008, 10:30 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

haha. i dunno ****. i just happen to have a Factory Shop Manual.

yeah the numbers are the spots....so under the booster, on the tow hook in the rear, and another spot just below it
Braineack is offline   Reply With Quote
Old 06-01-2013, 10:30 PM   #9
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

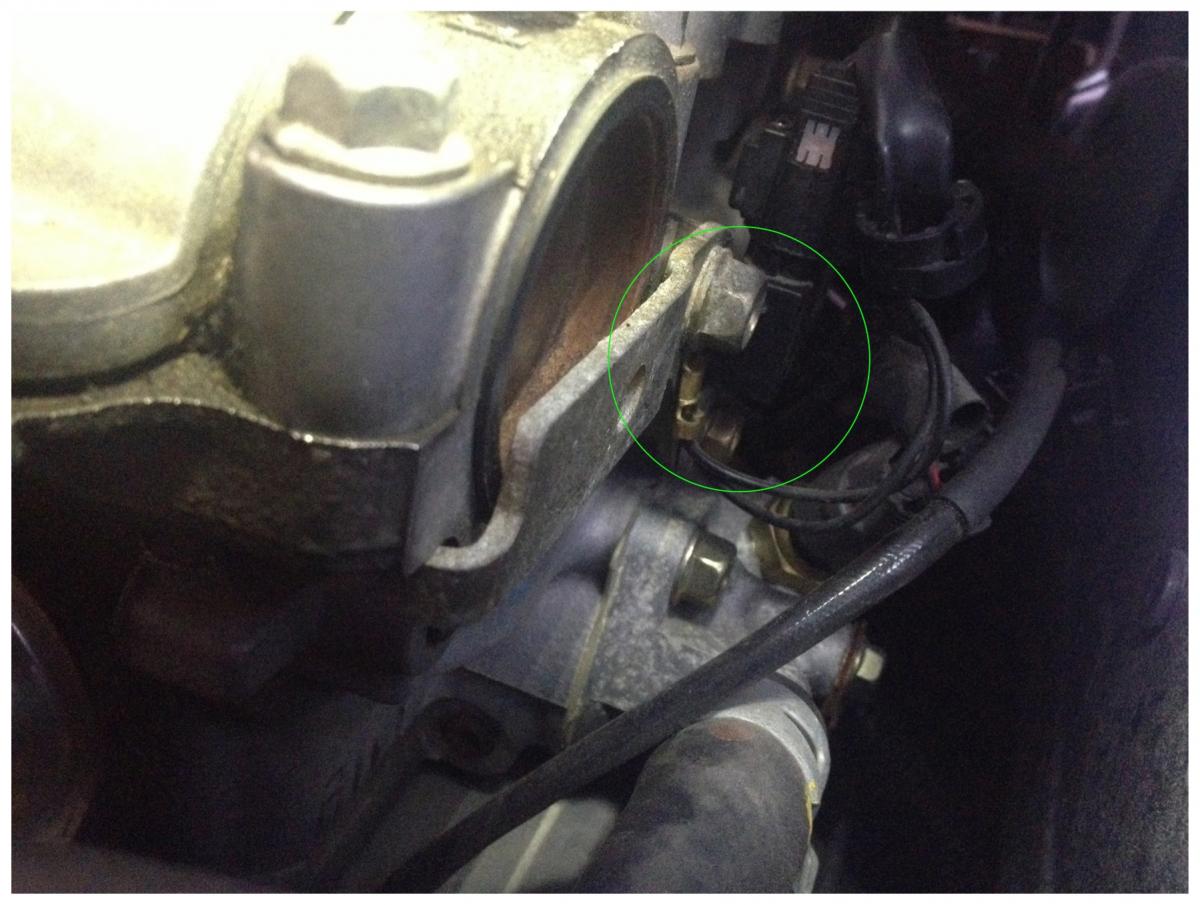

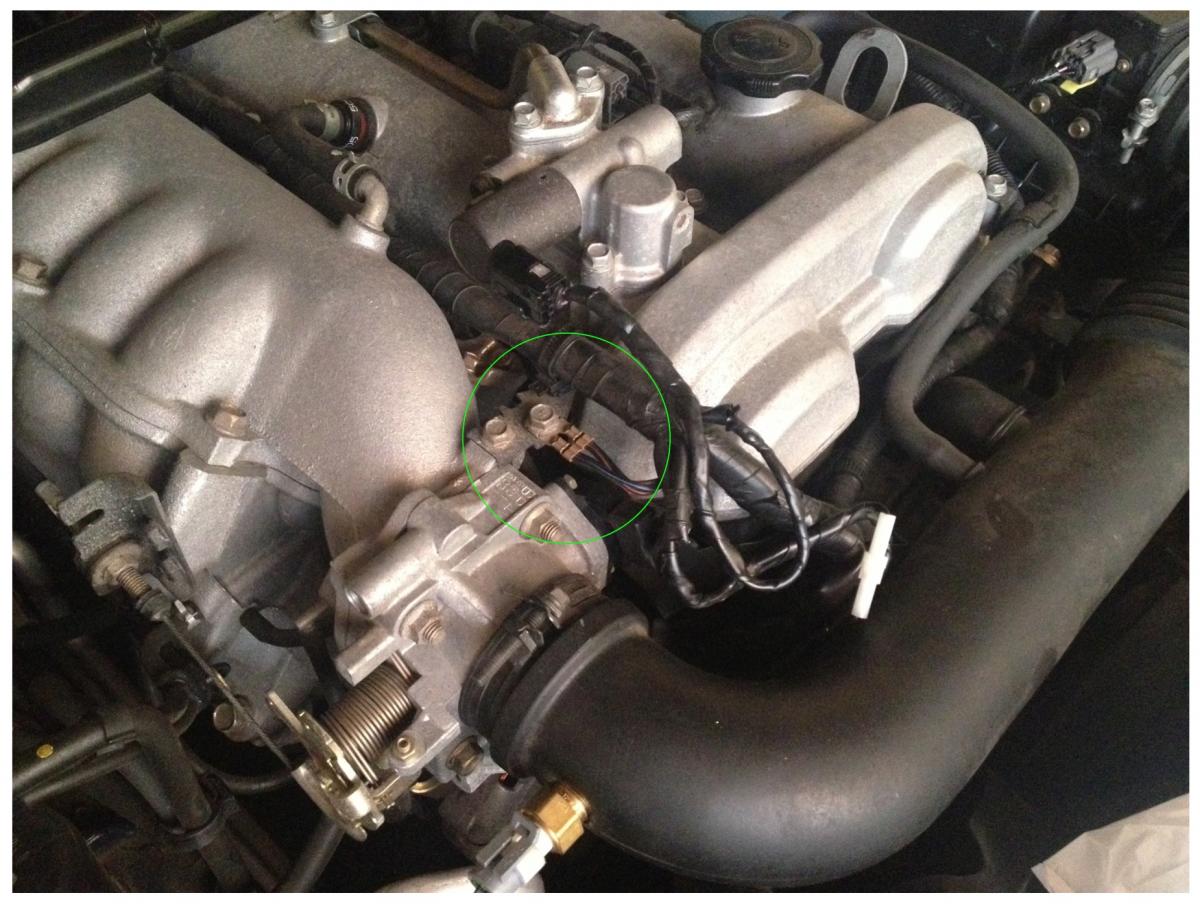

Resurrecting this post for the sake of newbs. I took some pictures of what I THINK are some of the ground points mentioned on my NB.

Let me know if I am correct.


Attached Thumbnails
Simple favor (engine grounds)-front-ground-point.jpg   Simple favor (engine grounds)-engine-ground-back.jpg
Chiburbian is offline   Reply With Quote
Old 11-14-2013, 09:46 PM   #10
Junior Member

Join Date: Oct 2010
Location: Tegelen, the Netherlands
Posts: 62
Total Cats: -9
Default

Time to zombiefie another ancient thread :P.

I've done a 1.8 swap into my '93 miata and I'm having some problems.
The symptoms are pointing towards a faulty ECU coolant thermosensor.
I've replaced it with a new one and measured the resistance of the old one, which was still fine.

Now I'm thinking I might have messed up some of the grounds.
The wiring schematic indicates the two grounds in the rear go on the back of the engine, but I've wired one to the firewall.
Is the firewall an acceptable place to ground this wire or is it in fact the cause of my problems?
Opgedronken is offline   Reply With Quote
Old 11-14-2013, 10:45 PM   #11
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 377
Total Cats: 0
Default

It's a pretty easy thing to check with a multimeter, but if you are worried why not move it?

Anytime you ground something at a different location you create a resistor, the effect is dependent on system. If you ground a fan somewhere, it doesn't care. If you ground an ecu somewhere and the sensor somewhere else you can create a voltage offset.
3rdCarMX5 is offline   Reply With Quote
Old 11-14-2013, 11:54 PM   #12
Junior Member

Join Date: Oct 2010
Location: Tegelen, the Netherlands
Posts: 62
Total Cats: -9
Default

Thanks for the answer.

I was going to try to bolt the grounds both to the block tomorrow anyway, but I wanted to know if my thinking made any sense at all :P.
Now to find a suitable point to attach them, the 1.8 doesn't have the same mounting points on the rear as the 1.6.
Opgedronken is offline   Reply With Quote
Old 11-18-2013, 10:06 AM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

The firewall is not an acceptable ground for critical sensors. The best ground is a sensor return wire from the ECU, followed by engine block and battery.
Ben is offline   Reply With Quote
Old 11-18-2013, 12:52 PM   #14
Junior Member

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

So it's not a good idea to ground my wideband and extra MS ground at the grounding strap on the head to the firewall?
Oochi is offline   Reply With Quote
Old 03-23-2014, 10:07 PM   #15
Junior Member
iTrader: (3)

Join Date: Mar 2009
Location: Birmingham, AL
Posts: 254
Total Cats: 3
Default

Is the sensor return wire pin 7 on the mainboard connector or there other pins as well? I'm just curious because I have my aem wideband grounded at the same spot on the engine head as the MS but I am getting a discrepancy of .3 on TS from my wideband gauge. I would like to get the gauges to match up correctly.
kww502 is offline   Reply With Quote
Old 03-23-2014, 11:17 PM   #16
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

For the record, the pictures I posted with the ground points have proved to be solid so far. Post #9
