Default Something went way wrong

Any thoughts or help is appreciated, and I need it bad.

I bought a MS of Braineak, so I went to install it tonight.

Started by unpluging the harnesses from the ECU, and removeing the Bipes from the system. Got all the wire soldered and heat shrinked. Disconnected the battery, and hooked up the MS, reconnected the battery. When I turned on the key I noticed none of the 3 LEDs lit up. Hit the ignition, and nothing. Then I remembered have to jump the fuel pump. Which I did, and still nothing, no start just cranking. So I hooked up the old ECU, and the car started, but ran like complete ****. Then it died, and wont re-start.

Any ideas or help is much appreciated. I have double checked, and tripple checked all connections. Checked all the fuses, and checked my ignition switch for good measure.

Thanks
Qckslvr is offline   Reply With Quote
Old 08-08-2009, 02:16 AM   #2
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Not sure if this helps but in one of the videos for the mspnp install they show a fuse being pulled out before they hook up the mspnp. never mind it was for some other electrical product i saw.
miatamike203 is offline   Reply With Quote
Old 08-08-2009, 08:27 AM   #3
Junior Member

Join Date: Aug 2007
Location: Burlington, VT
Posts: 419
Total Cats: 0
Default

can you connect a PC to the BrainSquirt and get it to talk to the PC?
It's not clear if you went through the software install portion of Brain's instructions (did you see he has a very good write up of how to install his megasquirts?)

What soldering did you have to do?
I'm in the process of installing my Brainsquirter. I've got a bunch of stuff to do like rip out the AFM, BEGI FPR, Bipes... and I've got a bit of wiring to get to. I should be ready to crank it this weekend.
jbresee is offline   Reply With Quote
Old 08-08-2009, 11:40 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

What happens when you try to connect your laptop? The unit was flash with firmware and a basemap and I tested all the circuits before shipping it out.
Braineack is offline   Reply With Quote
Old 08-08-2009, 12:28 PM   #5
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2009
Location: Salinas, CA
Posts: 446
Total Cats: 1
Default

nothing at all. Laptop won't see the MS, and I am using DIY's usb to serial adaptor too. I was able to get the car to start again this morning on the stock ECU. Again running like complete crap.

I hate electrical issues, always a pain to trace.
Qckslvr is offline   Reply With Quote
Old 08-08-2009, 09:01 PM   #6
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2009
Location: Salinas, CA
Posts: 446
Total Cats: 1
Default

MS is working and installed. Not sure what got it working, but Sav and I checked wires and connections again. This time the MS worked? why? I have no idea, but it is working
Qckslvr is offline   Reply With Quote
Old 08-08-2009, 10:49 PM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

Name:  emot-snoop.gif
Views: 1
Size:  8.6 KB

We are still getting resets, though, and that's where I get out of my depth on this stuff. It's not something we feel while driving, but anything more than about 3psi and it disconnects me from the ECU, which I interpret as a reset.

Also, AEM UEGO users: Brian's wideband output (Autometer wideband) is 0-4v = 10-16:1, best I can interpret. How do I make that show up correctly in my logs? I've only ever dealt with LC-1s, or a properly set-up AEM.
Savington is offline   Reply With Quote
Old 08-10-2009, 12:23 AM   #8
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2009
Location: Salinas, CA
Posts: 446
Total Cats: 1
Default

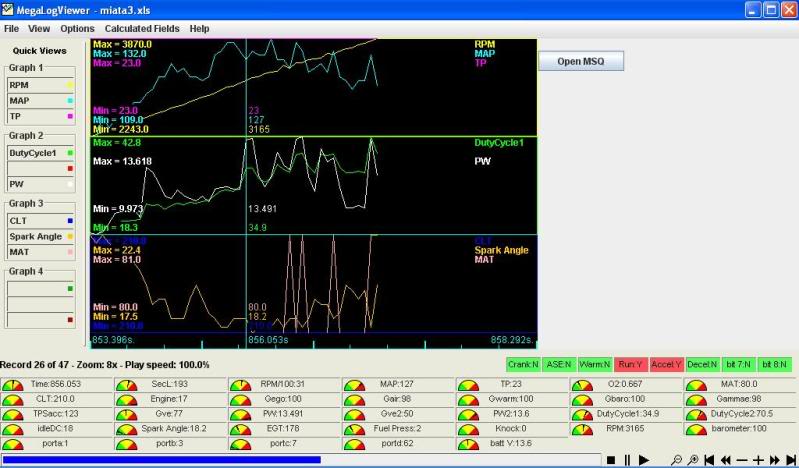

here is a screen shot of the MS resetting at 4-5 psi.

Name:  miatagraph.jpg
Views: 1
Size:  56.9 KB
Qckslvr is offline   Reply With Quote
Old 08-10-2009, 09:37 AM   #9
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by Savington View Post

Also, AEM UEGO users: Brian's wideband output (Autometer wideband) is 0-4v = 10-16:1, best I can interpret. How do I make that show up correctly in my logs? I've only ever dealt with LC-1s, or a properly set-up AEM.
I have it set to AEM Wideband (IIRC) in the configurator. I also modified some code that CJernigan had in his signature at the time. Hope that points y'all in the right direction, I don't remember the particulars.
kotomile is offline   Reply With Quote
Old 08-10-2009, 10:07 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

it doesn't look like resets....attach the xls file here.
Braineack is offline   Reply With Quote
Old 08-10-2009, 12:26 PM   #11
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2009
Location: Salinas, CA
Posts: 446
Total Cats: 1
Default

log 3 and 5 had a "reset" or at least something happened that locked up Megatune.
Attached Files
File Type: xls miata3.xls (6.3 KB, 88 views)
File Type: xls miata4.xls (73.4 KB, 58 views)
File Type: xls miata5.xls (6.2 KB, 72 views)
Qckslvr is offline   Reply With Quote
Old 08-10-2009, 01:48 PM   #12
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

None of those logs show resets. MegaTune itself freezing is often the result of a loose or troublesome USB adapter.
Matt Cramer is offline   Reply With Quote
Old 08-10-2009, 02:11 PM   #13
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

Megatune would freeze, but I got the same issue with Tunerstudio. It would disconnect me from the ECU and I couldn't reconnect until I unplugged and plugged back in. It only happens under boost, too; I was having Brian do -10in.hg runs from 3000rpm to 6000+rpm and it never once booted me off. Only under boost.
Savington is offline   Reply With Quote
Old 08-10-2009, 02:18 PM   #14
Junior Member
Thread Starter
iTrader: (6)

Join Date: Feb 2009
Location: Salinas, CA
Posts: 446
Total Cats: 1
Default

same for me when I used my lap top with the wife in the car. Ran a couple 0 boost runs and nothing. Ran 4 boosted runs and it would get kicked half the time. Sav and I are both using the same USB adaptor, he has a think pad on Vista I have an Asus on XP.

I am replacing the engine ground strap, it is pretty old. So I am making 2 1 gage grounding cables. Also got a new set of plugs, it needs them.
Qckslvr is offline   Reply With Quote
Old 08-10-2009, 05:12 PM   #15
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Sim boost on jimstim if possible?
Laur3ns is offline   Reply With Quote
