Default spark map: am i an idiot?

here my spark map, i was thinking about upping the boost and i want to know if my +/- 150kpa map was good for a starter

setup is
1990 1.6
mspnp1v3
familia 7.8:1 compression pistons
b6t a-beam rods
460's FC
toyota cop
artech log+3''everywhere
[email protected]

i know i can run mad timing with such low compression and 94 octane,but i just started tuning myself(tired of waiting for proper tuner who ''have some time'')

so, what can i do with it, get more agressive timing? if so(sorry to ask) but where and why?
or maybe just suicide myself for running that map


thanks a million
Attached Files
File Type: table sparkTbl_2012-06-25_21.41.04.table (2.9 KB, 147 views)

Last edited by kaboshe; 07-23-2012 at 12:08 PM.
kaboshe is offline   Reply With Quote
Old 07-23-2012, 12:00 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

can you take screen shot so i can view it at work?
Braineack is online now   Reply With Quote
Old 07-23-2012, 12:11 PM   #3
Junior Member
Thread Starter
iTrader: (15)

Join Date: Apr 2010
Location: quebec,canada
Posts: 403
Total Cats: 1
Default

sure can,
Attached Thumbnails

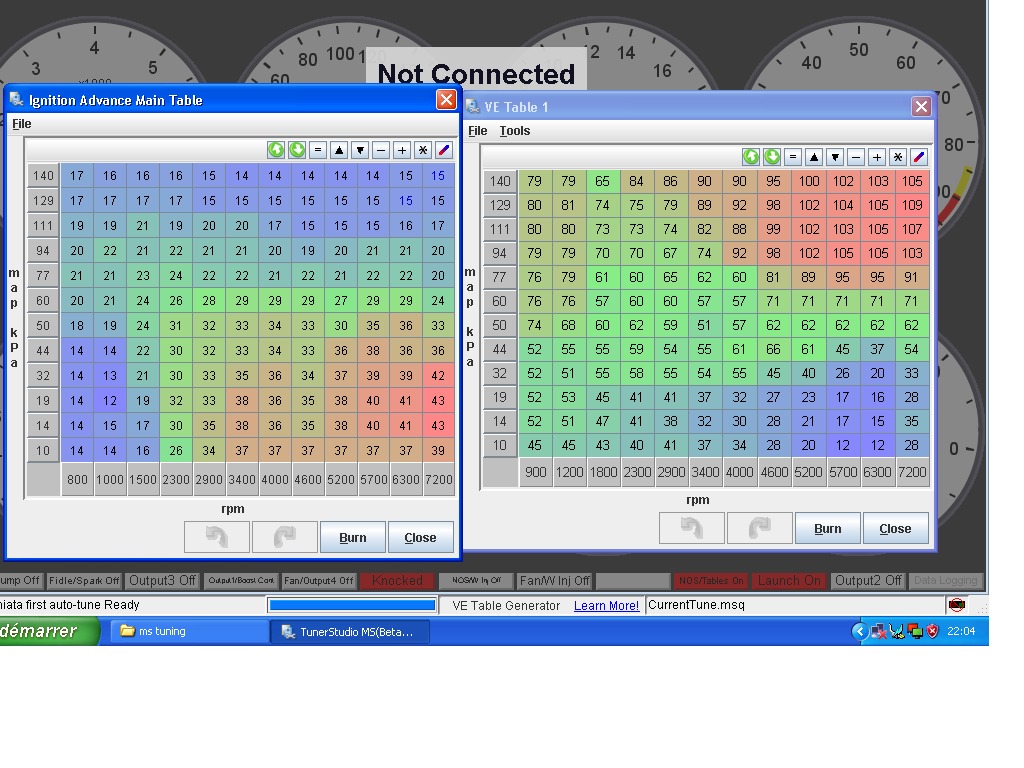

spark map: am i an idiot?-tablescreenshots.jpg
kaboshe is offline   Reply With Quote
Old 07-23-2012, 12:16 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

your kPa scaling on your IGN table is messed up. your 60Kpa row should be at 100kPa.

maybe try to aim for something more like this:



NOTE: the 18 cells at idle should be like 10-12
Attached Thumbnails

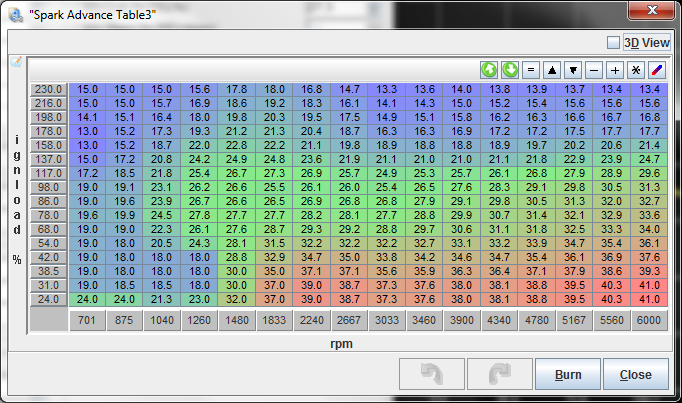

spark map: am i an idiot?-sparkmap_ac.png
Braineack is online now   Reply With Quote
Old 07-23-2012, 12:27 PM   #5
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I have the feeling you adjusted the kpa values however kept the original values for the cells. Where you were at 100kpa at 29 degrees you're not at 60kpa. Know what i mean?
triple88a is offline   Reply With Quote
Old 07-23-2012, 12:38 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

and FWIW you cant acheive 19-14-10 kPa. no reason to have the map go down that far.
Braineack is online now   Reply With Quote
Old 07-23-2012, 04:35 PM   #7
Junior Member
Thread Starter
iTrader: (15)

Join Date: Apr 2010
Location: quebec,canada
Posts: 403
Total Cats: 1
Default

hoping not to get buttraped,
here my new map,scaled to 250kpa,using the sparkmap that Mr.Brain have proposed just before.
i tried to get something straight, havent tried it yet.

should be safe-ish?
Attached Thumbnails

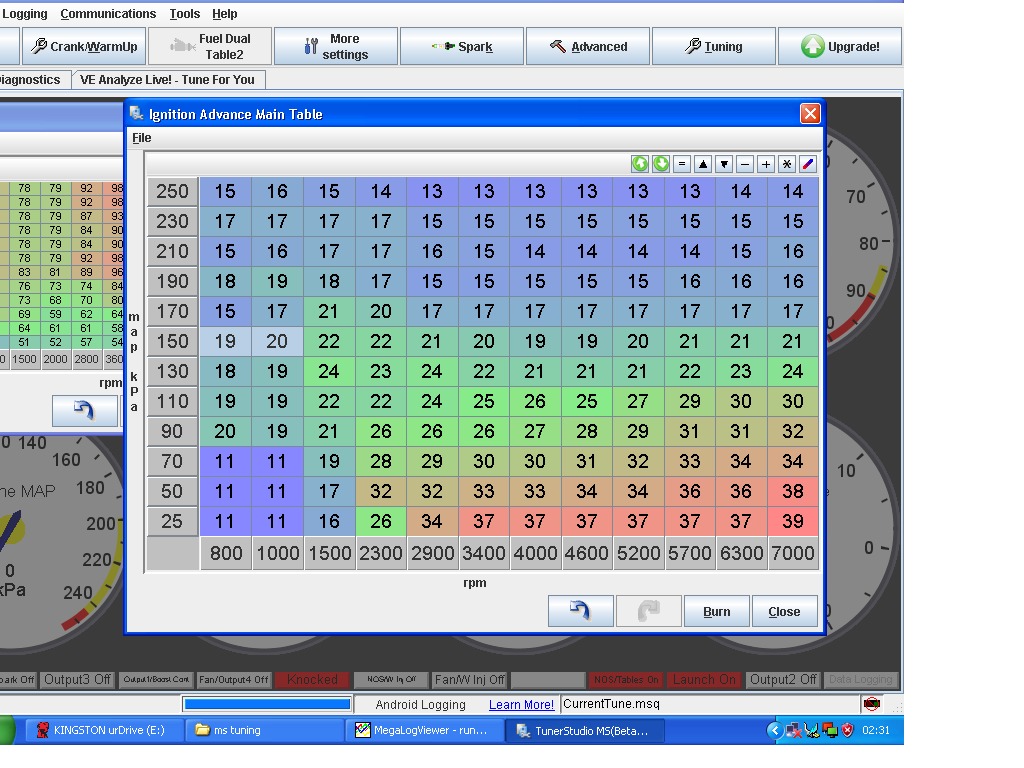

spark map: am i an idiot?-spark.jpg
kaboshe is offline   Reply With Quote
Old 07-23-2012, 04:46 PM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Are you planning on running 21ish psi?

Your first map was good to under 6psi, this one goes up to just over 21.

I found it easiest to alter my maps in Excel. Copy/paste, then get rid of the rows above your target pressure. Interpolate between the rows you're left with to end up with 12 rows.
curly is offline   Reply With Quote
Old 07-23-2012, 04:55 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

you really only need like 2-3 rows for boost
Braineack is online now   Reply With Quote
Old 07-23-2012, 05:00 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
you really only need like 2-3 rows for boost
Our cars drive differently then.
hustler is offline   Reply With Quote
Old 07-23-2012, 05:31 PM   #11
Junior Member
Thread Starter
iTrader: (15)

Join Date: Apr 2010
Location: quebec,canada
Posts: 403
Total Cats: 1
Default

curently running 15psi, i dont want to go above 20, but i want to be sure of what's happening when i boost.

hope it's safe enough.i really, really need some dyno time.
kaboshe is offline   Reply With Quote
Old 07-23-2012, 05:45 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

Quote:
Originally Posted by hustler View Post
Our cars drive differently then.
when you boost, you normally hold the pedal down right?

and this in turn holds the pressure steady after boost builds?

so it sorta travels like this:



if you're always making the same peak, and every time in between is just as boost is built during spool/shifting. Why would you need more rows?

im being serious. why do I need those two rows above? why would I need 4 between if it interpolates?
Attached Thumbnails

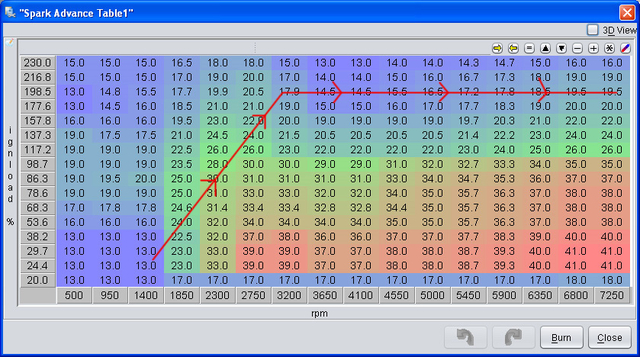

spark map: am i an idiot?-ms-iii_explained.jpg
Braineack is online now   Reply With Quote
Old 07-23-2012, 05:52 PM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
when you boost, you normally hold the pedal down right?

and this in turn holds the pressure steady after boost builds?

so it sorta travels like this:



if you're always making the same peak, and every time in between is just as boost is built during spool/shifting. Why would you need more rows?

im being serious. why do I need those two rows above? why would I need 4 between if it interpolates?
I misunderstood, but I still have values in there for possible over-boost, prior to boost-cut.

Never question me.
hustler is offline   Reply With Quote
Old 07-23-2012, 09:04 PM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by hustler View Post
Never question me (again).
ftfy.

What does the MS do when it goes above and beyond your tables? Does it just stay at the last known value?
curly is offline   Reply With Quote
Old 07-23-2012, 09:07 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,831
Total Cats: 1,786
Default

yes.
Braineack is online now   Reply With Quote
