Old 03-15-2010, 02:25 PM   #21
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by ismael_pt View Post
Not MS map but worth to contribute:

Just loaded this and tested, it feels so much smoother than what I had. You wouldn't mind sending me your fuel map would you ?
dgmorr is offline   Reply With Quote
Old 03-15-2010, 02:31 PM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

It's awfully retarded.
Braineack is offline   Reply With Quote
Old 03-15-2010, 02:47 PM   #23
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by Braineack View Post
It's awfully retarded.
Which area? Seems pretty aggressive to me
dgmorr is offline   Reply With Quote
Old 03-15-2010, 02:53 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

whoops...forgot to scroll i was looking till 4000rpm.
Braineack is offline   Reply With Quote
Old 03-15-2010, 03:14 PM   #25
Senior Member
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Quote:
Originally Posted by Dlaitini View Post
Anyone happening to have to run on 91 octane fuel? I had 93 everywhere in North Carilona, not so much here in Utah

I've taken a bunch of timing out of the reg map thet DIY has, just wondering if someone else has to daily drive with 91
This is the table I've been running with our crap gas.

If you drove ~30 minutes you could get 92 up in Idaho
nicacus is offline   Reply With Quote
Old 03-16-2010, 06:56 PM   #26
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Granada, Spain
Posts: 336
Total Cats: 2
Default

Quote:
Originally Posted by dgmorr View Post
Just loaded this and tested, it feels so much smoother than what I had. You wouldn't mind sending me your fuel map would you ?
Sorry dgmorr, my ecu is currently disassembled. I'm working on the diode failsauce.
ismael_pt is offline   Reply With Quote
Old 03-16-2010, 07:47 PM   #27
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by ismael_pt View Post
Sorry dgmorr, my ecu is currently disassembled. I'm working on the diode failsauce.
What happens with our ecu?
Rafa is offline   Reply With Quote
Old 03-16-2010, 09:33 PM   #28
Senior Member
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post


I haven't run any boost with this table yet.. but hot damn it's full of win
nicacus is offline   Reply With Quote
Old 03-16-2010, 10:00 PM   #29
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

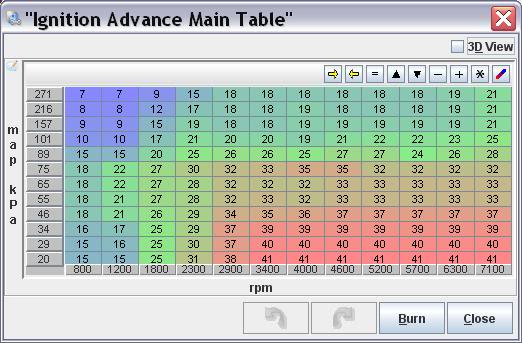

Made my current dyno numbers with this map.

Name:  Sparttable.jpg
Views: 7
Size:  44.0 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 04-04-2010, 02:56 AM   #30
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Here's the table I have loaded in my car at the moment. It's modified version of a table brain showed me...Seems to be runnin great, but there is probably still some untapped hp.

CURRENT:
currenttune.jpg?t=1270360389

WHAT BRAIN STARTED ME OFF WITH:
Cspence is offline   Reply With Quote
Old 04-04-2010, 10:09 AM   #31
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default



You need to take what Brain provided to a dyno and go from there. When you adjust stuff on the street you're wasting time because you don't know what those spark adjustments are doing. Run what he gave you with no detonation until you can get on the dyno.
hustler is offline   Reply With Quote
Old 04-21-2010, 08:11 PM   #32
Newb

Join Date: Feb 2010
Posts: 13
Total Cats: 0
Default



looks like I am way retarded (as in not as advanced) as most of the peeps on here. This is a bone stock 96. I changed the 128 and 156 kpa lines (+3 deg) last night and it gave me 9hp up to 184hp with 10psi (under 10 actually) boost. My max boost is about 163kpa - my spark angle is about 15deg at 6000rpm (I think that means 25 deg advance) - 10 deg mechanical + 15pspnp degrees. Is this too conservative? I know the base map for fuel was crazy rich on the MSPNP9697 (9:1) during boost.
PreMixYZ is offline   Reply With Quote
Old 04-21-2010, 09:43 PM   #33
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

Quote:
Originally Posted by PreMixYZ View Post


looks like I am way retarded (as in not as advanced) as most of the peeps on here. This is a bone stock 96. I changed the 128 and 156 kpa lines (+3 deg) last night and it gave me 9hp up to 184hp with 10psi (under 10 actually) boost. My max boost is about 163kpa - my spark angle is about 15deg at 6000rpm (I think that means 25 deg advance) - 10 deg mechanical + 15pspnp degrees. Is this too conservative? I know the base map for fuel was crazy rich on the MSPNP9697 (9:1) during boost.
15 degrees is 15 degrees. you dont add on any sort of "mechanical advance", as long as your MS is set up properly...
therieldeal is offline   Reply With Quote
Old 04-21-2010, 10:00 PM   #34
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by PreMixYZ View Post


looks like I am way retarded (as in not as advanced) as most of the peeps on here. This is a bone stock 96. I changed the 128 and 156 kpa lines (+3 deg) last night and it gave me 9hp up to 184hp with 10psi (under 10 actually) boost. My max boost is about 163kpa - my spark angle is about 15deg at 6000rpm (I think that means 25 deg advance) - 10 deg mechanical + 15pspnp degrees. Is this too conservative? I know the base map for fuel was crazy rich on the MSPNP9697 (9:1) during boost.
Yea you look way retarded . Seriously though you could pull a bit more timing
Cspence is offline   Reply With Quote
Old 04-21-2010, 10:02 PM   #35
Newb

Join Date: Feb 2010
Posts: 13
Total Cats: 0
Default 15 degrees is 15 degrees?

The first step in setting up the MSPNP is to set your timing to EXACTLY 10 deg advanced.

When the MSPNP says it is going to advance the timing 15 degrees I am assuming that is in addition to the 10 degrees (standard) advance that you set when you start. Am I off in left field on this? Don't make me read the manual!
PreMixYZ is offline   Reply With Quote
Old 04-21-2010, 10:13 PM   #36
Junior Member

Join Date: Aug 2006
Location: Cedar City, UT
Posts: 228
Total Cats: 4
Default

the manual would have said that 15 degrees is 15 degrees...

when you lock the ecu into 10 degrees to set your CAS or trigger angle, its set at 10 degrees, when you change it back to -10 so it runs off the spark map, if that part of the table is 15 degrees, then your car is going to be at 15... not 25
Dlaitini is offline   Reply With Quote
Old 04-21-2010, 11:26 PM   #37
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

you set the trigger offset with the car running at 10 degrees because the car isnt going to idle if you try to set it at 0 degrees :P

with your car running normally check your timing with a timing light. it should match what you see on your laptop display.
therieldeal is offline   Reply With Quote
Old 04-22-2010, 12:20 AM   #38
Newb

Join Date: Feb 2010
Posts: 13
Total Cats: 0
Default

ok...then my timing is even more retarded than I thought. So if 15 deg is 15 degs and I am running 15 deg at 4500 with 163kpa then I think I have some room to improve on that 184hp. Thanks for making that clear.....When I get back to a dyno (next Tuesday) I will post the new Spark Table and the Dyno chart...be nice to see that. Does "everyone" have a knock sensor, or do you trust your ear to save the rods?
PreMixYZ is offline   Reply With Quote
Old 04-22-2010, 08:08 PM   #39
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

i tried running a knocksense when i first started tuning the car, but personally i couldnt get it to work very well. i think it may have been my sensor location but who knows.

i have the whole setup in a box in my garage somewhere if you'd like to try it cheap
therieldeal is offline   Reply With Quote
Old 04-23-2010, 10:37 AM   #40
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by nicacus View Post
This is the table I've been running with our crap gas.

If you drove ~30 minutes you could get 92 up in Idaho
Yikes! We don't run that much advance on 93 octane!
Matt Cramer is offline   Reply With Quote
