Old 05-25-2010, 11:51 AM   #61
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

anyone??

i suppose i should post my current map for critique. i'll do that tonight if i have a chance.
therieldeal is offline   Reply With Quote
Old 06-13-2010, 07:09 PM   #62
Junior Member
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

I would like your comments on my map. I am running this with 50-50 water/methanol injection.

gianic is offline   Reply With Quote
Old 06-13-2010, 08:05 PM   #63
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Woah baby! Wish I could get away with a spark table like that I guess thats what WI and a built motor can do for you...
Cspence is offline   Reply With Quote
Old 06-13-2010, 08:38 PM   #64
Junior Member
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Do you find it extra aggressive ? I was wondering if I could add some timing from 210-300.

I am hitting 27.5-28 psi at the most.
gianic is offline   Reply With Quote
Old 06-14-2010, 01:07 AM   #65
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by gianic View Post
Do you find it extra aggressive ? I was wondering if I could add some timing from 210-300.

I am hitting 27.5-28 psi at the most.
28 psi ... I'd say your timing is aggressive. I mean your pulling like 24* at 15-18 psi. Most of us, myself included, are in the 17*ish range. Granted our motors arn't built, but I'm not sure I'd be advancing my timing any more than what you are running now...
Cspence is offline   Reply With Quote
Old 06-15-2010, 12:10 AM   #66
Junior Member

Join Date: Dec 2009
Location: Shelbina, MO (North East)
Posts: 335
Total Cats: 0
Default

Just as a note on this... I was cruising this weekend to an auto-x event and noticed my oil pressure gauge doing the dance at light load. I found the IGN map locations of the dancing and took 2 degrees out. Dancing stopped. (50-30 kPa in the 3400-4000 RPM range)

So for me there will be no more than 34 degrees of advance no matter what. Well that probably was also running 15-16.5 AFR too. I don't see any point to go further.
rweatherford is offline   Reply With Quote
Old 06-25-2010, 01:28 AM   #67
Junior Member

Join Date: Jan 2010
Location: Atlanta GA
Posts: 167
Total Cats: 0
Default

I was just wondering if anyone had run the Brain "FunMap" on a 1.8?

I'm still running the base DIY map and I've got till late fall before I can make it out to the Dyno.
D.dutton9512 is offline   Reply With Quote
Old 06-25-2010, 05:00 AM   #68
Junior Member

Join Date: Oct 2008
Location: Manchester, UK
Posts: 274
Total Cats: 0
Default

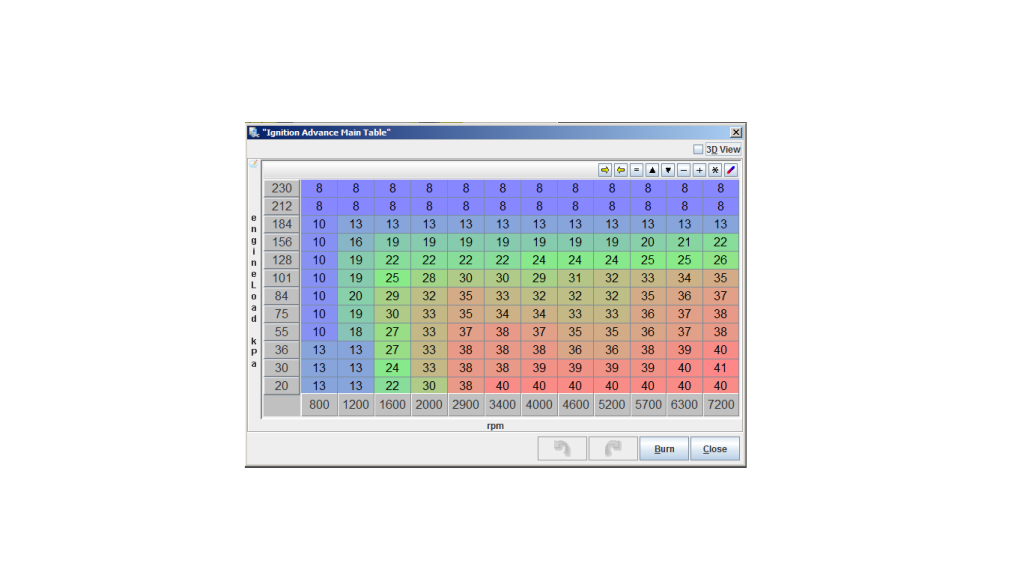

I've been running a revision of the Brain map but modified for linear boost supplied from my supercharger. Boost is a max of ~8psi (156kpa) for me so ignore the higher load areas. I've also bumped up low rpm, low load areas (around 2krpm) to improve fuel economy as I spend alot of time in those cells crawling in rush hour traffic to and from work.

Name:  Currentspark8psi.png
Views: 6
Size:  83.5 KB

(p.s. image crop fail, can't be arsed to sort it but you can at least see the figures so not worthy of "fail factor" status )
CRAIGO is offline   Reply With Quote
Old 06-25-2010, 09:26 AM   #69
Junior Member

Join Date: Jan 2010
Location: Atlanta GA
Posts: 167
Total Cats: 0
Default

Thanks Craigo, I might try your map later today.

Although, mind if I asked why you pulled so much timing at idle?
D.dutton9512 is offline   Reply With Quote
Old 06-25-2010, 02:07 PM   #70
Junior Member

Join Date: Jan 2010
Location: Atlanta GA
Posts: 167
Total Cats: 0
Default

Ok, here's my current. This is a barely modified version of the stock DIY map. I've also rescaled my map as I'm not going anywhere near the kpa some of you guys are. I'm taking as much time as I can today at work to find where I can safely add some timing and keep everything smooth.

I'm very open to suggestions. Sorry about the quality, I actually had to photograph the screen (once again, at work).

D.dutton9512 is offline   Reply With Quote
Old 06-25-2010, 02:42 PM   #71
Junior Member

Join Date: Oct 2008
Location: Manchester, UK
Posts: 274
Total Cats: 0
Default

Im pulling timing at idle like the stock ECU would i.e. 10-14deg BTDC. This gives me a rock steady 800rpm idle and AFRs happily sit ~14.7:1 even without GEGO correction on.

Too much timing at idle like some of the maps suggest on this thread push my idle up too high for my liking. If I run 20 deg BTDC my idle rises to 1000rpm.
CRAIGO is offline   Reply With Quote
Old 06-25-2010, 02:46 PM   #72
Junior Member

Join Date: Jan 2010
Location: Atlanta GA
Posts: 167
Total Cats: 0
Default

My idle is around 18. I did so to help with stalling when the a/c is on. Plus I have some wicked idle droop, even without a/c, that I'm working on fixing.
D.dutton9512 is offline   Reply With Quote
Old 07-22-2010, 10:37 PM   #73
Newb

Join Date: Jul 2009
Location: San Francisco, CA
Posts: 13
Total Cats: 0
Default

Wrong section

Last edited by RMDZidane; 07-22-2010 at 10:40 PM. Reason: wrong section :(
RMDZidane is offline   Reply With Quote
Old 05-13-2011, 04:38 PM   #74
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

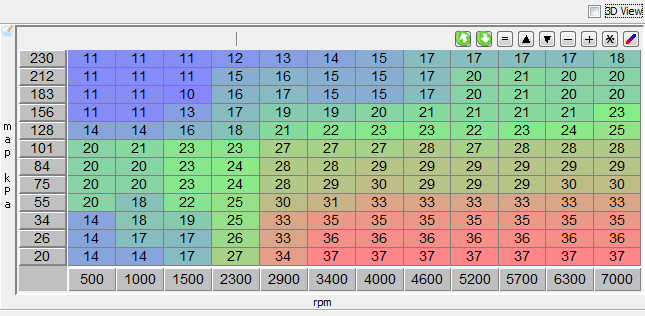

This is after proper detcan dyno tuning.

BEGI S3, GT2560R @13psi, MSPNP9495, 3" w/CAT.
Attached Thumbnails
Spark Map:  ITT I beg you to post..-turbospark.png

Last edited by Laur3ns; 05-14-2011 at 05:02 PM.
Laur3ns is offline   Reply With Quote
Old 05-13-2011, 04:51 PM   #75
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by Spookyfish View Post
This is after proper detcan dyno tuning.

BEGI S3, GT2560R @14.5psi, MSPNP9495, 3" w/CAT.
did it stop your bouncing oil gauge or 6k rpm dip
miatauser884 is offline   Reply With Quote
Old 05-13-2011, 04:56 PM   #76
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

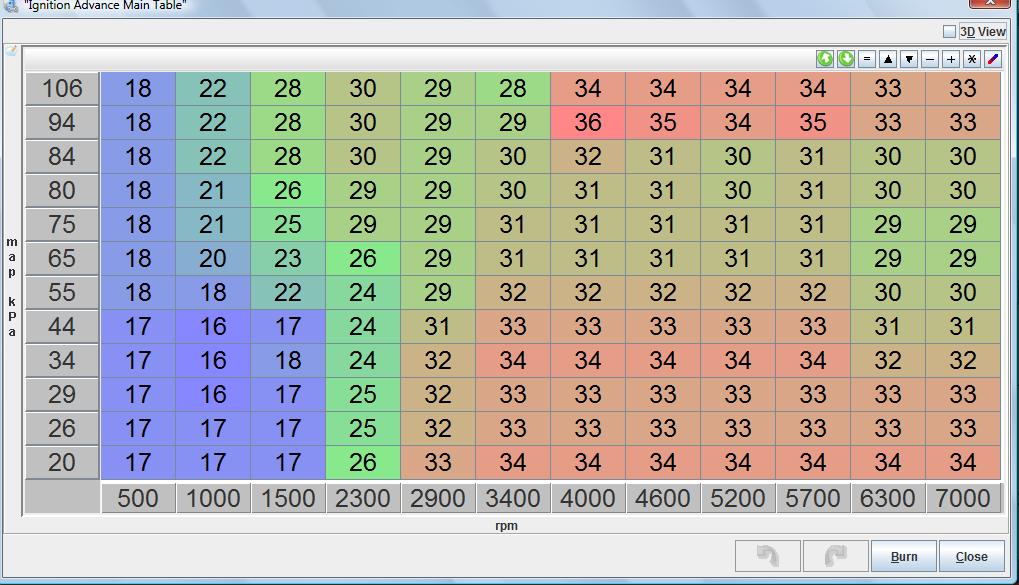

Here's the one I was running last year. Details in sig.
Attached Thumbnails
Spark Map:  ITT I beg you to post..-sparktable_current.jpg
Oscar is offline   Reply With Quote
Old 05-13-2011, 05:02 PM   #77
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by djp0623 View Post
did it stop your bouncing oil gauge or 6k rpm dip
https://www.miataturbo.net/showpost....2&postcount=62
Laur3ns is offline   Reply With Quote
Old 05-13-2011, 07:27 PM   #78
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

mine, still tuning it

I'm thinking of putting 14kpa instead of 19kpa on the bottom row.



Uploaded with ImageShack.us
Techsalvager is offline   Reply With Quote
