Default TIP:64 pin connector

Hi, Im about to bulid a MS1 and have been doing a lot of reading in this excellent forum. My plan is to get my MS1 up and running as a standalone before I install a turbosystem (BEGI S1).

I would just share a tip on sourcing a 64 pin connector.

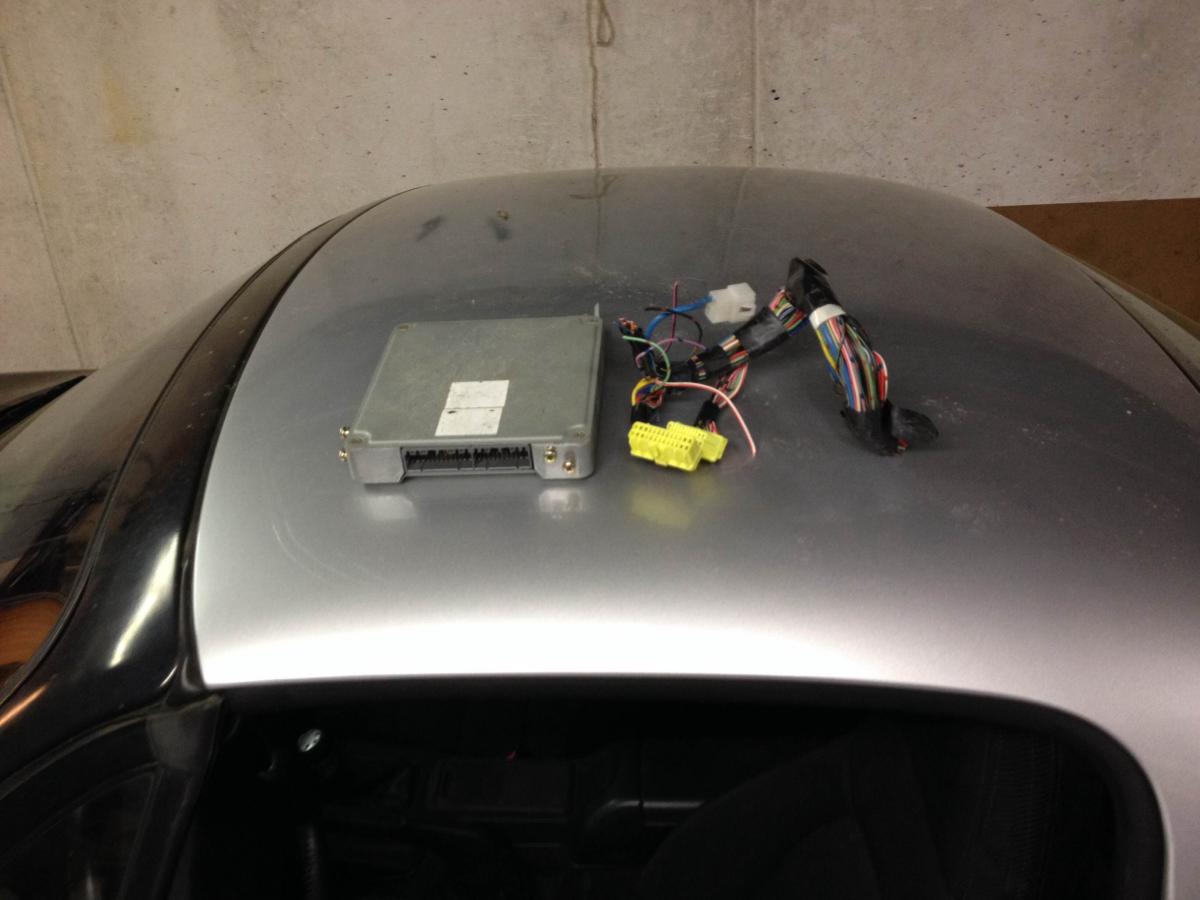

Mazda 323 has the same connector, mine was from a 1995, paid 5 $ at the scrapyard for ECU with connectors
Attached Thumbnails
TIP:64 pin connector-m323cu.jpg
kaimal is offline   Reply With Quote
Old 04-26-2014, 06:59 PM   #2
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Good tip, but you're gonna get a lot of **** for building an MS1.
Onyxyth is offline   Reply With Quote
Old 04-26-2014, 09:23 PM   #3
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Skip building an MS1, go straight to building a MS3x.

You can also buy the connectors from DIY Autotune for reasonably cheap.
shuiend is offline   Reply With Quote
Old 04-27-2014, 07:25 AM   #4
Newb
Thread Starter

Join Date: Oct 2011
Location: Sweden
Posts: 4
Total Cats: 0
Default

As this is my first encounter with ECU,s and beeing on a budget I thought the MS1 was good to start with
kaimal is offline   Reply With Quote
Old 04-27-2014, 08:53 AM   #5
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

The problem is the MS1 is really, really outdated at this point. Save up a few more dollars and head straight to the MS3x. You'll be thanking us once you get the car running, because the MS3 has a ton of improvements over ms1/ms2. Larger tables, more input/outputs, usb connection (no bsing with serial) etc etc.
Onyxyth is offline   Reply With Quote
Old 04-27-2014, 09:17 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

ms3x is still a budget ecu.
Braineack is offline   Reply With Quote
Old 04-27-2014, 05:54 PM   #7
Newb
Thread Starter

Join Date: Oct 2011
Location: Sweden
Posts: 4
Total Cats: 0
Default

Ok thank you all for the advice I'm convinced I'll go for the MS3!
kaimal is offline   Reply With Quote
Old 06-23-2014, 05:12 PM   #8
Newb

Join Date: Jun 2014
Posts: 1
Total Cats: 0
Default

Hi, I agree that MS3 should be in budget and moreover if MS1 is outdated then you not only face problems in procurement but also in price because you may have to pay more for MS1 than MS3.
mercimek is offline   Reply With Quote
