Default Upgrading to MS-II, please sanity check some of my settings

I'm upgrading my MS1 v3 board to MS-II. I did the board mods per 's little color-coded how-to:
IAC1A to JS10
470Ω between 5V and JS10
TACHSELECT to XG1
TSEL to OPTOUT
5V to top of C30
swapped IGN and IAC2B
Removed D1 and D2 jumpers on top of board
Replaced R12 with 470Ω

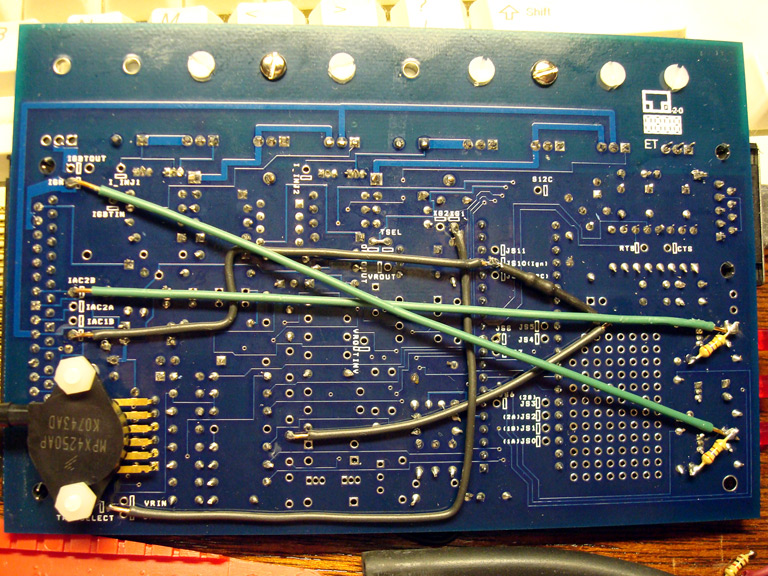

As you can see from the attached pic, I have my spark outputs the same as the original MS1 setup (just swapped). I have not done JP's spark mod.

I got the firmware flashed just fine, using MS2 Extra 3.0.3r. I'm working off of the DIYPNP base map and changing it where needed. I noticed that map has spark inverted. Mostly I just want to verify that I should still be running normal (going low) with how my outputs are configured, and that there is not some difference just between MS1 and MS-II. Confirm?

These are DIY's values for the stock CLT sensor:
-4 / 16150
104 / 1150
176 / 330
bias 2490

and the default settings in tunerstudio for the GM IAT:
-40 / 100700
86 / 2238
210 / 177
bias 2490

But for my parallel setup (without R7 installed) I should substitute 1450 for the CLT and IAT bias values, same as I was using for MS1, correct?

I scaled reqfuel for my 550s but it looks like the DIYPNP base map will have me running pig rich if the fueling calcs are at all similar between MS1 and MS2. Like my idle VE cells were in the 20s and the base map is in the 40s. Thankfully VEanalyzer live should make quick work of it. I still need to fiddle with the tables a bit but hope to have it running tonight or tomorrow.
Attached Thumbnails
Upgrading to MS-II, please sanity check some of my settings-ms2boardmods.jpg
ScottFW is offline   Reply With Quote
Old 03-30-2010, 02:01 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

wanna upgrade your spark output while you are at it? make sure you're still running non-inverted spark.

I have a good basemap if you want it. you'd just need to change a few things like the spark output and rescale it from 6.6 req_fuel to 5.5 for the 550s.

I just use the rx7 CLT and GM AIT default values when configuring the sensors, with R7 removed you should be using the bias of 1450 for both, IIRC.


your mods look good otherwise.
Braineack is offline   Reply With Quote
Old 03-30-2010, 02:33 PM   #3
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by Braineack View Post
wanna upgrade your spark output while you are at it? make sure you're still running non-inverted spark.
I assume you have done the update, judging from the pics I saw of your board. Is there a reason to do it besides solving the startup popping people got with larger injectors? I've only had the 550s in for a couple of weeks but have not yet experienced that issue. Oh well, might do it anyway.

Quote:
Originally Posted by Braineack View Post
I have a good basemap if you want it. you'd just need to change a few things like the spark output and rescale it from 6.6 req_fuel to 5.5 for the 550s.
Sweet, post it up if you don't mind. The less I have to manually adjust the tables the faster it will go.


Quote:
Originally Posted by Braineack View Post
with R7 removed you should be using the bias of 1450 for both
Yeah I sent values of 2490 to the controller last night, but figured I was doing something wrong even as I was doing it. So I will be using the same values I had with MS1. My CLT gauge in MT/TS always read about 6-8* warmer than my calibrated lab thermometer said it should, so the next time I drain my coolant I'm gonna bring the sensor in to work with me and take some actual measurements. Nice thing with MS-II is that I can change these values real quick without having to easytherm and reflash the firmwarez.
ScottFW is offline   Reply With Quote
Old 03-30-2010, 10:42 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

take heed with all my settings...
Attached Files
File Type: msq 2010-03-19_13.11.54.msq (74.2 KB, 65 views)
Braineack is offline   Reply With Quote
Old 03-30-2010, 10:57 PM   #5
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Might as well give him the map we setup for my car.
shuiend is offline   Reply With Quote
Old 03-31-2010, 02:24 AM   #6
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Thanks, I've been combing over the settings and playing with tables for a couple hours and it's looking pretty good. It's a little late to try running the car tonight but I should be able to start it tomorrow evening.

I noticed that map and the DIYPNP map have trigger offsets of -1 and -4. OTOH the trigger angle I used to sync up MS1 was 84, and my recollection is that most other users were in the 60-80 ballpark. Seems like quite a discrepancy there. Is a value of 84 going to cause me problems?
ScottFW is offline   Reply With Quote
Old 03-31-2010, 02:00 PM   #7
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

MS1 and MS2 use entirely different wheel decoders. The MS2 wheel decoder has a routine written specifically for your CAS and is set up so it shouldn't need much adjustment.
Matt Cramer is offline   Reply With Quote
Old 03-31-2010, 09:13 PM   #8
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

I set the offset back to 0 and the car fired up no problem. Syncing it up with the timing light gave me a final value of +7. CLT and IAT values look pretty good too. Drove around for a bit letting VEA-live do its thing, no problems. Still need to do some manual adjusting of my idle cells, but overall the upgrade went smoothly.
ScottFW is offline   Reply With Quote
Old 03-31-2010, 09:19 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

drives smoother doesn't it?
Braineack is offline   Reply With Quote
Old 03-31-2010, 10:52 PM   #10
Senior Member
Thread Starter
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

It seemed to. I was running a little short on time and there was traffic, so only part of the map really got tuned, but so far so good.
