Old 03-19-2015, 12:56 AM   #81
Elite Member
iTrader: (1)

Join Date: Apr 2014
Location: SF Bay Area, CA
Posts: 1,802
Total Cats: 195
Default

It was a pleasure meeting you yesterday Nigel, thanks for the beautiful set of injectors. A very good seller.
sonofthehill is offline
Old 03-19-2015, 05:05 PM   #82
Junior Member
iTrader: (1)

Join Date: Dec 2014
Posts: 66
Total Cats: -7
Default

Just got mine in the mail today. Thanks Nigel! Really looking forward to running these via MS.
impulsive.ca is offline
Old 03-20-2015, 01:06 AM   #83
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 651
Total Cats: 70
Default

Thanks guys! It was great to meet you too, Carlos.

Updates:

1. Thanks to your feedback, I've found that by far the easiest way to get that black bit off is to use clippers sideways (think cutting along the tangent, rather than the radius). The plastic is brittle, so you can easily remove the outside all the way around this way, then the top just slides off.

2. I'm doing another batch (yay!). I can't seem to edit the first post or the second one I had reserved for later, but the price is going up slightly to $270 for a set of flow matched units with pnp kits, to cover a couple expenses I didn't account for. I'm also doing non-flow matched pnp kits for $235 if you so choose. Both options will come with the black plastic bit removed unless you request otherwise.

Thanks for the great feedback everyone!
nigelt is offline
Old 03-20-2015, 02:46 PM   #84
Newb
iTrader: (1)

Join Date: Jul 2007
Posts: 6
Total Cats: 3
Default

Quote:
Originally Posted by sonofthehill View Post
A very good seller.
+1

Thanks for meeting up with me this morning, Nigel. Much appreciated!
tony soprano is offline
Old 03-23-2015, 01:03 PM   #85
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 651
Total Cats: 70
Default

Quote:
Originally Posted by tony soprano View Post
+1

Thanks for meeting up with me this morning, Nigel. Much appreciated!
Thanks! It has been great to meet you guys in person and hear about your projects!
nigelt is offline
Old 03-27-2015, 11:31 PM   #86
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 651
Total Cats: 70
Default

Another batch of injectors have been flow testing, and I should get them back within a couple days. Still waiting on dead times
nigelt is offline
Old 03-28-2015, 01:48 AM   #87
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

Whats the eta on dead times?
aidandj is offline
Old 03-28-2015, 07:23 PM   #88
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 651
Total Cats: 70
Default

Quote:
Originally Posted by aidandj View Post
Whats the eta on dead times?
I should know Monday. I left a message with the shop to see what the status is last week, and I'll give them a shout again on Monday.

I'm having all the injectors flow tested by a more affordable shop, and I sent two two a more sophisticated shop for a full battery of testing including dead times. It's that second shop that I'm waiting for.

You all will know mere moments after the information is mine!
nigelt is offline
Old 03-30-2015, 04:53 PM   #89
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 651
Total Cats: 70
Default

Dead time update: the shop received the injectors, but now they can't find them. When they find them, they will test them, and then you all will have dead times!
nigelt is offline
Old 03-30-2015, 05:32 PM   #90
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

Thats annoying.
aidandj is offline
Old 03-31-2015, 03:07 PM   #91
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 651
Total Cats: 70
Default

From my main flow tester (not the one who can't find the injectors I sent him) who just finished up another batch:

Quote:
These Bosch design 4 injectors are without a doubt some of the best I have ever flow tested. They are super precise even at really high flow rates ( where any flow rate differences would be magnified ).
This, from a guy who all he does all day long every day is clean and flow test injectors.
nigelt is offline
Old 04-01-2015, 02:21 PM   #92
Newb

Join Date: Feb 2015
Posts: 38
Total Cats: 0
Default

Noob Question here:


I have a 1996 1.8L Miata with an older FMII turbo kit. The current injectors are RC. Engineering 550cc. that I believe came with the kit. I am extremely frustrated that they just used audio butt crimp connections and spliced into the factory injector harness.


Question?
Will these new, latest & Greatest EV14 GT500 Injectors outperform, idle smoother an basically overall kick my older RC. 550cc injectors butt?


I've never replaced fuel injectors before,........im assuming a re-tune would be expected.
I cannot stand the way my current injectors are wired, I have to fix it to be PNP. connections
Eric W is offline
Old 04-01-2015, 03:00 PM   #93
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 651
Total Cats: 70
Default

Quote:
Originally Posted by Eric W View Post
Noob Question here:


I have a 1996 1.8L Miata with an older FMII turbo kit. The current injectors are RC. Engineering 550cc. that I believe came with the kit. I am extremely frustrated that they just used audio butt crimp connections and spliced into the factory injector harness.


Question?
Will these new, latest & Greatest EV14 GT500 Injectors outperform, idle smoother an basically overall kick my older RC. 550cc injectors butt?


I've never replaced fuel injectors before,........im assuming a re-tune would be expected.
I cannot stand the way my current injectors are wired, I have to fix it to be PNP. connections
I'll let others chime in on how they perform, as I still haven't had time to set up my MS and install my injectors (this whole having a baby thing is really getting in the way of making my car faster!). From what I've heard, they idle great, and generally kick ***.

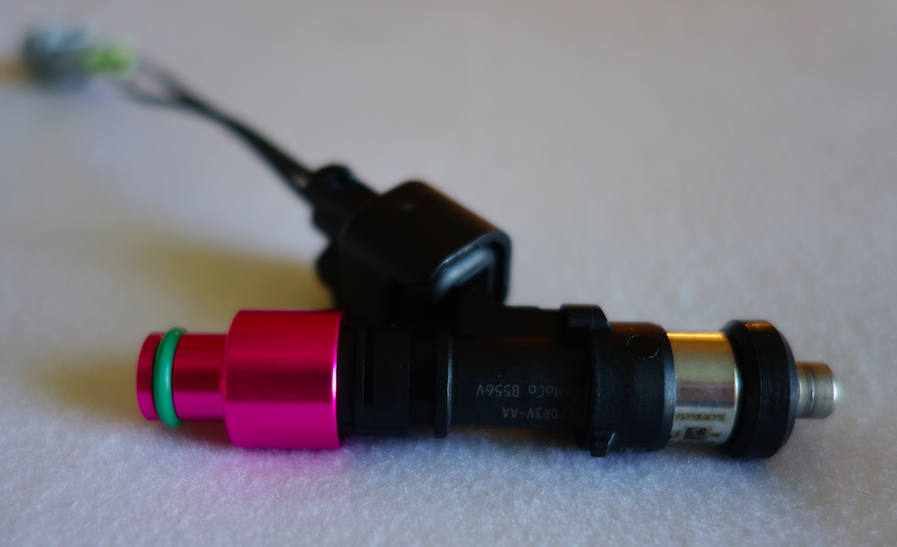

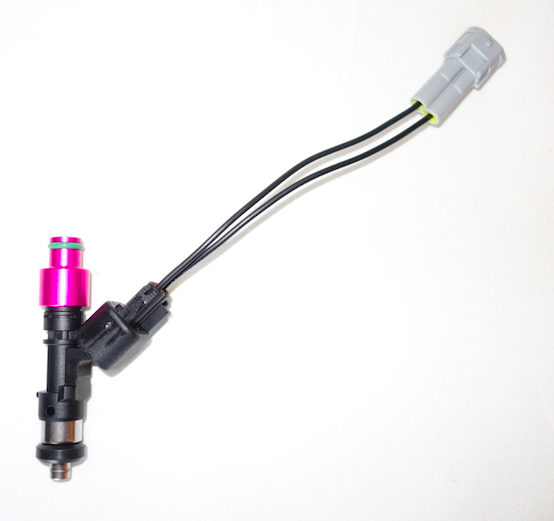

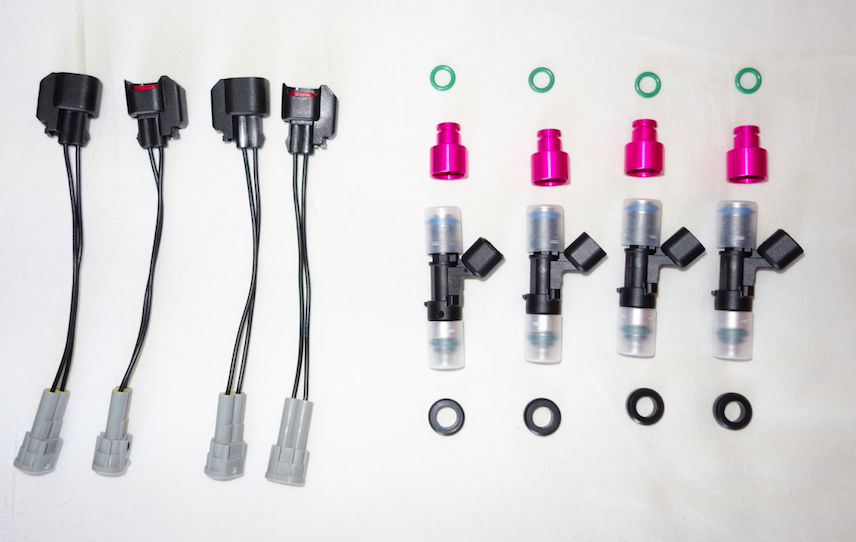

As for the PNP aspect, here is what they look like complete:





The USCAR connector, which plugs into the injector, is really solid. I've heard from both people that have used these specific connectors, and those that bought theirs elsewhere, that the Denso connector that goes into the harness can be a bit loose. I'm going to experiment with a few different ways to tighten up that connection, either with tape, or a zip tie, or clip, something else.

I think it is really important for these to be PNP so you can easily revert to stock, or to different injectors later if you so choose. Whatever solution I find works the best for me, I'll send out to anyone who has previously bought these from me and wants it, for free.
Attached Thumbnails
PNP, flow-matched GT500 Injectors-image%25202015-03-30%2520at%25204.27.47%2520pm.png   PNP, flow-matched GT500 Injectors-image%25202015-03-30%2520at%25204.27.04%2520pm.png   PNP, flow-matched GT500 Injectors-image%25202015-04-01%2520at%252010.55.52%2520am.png
nigelt is offline
Old 04-04-2015, 04:09 PM   #94
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 651
Total Cats: 70
Default

After flow testing 55 injectors, here are the stats you need to know:

Mean static flow rate: 611cc
Standard deviation: 5.3cc (0.9%)
Mean flow rate, 6ms pulse 3000RPM: 164cc
Standard deviation: 2.3cc (1.4%)

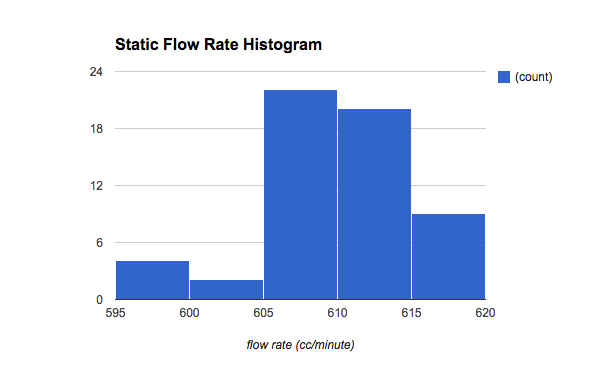

Static flow rate histogram


What this all means is that if you buy 4 of these kick *** GT500 injectors (from anywhere, not just me), There is a 92% chance that all 4 will have static flow within 2% of the mean flow rate. That puts the likelihood of a whole set being within a 4% range even higher. Sweet. For dynamic flow, the OEM injectors will likely be within a 5% range.

The flow matched sets I put together were all able to fit within +/- 0.5% flow as tested.

As soon as I have dead times, I'll start a new thread in the engine performance section to keep all the data I was able to collect for posterity. Are there any other figures that I should calculate from the tested flow rates that would be helpful for people running these injectors?
Attached Thumbnails
PNP, flow-matched GT500 Injectors-image%25202015-04-04%2520at%252011.43.01%2520am.png
nigelt is offline
Old 04-07-2015, 04:46 PM   #95
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 651
Total Cats: 70
Default

Hey Everyone - a quick note on the connector plugs. I've heard loud and clear that a couple of you have had issues with the Denso side of the connector plug. I've also heard this has been an issue for people who have bought plugs from other places. I've been talking with with the plug supplier about the issue, and they have a new version that has thicker pins which are more firmly in place.

Here is what I am going to do: I'm ordering new connectors with the better plugs, however it will take a couple weeks to get them. For anyone who has already bought these from me, you will have two options:
1. When I get the new plugs, I will send you a new set of plugs for free, and include a return shipping label for you to send me back the plugs I sent you originally.
2. If you would rather connect the USCAR plugs directly into your wiring harness by cutting off the denso plugs and wiring the pigtail in, I'll send you a $10 refund for the inconvenience the lacklustre Denso plug has caused. For our neighbors to the North, that's $20 CAD.

I'd like to give a big thank you to those who let me know about the issue. Okay, here I go... Thank you!
nigelt is offline
Old 04-07-2015, 08:27 PM   #96
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

All you fools should be connecting the USCAR plugs straight to your harness anyways, fewer failure points.

Nigelt, we don't care about that anymore We want deadtimes!!
aidandj is offline
Old 04-07-2015, 08:47 PM   #97
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,798
Total Cats: 492
Default

Yep. Don't worry about mine, they're getting spliced in.
Monk is offline
Old 04-08-2015, 04:23 PM   #98
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 651
Total Cats: 70
Default

Quote:
Originally Posted by Monk View Post
Yep. Don't worry about mine, they're getting spliced in.
You got cash. Don't spend it all in one place!

For people who want the shiney new connectors, current ETA is 4 weeks, but I'm laying some serious pressure on for them to hurry the ef up.
nigelt is offline
Old 04-10-2015, 03:08 PM   #99
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 651
Total Cats: 70
Default

It appears the first injectors I sent in for dead times are lost forever. I'm sending more in right now, and they should be tested next week.
nigelt is offline
Old 04-10-2015, 04:00 PM   #100
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,122
Total Cats: 144
Default

Quote:
Originally Posted by nigelt View Post
It appears the first injectors I sent in for dead times are lost forever. I'm sending more in right now, and they should be tested next week.
Attached Thumbnails
PNP, flow-matched GT500 Injectors-money_black_hole.jpg
bahurd is online now
