Old 04-11-2015, 01:29 AM   #101
Elite Member
iTrader: (1)

Join Date: Apr 2014
Location: SF Bay Area, CA
Posts: 1,817
Total Cats: 195
Default

Quote:
Originally Posted by nigelt View Post
It appears the first injectors I sent in for dead times are lost forever. I'm sending more in right now, and they should be tested next week.
Ok, so I have been playing with the dead times. I have my car running nicely but nothing I would want to post as far as a log. You know what I mean, it's brutal on here. I think I have a winner at .902ms dead times at 13.2v with .19ms/v BVC.

But I am drunk and still need to try it tomorrow. Will keep you posted, feel free to quote my drunken rants.

Last edited by sonofthehill; 04-11-2015 at 01:31 AM. Reason: typo
sonofthehill is offline
Old 04-11-2015, 07:50 PM   #102
Elite Member
iTrader: (1)

Join Date: Apr 2014
Location: SF Bay Area, CA
Posts: 1,817
Total Cats: 195
Default

Got it working reasonably well, at least as good as stock injectors. Still not perfect AFR's at idle but I will post a log soon.
Attached Files
File Type: msl 2015-04-12_14.13.51.msl (542.0 KB, 46 views)

Last edited by sonofthehill; 04-12-2015 at 08:48 PM. Reason: To add my log file
sonofthehill is offline
Old 04-13-2015, 01:36 AM   #103
Junior Member
iTrader: (3)

Join Date: Apr 2013
Posts: 95
Total Cats: 3
Default

I'll just shoot you a PM instead. Sorry for the spam.. Can't delete my post for some reason.
furrycurry33 is offline
Old 04-13-2015, 11:47 AM   #104
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Quote:
Originally Posted by sonofthehill View Post
I think I have a winner at .902ms dead times at 13.2v with .19ms/v BVC.
But I am drunk.
I think this needs to be my signature.

I rofled. Seriously though, thanks for playing around with this and sharing your numbers. I hope to have the real results ASAP!!
nigelt is offline
Old 04-13-2015, 11:49 AM   #105
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Quote:
Originally Posted by furrycurry33 View Post
I'll just shoot you a PM instead. Sorry for the spam.. Can't delete my post for some reason.
No problem! For anyone's future reference, EV6 pigtails (better known as ev6 to denso connectors with lack luster denso plugs) are $20 a set shipped, and I have quite a few of them
nigelt is offline
Old 04-14-2015, 01:52 AM   #106
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

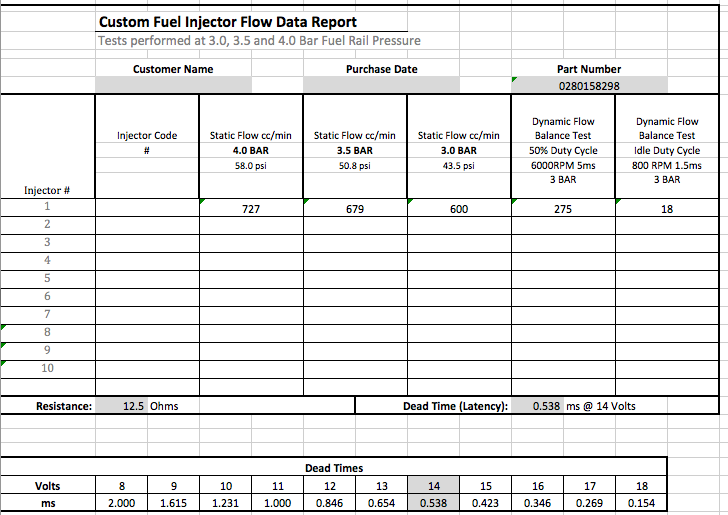

DEAD TIMES!!!!!!
Here are the dead times from 1 injector. I had two tested for dead times to get an idea of what the variance might be, but I only seem to have gotten one result back. I'm looking into that...

Attached Thumbnails
PNP, flow-matched GT500 Injectors-image%25202015-04-13%2520at%25209.50.29%2520pm.png
nigelt is offline
Old 04-14-2015, 02:04 AM   #107
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Someone spoonfeed ms settings please.
aidandj is offline
Old 04-14-2015, 02:35 AM   #108
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Quote:
Originally Posted by aidandj View Post
Someone spoonfeed ms settings please.

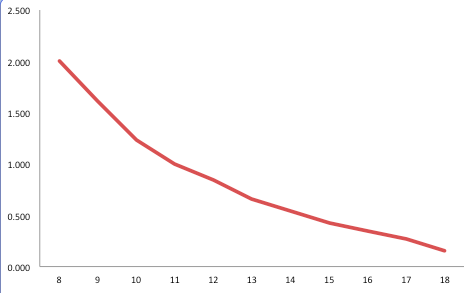

I think .63ms @ 13.2V is going to be close enough. That is assuming a linear relationship between ms and V, which is close enough to true between whole volts, but not actually true.

Attached Thumbnails
PNP, flow-matched GT500 Injectors-image%25202015-04-13%2520at%252010.34.53%2520pm.png
nigelt is offline
Old 04-14-2015, 02:39 AM   #109
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Also, battery voltage correction I'd assume to be .116. Can someone comment? That is the ms difference between 13 and 14 volts.
nigelt is offline
Old 04-14-2015, 01:12 PM   #110
Elite Member
iTrader: (1)

Join Date: Apr 2014
Location: SF Bay Area, CA
Posts: 1,817
Total Cats: 195
Default

Quote:
Originally Posted by nigelt View Post
I think this needs to be my signature.

I rofled. Seriously though, thanks for playing around with this and sharing your numbers. I hope to have the real results ASAP!!
You're welcome. I still have something going on with my IAC, might have to disable it. But running very well overall. A little bit more fiddling and I will be ready for some boost. I seem to be hitting my AFR targets now, I will post another log and an msq in the next few days. I am curious how close my dead times are.
sonofthehill is offline
Old 04-14-2015, 03:22 PM   #111
Elite Member
iTrader: (1)

Join Date: Apr 2014
Location: SF Bay Area, CA
Posts: 1,817
Total Cats: 195
Default

Sorry my dumb *** didn't see this chart earlier. Thanks Nigel!! I am running .631 dead time and .116 BVC, that is correct the difference between 13 and 14 volts. Will post logs and msq for my stock 99 soon.
sonofthehill is offline
Old 04-14-2015, 03:51 PM   #112
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by nigelt View Post
DEAD TIMES!!!!!!
Here are the dead times from 1 injector. I had two tested for dead times to get an idea of what the variance might be, but I only seem to have gotten one result back. I'm looking into that...

Thanks a ton for getting us this info. Would you mind posting the sheet in the other threads about the injectors, just so we have it posted in multiple places on here.
shuiend is offline
Old 04-15-2015, 01:26 PM   #113
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

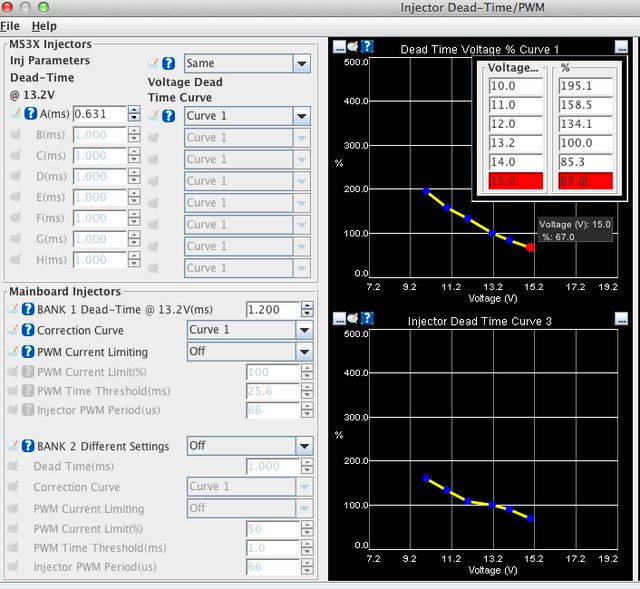

For you MS3 users.


aidandj is offline
Old 04-15-2015, 01:46 PM   #114
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by aidandj View Post
For you MS3 users
Why is the mainboard injector bank 1 deadtime 1.20V?
Schuyler is offline
Old 04-15-2015, 01:47 PM   #115
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Because I'm not using the main board injectors.
aidandj is offline
Old 04-15-2015, 01:54 PM   #116
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Quote:
Originally Posted by shuiend View Post
Thanks a ton for getting us this info. Would you mind posting the sheet in the other threads about the injectors, just so we have it posted in multiple places on here.
Posted in a fresh thread (to make it super easy for people who don't like to read), as well as in the other thread.

And thanks Aidandj for posting your settings!
nigelt is offline
Old 04-22-2015, 12:41 AM   #117
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Hey everyone, I've got 2 sets of flow matched injectors left, and a couple sets of non-flow matched, and then I will mark this thread sold. After that, you will only be able to get flow matched sets at a slightly higher price on a soon-to-be-launched site.
For these last sets, you can get $5 off and have the kit right away if you go with pigtails, and if you go with the PNP clips, I'll send ship in about 2 weeks when the new clips arrive. Thanks so much for all your interest!
nigelt is offline
Old 04-22-2015, 09:57 AM   #118
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Quote:
Originally Posted by nigelt View Post
Hey everyone, I've got 2 sets of flow matched injectors left, ...
I'll take one with everything please!
Just PM me payment info.
stefanst is offline
Old 04-22-2015, 01:11 PM   #119
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Quote:
Originally Posted by stefanst View Post
I'll take one with everything please!
Attached Thumbnails
PNP, flow-matched GT500 Injectors-monk-one-everything.jpg
nigelt is offline
Old 04-22-2015, 02:13 PM   #120
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Just sent the money. Now I wait to become one with everything.
stefanst is offline
