Hey everyone,

In my quest for a budget DIY turbo build with the awesome, soon to be ready Miata Kitty Turbo kit, I decided I wanted flow matched GT500 Injectors. Since noonew as flow matching them for me, I rolled up my sleeves to do it myself, meaning I'll have a bunch of injectors left over. I also ordered a bunch of bits to make them pnp.

I'm having 24 injectors flow tested at full open, idle, and 50%, plus 2 of them tested with a wider battery of tests including dead times. I should have them back in my hot little hands in about 3 weeks. I'll post the flow and deadtime stats for the community.

Also, I've got more pnp bits than I do injectors, so if you want to save a couple bucks and don't care about flow matching, find a good deal on the injectors and you get all the pieces to make them pnp from me.

Flow matched injectors with pnp kits (I should have them ready to ship in about 3 weeks) - $260

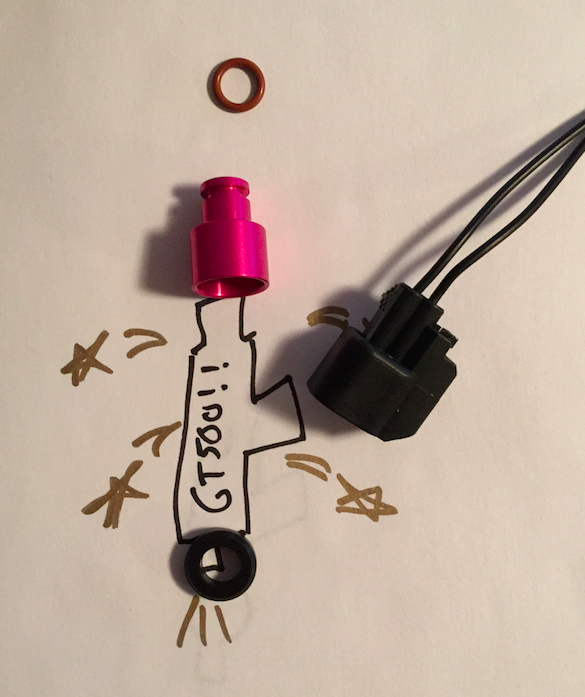

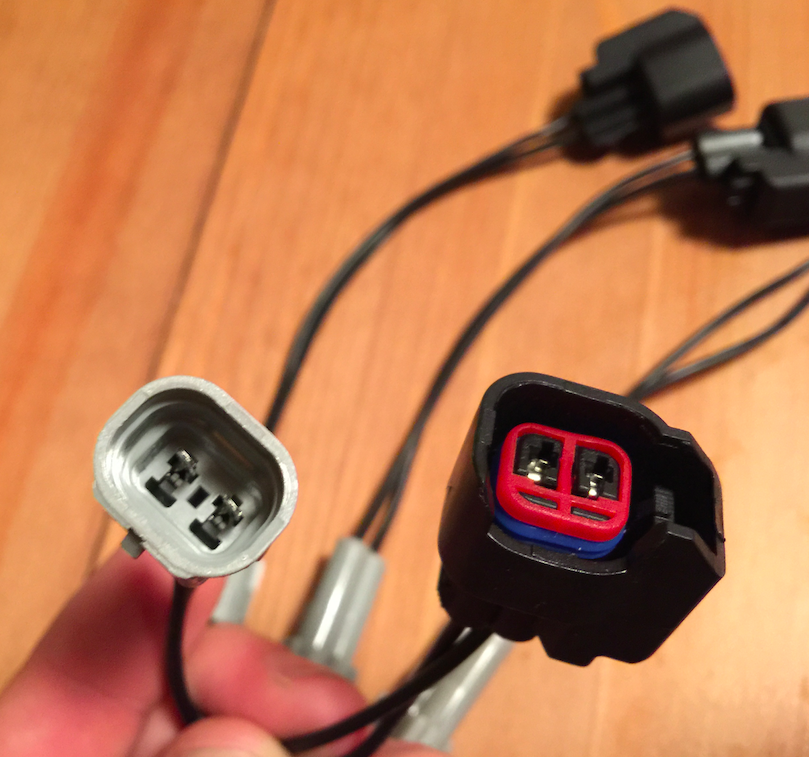

PNP kits, which include the top hat extender, seat cushion and plug adapters (I've got these now) - $75





The awesomeness of these budget-friendly injectors has been much discussed, although the price of the injector has gone up.
Attached Thumbnails
PNP, flow-matched GT500 Injectors-image%25202015-02-20%2520at%25208.49.21%2520am.png   PNP, flow-matched GT500 Injectors-image%25202015-02-20%2520at%25208.49.54%2520am.png
nigelt is offline
Old 02-20-2015, 01:14 PM   #2
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 659
Total Cats: 71
Default

reserved
nigelt is offline
Old 02-20-2015, 02:00 PM   #3
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Interested in this. Well, the deadtime info at least. I already have the injectors/hats/clips.
Onyxyth is offline
Old 02-20-2015, 02:11 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Correct diadem info for these injectors would be awesome to have.
shuiend is offline
Old 02-20-2015, 02:22 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Might wanna post the injector size (supposedly 625) for those who don't know.

Although that might be why you're waiting until you get actual flow data.
curly is offline
Old 02-20-2015, 02:46 PM   #6
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Just an FYI to anyone on the fence, buying the parts to build a single set will cost fairly close to that. And they won't be flow matched.


And you get pink ones
Schuyler is offline
Old 02-20-2015, 02:55 PM   #7
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 659
Total Cats: 71
Default

^ this

Quote:
Originally Posted by curly View Post
Might wanna post the injector size (supposedly 625) for those who don't know.

Although that might be why you're waiting until you get actual flow data.
These are listed at 609cc at 3 bar, but real flow data will tell all.

The model number is DR3Z-9F593-A or CM-5216 depending on where you look. More deets below (copy pasta!):

This OEM Ford fuel injector was specifically designed for the 2013-2014 Shelby GT5000 Mustang. They are designed with a USCAR style electrical connector and an EV14 style body. These fuel injectors will provide precise control of fuel delivery and atomization for increased power, improved throttle response and better fuel economy.

Features and Benefits:
- Injector volume can be increase with higher fuel pressure
- Same injector used on the 2013-2014 GT500 Shelby Mustangs
- 55 lb. high impedance EV14 injectors with USCAR connectors
- Great for upgrading on modified 2007-2012 GT500's
- 55lb/hr. @ 39.5psi fuel pressure = 577cc
- 58lb/hr. @ 43.5psi fuel pressure = 609cc
- 66lb/hr. @ 58psi fuel pressure = 693cc

Ford Part number DR3Z-9F593-A is Original equipment on the 2013-2014 Shelby GT500.




Also this:
*Not legal for sale or use on pollution-controlled motor vehicles. Or your miata if you drive it on the street.

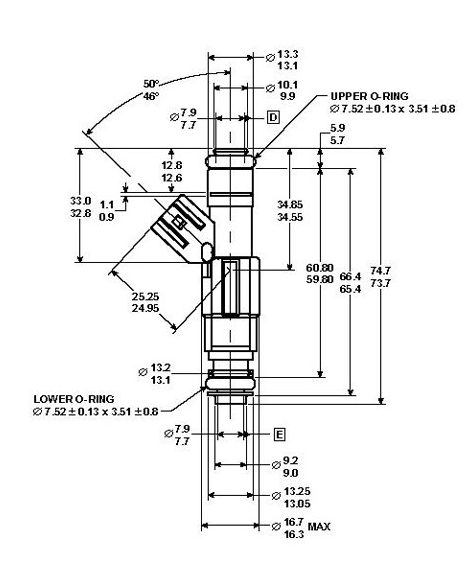

Attached Thumbnails
