Old 03-10-2015, 06:56 PM   #41
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Injectors have been flow tested, and I'll have them back tomorrow, ready to ship out.
nigelt is offline
Old 03-11-2015, 07:41 AM   #42
Junior Member
iTrader: (1)

Join Date: Dec 2014
Posts: 66
Total Cats: -7
Default

woot! check your paypal.
impulsive.ca is offline
Old 03-11-2015, 11:19 AM   #43
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Quote:
Originally Posted by impulsive.ca View Post
woot! check your paypal.
nigelt is offline
Old 03-11-2015, 12:07 PM   #44
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,851
Total Cats: 271
Default

this thread is full of win,
Girz0r is offline
Old 03-11-2015, 09:40 PM   #45
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

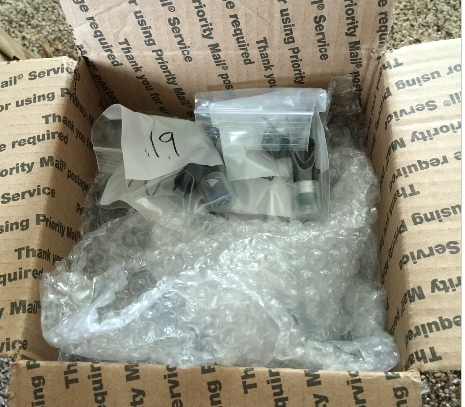

Look what the mailman brought me!



Yup, a big ol' box of flow tested injectors.

These injectors are seriously awesome. I'm matching up sets to get the people their orders, and then in the next few days I'll a more in depth analysis with our sweet *** data visualization tools at work.

The short version of this story is that these flow matched sets are matched within the limits of measurement, and in all honesty the flow rates are so consistent you probably don't need flow matched sets for the majority of applications. That fact doesn't help me since I just paid a few hundred bucks to get these all flow tested, but if nobody did that, then how would we all know how precisely these flow from the factory? It seriously undermines any plans I had to build a little business around flow matching and selling these injectors for different applications, but hey, now everyone wins!

I think we can all take comfort in the fact that these injectors are really the best things going for our cars.
Attached Thumbnails
PNP, flow-matched GT500 Injectors-image%25202015-03-11%2520at%25205.22.13%2520pm.png
nigelt is offline
Old 03-11-2015, 11:13 PM   #46
Newb

Join Date: Feb 2015
Posts: 13
Total Cats: -13
Default

Pmed!
LilxMoises is offline
Old 03-12-2015, 01:18 AM   #47
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

It's the leaning tower of injectors!



Three of those are shipping out tomorrow, one is spoken for, and the other is ready for whoever wants it. I've only got a couple left and then that is it!
Attached Thumbnails
PNP, flow-matched GT500 Injectors-image%25202015-03-11%2520at%25209.16.48%2520pm.png
nigelt is offline
Old 03-12-2015, 02:20 AM   #48
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

After a little fiddling, I was able to get each set into a range of less than 1% for wide open flow, and both simulation rates (2400RPM at 12ms pulse, and 3000RPM at 6ms pulse). Resistance was all within about 3% across the board, and I didn't optimize for closer matching than that in the sets.
nigelt is offline
Old 03-12-2015, 10:51 AM   #49
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Did they give you the dead times for the injectors?
shuiend is online now
Old 03-12-2015, 10:52 AM   #50
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

PM me your PayPal.
aidandj is offline
Old 03-12-2015, 11:46 AM   #51
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,803
Total Cats: 494
Default

OMG OMG! Liek, we're gonna be injector buddies!
Also curious about dead times.
Monk is offline
Old 03-12-2015, 12:25 PM   #52
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Quote:
Originally Posted by shuiend View Post
Did they give you the dead times for the injectors?
Patience my young padawan. I have to send a couple to a fancier, pricier flow tester to get dead times. Should have those in a week or so.
nigelt is offline
Old 03-12-2015, 05:45 PM   #53
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Injector kits went out to everyone who paid already in today's mail. They should get to people on Saturday or Monday. I have one kit left ready to go, which is being held for LilxMoises until tomorrow and then it will be up for grabs. I'm waiting on a few more pnp bits and then there will be 2 more flow matched sets that will be available.

After that, you guys tell me. Are sets matched to within 1% valuable? Or should I try to put together the cheapest non-flowtested sets I can? Do you want to source your own injectors, in which case I'll work on getting the price down on the pnp parts?
nigelt is offline
Old 03-13-2015, 01:16 AM   #54
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by nigelt View Post
Patience my young padawan. I have to send a couple to a fancier, pricier flow tester to get dead times. Should have those in a week or so.
No, not or so. I'm running these injectors and plan to turn the key in 7 days lol. I need dem deadtimezzz!

Disclaimer: by these injectors I mean the same model, not purchased from nigelt.
Schuyler is offline
Old 03-13-2015, 01:47 AM   #55
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Quote:
Originally Posted by Schuyler View Post
No, not or so. I'm running these injectors and plan to turn the key in 7 days lol. I need dem deadtimezzz! Disclaimer: by these injectors I mean the same model, not purchased from nigelt.
I shipped them off for the more advanced battery of tests this morning, so I dearly hope to have an answer for you within 7 days. At this point it is out of my hands though. Pray to the injector gods and they may be kind to you.
nigelt is offline
Old 03-13-2015, 10:27 AM   #56
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

Quote:
Originally Posted by Schuyler View Post
No, not or so. I'm running these injectors and plan to turn the key in 7 days lol. I need dem deadtimezzz!

Disclaimer: by these injectors I mean the same model, not purchased from nigelt.
Not to thread jack, the Audi S2 guys were pretty active on these injectors back in '11-12 and from the forums this is some data;

" @4 bar for 550cc

tested on more than 10 cars:
8V - 2.229
10V - 1.493
12V - 1.099
14V - 0.800
16V - 0.693

Test this only with the engine at full temp. The EV14's need a LOT more warmup enrichment than old EV1 injectors, up to 40%."

The particular link; EV14 injector closing time [Archive] - S2Forum - The Audi S2 Community

Look for the post by PRJ on 28-09-11, 10:24 AM

I'll be interested to see if it correlates with these from the OP. I've got to install mine next week.
bahurd is offline
Old 03-13-2015, 12:21 PM   #57
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 660
Total Cats: 71
Default

Quote:
Originally Posted by bahurd View Post
Not to thread jack, the Audi S2 guys were pretty active on these injectors back in '11-12 and from the forums this is some data; " @4 bar for 550cc tested on more than 10 cars: 8V - 2.229 10V - 1.493 12V - 1.099 14V - 0.800 16V - 0.693 Test this only with the engine at full temp. The EV14's need a LOT more warmup enrichment than old EV1 injectors, up to 40%." The particular link; EV14 injector closing time [Archive] - S2Forum - The Audi S2 Community Look for the post by PRJ on 28-09-11, 10:24 AM I'll be interested to see if it correlates with these from the OP. I've got to install mine next week.
Those aren't the same injectors. These came in the 2013 and 2014 model years, so they weren't available at the time of that post. These flowed at 610cc/minute on average.
nigelt is offline
Old 03-13-2015, 02:22 PM   #58
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by nigelt View Post
I shipped them off for the more advanced battery of tests this morning, so I dearly hope to have an answer for you within 7 days. At this point it is out of my hands though. Pray to the injector gods and they may be kind to you.
Sweeeeeet. Thanks.
Schuyler is offline
Old 03-15-2015, 04:39 PM   #59
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

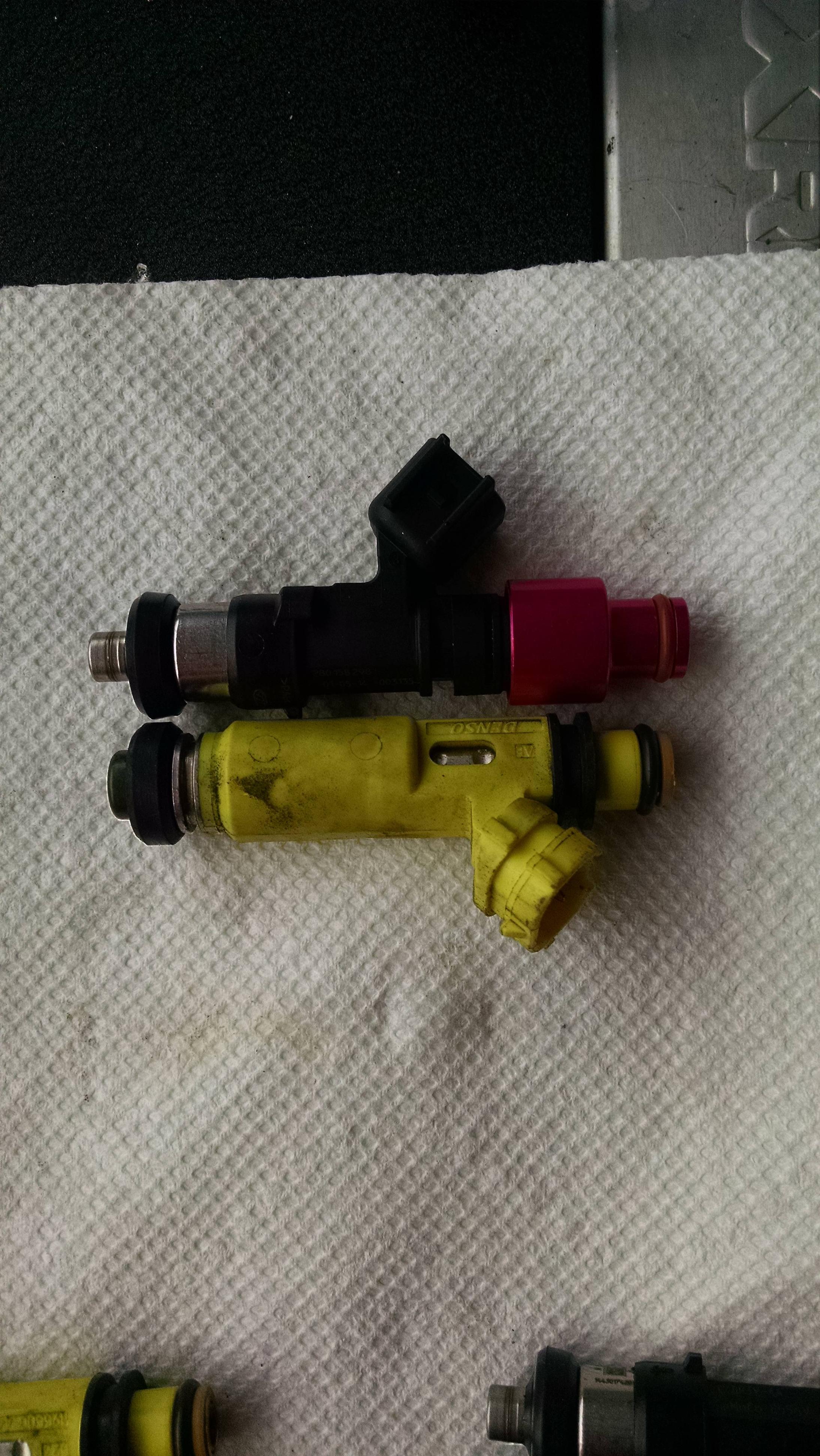

Went to install these today and they ended up being too tall. Here is a picture compared to the RX-8 version:



I tried tightening down the fuel rail and it puts the injectors at an angle and wont tighten any further. I don't really want to push it.

Any suggestions?
aidandj is offline
Old 03-15-2015, 05:00 PM   #60
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Read more and will be cutting off the lower bit of plastic.
aidandj is offline
