Old 08-20-2010, 02:58 PM   #41
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I did not know this MS-II completely replaces the stock ECU. That is very interesting.
ZX-Tex is offline   Reply With Quote
Old 08-20-2010, 03:15 PM   #42
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by 18psi View Post
Interesting, since I've never heard of a stock barometric pressure sensor on our cars (though I THINK i know what you're talking about). Your way actually sounds even better. Where is this sensor located? Is that the one that is next to the EGR equipment/charcoal cannister?

Your way actually sounds simpler. if you have a picture of one mounted/hooked up on an NB that would be FANTASTIC.

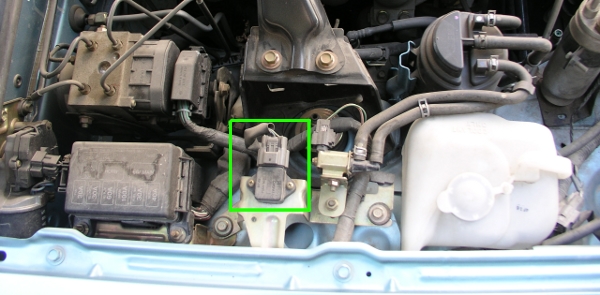

It is this one:

Attached Thumbnails
99-00, 01-05 and MSM Megasquirt MS2 DIYPNP "Enhanced" group buy-baro.jpg
Reverant is offline   Reply With Quote
Old 08-20-2010, 03:16 PM   #43
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by ZX-Tex View Post
I did not know this MS-II completely replaces the stock ECU. That is very interesting.
Yes, it is now possible thanks to the expansion board that handles the alternator, A/C, power steering idle up, etc.

Dimitris
Reverant is offline   Reply With Quote
Old 08-20-2010, 04:23 PM   #44
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Quote:
Originally Posted by Reverant View Post
It is this one:

Yup, just the one I was thinking of.
So that has exactly the 3 wires the MAP sensor needs to operate?

How come none of us Adaptronic users knew about this? LOL I feel foolish now splicing into the other harness when it could have been done so much easier

(unless the Adaptronic requires specifically the location we are using which is possible)
18psi is offline   Reply With Quote
Old 08-20-2010, 07:06 PM   #45
Senior Member
iTrader: (15)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Its good to see a good PNP solution for the NBs. Is it possible to add VICS support to the 99-00 version?
99mx5 is offline   Reply With Quote
Old 08-20-2010, 07:19 PM   #46
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

VICs is simple and will/always has been supported.
Braineack is offline   Reply With Quote
Old 08-20-2010, 07:49 PM   #47
Newb

Join Date: Aug 2010
Location: Rotherham UK
Posts: 27
Total Cats: 0
Default

Hi Dimitris, it's guitarjon from mx5nutz.

Just a couple more questions before I am a definate.

Are you able to do this same package for a mk1 1.6 with a basic Jackson racing m45 set up?

Where do I buy a wb02 from and what is it's purpose (I'm new to fi and management)

Can you give a total price of the item shipped to the uk?

Thanks
guitarjon is offline   Reply With Quote
Old 08-21-2010, 02:12 AM   #48
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by 99mx5 View Post
Its good to see a good PNP solution for the NBs. Is it possible to add VICS support to the 99-00 version?
Yes, as Scott said, it's very simple.

Dimitris
Reverant is offline   Reply With Quote
Old 08-21-2010, 02:14 AM   #49
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by 18psi View Post
Yup, just the one I was thinking of.
So that has exactly the 3 wires the MAP sensor needs to operate?

How come none of us Adaptronic users knew about this? LOL I feel foolish now splicing into the other harness when it could have been done so much easier

(unless the Adaptronic requires specifically the location we are using which is possible)
Yes, since its a MAP sensor, it has exactly the three wires needed to operate. So far I've installed it on two cars that require more than 21psi of boost (one using a GM 3bar sensor and one using a MapDaddy).

Dimitris
Reverant is offline   Reply With Quote
Old 08-21-2010, 02:25 AM   #50
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by guitarjon View Post
Hi Dimitris, it's guitarjon from mx5nutz.

Just a couple more questions before I am a definate.

Are you able to do this same package for a mk1 1.6 with a basic Jackson racing m45 set up?

Where do I buy a wb02 from and what is it's purpose (I'm new to fi and management)

Can you give a total price of the item shipped to the uk?

Thanks
Yes, I can do that same package for a Mk1. What year is your car and do you have A/C?

You need a wideband oxygen sensor/controller to accurately read the air/fuel ratio (AFR), which is the most important aspect of tuning. You get the LC-1 from here with free next day shipping delivery to the UK in 2-3 days: http://cgi.ebay.co.uk/Innovate-LC-1-...es_CarParts_SM

Shipping to the UK is 31 euro (25 quid) but if you and Craigo both decide to go ahead, then I can send them in a single package and almost cut the cost in half.

Dimitris
Reverant is offline   Reply With Quote
Old 08-21-2010, 04:40 AM   #51
Junior Member

Join Date: Oct 2008
Location: Manchester, UK
Posts: 274
Total Cats: 0
Default

Okay well I'm now sold on this so can you add me to the list?
Craigo - UKDM 1998 1.8NB (99-00 MS2 ENGLAND)

I wanted MS-2 eventually but with all the enhancements and the fact it's PnP has me sold. Even better that we can get good shipping rates to the UK too. Thanks Reverent and Braineack for sorting this out.

p.s. I'm going to pull the top off my intake to confirm it has VICS or not.
CRAIGO is offline   Reply With Quote
Old 08-21-2010, 05:53 AM   #52
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

You're in, list updated.
Reverant is offline   Reply With Quote
Old 08-21-2010, 12:42 PM   #53
Newb

Join Date: Aug 2010
Location: Rotherham UK
Posts: 27
Total Cats: 0
Default

Could you add me to the list please. It's a 1990 mk1 1.6

Thanks
guitarjon is offline   Reply With Quote
Old 08-21-2010, 01:13 PM   #54
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

I added you, please provide more info, like A/C, P/S, etc.
Reverant is offline   Reply With Quote
Old 08-21-2010, 01:21 PM   #55
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

Let me make sure I understand this.

Take ecu out, put 99 MS pnp in, turn key start. (I know its not that simple but...)

No having to retrofit CAS, or NA alternator. No having to splice any wires, etc.

Hum...
Pitlab77 is offline   Reply With Quote
Old 08-21-2010, 02:06 PM   #56
Newb

Join Date: Aug 2010
Location: Rotherham UK
Posts: 27
Total Cats: 0
Default

Sorry about that forgot to say. The car does have powersteering. It also has aircon but I will be taking this out next weekend, so no it does not have aircon although the button will still be there.
guitarjon is offline   Reply With Quote
Old 08-21-2010, 02:09 PM   #57
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by Pitlab77 View Post
Let me make sure I understand this.

Take ecu out, put 99 MS pnp in, turn key start. (I know its not that simple but...)

No having to retrofit CAS, or NA alternator. No having to splice any wires, etc.

Hum...
Exactly that, you only have to add a vaccum line to the MS. Completely plug and play.

Dimitris
Reverant is offline   Reply With Quote
Old 08-21-2010, 02:11 PM   #58
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by guitarjon View Post
Sorry about that forgot to say. The car does have powersteering. It also has aircon but I will be taking this out next weekend, so no it does not have aircon although the button will still be there.
Ok, your unit will still have the A/C functionality in case you decide not remove it or you decide at any point to restore it.

Dimitris
Reverant is offline   Reply With Quote
Old 08-21-2010, 02:46 PM   #59
Newb

Join Date: May 2010
Posts: 30
Total Cats: 0
Default

I didnīt mention that mine is with AC, PS. Postage to Spain is similar to the UK?
Taiman81 is offline   Reply With Quote
Old 08-21-2010, 11:17 PM   #60
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Yes, postage is the same throughout Europe.
Reverant is offline   Reply With Quote
