Old 03-16-2014, 01:42 PM   #201
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 215
Total Cats: 5
Default

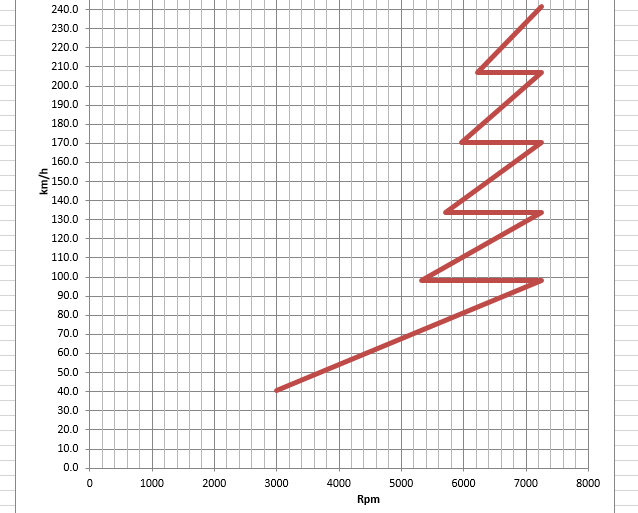

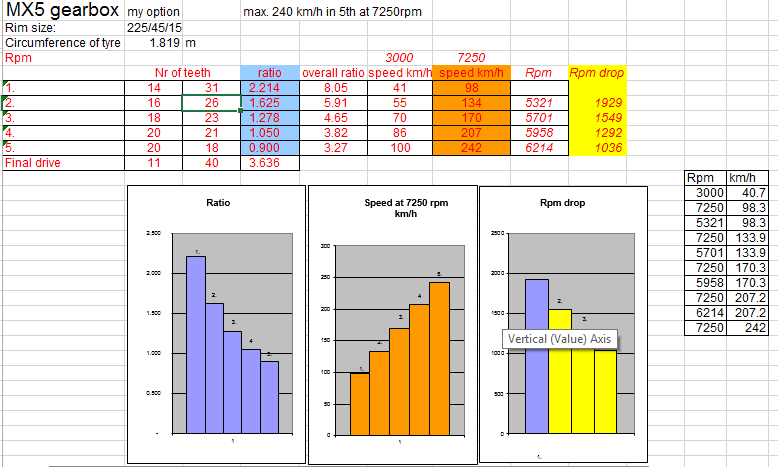

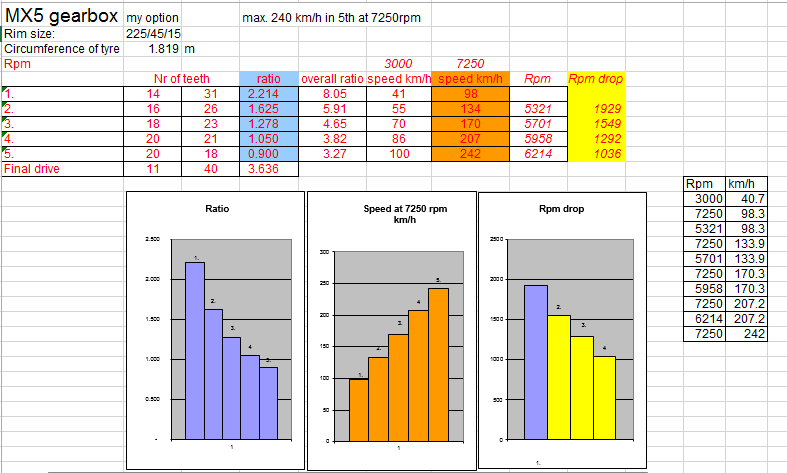

info for the ratios i was recommended by the builder:



Attached Thumbnails
Gearbox options/experiences-1_zpsce00fc6b.png   Gearbox options/experiences-2_zps7dc57172.png   Gearbox options/experiences-1_zps76eed16f.png

Last edited by mr2daj; 03-16-2014 at 02:12 PM.
mr2daj is offline   Reply With Quote
Old 03-16-2014, 02:07 PM   #202
Junior Member
Thread Starter
iTrader: (-1)

Join Date: Jun 2010
Posts: 215
Total Cats: 5
Default

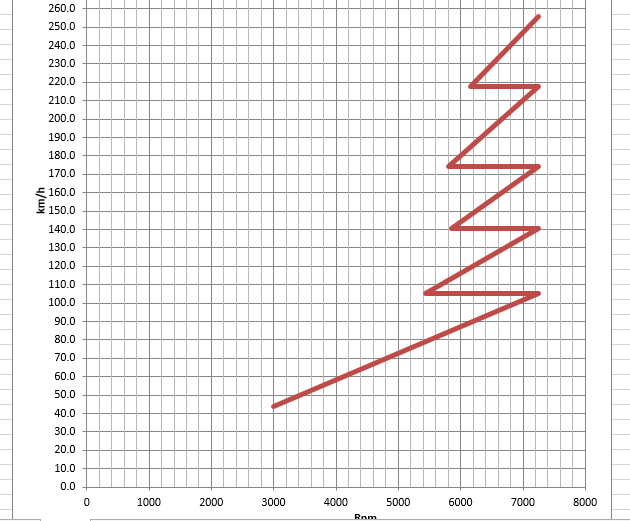

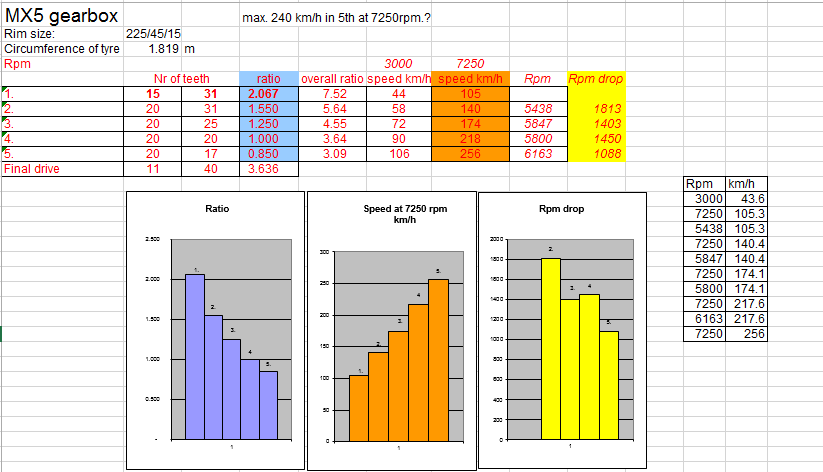

ratios that sav recommended:



Attached Thumbnails
Gearbox options/experiences-3_zps35065f04.png   Gearbox options/experiences-4_zps55f576b0.png
mr2daj is offline   Reply With Quote
Old 03-16-2014, 03:46 PM   #203
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,134
Total Cats: 1,136
Default

Quote:
Originally Posted by mr2daj View Post
info for the ratios i was recommended by the builder:
Quote:
Originally Posted by mr2daj View Post
ratios that sav recommended
Keep in mind the static loaded radius is what determines tire drive ratio, not circumference of a new (full tread) tire when measured off the car. I measure a typical 225/45/15 used race tire hub center to ground distance at closer to 11.2" when inflated to race hot pressures. This affects speed in gear calc quite a bit.
emilio700 is online now   Reply With Quote
Old 03-16-2014, 04:48 PM   #204
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,194
Total Cats: 1,222
Default

Quote:
Originally Posted by emilio700 View Post
Keep in mind the static loaded radius is what determines tire drive ratio, not circumference of a new (full tread) tire when measured off the car. I measure a typical 225/45/15 used race tire hub center to ground distance at closer to 11.2" when inflated to race hot pressures. This affects speed in gear calc quite a bit.
+1. IOW, GPS always says you're going slower than your gear calculator says, typically by around 5%. My ratio recommendations are based on knowing what I want when compared to 6-speed ratios (longer 3rd, same 5th, 4th in the middle, shorter 6th), not on a desire to hit certain MPH targets in gear. If you need more MPH in a gear for a specific track, that's when you raise the limiter or change the rear end.

The ratios your builder suggested are close enough to ideal that I wouldn't worry about it.
Savington is online now   Reply With Quote
Old 03-16-2014, 04:49 PM   #205
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,194
Total Cats: 1,222
Default

Quote:
Originally Posted by sixshooter View Post
Won't the gears and guts out of one AZ6 fit into another case?
Input/output shafts will be different. Wouldn't be impossible to overcome, but it'll still require custom parts.
Savington is online now   Reply With Quote
Old 03-16-2014, 05:18 PM   #206
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Savington View Post
Input/output shafts will be different. Wouldn't be impossible to overcome, but it'll still require custom parts.
Still less than +$3000 though?
Impuls is offline   Reply With Quote
Old 03-16-2014, 06:12 PM   #207
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,214
Total Cats: 1,473
Default

Quote:
Originally Posted by Savington View Post
Input/output shafts will be different. Wouldn't be impossible to overcome, but it'll still require custom parts.
Wouldn't the toughest hurdle be the bellhousing and PPF mounting points? I would like to hope the input shaft could be interchanged with the one out of a Miata, but I've not ever had a 6 speed apart so my musings are speculatory.
sixshooter is online now   Reply With Quote
Old 03-16-2014, 06:36 PM   #208
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,194
Total Cats: 1,222
Default

Quote:
Originally Posted by sixshooter View Post
Wouldn't the toughest hurdle be the bellhousing and PPF mounting points? I would like to hope the input shaft could be interchanged with the one out of a Miata, but I've not ever had a 6 speed apart so my musings are speculatory.
Easier than you might think, I suspect. I bet all the bearings, etc. are the same, and I know the center sections are identical, so I think a Miata tailshaft and bellhousing would bolt up to an S15 6-speed.
Savington is online now   Reply With Quote
Old 03-16-2014, 06:50 PM   #209
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,387
Total Cats: 58
Default

Quote:
Originally Posted by Savington View Post
Easier than you might think, I suspect. I bet all the bearings, etc. are the same, and I know the center sections are identical, so I think a Miata tailshaft and bellhousing would bolt up to an S15 6-speed.
Didn't bbundy say that the rear shaft was shorter and different than the miata one. The input shaft needs to be shortened and you use a friction disc for the different splines.
NiklasFalk is offline   Reply With Quote
Old 03-17-2014, 12:30 PM   #210
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,473
Total Cats: 114
Default

Quote:
Originally Posted by NiklasFalk View Post
Didn't bbundy say that the rear shaft was shorter and different than the miata one. The input shaft needs to be shortened and you use a friction disc for the different splines.
Yea when I get back to it Im still needing to work out the details on how to do the swap and what will work. The input shaft sticks out about 1" longer the output shaft is about 1" shorter and both are different splines than a Miata but I don't think that is a show stopper yet. It might be that an FRS/BRG transmission is a better starting point. it basically has the same ratios as the S15.
bbundy is offline   Reply With Quote
Old 03-17-2014, 01:12 PM   #211
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,134
Total Cats: 1,136
Default

Quote:
Originally Posted by bbundy View Post
.. It might be that an FRS/BRG transmission is a better starting point. it basically has the same ratios as the S15.
With as many totaled 86's that are showing up in salvage yards, it might actually be easier and cheaper to find one too.
emilio700 is online now   Reply With Quote
Old 03-18-2014, 01:07 PM   #212
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,240
Total Cats: 45
Default

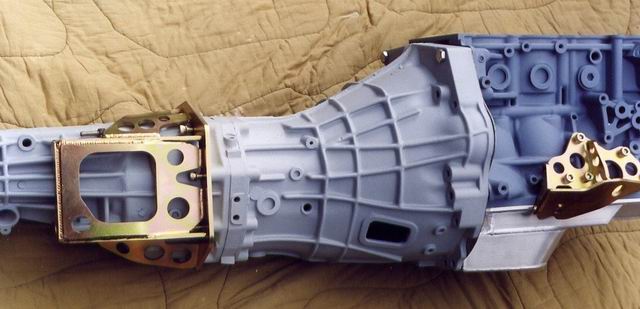

Has anyone looked into making a cradle or similar mount to the one shown to adapt other transmissions to solve the issue of loosing the PPF. The one shown below is from a SR20DET swap kit into the Miata using the Nissan 5spd. I am not saying that is the optimal gear setup, just an idea of an adapter.

Attached Thumbnails
Gearbox options/experiences-mockup.jpg
Midtenn is online now   Reply With Quote
Old 03-18-2014, 01:15 PM   #213
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

Quote:
Originally Posted by Midtenn View Post
Has anyone looked into making a cradle or similar mount to the one shown to adapt other transmissions to solve the issue of loosing the PPF. The one shown below is from a SR20DET swap kit into the Miata using the Nissan 5spd. I am not saying that is the optimal gear setup, just an idea of an adapter.

That is actually a pretty good idea.

Personally, I am thinking of building my own PPF / Torque arm hybrid to attach to a T-5, but still have a transmission cross member.
miata2fast is offline   Reply With Quote
Old 03-18-2014, 01:21 PM   #214
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,473
Total Cats: 114
Default

Quote:
Originally Posted by emilio700 View Post
With as many totaled 86's that are showing up in salvage yards, it might actually be easier and cheaper to find one too.
S15 transmissions imported salvage from Japan are around $400. so far the FRS/BRG/86 ones I've seen are over $1000.

The engines on those mount way far forward I guess you can't really stuff a flat 4 partially into the transmission tunnel like you can with an upright inline 4. They don't have the super thick dual mass flywheel like the S15 though so it might be the front and rear shaft lengths from the center section are closser to the miata version. input and output splines I believe are the same as the S15 at least I know the input is. Input splines are an easy problem to overcome though.
bbundy is offline   Reply With Quote
Old 03-18-2014, 01:27 PM   #215
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

I don't remember if we hit on it but I know we touched on it.
Honda S2000, Mazda RX-8,-Toyota Altezza,-Toyota 86/Scion FR-S/Subaru BRZ.
Use the same Aisin transmission, well at lease the transmission code.
Non of these are quite the same as ours? Not a single one is swappable?

Something didn't seem right.
Impuls is offline   Reply With Quote
Old 03-26-2014, 03:46 PM   #216
Newb

Join Date: Oct 2012
Posts: 20
Total Cats: -7
Default

Miata 6 speed (green) vs Getrag MT82 (blue)

Getrag MT82's 3rd gear could probably be coped with on track, but the .62 OD is just too tall. Muncie 4-speed's 2-3-4 is perfect, but no OD kills that too.

Maybe just maybe it would be possible to take the MT82 4th, and put the driven on the drive position and vice versa, for the 6th gear, and have a .757 6th. You can do that on the old 911/914 5 sp transaxles. Obviously you'd have to buy a 4th gear set and do a trans rebuild, and it wouldnt be as good as the Miata 6th, but way better than the stock mt82
ccsc is offline   Reply With Quote
Old 03-26-2014, 04:12 PM   #217
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,473
Total Cats: 114
Default

Quote:
Originally Posted by Impuls View Post
I don't remember if we hit on it but I know we touched on it.
Honda S2000, Mazda RX-8,-Toyota Altezza,-Toyota 86/Scion FR-S/Subaru BRZ.
Use the same Aisin transmission, well at lease the transmission code.
Non of these are quite the same as ours? Not a single one is swappable?

Something didn't seem right.
Some are very similar and I believe similar enough to build a hybrid transmission out of the parts bin. Others I think like the S2000 and Altezza are radically different. The others along with the S15 Nissan actually have the Identical center casting section as the miata and as I can figure based on tooth counts I believe the miata version has the weakest 4th gear of the bunch. Accept for 6th gear I also think they have slightly better ratios as well they are a little tighter and not as rediculusly low in 1st and 2nd 6th is too high but there are swap options for that gear.
bbundy is offline   Reply With Quote
Old 03-27-2014, 01:51 AM   #218
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

TorqueZombie is offline   Reply With Quote
Old 03-28-2014, 01:39 PM   #219
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,134
Total Cats: 1,136
Default

We are talking with a supplier (not PAR, Quaife or BAR) to get 6spd gearsets and steel shift forks for the AZ-6. I'm leaning towards one ratio option close to what Andrew and I posted above, dog engagement, helical gears. Torque capacity would be as close to 400lbs as we could get given packaging constraints. The Stock AZ-6 is nominally rated for about 200lbs. At 300 + the lifespan gets measured in hours, 400+ measured in minutes.

Target gear ratios, or something near this
2.8
2
1.52
1.22
1
.87

We would have to get about 20 orders. Ball park is about $3100 for the parts kit.
ETA would be roughly 10 months from green lighting the project to you door.

Dog box allows for greater strength but is only happy when banging through gears. Shifting slow on the street can be a PITA. For those that have never clutchless shifted a close ratio dog box, it's only slightly less awesome than a full sequential.

Thoughts?

Last edited by emilio700; 04-24-2014 at 06:58 PM.
emilio700 is online now   Reply With Quote
Old 03-28-2014, 02:08 PM   #220
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

What 2nd gear ratio. Please for the love of Jesus have it be no higher than 2.7, 2.00 or 2.10 would be excellent.
Leafy is offline   Reply With Quote
