Default i want to pressure test my car to check for any rouge boost leaks.

I dont think I really have one but on other turbo cars ive owned this a basic thing to diagnose issues and just a good thing to do prior to trouble shooting any tuning issues. does anyone have a diy for building he parts to do this? I can do it myself pretty easy but thought someone might have a document or post handy that already did most of the work. if not, i'll make a thread pressure testing
psreynol is offline   Reply With Quote
Old 05-18-2012, 06:11 PM   #2
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,275
Total Cats: 53
Default

Midtenn is offline   Reply With Quote
Old 05-18-2012, 08:48 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Or if you have $30 laying around and are like me, and can never find the DIY parts at the local Home Depot:

http://www.siliconeintakes.com/index...62b23c7a1a3bc9
curly is offline   Reply With Quote
Old 05-18-2012, 09:57 PM   #4
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by curly View Post
Or if you have $30 laying around and are like me, and can never find the DIY parts at the local Home Depot:

http://www.siliconeintakes.com/index...62b23c7a1a3bc9
great site btw, I have used them on multiple occasions and I am very satisfied!
Seefo is offline   Reply With Quote
Old 05-19-2012, 04:08 AM   #5
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

Pipe cap the size of your Turbo inlet and an air hose quick disconnect fitting. Lower the outlet pressure to 5psi above what you run max.
chpmnsws6 is offline   Reply With Quote
Old 05-19-2012, 09:04 AM   #6
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default



C
Attached Thumbnails

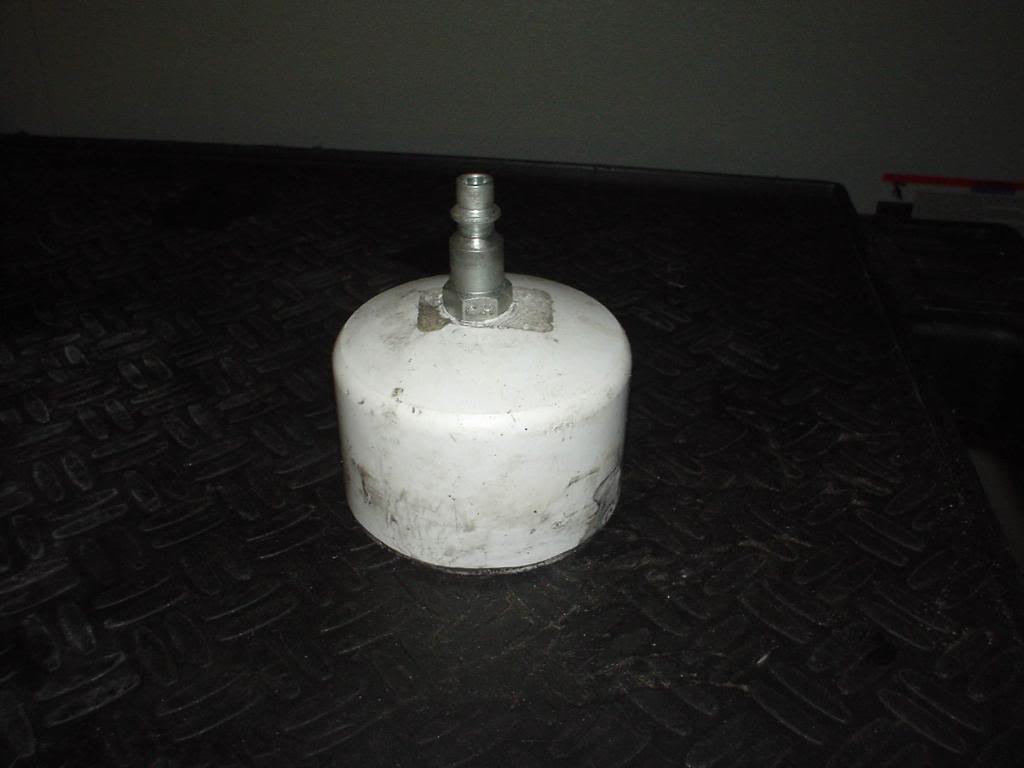

i want to pressure test my car to check for any rouge boost leaks.-aat.jpg
chriscar is offline   Reply With Quote
Old 05-19-2012, 12:07 PM   #7
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 128
Default

^ That's exactly what I made. Couple bucks for a PVC cap and a couple bucks for a valvestem. Drill a hole in the pvc cap and pop the valvestem in place. Works perfect.
pdexta is offline   Reply With Quote
Old 05-19-2012, 04:35 PM   #8
Junior Member

Join Date: Oct 2011
Location: Asheville, NC
Posts: 143
Total Cats: 0
Default

Don't forget a long air hose. Everytime I got close to finding my air leaks the damn compressor would kick on ad I couldn't hear crap! Lol. Had to get a 100' of hose and do the check far from the garage. Also, used some soapy water in a spray bottle that I keep around for finding tire leaks.

Last edited by jboogie; 05-19-2012 at 05:48 PM.
jboogie is offline   Reply With Quote
Old 05-19-2012, 04:59 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by chriscar View Post


C

2.5"

where do i paypal for postage for you to lend it to me?
Braineack is offline   Reply With Quote
Old 05-20-2012, 09:27 PM   #10
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Shipping will cost same as the parts to build one yourself...

These are great to have, found out my EGR valve was leaking so now it sits blocked off until next emissions inspection comes around. Though I was a sissy and stuck mine post-turbo. Don't waste your time with schrader valves, quick disconnects work much better. Higher airflow volume and you can just plug it in and let it sit while you dig through the engine bay looking for leaks.
midpack is offline   Reply With Quote
Old 05-20-2012, 09:35 PM   #11
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by midpack View Post
Shipping will cost same as the parts to build one yourself...
Pretty sure he was joking..
yank is offline   Reply With Quote
Old 05-21-2012, 10:10 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

i wasnt joking, and I'm way too lazy to build one. although I do think I have a spare compressor hose fitting like that...acutally, it should be easy as hell now that i think of it.
Braineack is offline   Reply With Quote
Old 05-22-2012, 12:14 PM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

my boost leaks are always cerulean, never rouge.
y8s is offline   Reply With Quote
Old 05-22-2012, 12:27 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by y8s View Post
my boost leaks are always cerulean, never rouge.
bro, I already changed my sig.
Braineack is offline   Reply With Quote
Old 05-22-2012, 12:42 PM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

18psi is offline   Reply With Quote
Old 05-28-2012, 06:32 PM   #16
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 17
Default

Thanks for posting this, it reminded me I still hadn't tested mine. Found a huge leak through my BOV, and an intermittent one at the #4 injector. Hopefully they are the reason for my shitty lag.
Handy Man is offline   Reply With Quote
Old 05-28-2012, 08:09 PM   #17
Elite Member
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Godless Commie is offline   Reply With Quote
