Old 06-10-2015, 09:53 PM   #381
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,243
Total Cats: 45
Default

Reroute on the cold side with no mixing manifold. I would have to ask Jeremy about the thermostat.
Midtenn is offline   Reply With Quote
Old 06-11-2015, 09:11 AM   #382
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,126
Total Cats: 129
Default

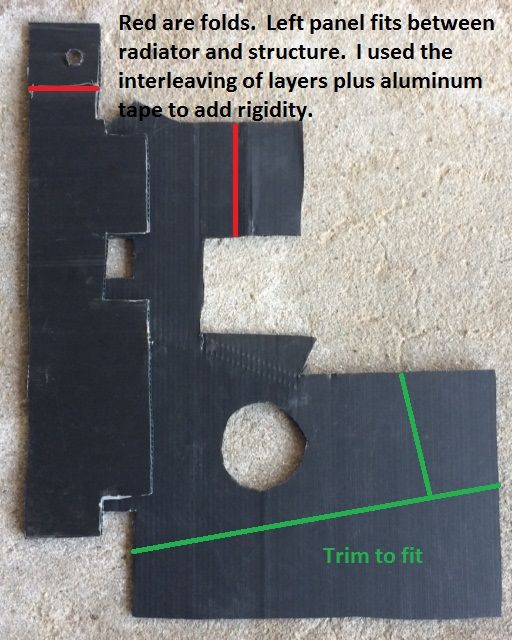

This is what I spent my afternoon doing. I will take pictures of the rest of the parts when I have a chance. I have most of all the cardboard templates.

The left panel sits between the radiator and radiator support structure and sandwiches it. The top flap goes over the top of the radiator and the hole at top helps keep it in place by going over the radiator mounting "bolt".





The side panel is placed INSIDE of the radiator panel and is taped in place with aluminum tape once fitment is properly set. There is a panel that bridges the center gap between the two sides behind the hood latch that boxes the airflow so it can't skip the radiator. Also, there is a bottom panel that ties it all together. I was in such a hurry to finish it that I didn't take any good pictures once it was done.
Attached Thumbnails
Miata cooling system thread-fullsizerender.jpg   Miata cooling system thread-80-fullsizerender_10d560dcde39141b09dc2cf53019634c0ef9e113.jpg
Chiburbian is offline   Reply With Quote
Old 06-29-2015, 07:39 PM   #383
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

Quote:
Originally Posted by JasonC SBB View Post
(Both had the reroute)



In all the above pics the exhaust is on the right side. I mirrored the head images to match the hole locations with a block when you look down at it. The HG images are of the *top* side to match the mirrored head images.
Has anyone else tried this? If so with what kind of results?
tomiboy is offline   Reply With Quote
Old 06-29-2015, 07:49 PM   #384
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,663
Total Cats: 235
Default

Quote:
Originally Posted by tomiboy View Post
Has anyone else tried this? If so with what kind of results?
I meant to, but got in a hurry and forgot! My plan was to test drilling it out on an old head gasket first. But I got caught up in my build and completely forgot about it... I guess next time the head is off I'll try not to forget!
patsmx5 is offline   Reply With Quote
Old 06-30-2015, 08:21 AM   #385
Junior Member
iTrader: (3)

Join Date: Oct 2011
Location: Naperville
Posts: 369
Total Cats: 3
Default

No disrespect to Jason, but I'd like to see more consensus, among the track rats here, that this modified head gasket is the way to go. Emilio??
tomiboy is offline   Reply With Quote
Old 06-30-2015, 11:14 AM   #386
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,144
Total Cats: 1,138
Default

Quote:
Originally Posted by tomiboy View Post
No disrespect to Jason, but I'd like to see more consensus, among the track rats here, that this modified head gasket is the way to go. Emilio??
Unknown. Not something I have tested. If Jason did any controlled testing or at least has a report, I'd be interested to see it. I think there might be improvement to be made, Mazda addressed in in some fashion so it's not unreasonable to expect further gains with a custom HG + reroute.
emilio700 is offline   Reply With Quote
Old 06-30-2015, 11:36 AM   #387
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,387
Total Cats: 58
Default Miata cooling system thread

20 thermocouples and the engine in a controlled dyno room might show something. This is more around reducing the temperature differences in the head than cooling capacity.

Did the HG evolve for the transverse BP?
GrpA GTR?
If that did stay the same why spend time shooting in the dark when we already copied the original watetflow.

This is one of the few cases when the OEM optimization have the same target.
NiklasFalk is offline   Reply With Quote
Old 06-30-2015, 12:01 PM   #388
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,663
Total Cats: 235
Default

Quote:
Originally Posted by tomiboy View Post
No disrespect to Jason, but I'd like to see more consensus, among the track rats here, that this modified head gasket is the way to go. Emilio??
Jason is the only person I know who's done it.
patsmx5 is offline   Reply With Quote
Old 08-24-2015, 09:13 AM   #389
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 13
Default

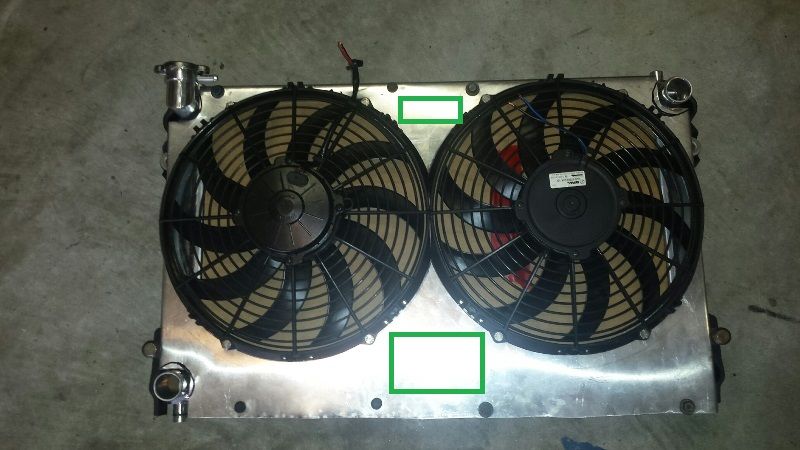

Is it really worth it to add the rubber flaps? I am making a shroud to mount the FM spec Spall fans on my Supermiata radiator and am almost done. I am now debating if it will even make a significant difference if I add some rubber flaps to my shroud.


My understanding is that these flaps will lift when the fans are not able to move the air flow that is generated when the car is moving at higher speeds. My thinking is that the increased pressure ahead of the radiator will reduce the amount of work that the fan has to do and will allow the fan to increase speed and move more air. I understand there is a limit on how fast the fans will spin and therefore how much air they can move.


Someone please educate me (with real world test data, if possible) why I need to add these flaps and how many (how big an area) are needed for it to make an impact on high speed operation.


The picture below shows where I was planning on adding the biggest flap I could fit below the fans and possibly add a small one at the top if a bigger opening is needed. This would end up looking a lot like the FM fan/shroud kit.


In this configuration most of the area is covered by fan in any case. I can see these flaps being needed when you have only one fan and 40% of the radiator covered by shroud, but doesn't seem like these small flaps would make a big difference on my setup.


Attached Thumbnails
Miata cooling system thread-80-flaps_20150822_150616_resized_a37753089454ae3c998ef15252d68948375d53d3.jpg

Last edited by Rallas; 08-24-2015 at 12:47 PM.
Rallas is offline   Reply With Quote
Old 08-24-2015, 10:46 AM   #390
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,253
Total Cats: 1,481
Default

You've got plenty of open space there and should not need any flaps to get enough flow.
sixshooter is offline   Reply With Quote
Old 08-24-2015, 05:45 PM   #391
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,126
Total Cats: 187
Default

if SPALs, I wouldn't worry about the flaps. In order for the flap to be effective, there would have to be higher relative pressure in front of the fans than behind them, and given the restriction of the radiator and the power of those fans, I'm not convinced that would ever be the case unless the fans weren't running, in which case you wouldn't need the extra venting anyhow. A blocking bar between the shround and the radiator to isolate the two fans from each other would be more effective, so that when one fan is running, it isn't sucking in all of its air through the other non-running fan.
fooger03 is offline   Reply With Quote
Old 08-24-2015, 09:59 PM   #392
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,039
Total Cats: 99
Default

You can do the math.

You know the open area on the radiator is ~1/3 the core area, and you can use photochop magic to get the actual flow area through the fans and see if these add up.
Leafy is offline   Reply With Quote
Old 08-25-2015, 09:04 AM   #393
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 13
Default

I already have a blocking bar sealed to the radiator surface between the two fans.


I was planning on coming up with a better way to drive the two fans separately. I currently have the paralleled 90-93 setup with MS3 controls. I would like to control each fan separately so that most of the time I am only using the small fan and only kick in the big guy when AC is on or if CLT is above 200 deg or some elevated setpoint. I would like to even simplify it to just turn the small fan on at 195 deg and big fan on at 200-205 deg since AC will heat things up quickly and trigger the second fan to start based on CLT temps.
Rallas is offline   Reply With Quote
Old 08-25-2015, 11:36 AM   #394
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,253
Total Cats: 1,481
Default

Quote:
Originally Posted by relte View Post
I already have a blocking bar sealed to the radiator surface between the two fans.


I was planning on coming up with a better way to drive the two fans separately. I currently have the paralleled 90-93 setup with MS3 controls. I would like to control each fan separately so that most of the time I am only using the small fan and only kick in the big guy when AC is on or if CLT is above 200 deg or some elevated setpoint. I would like to even simplify it to just turn the small fan on at 195 deg and big fan on at 200-205 deg since AC will heat things up quickly and trigger the second fan to start based on CLT temps.
Yes, you do want them both on when the A/C is running, but you may not automatically get there if one fan is CLT controlled. Sitting still, air will be drawn from the least resistance area. It will draw backwards through the non running fan and the rest of the radiator just as easily as through the condenser.
sixshooter is offline   Reply With Quote
Old 08-27-2015, 01:55 PM   #395
Junior Member

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

This might be a dumb question but should/can I clean, some how, my A/C condenser?

-Fab9 FMIC
-Vented stock hood (Singular)
-Working on sealing the sides of the radiator but have the top sealed
-I can run both fans via MS2
-CSF radiator with H2O/water-wetter (been burped to death)
-Stock under-tray
-180* therm.
-Heater core taken out of the loop (worried about a leak there)

All on my MSM and still not very impressed with the track temps; they pushed up to 215* and I started using the front straight as cool-off time.

I feel I might just be stuck here due to keeping the A/C and or in addition might really need a re-route. My impression is the head gasket issue is ok with the MSM.
tazswing is offline   Reply With Quote
Old 08-27-2015, 03:37 PM   #396
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,663
Total Cats: 235
Default

If it's the original a/c condenser, installing a new one is almost a guarantee for it to be in better shape and flow air better than the 10yr old a/c condenser. Aside from that, cleaning it or straightening any bent fins will help a touch, but not much.
patsmx5 is offline   Reply With Quote
Old 08-27-2015, 05:27 PM   #397
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,879
Total Cats: 44
Default

AC shops will hose home/ stationary units down with a weak acid and then blow them out from back to front with water and compressed air. I actually just did mine this weekend with Awesome (like Purple Power or Simple Green) then scrubbed it with a really soft brush to knock all the crust and dead bugs loose. Be really careful if you scrub it, as the fins are wicked sharp and will wreck your knuckles, but they're also really easy to bend, and it really won't flow any air if you bend all the fins up.
vehicular is offline   Reply With Quote
Old 08-27-2015, 06:17 PM   #398
Junior Member

Join Date: Sep 2014
Location: Portland (left coast)
Posts: 214
Total Cats: 2
Default

Thank you.

Quote:
Originally Posted by patsmx5 View Post
If it's the original a/c condenser, installing a new one is almost a guarantee for it to be in better shape and flow air better than the 10yr old a/c condenser. Aside from that, cleaning it or straightening any bent fins will help a touch, but not much.
Quote:
Originally Posted by vehicular View Post
AC shops will hose home/ stationary units down with a weak acid and then blow them out from back to front with water and compressed air. I actually just did mine this weekend with Awesome (like Purple Power or Simple Green) then scrubbed it with a really soft brush to knock all the crust and dead bugs loose. Be really careful if you scrub it, as the fins are wicked sharp and will wreck your knuckles, but they're also really easy to bend, and it really won't flow any air if you bend all the fins up.
tazswing is offline   Reply With Quote
Old 08-29-2015, 08:38 PM   #399
Mr Broke Pants
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,548
Total Cats: 49
Default

These are questions regarding the supermiata crossflow radiator, march 2015 batch and newer...

1. the installation instructions say to mount the oem fans and shrouds using a parallel circuit, is the oem/stock fan circuit parallel? If not, how to I modify it to be so?

2. will I need to modify the power steering reservoir and/or lines to fit the radiator?

3. the Trackspeed sacrificial anode cap will NOT work with the supermiata radiator, what other options do I have for installing a sac anode?

thanks
thumpetto007 is offline   Reply With Quote
Old 08-29-2015, 08:41 PM   #400
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,663
Total Cats: 235
Default

Quote:
Originally Posted by thumpetto007 View Post
These are questions regarding the supermiata crossflow radiator, march 2015 batch and newer...

1. the installation instructions say to mount the oem fans and shrouds using a parallel circuit, is the oem/stock fan circuit parallel? If not, how to I modify it to be so?

2. will I need to modify the power steering reservoir and/or lines to fit the radiator?

3. the Trackspeed sacrificial anode cap will NOT work with the supermiata radiator, what other options do I have for installing a sac anode?

thanks
1. OEM is not parallel, if you search for parallel fan mod, you'll find a walkthrough on how to do it.

2. I don't know.

3. Not sure, but you shouldn't have a voltage difference between the radiator and the chassis in the first place, and if you do, you need to find out why and fix it.
patsmx5 is offline   Reply With Quote
