Old 11-19-2015, 04:34 AM   #441
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Probably for this:

Big Bend Open Road Race

Similar to the Silver-State Classic.

Yeah, not KISS. More like PPPGE (****-Poor Pseudo German Engineering). But as long as you can push it off the road and still join the party that night, who cares?
hornetball is offline   Reply With Quote
Old 11-19-2015, 08:02 AM   #442
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,340
Total Cats: 229
Default

Fuel pump for each injector.

Oops wrong thread.
TurboTim is offline   Reply With Quote
Old 11-24-2015, 07:51 AM   #443
Supporting Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 15
Default

"Definitely not the KISS approach to cooling, seems like there is now more than twice the components and connections to fail."

May I suggest you stay with four cylinder motors. The additional complexity of a 5 or 6 might drive you batty. Lord help you if you buy a V12.

Consider:
If one carries the "kiss" approach to the logical conclusion, it all remains stock and you don't win the race.

Frontal area of the heat exchanger is the biggest single factor in cooling.

Heat exchange area gets larger with fatter rad cores, but with increasing thickness, LESS air passes through the core.

Any given radiator core's volume is only about 25% water.

If one can competently assemble 15 coolant connections, he can also assemble 15 more with the same degree of competence.

The coolest coolant introduced into the hottest points on the motor has some logic to it, in my view.

And also:
Yes, it was for the west Texas race. This is not a track race of on/off throttle operation.
Rather it will require one hour at full boost and at the redline. To do such, twice the stock power is needed, but only 25% more cooling air is available if the frontal area of the heat exchanger remains stock.

corky
Corky Bell is offline   Reply With Quote
Old 11-24-2015, 05:25 PM   #444
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 948
Total Cats: 41
Default

Quote:
Originally Posted by Mobius View Post
This would be interesting to properly instrument. My personal experience, with an NB2, is that there is airflow through that gap into the engine bay. During pollen season I would notice a lot coming through there. I ran weatherstrip along the bottom of the hood to seal it off. It's a 15 minute job to fix it. Use black rtv; the weatherstripping glue can't handle the environment.
Mine seems to suck the power steering fluid that is on the bottom of the hood out that gap.(don't ask). That said, I only have stock ducting and no block of panel up there.
x_25 is offline   Reply With Quote
Old 03-17-2016, 11:31 PM   #445
Newb

Join Date: Mar 2016
Posts: 25
Total Cats: 0
Default Exocet re-route

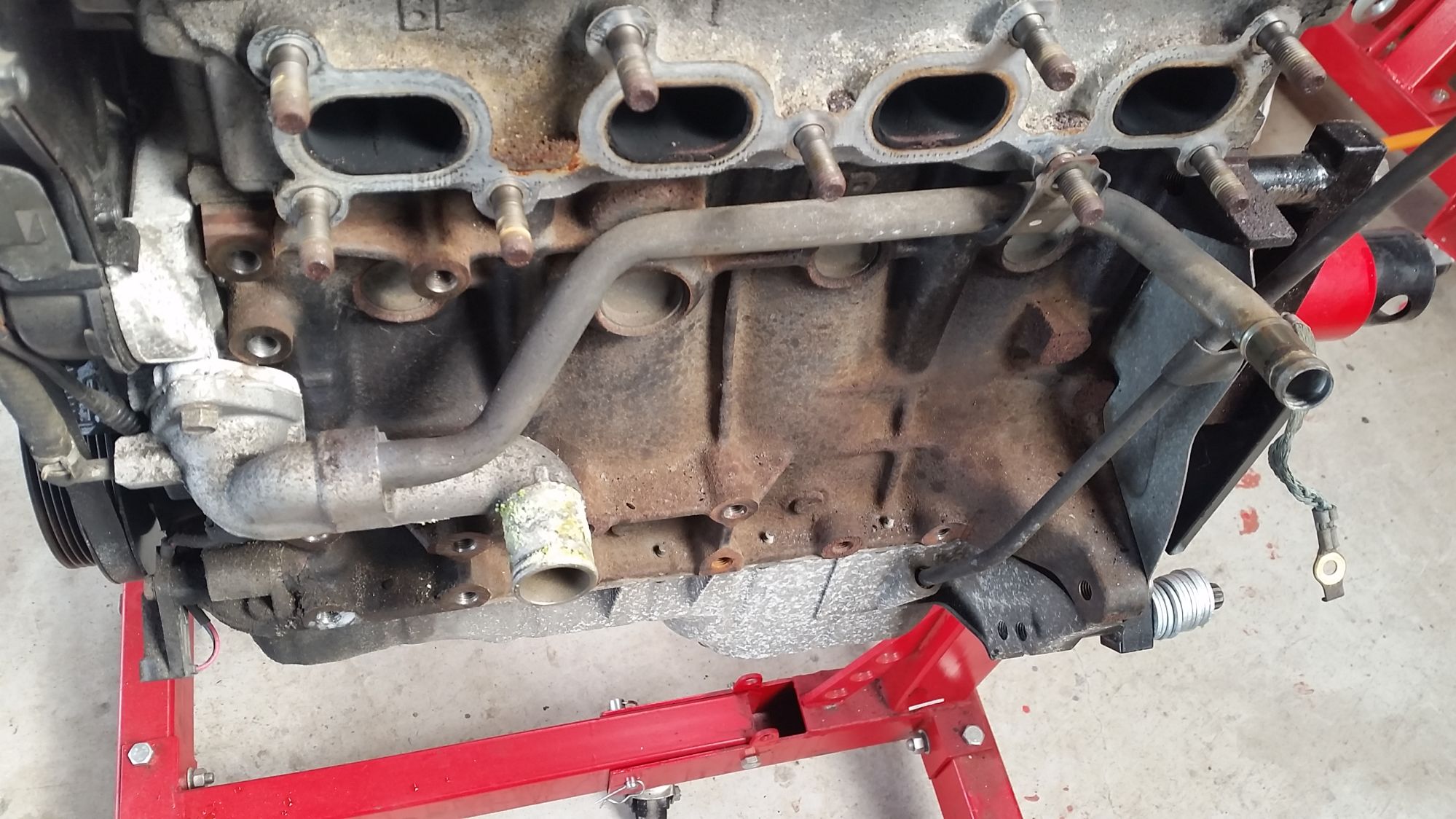

I'm using the 949Racing re-route kit on an engine that is going to be installed in an Exocet.
I am wondering whether I am able to block the heater inlet/outlet at the mixing manifold and at the new rear housing, completely removing the heater loop. This will mean I can lose the hardline water pipe that runs along under the exhaust manifold all together, and will need to come up with a solution to block the two ports mentioned above.

Anyone done this...pics would be great. TIA!

Attached Thumbnails
Miata cooling system thread-80-ww70xuh_6fd749f0cbc6c093ef8c0493dcdcec09f3e842c3.jpg
h20boynz is offline   Reply With Quote
Old 03-18-2016, 12:28 AM   #446
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,853
Total Cats: 993
Default

Since you don't need the mixing manifold, you can replace it with a Kia or Mazda B6 front water outlet. Hose would need to be different but it cleans things up. One option anyway.
emilio700 is offline   Reply With Quote
Old 03-18-2016, 06:30 AM   #447
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 769
Total Cats: 56
Default

I did this on a build where i weld an aluminum plug on the cross over tube hole in the mixing manifold, this way you can still use the lower oem radiator hose.
HHammerly is offline   Reply With Quote
Old 03-18-2016, 06:37 AM   #448
Newb

Join Date: Mar 2016
Posts: 25
Total Cats: 0
Default

Quote:
Originally Posted by HHammerly View Post
I did this on a build where i weld an aluminum plug on the cross over tube hole in the mixing manifold, this way you can still use the lower oem radiator hose.
Ok cool, thanks guys. I'm of the understanding then that i dont need to have a hose from the reroute rear housing(its heater port) to the oem mixing manifold.
Sweet, that'll tidy things up nicely!!! Thanks
h20boynz is offline   Reply With Quote
Old 03-18-2016, 06:51 AM   #449
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 769
Total Cats: 56
Default

FYI, You do need to let the engine get up to temp where the thermostat opens before wailing on it, without having that return line there is likley some hot and cold spots in the engine until you have normal water circulation.
HHammerly is offline   Reply With Quote
Old 03-18-2016, 06:55 AM   #450
Newb

Join Date: Mar 2016
Posts: 25
Total Cats: 0
Default

Quote:
Originally Posted by HHammerly View Post
FYI, You do need to let the engine get up to temp where the thermostat opens before wailing on it, without having that return line there is likley some hot and cold spots in the engine until you have normal water circulation.
Noted...I would like to think i am clever enough to remember this good advice but when the blood starts pumping...
Would drilling a small hole in the thermostat be safe enough? Just to help get a little circulation until the thermostat opens?
h20boynz is offline   Reply With Quote
Old 03-18-2016, 08:47 AM   #451
Junior Member
iTrader: (8)

Join Date: Jun 2012
Location: Columbus, IN
Posts: 413
Total Cats: 9
Default

Yes, a 1/4" hole will suffice, I pulled the little bleed toggle thing out and drilled that hole out keeping it at the top when installed. Any larger and I couldn't keep my up to temp in 55 F ambients, even racing
slammed200 is offline   Reply With Quote
Old 03-18-2016, 06:04 PM   #452
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,853
Total Cats: 993
Default

The tstat on our reroute already has a 1/4" hole drilled in it. No need to add another.
emilio700 is offline   Reply With Quote
Old 03-19-2016, 04:34 PM   #453
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 429
Total Cats: 11
Default

I run 3 holes 3/16" dia., the same as this hflow one has so if the temp doesn't warm up enough on cold mornings I don't worry much. Sometimes I put a little duct tape on the construction cloth grill which also helps front down force. I forgot to mention I tried running that stat but the whole bottom is what opens [the brass can you see] and the taper on the M-tuned stat housing won't let it open very much.

EMP Stewart High Performance Thermostats 301 - Free Shipping on Orders Over $99 at Summit Racing
jmann is offline   Reply With Quote
Old 03-27-2016, 09:33 PM   #454
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,748
Total Cats: 142
Default

The House Cat cooling is coming right along. While the coolant reroute helps, we're closing off more of the front air intakes because too much air is making it into the engine bay. The two side inlets are getting rerouted to the front brakes, and two hood vents will be added to help evacuate the air. Instead of being right behind the radiator, they're higher on the hood where there's some good low pressure air that will help suck out the heat.




The new House Cat coolant reroute includes a swirl pot at the firewall.

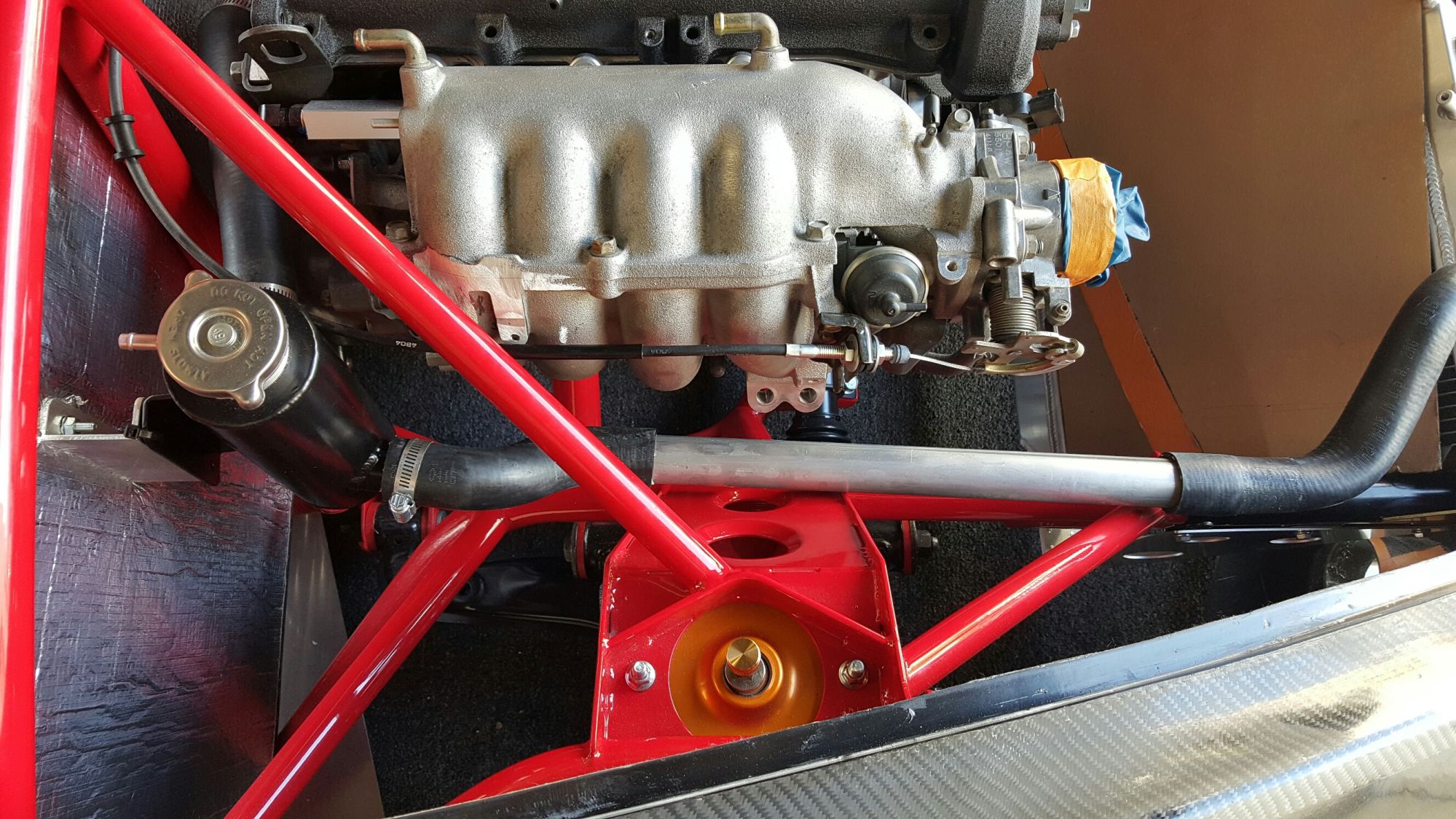

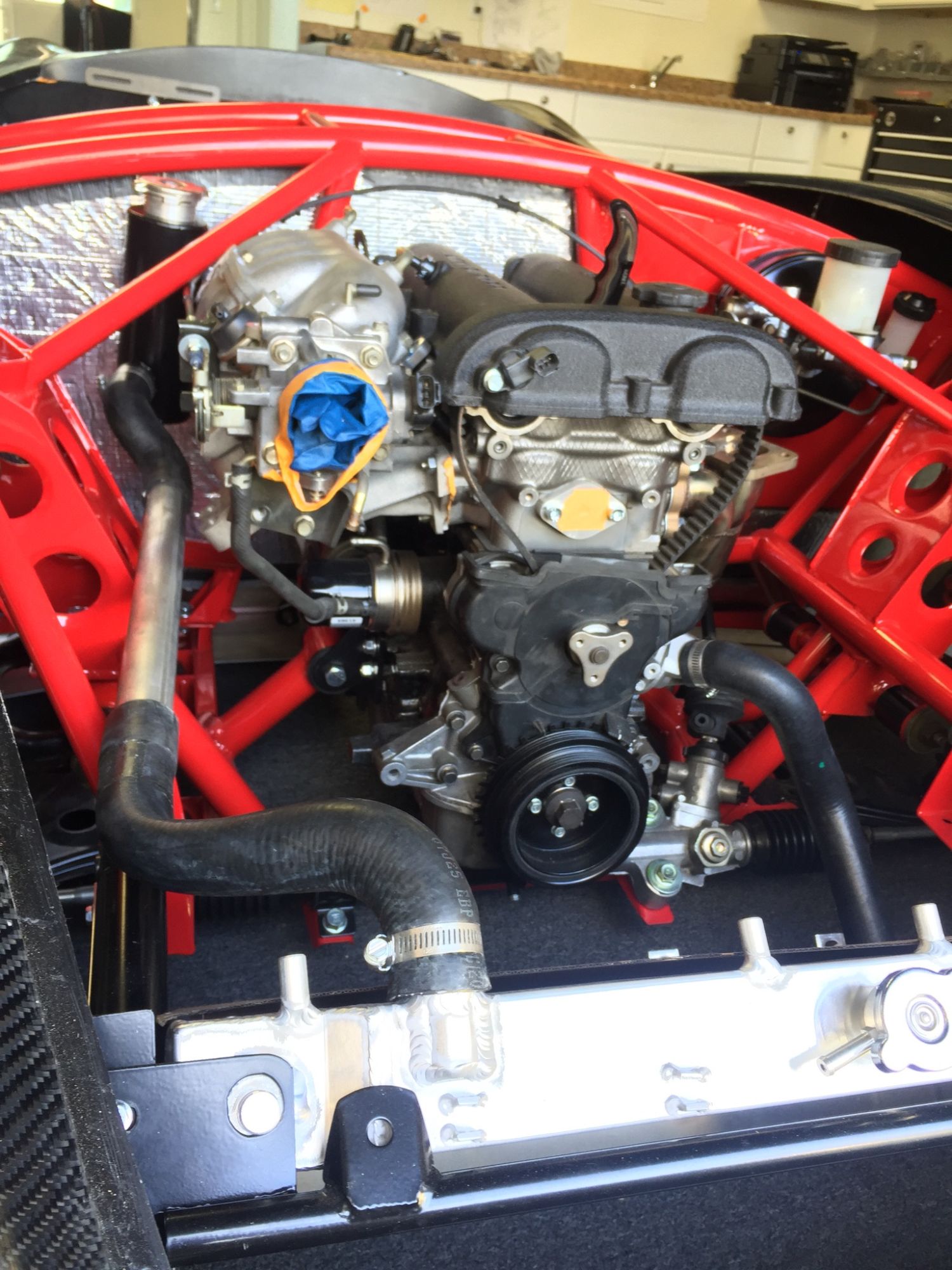

This plumbing isn't finished, but shows the simple location of the coolant pipes. The 1.25" aluminum tube will be bolted down with a couple of P clips.

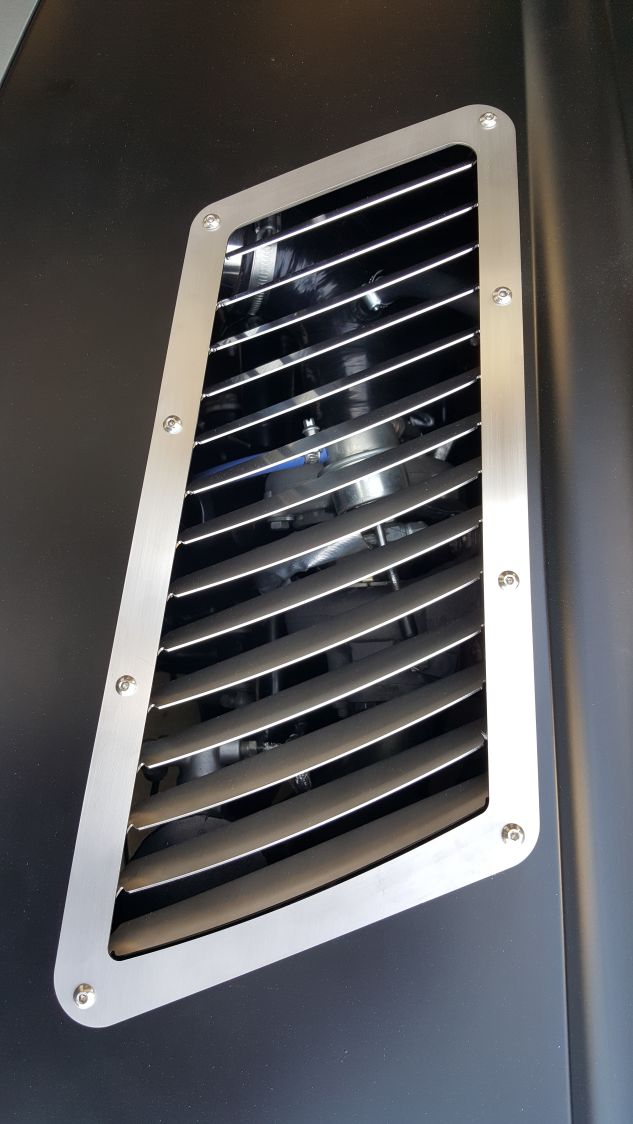

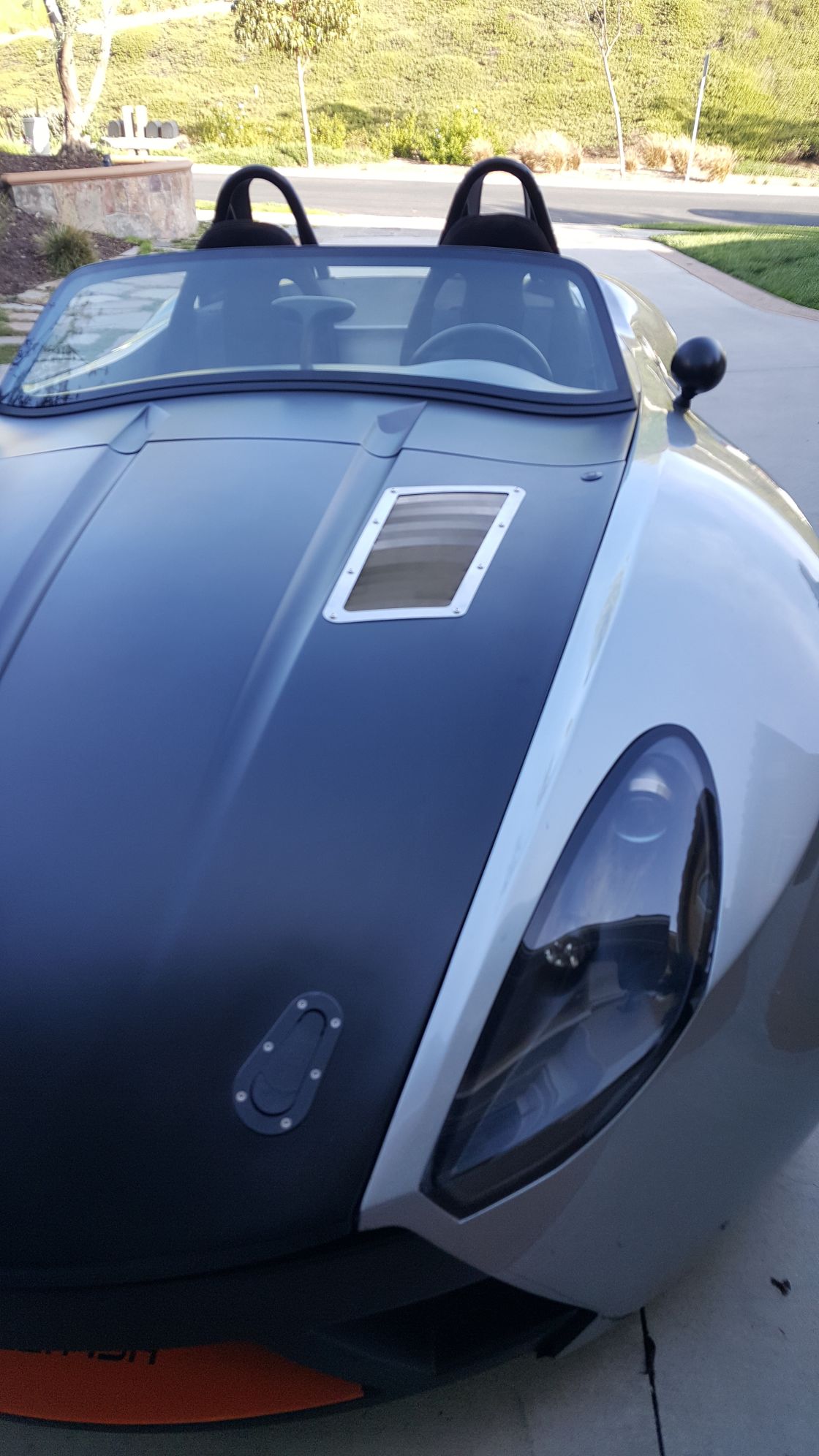

There's some good low pressure at the back of the hood.






The vent is right over the turbo, so radiated heat has a direct escape route when the car is off.
Attached Thumbnails
Miata cooling system thread-80-20160319_172256_32be74be0be2e866b80730cbc928ba8bfff8e9b5.jpg   Miata cooling system thread-80-20160311_123817_resized_3add88d1532680f5345eaff7c3c506eeff13d6e5.jpg   Miata cooling system thread-80-img_3512_908b0cf2aa8d1c7a7abfcc7b0709b095a9a10100.jpg   Miata cooling system thread-80-20160319_172314_fbc7aa5a0621f6dd7f46b343bd2fc8c2fe6686ff.jpg
cordycord is offline   Reply With Quote
Old 03-28-2016, 02:56 AM   #455
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,846
Total Cats: 228
Default

Nice, very nice
Mobius is offline   Reply With Quote
Old 03-28-2016, 03:44 AM   #456
Newb

Join Date: Mar 2016
Posts: 25
Total Cats: 0
Default

Quote:
Originally Posted by cordycord View Post
The House Cat cooling is coming right along. While the coolant reroute helps, we're closing off more of the front air intakes because too much air is making it into the engine bay. The two side inlets are getting rerouted to the front brakes, and two hood vents will be added to help evacuate the air. Instead of being right behind the radiator, they're higher on the hood where there's some good low pressure air that will help suck out the heat.

The new House Cat coolant reroute includes a swirl pot at the firewall.

This plumbing isn't finished, but shows the simple location of the coolant pipes. The 1.25" aluminum tube will be bolted down with a couple of P clips.

There's some good low pressure at the back of the hood.

The vent is right over the turbo, so radiated heat has a direct escape route when the car is off.
Looks awesome!
Can I ask where you got that cool vent from?

Last edited by sixshooter; 03-28-2016 at 08:52 AM.
h20boynz is offline   Reply With Quote
Old 03-28-2016, 12:37 PM   #457
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,748
Total Cats: 142
Default

Quote:
Originally Posted by h20boynz View Post
Looks awesome!
Can I ask where you got that cool vent from?
Made it ourselves. The first few test pieces were aluminum, but we made this one with stainless steel, laser cut. The first iteration showed too much of the outside vents where they bend, so this latest one had tightened up the trim ring. I think it turned out nice.
cordycord is offline   Reply With Quote
Old 03-28-2016, 12:44 PM   #458
Newb

Join Date: Mar 2016
Posts: 25
Total Cats: 0
Default

Quote:
Originally Posted by cordycord View Post
Made it ourselves. The first few test pieces were aluminum, but we made this one with stainless steel, laser cut. The first iteration showed too much of the outside vents where they bend, so this latest one had tightened up the trim ring. I think it turned out nice.
Wow, very impressive! Guess I'll be going with the $10 ebay version then lol
h20boynz is offline   Reply With Quote
Old 03-28-2016, 02:09 PM   #459
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,748
Total Cats: 142
Default

Quote:
Originally Posted by h20boynz View Post
Wow, very impressive! Guess I'll be going with the $10 ebay version then lol
I've probably got some aluminum test pieces laying around. Pay for the shipping and I'll send you a couple.
cordycord is offline   Reply With Quote
Old 03-28-2016, 02:13 PM   #460
Newb

Join Date: Mar 2016
Posts: 25
Total Cats: 0
Default

Quote:
Originally Posted by cordycord View Post
I've probably got some aluminum test pieces laying around. Pay for the shipping and I'll send you a couple.
Thats very kind of you, thanks. I live on the other side of the globe to you though so wouldnt be worth your effort. Thanks for the thought though!
h20boynz is offline   Reply With Quote
