Old 04-22-2013, 03:18 PM   #321
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

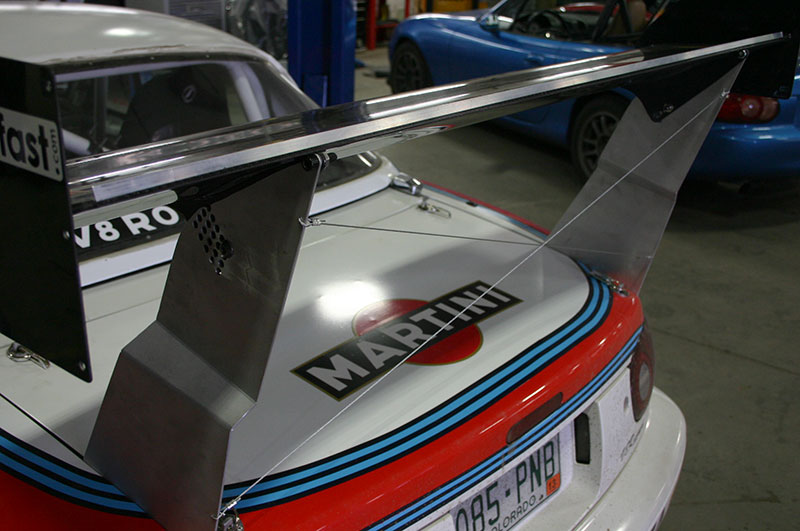

Here we go, the taller setup with guy wires. When I pulled back hard on the wing, I could see the lower section of the mounts bowing out a bit. Enough to show me how it would fail if it did fail. There was also more side-to-side wiggle than I liked.

Guy wires: problem solved. I put the lower point right where there was the most deformation on my "pull test", and it's solid both sideways and fore-aft. I love this kind of simple fix. I'm not thrilled about the extra drag, but I doubt it'll be a major issue. These weren't needed on the shorter "production" version of the mounts.
Attached Thumbnails
New Wing to Test-img_2339.jpg
Keith@FM is offline   Reply With Quote
Old 04-22-2013, 03:33 PM   #322
Junior Member
iTrader: (2)

Join Date: May 2009
Location: Under the car in a pool of oil
Posts: 64
Total Cats: 2
Default

Ignore me, just answered my own question

Russell.

Last edited by vindi49; 04-22-2013 at 04:11 PM.
vindi49 is offline   Reply With Quote
Old 04-23-2013, 01:42 AM   #323
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 700
Total Cats: 51
Default

****, I mis-typed... mine is 1/4" plate. Edited my previous post.
jpreston is offline   Reply With Quote
Old 04-23-2013, 02:54 AM   #324
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Will you be running the tall setup at MRLS? It would be interesting to do a back to back and see what the impressions are between the two. This may be just an evil plot to make us buy more mounts!


mr_hyde is offline   Reply With Quote
Old 04-23-2013, 03:23 AM   #325
Junior Member
iTrader: (1)

Join Date: Jan 2012
Posts: 115
Total Cats: 9
Default

Quote:
Originally Posted by SuperTuner12010 View Post
What grade of aluminum and what thickness are you guys using for your mounts that mount to the inside of the trunk. Similar to Flyin Miatas.

I have a GTC-200 that I am making custom mounts for but not sure what to use.

just finished my mount for my universal GTC-200 i got from my teammate. i used L stock from ace hardware.
JSpeed6 is offline   Reply With Quote
Old 04-23-2013, 03:28 AM   #326
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Quote:
Originally Posted by mr_hyde View Post
Will you be running the tall setup at MRLS? It would be interesting to do a back to back and see what the impressions are between the two. This may be just an evil plot to make us buy more mounts!


I called up there at Flying Miata and they couldn't make anymore of the old ones. So if it is a evil plot I might just buy some. But Im about to make my own on a Plasma 2x2. I want to mount it far back, but not as far as ThePass is.
1993ka24det is offline   Reply With Quote
Old 04-23-2013, 04:04 PM   #327
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

We certainly CAN make more of the mounts. But our production facility has certain minimum quantities, so we'd need to run another group buy. There's nothing stopping us from changing the dimensions if we do.

My car is definitely going to have the tall setup at MRLS. My own (homebuilt) mounts are shorter than the "production" ones, and I'll do a back-to-back test if I get the chance. The MRLS event does not lend itself well to testing for me, though. It's a bit different being there as a vendor as opposed to a driver. I may have to wait until I get another chance locally for testing. I'm also planning to do some tuft testing with a few other interesting items, and I need the extra height to do that.
Keith@FM is offline   Reply With Quote
Old 04-25-2013, 03:29 AM   #328
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492
Default

Yeah I was thinking about bringing different gurney flap sizes to experiment with at MRLS but that event isn't really a good test n tune. I, too, am doing vendor ride-alongs, which means driving 9/10ths and basically negating the differences between little setup changes, plus devoting most of the time during the event while not driving to socializing instead of taking notes and playing with settings.

Interested in what your other "interesting bits" will be

-Ryan
ThePass is offline   Reply With Quote
Old 05-20-2013, 06:42 AM   #329
Junior Member
iTrader: (2)

Join Date: May 2009
Location: Under the car in a pool of oil
Posts: 64
Total Cats: 2
Default

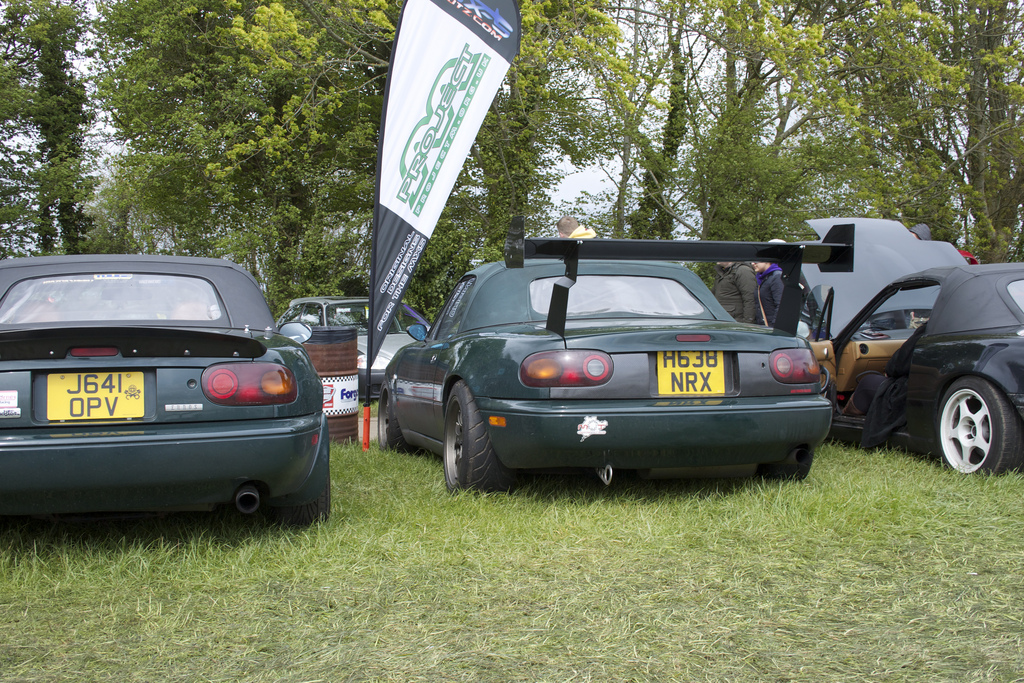

Slight thread resurection, but I found a half decent pic of my car at Japfest last week. I'm pretty happy with how it came out, still working on aero for the front though.



Russell.
Attached Thumbnails
New Wing to Test-wing_zpsf4a36cc4.jpg
vindi49 is offline   Reply With Quote
Old 05-20-2013, 03:06 PM   #330
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

I've only been on two tracks with the wing and admittedly, I added a splitter, air dam and around 40 who with a good tune, but I cut 6 seconds off my personal best at each track (The Ridge and MRLS).

The wing provides a huge amount of downforce without much drag. My trap speed at The Ridge increased by around 20 mph so it's not just a boat anchor. I've been taking angle out for two full days and still don't have the car balanced yet.
mr_hyde is offline   Reply With Quote
Old 05-20-2013, 03:07 PM   #331
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

Russell, I'd love to hear the comments when people find out it's a NASCAR wing!
Keith@FM is offline   Reply With Quote
Old 05-20-2013, 05:40 PM   #332
Junior Member
iTrader: (2)

Join Date: May 2009
Location: Under the car in a pool of oil
Posts: 64
Total Cats: 2
Default

Quote:
Originally Posted by [email protected] View Post
Russell, I'd love to hear the comments when people find out it's a NASCAR wing!
Its been interesting, at the show people were asking where it was from as the mounts make it stand out straight away as being a bit different. Most of the wings here are mounted on the bootlid, and cost maybe 80-150 second hand, so I was just answering 'well its what you get when you spend $3000' and watching their jaws hit the floor, before explaining the full story.

It certainly was appreciated, and more than a few people are now reading through this thread to get some ideas... fingers crossed a few more people start experimenting with Aero over here, as I haven't seen more than a handful of MX5s with anything up to this point.

Russell.
vindi49 is offline   Reply With Quote
Old 07-30-2013, 07:49 PM   #333
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

I'll just leave this right here.

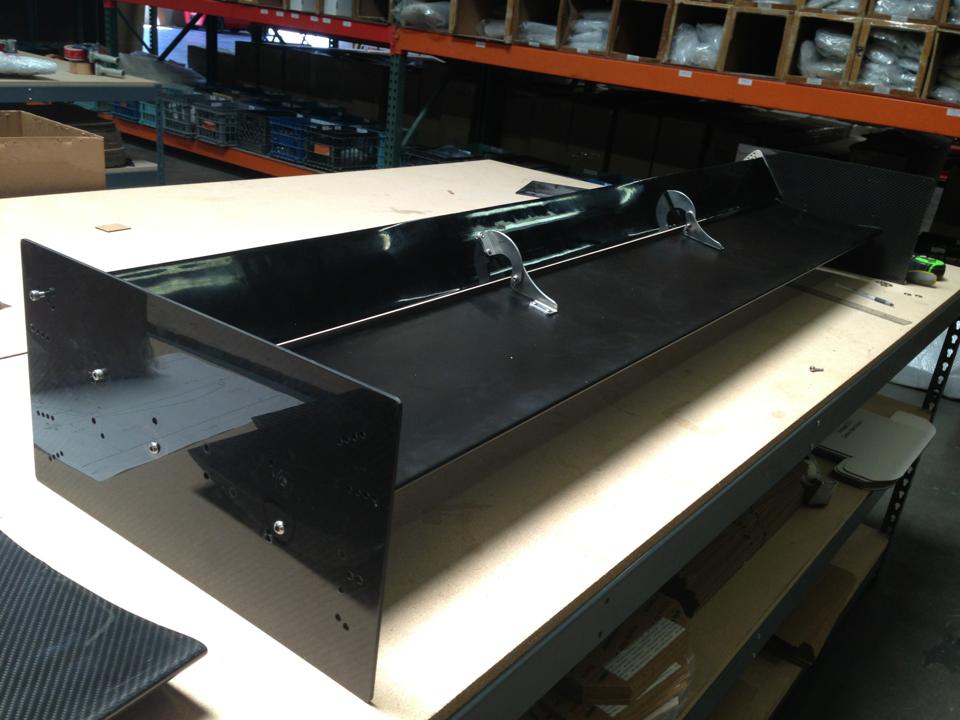

Prototype second element for the GT-250 2D wing at APR

Attached Thumbnails
New Wing to Test-73523_10151813923904083_1144431682_n.jpg
emilio700 is offline   Reply With Quote
Old 07-30-2013, 07:57 PM   #334
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 587
Total Cats: 47
Default

Hey thanks Emilio, as soon as you get the numbers can you post them.

And can you leave one at my door step and I will test is out :-)
1993ka24det is offline   Reply With Quote
Old 07-30-2013, 07:58 PM   #335
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

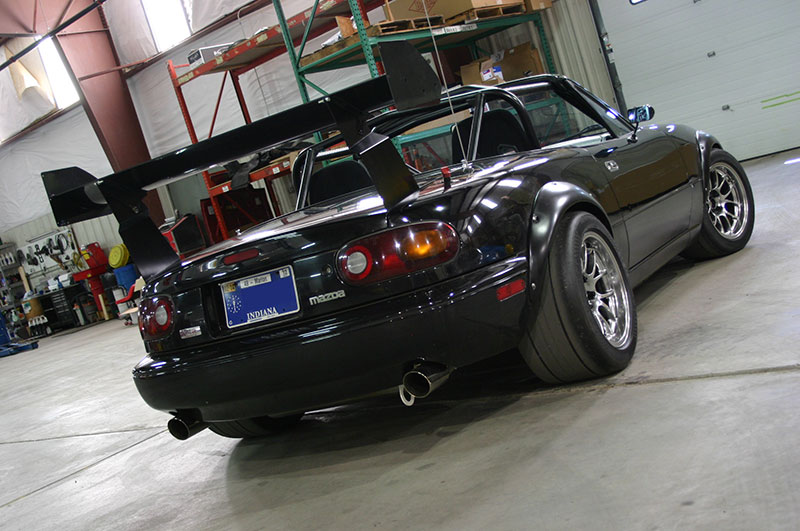

Excellent. Multi-element wings are much cooler than single.

Attached Thumbnails
New Wing to Test-img_2978.jpg
Keith@FM is offline   Reply With Quote
Old 07-30-2013, 09:53 PM   #336
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,323
Total Cats: 1,344
Default

Quote:
Originally Posted by [email protected] View Post
Excellent. Multi-element wings are much cooler than single.
Is the one in the pic a dual? Looks like but can't tell. Moar pics.
emilio700 is offline   Reply With Quote
Old 07-30-2013, 11:57 PM   #337
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

Quote:
Originally Posted by emilio700 View Post
Is the one in the pic a dual? Looks like but can't tell. Moar pics.

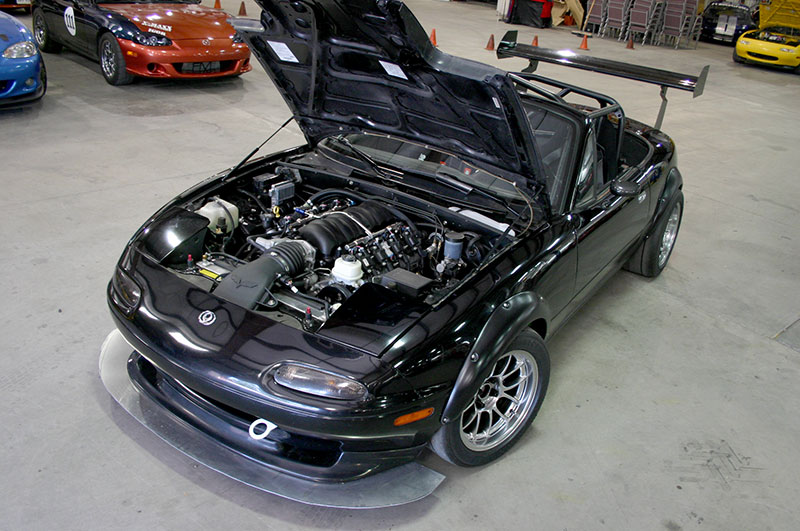

Unfortunately, no. It's just another semi-pornographic COT wing shot that I took today. The rest of the car matches - 525 hp LS3, 275 Hoosiers on 15x10 6ULs, etc. The front splitter and wheel spats aren't done yet, BTW.



Looking forward to hearing more about the dual element setup you're working on. I've got some fun parts coming for my own car that would be illegal in most race classes - more when I get them implemented.
Attached Thumbnails
New Wing to Test-img_2975.jpg
Keith@FM is offline   Reply With Quote
Old 07-31-2013, 04:23 AM   #338
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by emilio700 View Post
Prototype second element for the GT-250 2D wing at APR
Good to have more new options. The COT wings are getting very hard to find already. The $400/shipped deals are long gone.
mr_hyde is offline   Reply With Quote
Old 07-31-2013, 09:02 AM   #339
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

Quote:
Originally Posted by emilio700 View Post
I'll just leave this right here.

Prototype second element for the GT-250 2D wing at APR

it;s funny how APR wings are looking more and more simplistic, but apparently being more and more effective.

Quote:
Originally Posted by [email protected] View Post
this picture has ruined my life.

Braineack is offline   Reply With Quote
Old 07-31-2013, 10:37 AM   #340
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

Quote:
Originally Posted by mr_hyde View Post
Good to have more new options. The COT wings are getting very hard to find already. The $400/shipped deals are long gone.
Agreed - mostly. There's an Exocet builder in Florida who claims to have purchased a half dozen of them at $125-250 each over the past few months on eBay and the like. I have some suspicions about the legitimacy of these claims, but I believe there are still a few lurking deals on Craigslist in the roundy-round regions.

I've got a show wing here at the shop. It's quite a bit different from the race ones, but I'm thinking it could be upgraded with some two-part foam and a couple of spars. Once I have a few things worked out, I'll post details.
Keith@FM is offline   Reply With Quote
