Old 12-27-2015, 09:39 PM   #301
Junior Member

Join Date: Aug 2014
Location: Mitchygan
Posts: 127
Total Cats: 10
Default

Anyone been using these extensively on a street car in the rain? i'm a good ways away from needing them but would hate to miss out.
OptionXIII is offline   Reply With Quote
Old 12-27-2015, 09:43 PM   #302
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by psyber_0ptix View Post
oops. I have v8 turbular arms that these are being paired with. They have the oem style cam bolt. Amiscrewed?
Lol. You'll need different spacers. I'll be glad to exchange them.
hi_im_sean is offline   Reply With Quote
Old 12-27-2015, 10:56 PM   #303
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,708
Total Cats: 319
Default

Quote:
Originally Posted by hi_im_sean View Post
Lol. You'll need different spacers. I'll be glad to exchange them.
lets do this
psyber_0ptix is offline   Reply With Quote
Old 12-27-2015, 11:52 PM   #304
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

So just to be clear, we get rear knuckle sphericals and bronze inserts for the rest of the bushings? Am I following this correctly?
greddygalant is offline   Reply With Quote
Old 12-28-2015, 12:25 AM   #305
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by greddygalant View Post
So just to be clear, we get rear knuckle sphericals and bronze inserts for the rest of the bushings? Am I following this correctly?
This thread is just for sphericals. Those that want the bronze setup have been pming me or going through my secretary, Aidan. Of those, the people that want a spherical setup also, ive just added to the group buy.

Youre not on the bronze retrofit list, should I add you you?
hi_im_sean is offline   Reply With Quote
Old 12-28-2015, 01:51 AM   #306
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by hi_im_sean View Post
This thread is just for sphericals. Those that want the bronze setup have been pming me or going through my secretary, Aidan. Of those, the people that want a spherical setup also, ive just added to the group buy.

Youre not on the bronze retrofit list, should I add you you?
Are you doing the full set of sleeves and Bushings to free up energy suspension polly? What are you charging for that?

I was going to get another set made for a CSP miata. I don't think the sperical upper rear is legal for that class though.
bbundy is offline   Reply With Quote
Old 12-28-2015, 02:07 AM   #307
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Quote:
Originally Posted by bbundy View Post
Are you doing the full set of sleeves and Bushings to free up energy suspension polly? What are you charging for that?

I was going to get another set made for a CSP miata. I don't think the sperical upper rear is legal for that class though.
Secretary here. We're doing a poly retrofit kit (with or without spherical), a delrin kit (with 1 poly LCA and bronze), and a mix of the 2

Pricing isnt fully set in stone. And it's all untested. We should have a few tested soon.

Pm for deets
aidandj is offline   Reply With Quote
Old 12-28-2015, 02:21 AM   #308
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

you have mail bob
hi_im_sean is offline   Reply With Quote
Old 12-28-2015, 08:10 AM   #309
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,708
Total Cats: 319
Default

Any sense in asking if these bronze kits will work with sleeves in the v8r control arms? I know the outer diameter isn't the standard found in poly kits for miatas.
psyber_0ptix is offline   Reply With Quote
Old 12-28-2015, 11:41 AM   #310
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by psyber_0ptix View Post
Any sense in asking if these bronze kits will work with sleeves in the v8r control arms? I know the outer diameter isn't the standard found in poly kits for miatas.
paging bbundy

The OD is different yes, but I think the IDs are the same, so the kit should be the same?

Bob are they all 7/8" ID?
hi_im_sean is offline   Reply With Quote
Old 12-28-2015, 12:34 PM   #311
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by psyber_0ptix View Post
Any sense in asking if these bronze kits will work with sleeves in the v8r control arms? I know the outer diameter isn't the standard found in poly kits for miatas.
The sleeves are the same in the V8r arms that's what have them in. Its the OD of the urethane that's different.

The dimension I've had issues with is the bushing length on the rear upper inboard ones on my V8r's were 2mm longer than stock. Requires a bit of deformation of the chassis brackets to get them to fit but if they were stock length the urethane is squished too much and they wont move easily. I'm not sure if this is the case on all energy suspension kits or just the V8R

Last edited by bbundy; 12-28-2015 at 12:47 PM.
bbundy is offline   Reply With Quote
Old 12-28-2015, 02:25 PM   #312
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 699
Total Cats: 50
Default

For those going the bronze route, I have 40 of the mcmaster 2868T171 sleeve bearings sitting on the shelf that it looks like I'm never going to get around to using. $60 shipped if anyone wants them.
jpreston is offline   Reply With Quote
Old 12-28-2015, 03:16 PM   #313
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Let me know if you want help on the new spacers for bronze bushings, I can crank those out quick, and they'll actually fit inside 16c collets...
deezums is offline   Reply With Quote
Old 12-28-2015, 06:24 PM   #314
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

I'll take the sleeves jpreston. PM me.
aidandj is offline   Reply With Quote
Old 12-28-2015, 06:52 PM   #315
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by deezums View Post
Let me know if you want help on the new spacers for bronze bushings, I can crank those out quick, and they'll actually fit inside 16c collets...
I should be able to handle them for now, well see how volume goes.
hi_im_sean is offline   Reply With Quote
Old 12-29-2015, 10:56 PM   #316
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by hi_im_sean View Post
mcmaster- 9691K55

im going to order a few and try them

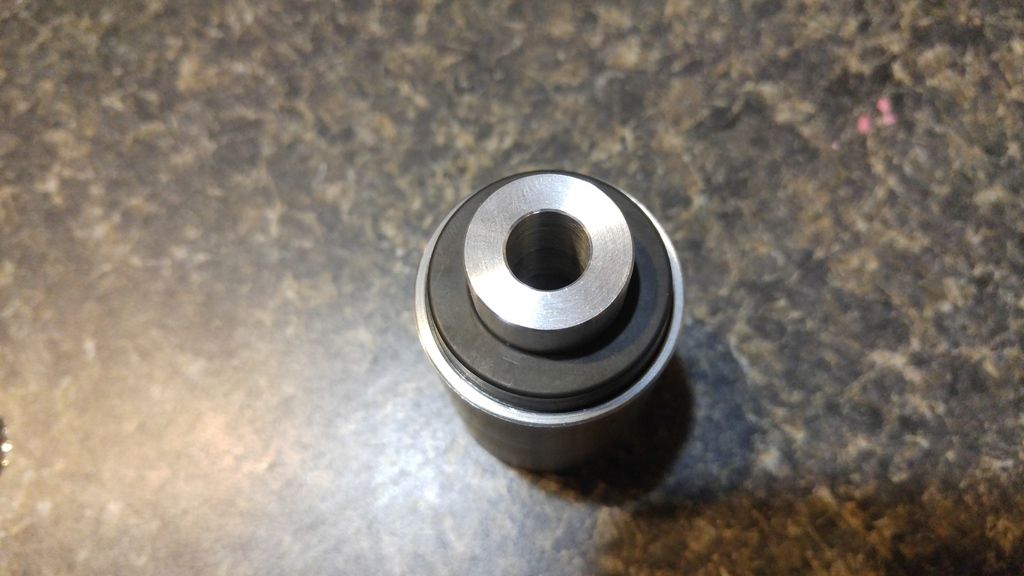

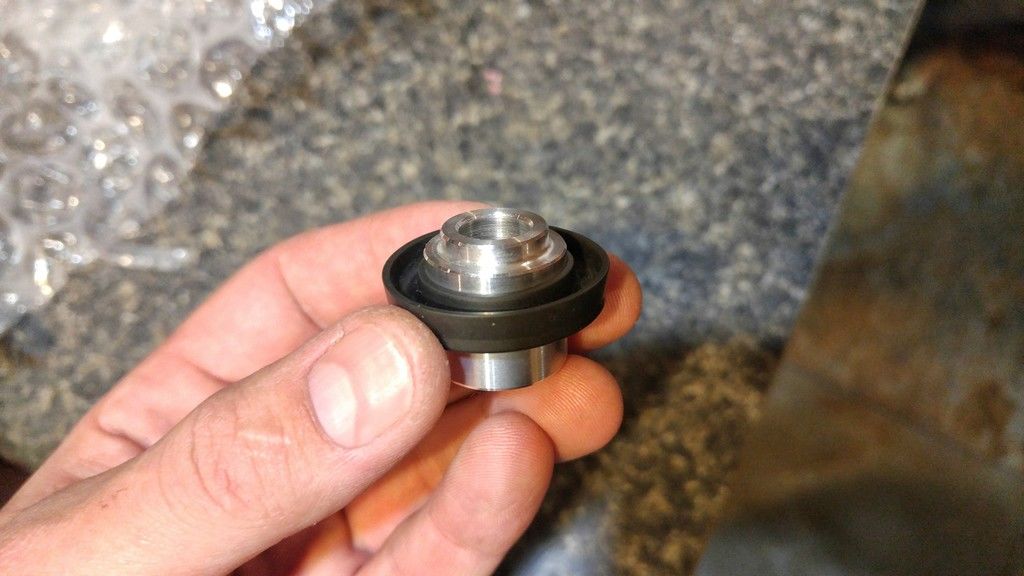

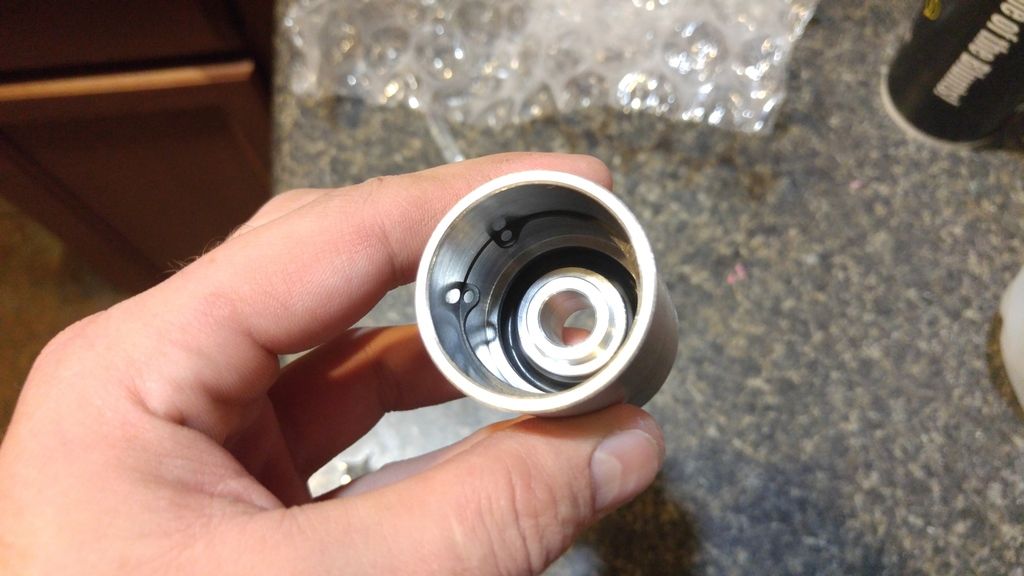

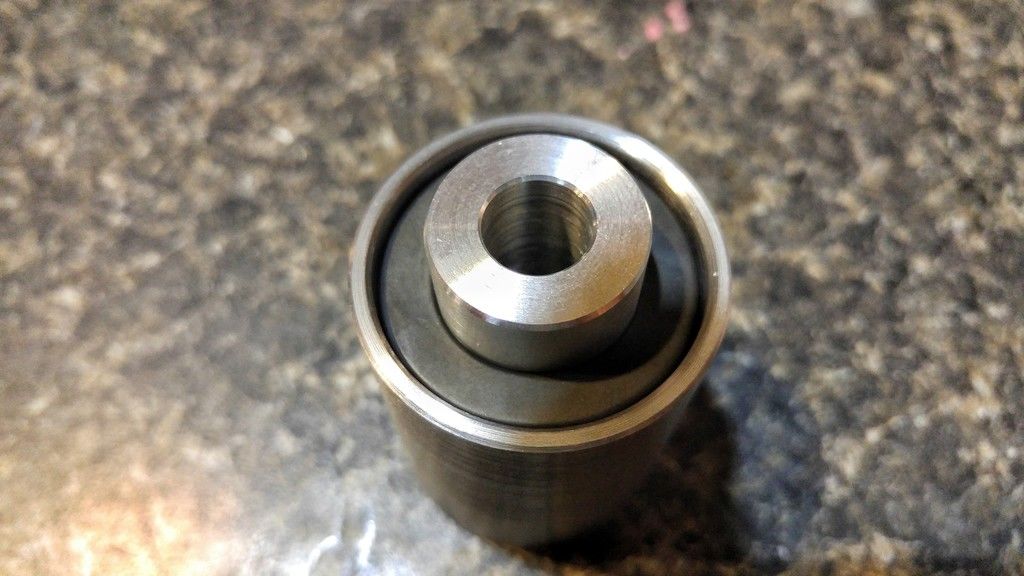

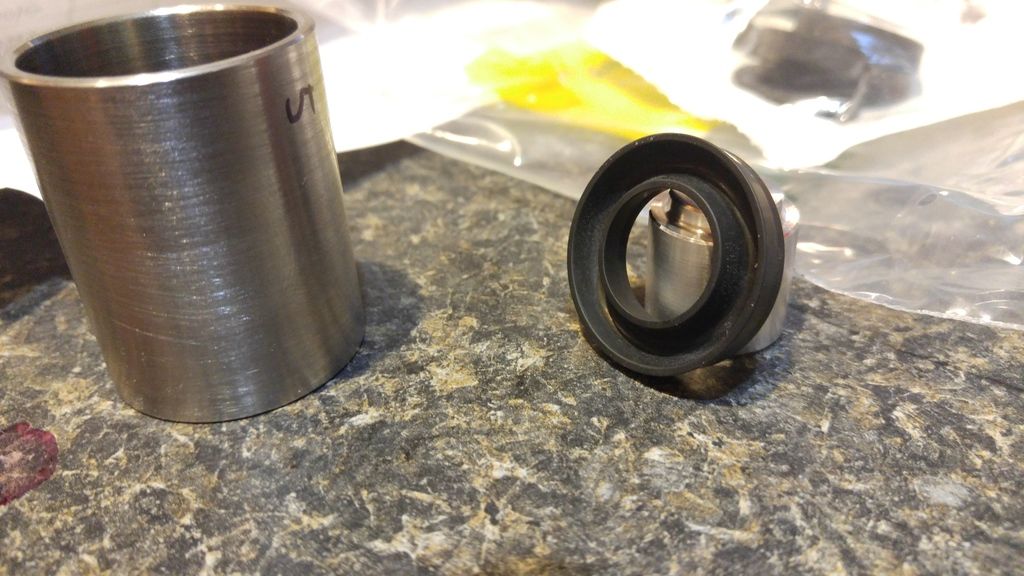

So theyre almost perfect! They stretch over the spacers nicely, and when stretched, just barely meet the 1.312" required minimum OD. This is why I say almost perfect, because they just meet 1.312", the rubber doesnt press in snuggly in the ID of the sleeve, although it does seal. Just not tightly.











These will probably come with kits from now on.
Attached Thumbnails
rear knuckle upper spherical discussion-80-20151229_172941_zpshmiblbzx_ecb3bbd579517e7aedd5a14d547e31ffddfc8861.jpg   rear knuckle upper spherical discussion-80-20151229_1831502_zps1hhxei6h_219f3d2eaae2110b270ef1822c742fa6773d55ed.jpg   rear knuckle upper spherical discussion-80-20151229_183206_zpsm8n0dmr9_4cb7f81320dd12100ecd67e4462ce8d7e3d17bb9.jpg   rear knuckle upper spherical discussion-80-20151229_1832352_zpsbm4umyhs_a11cf841f5beef0c198cab8b254b3093a17a4e1b.jpg   rear knuckle upper spherical discussion-80-20151229_183305_zpsry5ckgvw_234b3d800a15b9a68f35127feeb984dd16c883de.jpg

hi_im_sean is offline   Reply With Quote
Old 12-29-2015, 11:10 PM   #317
Junior Member

Join Date: Jan 2015
Posts: 272
Total Cats: -22
Default

Very nice!

If someone really want a tight seal a light coating of black RTV will keep it in place.
Alternative is offline   Reply With Quote
Old 12-29-2015, 11:29 PM   #318
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,708
Total Cats: 319
Default

woweee I just sent my spacers back. So excite. wowowowow
psyber_0ptix is offline   Reply With Quote
Old 12-29-2015, 11:57 PM   #319
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

ill send your new ones out tomorrow.
hi_im_sean is offline   Reply With Quote
Old 12-30-2015, 12:01 AM   #320
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

hi_im_sean is offline   Reply With Quote
