Old 01-27-2015, 07:55 AM   #241
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Quote:
Originally Posted by Leafy View Post
Well the rod ends arent in bending
Yeah, not gonna lie. Wasn't an engineering student. Have no idea what. That means.
guttedmiata is offline   Reply With Quote
Old 01-27-2015, 08:47 AM   #242
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

Quote:
Originally Posted by guttedmiata View Post
Yeah, not gonna lie. Wasn't an engineering student. Have no idea what. That means.

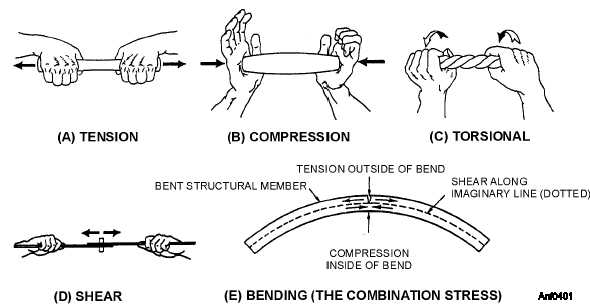

threads in bending are bad because the minor diameter is relatively small compared to the rest of the structure usually associated with a thread, and there is an abundance of stress risers due to the threads themselves. an in a lot of case it is cyclical and to some extent reversing, which is really bad.
Attached Thumbnails
rear knuckle upper spherical discussion-all.jpg
hi_im_sean is offline   Reply With Quote
Old 01-27-2015, 09:50 AM   #243
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

^what he said.

But yeah, those are probably the only rod end based front uppers I'd seen for a miata that I would feel safe running. But I think I got a plan. I will be using the stock dimensions as I feel I can get a sufficient amount of caster with the NB subframe.
Leafy is offline   Reply With Quote
Old 01-27-2015, 11:27 PM   #244
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

3 sets left
hi_im_sean is offline   Reply With Quote
Old 01-28-2015, 06:03 PM   #245
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

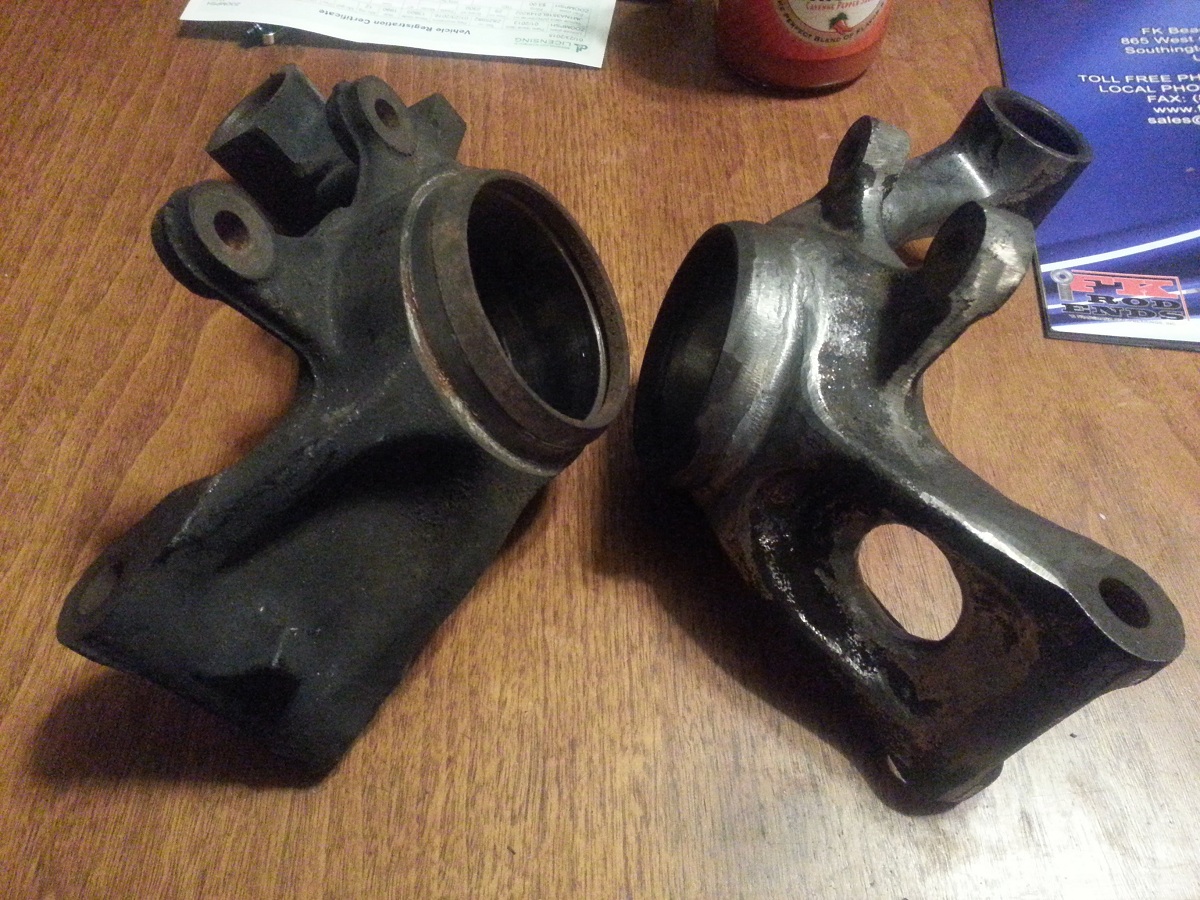

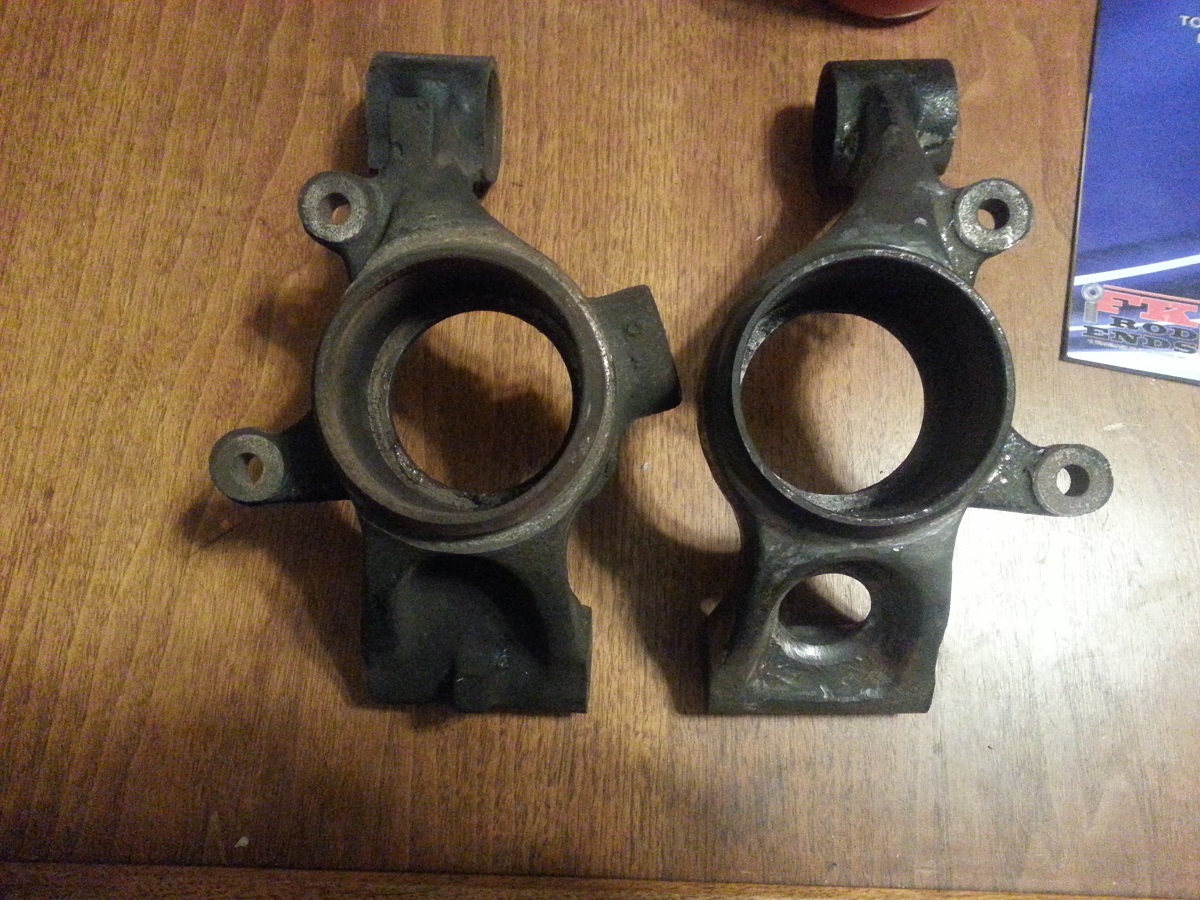

Minus 3/4 lb of dead weight.
Attached Thumbnails
rear knuckle upper spherical discussion-20150127_225521small.jpg   rear knuckle upper spherical discussion-20150127_225430_small.jpg
bbundy is offline   Reply With Quote
Old 01-28-2015, 06:30 PM   #246
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

was it worth it bob?
hi_im_sean is offline   Reply With Quote
Old 01-28-2015, 06:32 PM   #247
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by hi_im_sean View Post
was it worth it bob?
ABS is worth way more than 1lb of unsprung weight per corner. Faster, more consistent stopping, less octagon shaped $1200 sets of tires, etc.
Leafy is offline   Reply With Quote
Old 01-28-2015, 06:34 PM   #248
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by hi_im_sean View Post
was it worth it bob?
I get to count my personal labor as free so yea. Takes a couple hours with a angle and die die grinder.
bbundy is offline   Reply With Quote
Old 01-29-2015, 12:38 AM   #249
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 239
Total Cats: 4
Default

Wrong end of the car. More of this is needed on the front

Nicely done though.
mcfandango is offline   Reply With Quote
Old 01-29-2015, 12:54 AM   #250
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by mcfandango View Post
Wrong end of the car. More of this is needed on the front

Nicely done though.
Going to do the front as well switching to NB knuckles but not much excess there other than the ABS boss.
bbundy is offline   Reply With Quote
Old 01-29-2015, 08:31 AM   #251
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Aluminum drop spindles in the front for the win.
guttedmiata is offline   Reply With Quote
Old 01-29-2015, 08:49 AM   #252
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

do it!
Miata front
hi_im_sean is offline   Reply With Quote
Old 02-02-2015, 06:43 PM   #253
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Know you have a ton of spacers to make, ETA? No pressure, just curious, engine out for new rods and freshen, so I am not going to the track any time soon.
hingstonwm is offline   Reply With Quote
Old 02-02-2015, 07:48 PM   #254
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

i spent about 4 hours today making spacers, some of them were yours bill. ill be sending yours out tomorrow.


parting is one of my favorite things, i find it soo gratifying. i get to part no less than 90 times. 88 spacers and 2 **** ups lol.

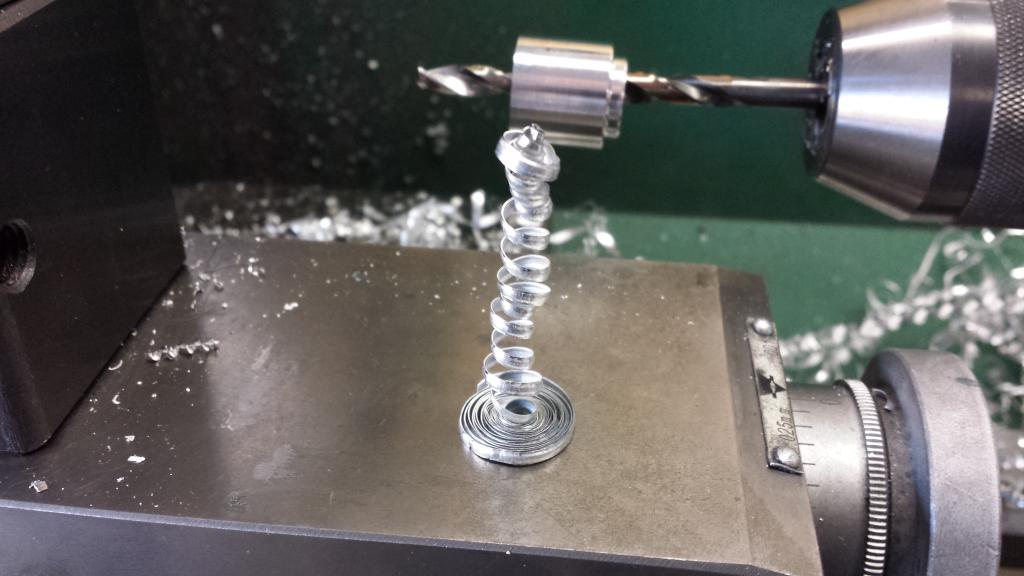

i also have a chip fetish, heres an interesting one



i hate long stringy chips. such a pita



48 down, 40 to go.
Attached Thumbnails
rear knuckle upper spherical discussion-20150201_162802_zpsbus2z57d.jpg   rear knuckle upper spherical discussion-20150202_080858_zpsrgzififn.jpg
hi_im_sean is offline   Reply With Quote
Old 02-04-2015, 05:20 PM   #255
hrk
Junior Member
iTrader: (6)

Join Date: Oct 2005
Location: Atlanta GA
Posts: 335
Total Cats: 2
Default

Got mine last week, they look great! Thank you.
hrk is offline   Reply With Quote
Old 02-06-2015, 07:51 PM   #256
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

last one of the group buy goes out tomorrow.

thanks to everyone that participated, and help make this happen. enjoy your sphericals!

3 sets left, will go up in the classifieds when i get 3 more sets of spacers made up in the next few days

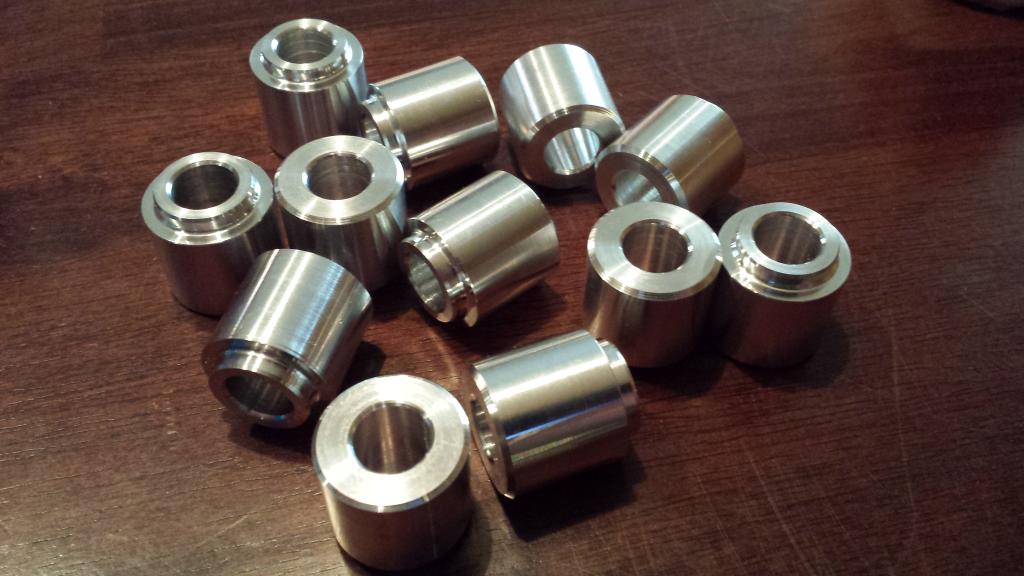

this pic is a little late to the party, but heres the spacers everyone is getting, except those with cam bolt upper arms


Attached Thumbnails
rear knuckle upper spherical discussion-20150205_170035_zpsbcdaf3oj.jpg

Last edited by hi_im_sean; 02-07-2015 at 03:15 PM.
hi_im_sean is offline   Reply With Quote
Old 02-10-2015, 08:13 PM   #257
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Got mine the other day, look great!
hingstonwm is offline   Reply With Quote
Old 02-10-2015, 10:39 PM   #258
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

Quote:
Originally Posted by hingstonwm View Post
Got mine the other day, look great!
thanks, enjoy!
hi_im_sean is offline   Reply With Quote
Old 02-16-2015, 09:59 AM   #259
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Called in an order to Motion Industries for a pair of Aurora AIB-10T bearings for these sleeves (These). Sales person called me back to say that they won't ship from the factory until ~4/1.

Just a heads up for anyone looking at the moment.
stoves is offline   Reply With Quote
Old 02-17-2015, 11:40 PM   #260
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Wow, I got lucky, have 4 sitting on my desk, took 5 days to get them, ordered about a 2 weeks ago.
hingstonwm is offline   Reply With Quote
