Old 01-09-2015, 07:11 PM   #181
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 458
Total Cats: 20
Default

I'm in, just give me the word and I'll paypal you the funds. Looking forward to these!
90civichhb is offline   Reply With Quote
Old 01-09-2015, 10:03 PM   #182
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

we are at 12 currently, if we dont get 3 more by order time(and im sure we will), ill spot the last 3 sets. so im confirming pricing at 15 people($87 per set) is a go!
hi_im_sean is offline   Reply With Quote
Old 01-10-2015, 09:50 AM   #183
Junior Member
iTrader: (1)

Join Date: Aug 2008
Location: Austin, TX
Posts: 239
Total Cats: 4
Default

I'm still in.
mcfandango is offline   Reply With Quote
Old 01-10-2015, 11:24 AM   #184
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

sounds good, give me paypal info and I will make payment. going to bed am am crazy busy until monday, will make payment then
hingstonwm is offline   Reply With Quote
Old 01-10-2015, 07:38 PM   #185
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,027
Total Cats: 29
Default

It's been a long twisting thread. What is the final product design? Is that $87 per side?

I am looking at doing the lowers in spherical and uppers in Delrin. With the talk of ICS using cheap sphericals what are the other options?
k24madness is offline   Reply With Quote
Old 01-10-2015, 10:04 PM   #186
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

Quote:
Originally Posted by k24madness View Post
It's been a long twisting thread. What is the final product design? Is that $87 per side?
final design has a straight bore on each end (instead of tapered on the one end) to facilitate o-rings or grommets or whatever sealing implement you choose to use. i kept the shoulder as the difference in price between that or just having 2 snap ring grooves was negligible. having the shoulder is better in my opinion for holding the bearing race width tolerance as snap ring tolerance stack up would obviously double.

the materials are going to be 1018 steel for the sleeves and 7075 aluminum for the spacers. price is for 1 car, both sides. you get: 1 pair of sleeves, 1 pair of snap rings, 4 spacers and shipping in the US. you source your own bearings and sealing implements, and either weld or retaining compound them into the knuckle.

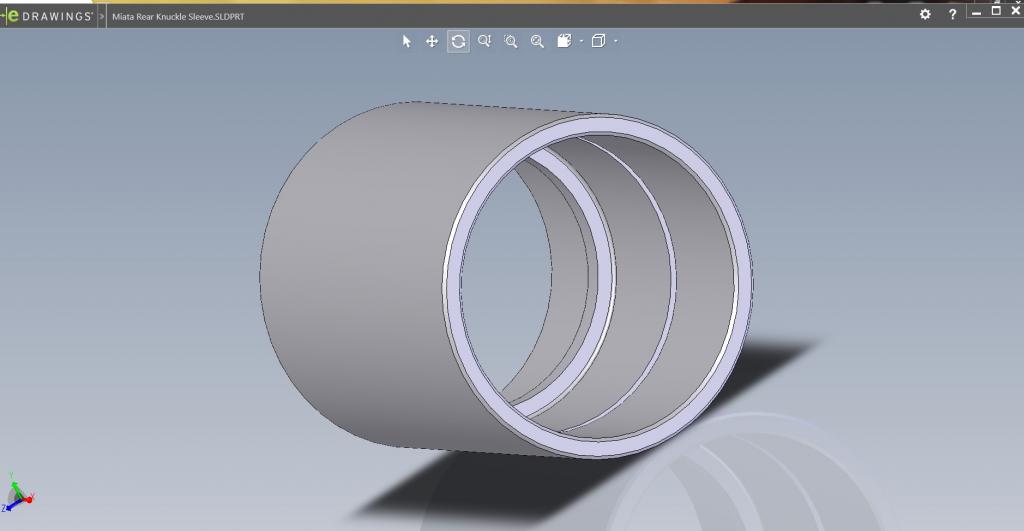

here is a rendering






and as a reminder to everyone the bearing dimensions you need to adhere to can be found on this page:
2 of these were $84 to my door from motion industries
Item # AIB-10, AIB Series Spherical Bearings On Aurora Bearing Co.

and here are the cheap alternatives from qa1 at summit
http://www.summitracing.com/search/p...rder=Ascending


Quote:
Originally Posted by k24madness View Post
I am looking at doing the lowers in spherical and uppers in Delrin. With the talk of ICS using cheap sphericals what are the other options?
if you are talking about the rear outers (knuckle side), i think you have that backwards. the lowers dont require misalignment, they just need to pivot, so you would want the delrin in the lower position. the uppers need be able to misalign, so thats where youd want the spherical.


this is the only other option besides ISC that i know of at the moment. and please understand i have no experience with their products and can only assume at their price point that they arnt auroras or equivelent. so to say that as fact would be conjecture.
Attached Thumbnails
rear knuckle upper spherical discussion-untitled_zpsbe47a61d.jpg
hi_im_sean is offline   Reply With Quote
Old 01-11-2015, 12:14 AM   #187
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 458
Total Cats: 20
Default

Are the QA1s really awful? My car is a dedicated autocross car that sees maybe 200 miles a year. Would the more expensive bearings be worth the expense?
90civichhb is offline   Reply With Quote
Old 01-11-2015, 01:27 AM   #188
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,027
Total Cats: 29
Default

Quote:
Originally Posted by hi_im_sean View Post

if you are talking about the rear outers (knuckle side), i think you have that backwards. the lowers dont require misalignment, they just need to pivot, so you would want the delrin in the lower position. the uppers need be able to misalign, so thats where youd want the spherical.


this is the only other option besides ISC that i know of at the moment. and please understand i have no experience with their products and can only assume at their price point that they arnt auroras or equivelent. so to say that as fact would be conjecture.
I was thinking of the lower inners front and rear. I thought that's were the binding occurs due to alignment bolts.

Now I understand what you're offering. Thanks
k24madness is offline   Reply With Quote
Old 01-11-2015, 08:19 AM   #189
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

Quote:
Originally Posted by k24madness View Post

I was thinking of the lower inners front and rear. I thought that's were the binding occurs due to alignment bolts.

Now I understand what you're offering. Thanks
Gotcha. And yea those do bind. The discussion regarding those was just thread derailment by bbundy, leafy and myself, I'm not offering anything for the lowers.
hi_im_sean is offline   Reply With Quote
Old 01-11-2015, 09:35 AM   #190
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,993
Total Cats: 96
Default

Quote:
Originally Posted by 90civichhb View Post
Are the QA1s really awful? My car is a dedicated autocross car that sees maybe 200 miles a year. Would the more expensive bearings be worth the expense?
Do you mind replacing the QA1s 2-3 times a season vs the auoras lasting 1-2 seasons. Theres really no point to going through all the expense of putting sphericals in the car if you're just going to run ones that are so sloppy that you get more play in the joint than with the rubber bushing.
Leafy is offline   Reply With Quote
Old 01-11-2015, 11:17 AM   #191
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 458
Total Cats: 20
Default

Quote:
Originally Posted by Leafy View Post
Do you mind replacing the QA1s 2-3 times a season vs the auoras lasting 1-2 seasons. Theres really no point to going through all the expense of putting sphericals in the car if you're just going to run ones that are so sloppy that you get more play in the joint than with the rubber bushing.
Well it sounds like the QA1s would start to add up quick if I had to replace them that often. I figured they would last longer than 2 events. I have seen the local dirt track guys run QA1 stuff, but I don't know how often they replace them.

*edit*

What degree of misalignment will you all be going with, if any?
90civichhb is offline   Reply With Quote
Old 01-11-2015, 11:21 AM   #192
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

They're so cheap why don't you just give them a try? The whole point of the sleeves is to be able to service the bearing. Worst case scenario you get a couple of events out of them for $30. I don't think theyll be as bad as leafy makes them out to be. They won't last as long as auroras, but I think you'll get more than 2 events out of them.

Last edited by hi_im_sean; 01-11-2015 at 07:00 PM.
hi_im_sean is offline   Reply With Quote
Old 01-11-2015, 11:26 AM   #193
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

Quote:
Originally Posted by 90civichhb View Post
What degree of misalignment will you all be going with, if any?
You should only need a few degrees. The auroras are good for 12 I think, although the ruca limits things to less than that.
hi_im_sean is offline   Reply With Quote
Old 01-11-2015, 02:56 PM   #194
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,993
Total Cats: 96
Default

Whatever the max toe in degrees you run is the most misalignment you should need.
Leafy is offline   Reply With Quote
Old 01-11-2015, 03:27 PM   #195
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

Quote:
Originally Posted by Leafy View Post
Whatever the max toe in degrees you run is the most misalignment you should need.
isnt there going to be some unintentional caster added as well? i figure it could be a degree or 3 depending on how much toe in youre running.
hi_im_sean is offline   Reply With Quote
Old 01-11-2015, 03:50 PM   #196
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,993
Total Cats: 96
Default

Thats true. I'm too lazy to do the math, it cant be much.
Leafy is offline   Reply With Quote
Old 01-11-2015, 06:54 PM   #197
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

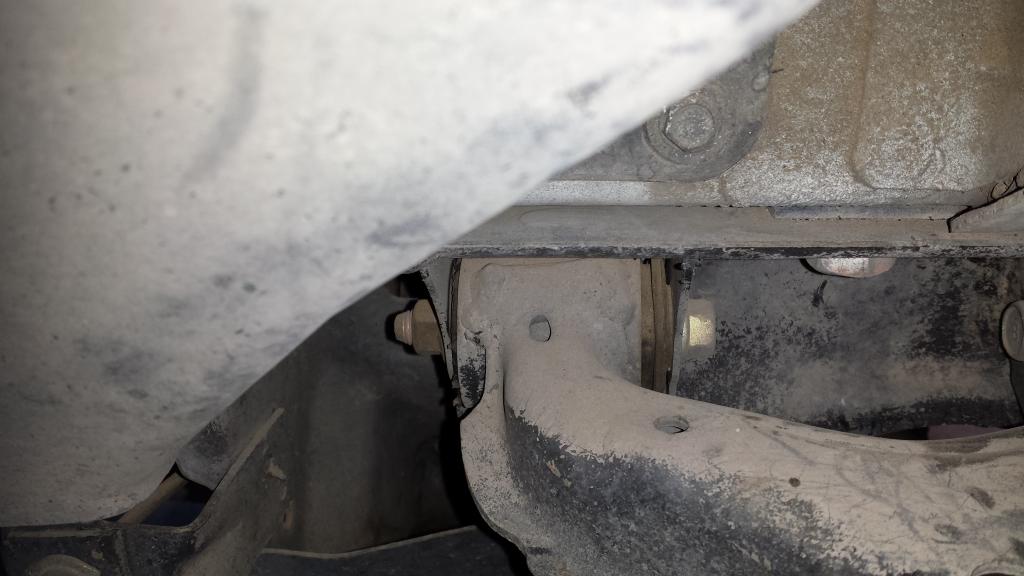

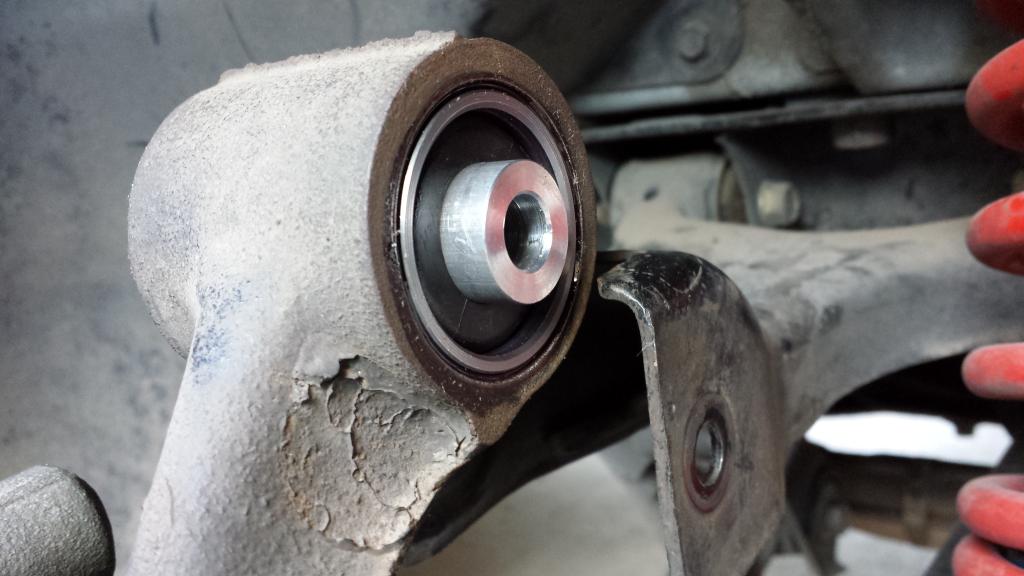

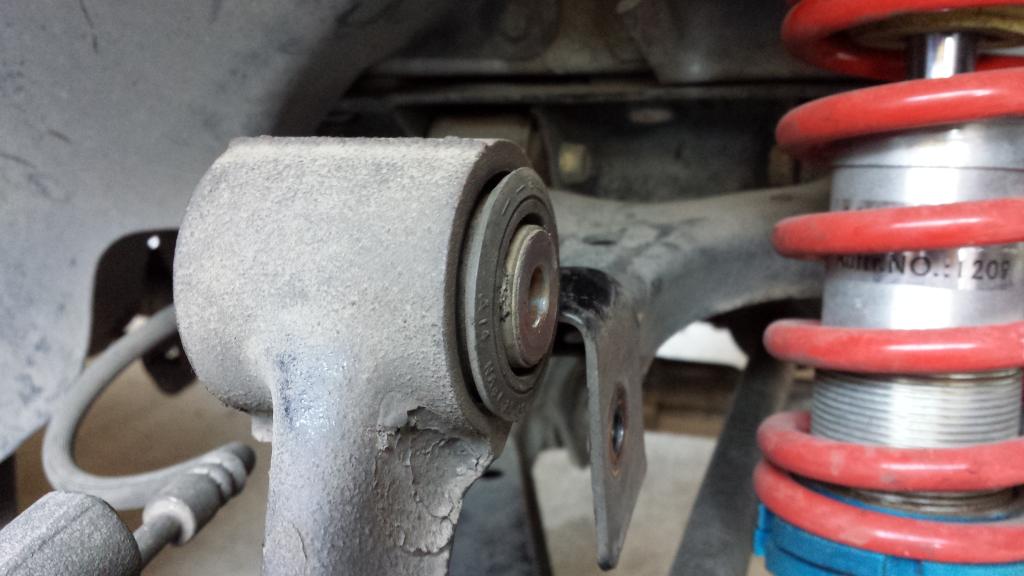

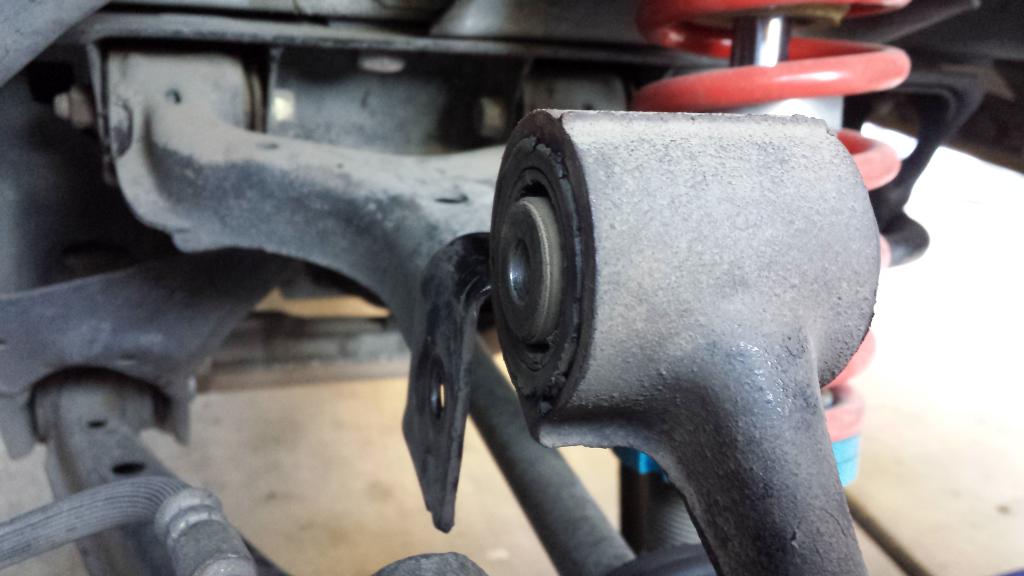

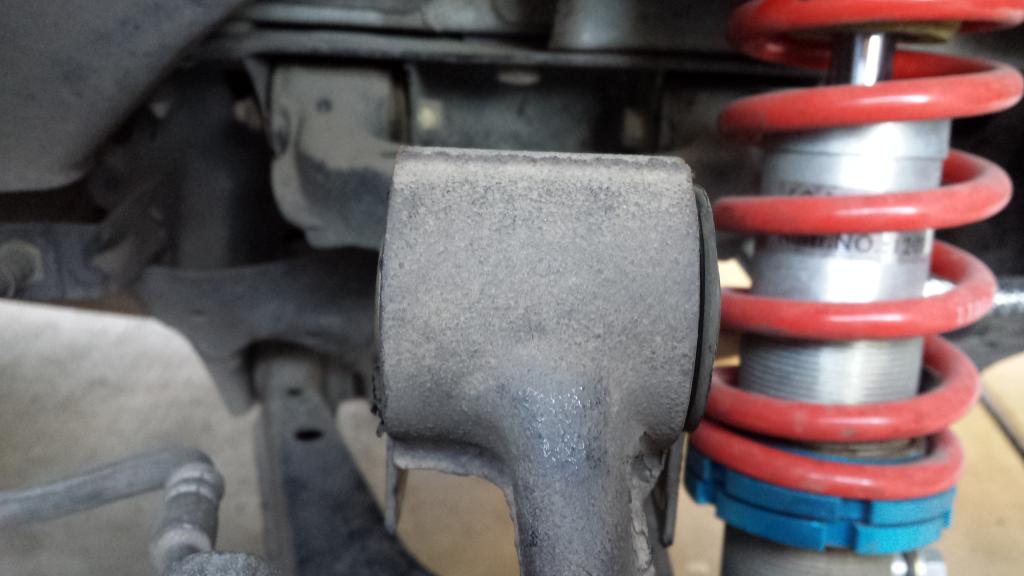

here is evidence that there is significant longitudinal forces on the upper bushings.












some grommets i had in a harbor freight assortment worked well as seals. ill need a different solution when/if i upgrade to larger spacers as these were a very tight fit.

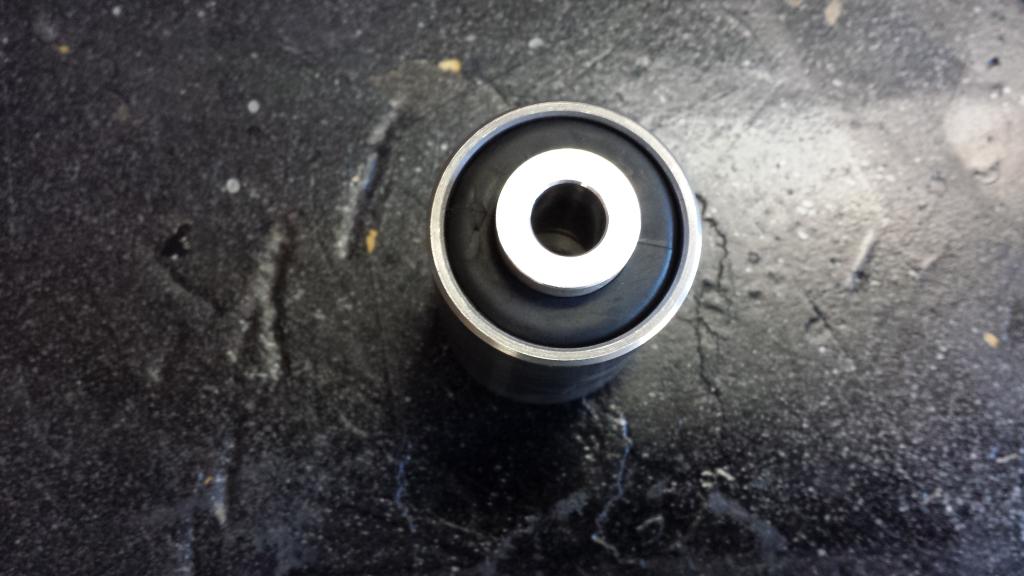

i had to cut one at a taper so it would seat in the sleeve

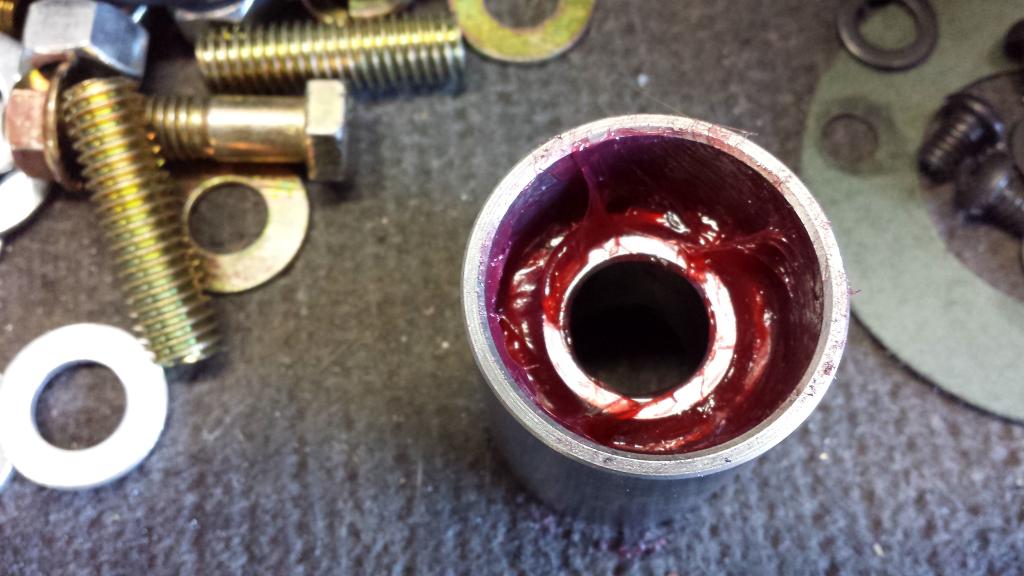

grease

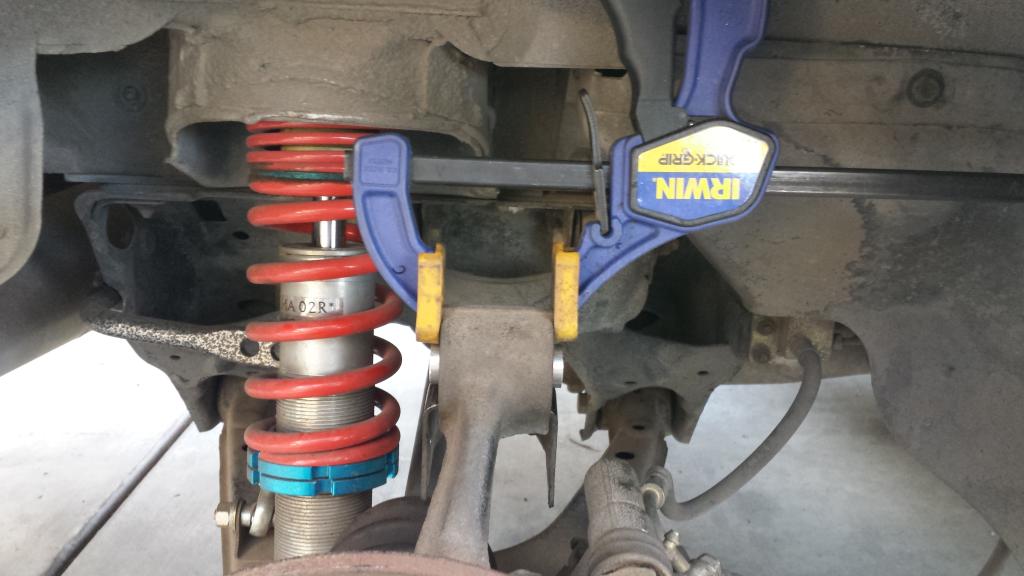

clamped and sitting on jack stands over night
Attached Thumbnails
rear knuckle upper spherical discussion-20150111_151641_zpsazv4muzl.jpg   rear knuckle upper spherical discussion-20150111_151645_zps4suhoghp.jpg   rear knuckle upper spherical discussion-20150111_151648_zpsqib4c0jq.jpg   rear knuckle upper spherical discussion-20150111_152356_zpsmtlml2ap.jpg   rear knuckle upper spherical discussion-20150111_155602_zpsuzqkjcvi.jpg

rear knuckle upper spherical discussion-20150111_152655_zpsftgusxfu.jpg   rear knuckle upper spherical discussion-20150111_152445_zpsuyrdfoyl.jpg   rear knuckle upper spherical discussion-20150111_153449_zpsza28h5w5.jpg   rear knuckle upper spherical discussion-20150111_153438_zpsogmovg4s.jpg   rear knuckle upper spherical discussion-20150111_161013_zpsi5o0viwm.jpg

hi_im_sean is offline   Reply With Quote
Old 01-12-2015, 12:20 PM   #198
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,027
Total Cats: 29
Default

Very nice Sean! Job well done!

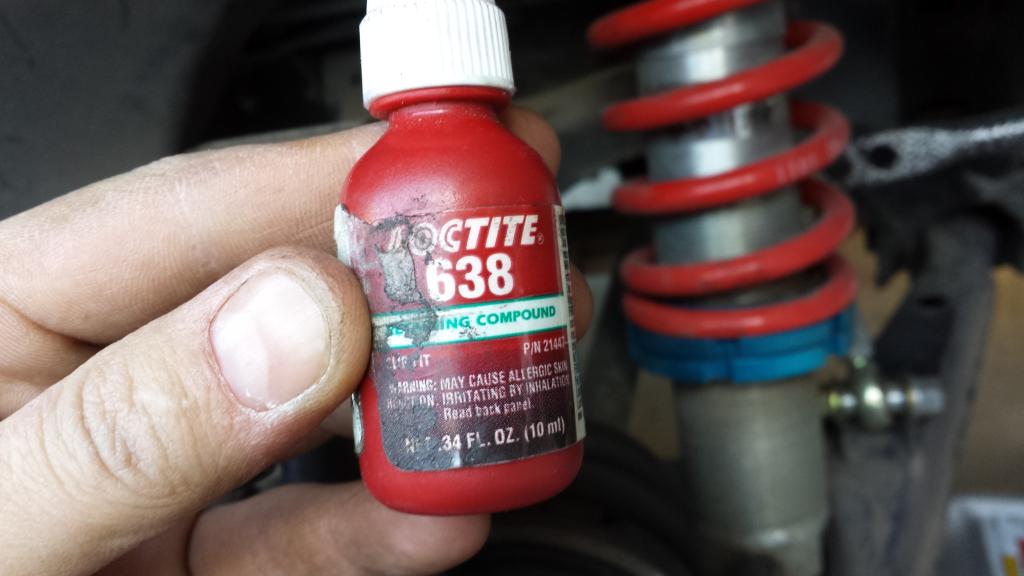

That bearing mount loctite is STRONG. I would trust it in this application.

Last edited by k24madness; 06-08-2017 at 12:32 PM.
k24madness is offline   Reply With Quote
Old 01-12-2015, 12:32 PM   #199
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,687
Total Cats: 538
Default

Quote:
Originally Posted by k24madness View Post
Very nice Sean! Job well done!

That bearing mount loctite is STRONG. I would trust it in that application.
thanks!

we are at 15 now, im going to pm the 3 people who havnt responded yet, so if we get to 18, ill spot the last 2 sets and we can get the 20 qty. pricing. woohoo!
hi_im_sean is offline   Reply With Quote
Old 01-12-2015, 04:33 PM   #200
Junior Member

Join Date: Jul 2014
Location: Canberra, sort of
Posts: 82
Total Cats: 1
Default

Quote:
Originally Posted by hi_im_sean View Post
here is evidence that there is significant longitudinal forces on the upper bushings.
Brake/acceleration torque presumably.

Great work Sean! This has all happened a lot quicker than I was expecting ...
Gee Emm is offline   Reply With Quote
