SM Weekend of Failure (wheel hubs)


Old 10-20-2016, 12:35 PM
  #61
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: *** BANNED ***
Posts: 9,666
Total Cats: 998
Default

^^ This. I'd be stunned if you could cause this type of failure on the street.
EO2K is offline
Old 10-22-2016, 04:48 PM
  #62
Junior Member
iTrader: (3)

Join Date: Jan 2012
Posts: 124
Total Cats: 9
Default

Havent tracked my car since the beginning of the season, decided to take it easy. Finally getting around to prepping everything for next season and decided to check the hubs. My single spare is good. awesome. check the passenger side--good hub. im thinking to myself "can i go 3/3?" check the driver side hub aaand its the wrong machined one.

if people are reading this thread and still havent checked your hubs, check your hubs.
JSpeed6 is offline
Old 10-22-2016, 09:20 PM
  #63
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 849
Total Cats: 115
Default

I was talking to a miata guy at the track today and he told me about having a front hub failure a few weeks ago. He pulled up pictures of the failed hub and sure enough, it was one of these shitty Timkens. The word needs to be spread about this garbage.
jpreston is offline
Old 10-24-2016, 12:15 PM
  #64
Junior Member

Join Date: Jan 2010
Location: Anderson, SC
Posts: 144
Total Cats: 8
Default

Thanks for the info everyone. Gonna go check under the ITA and FProd cars just to be certain. I'll pass the info on to friends at the next club meet too.
sharkythesharkdogg is offline
Old 10-25-2016, 06:12 PM
  #65
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 837
Total Cats: 62
Default



I just got these two Moog hubs from autozone, had a new Detroit axle hub witout the bad machining but ended up returning it because the flange thickness was 1/3 thinner than the OEM and Moog hubs.
Also did some research on grease and this Red Line grease meets higher specs than anything else that i looked at.
HHammerly is offline
Old 10-25-2016, 10:23 PM
  #66
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,447
Total Cats: 1,341
Default

I have 8 detroit axle front hubs, 4 abs, 4 non-abs, all seem to not have the bad machining. I am going to check flange thickness on them compared to OEM to see how different they are.
shuiend is offline
Old 10-26-2016, 07:11 AM
  #67
Ich verstehe nur Bahnhof
iTrader: (4)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 4,512
Total Cats: 493
Default

What is spec flange thickness? I replaced mine but will have to check them when I do snow tire changeover.
psyber_0ptix is offline
Old 10-26-2016, 11:26 AM
  #68
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: *** BANNED ***
Posts: 9,666
Total Cats: 998
Default

Originally Posted by HHammerly View Post
Also did some research on grease and this Red Line grease meets higher specs than anything else that i looked at.
I don't want to turn this into a grease debate but I'm curious as to what else you looked at.

The Spec Miata guys all recommend CV2 but around here we've been getting stellar results with the Amsoil Dominator product. Of course, I'm sure almost anything is better than the chinese fish paste grease that comes with the hubs from the factory.
EO2K is offline
Old 10-26-2016, 11:43 AM
  #69
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,447
Total Cats: 1,341
Default

Originally Posted by psyber_0ptix View Post
What is spec flange thickness? I replaced mine but will have to check them when I do snow tire changeover.
I have zero idea, I was just going to check based on what the post above me said about there being differences. I was more curious if my Detroit axle was different then my OEM and by how much.
shuiend is offline
Old 10-26-2016, 11:50 AM
  #70
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,546
Total Cats: 1,087
Default

I am going to check all my hubs when I get home.

Also, Dominator>CV2.
hi_im_sean is offline
Old 10-26-2016, 01:09 PM
  #71
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 837
Total Cats: 62
Default



HHammerly is offline
Old 10-27-2016, 09:07 AM
  #72
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,192
Total Cats: 16
Default

Originally Posted by psyber_0ptix View Post
What is spec flange thickness? I replaced mine but will have to check them when I do snow tire changeover.

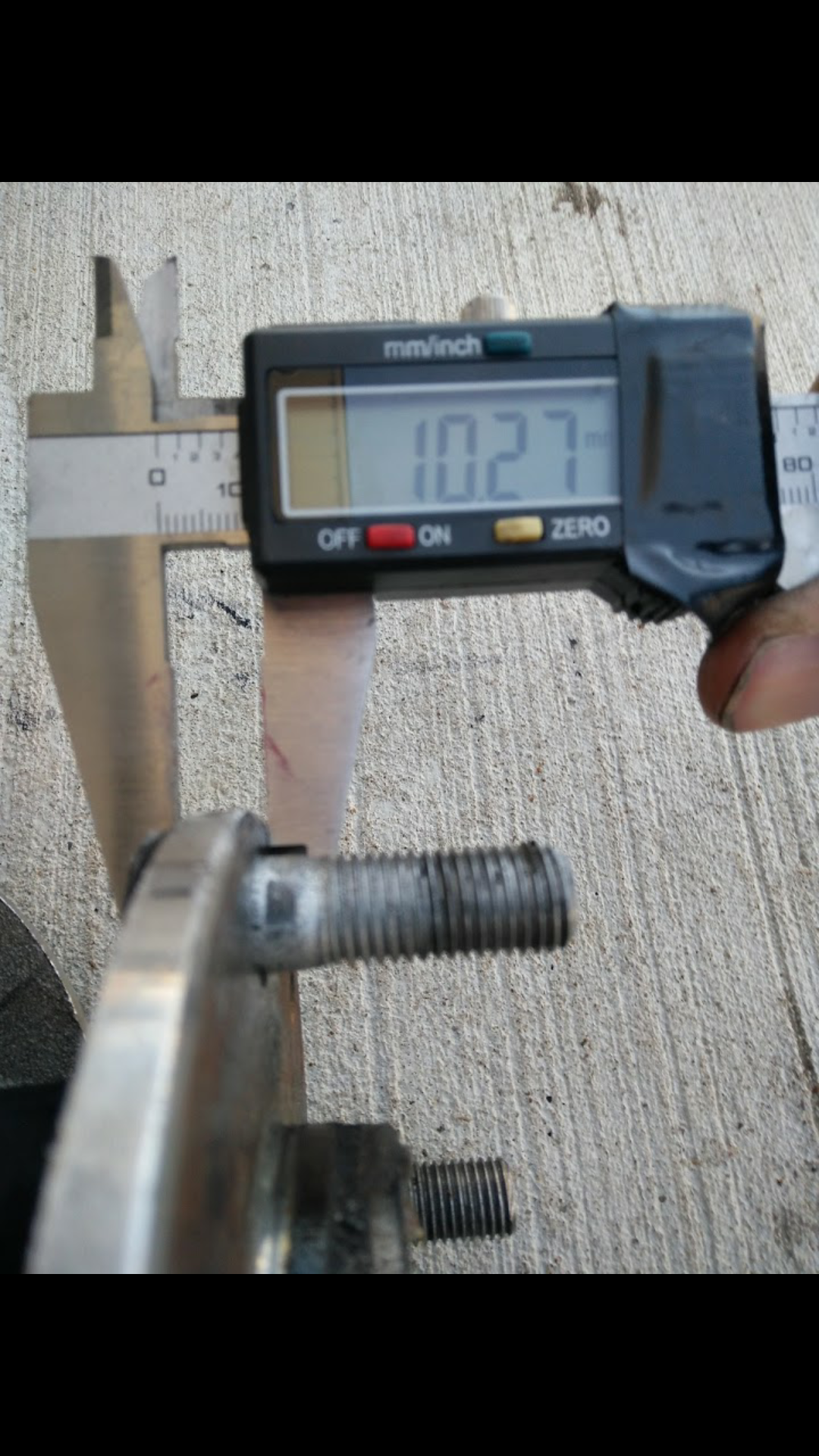

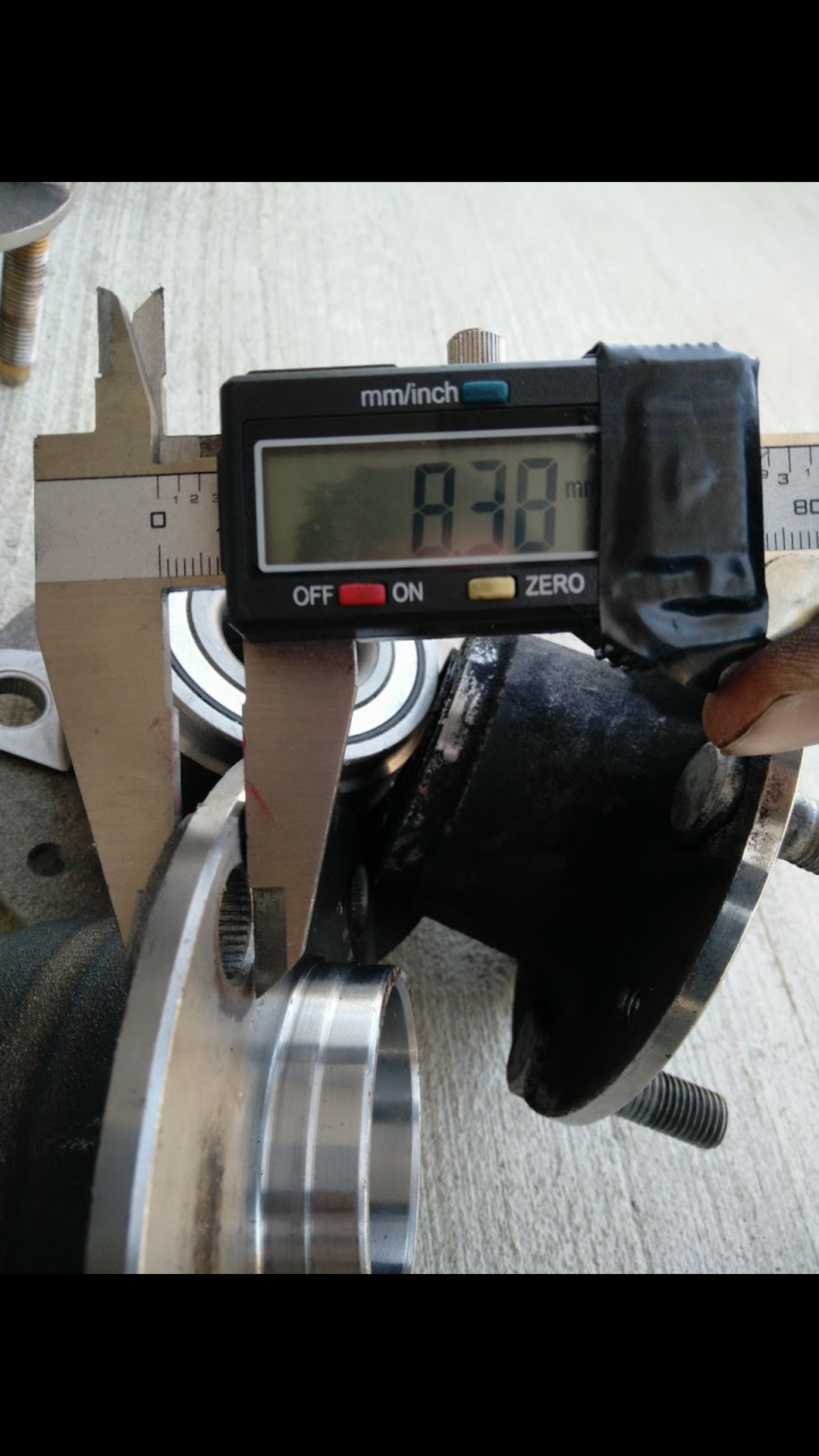

OEM NA flange edit:(REAR)




OEM VS TIMKEN FRONTS
SM Weekend of Failure (wheel hubs)-screenshot_20161027-065527.png

SM Weekend of Failure (wheel hubs)-screenshot_20161027-065534.png

I can't see the flange being a third thinner, maybe the shoulder section, which is where I'm measuring here (OEM vs Timken ****)

Last edited by dc2696; 10-27-2016 at 12:44 PM.
dc2696 is offline
Old 10-27-2016, 11:00 AM
  #73
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,487
Total Cats: 73
Default

Huh, unless both mt front hubs were changed at some point prior to me getting the car, my hubs look compleetly different and are thinner.
x_25 is offline
Old 10-27-2016, 11:33 AM
  #74
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,188
Total Cats: 656
Default

dc2696 is measuring rear hub flanges in those pictures.
hornetball is offline
Old 10-27-2016, 12:41 PM
  #75
Senior Member
Thread Starter
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,192
Total Cats: 16
Default

Originally Posted by hornetball View Post
dc2696 is measuring rear hub flanges in those pictures.
Haha durr, ya the NA is a rear but the other two are definitely fronts.
dc2696 is offline
Old 10-27-2016, 06:07 PM
  #76
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 837
Total Cats: 62
Default





I measured an OEM ABS NB2 hub (in red) and Moog hub (in black) measured in 4 places, the OEM hub does have some machining that appears to be for a seccond tone ring but the diameter of the bearrings boss is larger than the Moog hub and tha machining tapers off
HHammerly is offline
Old 10-27-2016, 06:16 PM
  #77
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 837
Total Cats: 62
Default

This photo shows the much larger radius in the area where the flange transitions to the bearring boss, that is the area where a bulk of the load is concentrated when cornering IMO
HHammerly is offline
Old 11-22-2016, 02:51 AM
  #78
Junior Member

Join Date: Aug 2016
Posts: 304
Total Cats: 2
Default

Seems the conclusion from this thread is that its preferable to service ( repack ) and reuse OEM vs getting Timken / Moog / ect ?
phocup is offline
Old 11-22-2016, 11:37 AM
  #79
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: *** BANNED ***
Posts: 9,666
Total Cats: 998
Default

Pretty much yes, if the ***** and races still look good.

My takeaway from this is that there is nothing wrong with an aftermarket hub, provided its made correctly. Just be prepared to do some of your own QC once you get them in hand and return them if you believe they are questionable.
EO2K is offline
Old 11-22-2016, 12:23 PM
  #80
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 14,447
Total Cats: 1,341
Default

Were people not replacing the ball bearings with better ones when they rebuilt them anyways? I had bought new better ***** off eBay to use when I get around to rebuilding mine.
shuiend is offline
