Not to be a dick, and it's a little more than $50, but have been available for ages (Qstarz BT-Q818XT). But that includes a more cave-man-proof concept.
The sensitivity of the antenna and more importantly the processing of the data will give different results when it comes to positioning and mounting.
I never had a problem with a Qstarz unit duck-taped to the cage (even on the A-pillar tube, with the A-pillar and the glass in the way), when using Racechrono. The frequency makes the positioning on track good enough (it's always better when you have some extra satellites and crisper data of course).

That RT DL1 have problems when there is any minor flaw in the data falls in their way of working, fix the sensors, and let the unit/software show the sensor data as-is (even create some smoke when the input voltage is off). Filtering and protection is for sissies.
NiklasFalk is offline
Old 02-05-2015, 08:12 AM
  #22
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 76,620
Total Cats: 2,317
Default

Was hoping for a $50 10Hz subwoofer...
Braineack is offline
Old 02-12-2015, 11:54 AM
  #23
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,495
Total Cats: 1,636
Default

Got a couple of these in the mail today. Need to do some testing to see how much power it will consume.

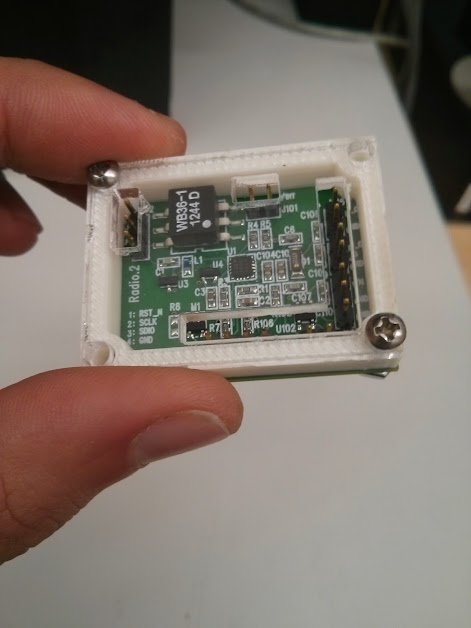

Case will be designed similar to this.

Attached Thumbnails Sub  10Hz GPS Receiver-wswmdk.jpg
aidandj is offline
Old 02-14-2015, 06:52 PM
  #24
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,495
Total Cats: 1,636
Default

Got my second chip in the mail today. I like this one better. Cheaper, larger antenna, simpler connections.

I took it outside to get a fix and once it had it I was able to go back in my house and keep the fix. I need to take it for a drive still but good so far.

aidandj is offline
Old 02-17-2015, 05:40 PM
  #25
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,495
Total Cats: 1,636
Default

Updates, got everything connected, currently designing a case. Testing will happen today or tomorrow:





aidandj is offline
Old 02-17-2015, 05:45 PM
  #26
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: *** BANNED ***
Posts: 9,666
Total Cats: 998
Default

I am excite!
EO2K is offline
Old 02-17-2015, 06:07 PM
  #27
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,495
Total Cats: 1,636
Default

Originally Posted by NiklasFalk View Post
Not to be a dick, and it's a little more than $50, but have been available for ages (Qstarz BT-Q818XT). But that includes a more cave-man-proof concept.
The sensitivity of the antenna and more importantly the processing of the data will give different results when it comes to positioning and mounting.
I never had a problem with a Qstarz unit duck-taped to the cage (even on the A-pillar tube, with the A-pillar and the glass in the way), when using Racechrono. The frequency makes the positioning on track good enough (it's always better when you have some extra satellites and crisper data of course).

That RT DL1 have problems when there is any minor flaw in the data falls in their way of working, fix the sensors, and let the unit/software show the sensor data as-is (even create some smoke when the input voltage is off). Filtering and protection is for sissies.
I've seen that one. But cost of materials right now is 25 dollars. Which is almost a 4th of the cost of the Qstarz one.
aidandj is offline
Old 02-17-2015, 06:53 PM
  #28
Senior Member
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 524
Total Cats: 24
Default

I so want one of these. A comparison between RaceChrono with built-in GPS (Galaxy Nexus) vs transponder at Hallett showed times anywhere from dead accurate to somewhere around a second off. Not exactly a reliable means of measurement. These times are from my 3rd, and final, session of Friday at [email protected] That last lap was the death of my poor little IHI.

Code:
RaceChrono	Transponder
1:50.24		1:51.585
1:36.38		1:36.337
1:31.50		1:31.509
5:27.44		5:26.538
1:34.61		1:35.544
1:31.61		1:31.610
1:31.51		1:31.476
1:30.58		1:30.617
1:33.23		1:33.263
1:31.94		1:31.913
1:32.68		1:32.642
1:31.04		1:30.848
1:33.98		1:34.171
1:29.97		1:29.968
midpack is offline
Old 02-17-2015, 06:56 PM
  #29
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,375
Total Cats: 87
Default

Originally Posted by midpack View Post
I so want one of these. A comparison between RaceChrono with built-in GPS (Galaxy Nexus) vs transponder at Hallett showed times anywhere from dead accurate to somewhere around a second off. Not exactly a reliable means of measurement. These times are from my 3rd, and final, session of Friday at [email protected] That last lap was the death of my poor little IHI.

Code:
RaceChrono	Transponder
1:50.24		1:51.585
1:36.38		1:36.337
1:31.50		1:31.509
5:27.44		5:26.538
1:34.61		1:35.544
1:31.61		1:31.610
1:31.51		1:31.476
1:30.58		1:30.617
1:33.23		1:33.263
1:31.94		1:31.913
1:32.68		1:32.642
1:31.04		1:30.848
1:33.98		1:34.171
1:29.97		1:29.968
Sounds about right, the gps on your phone only polls once per second (1Hz).
Leafy is offline
Old 02-17-2015, 09:37 PM
  #30
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,495
Total Cats: 1,636
Default

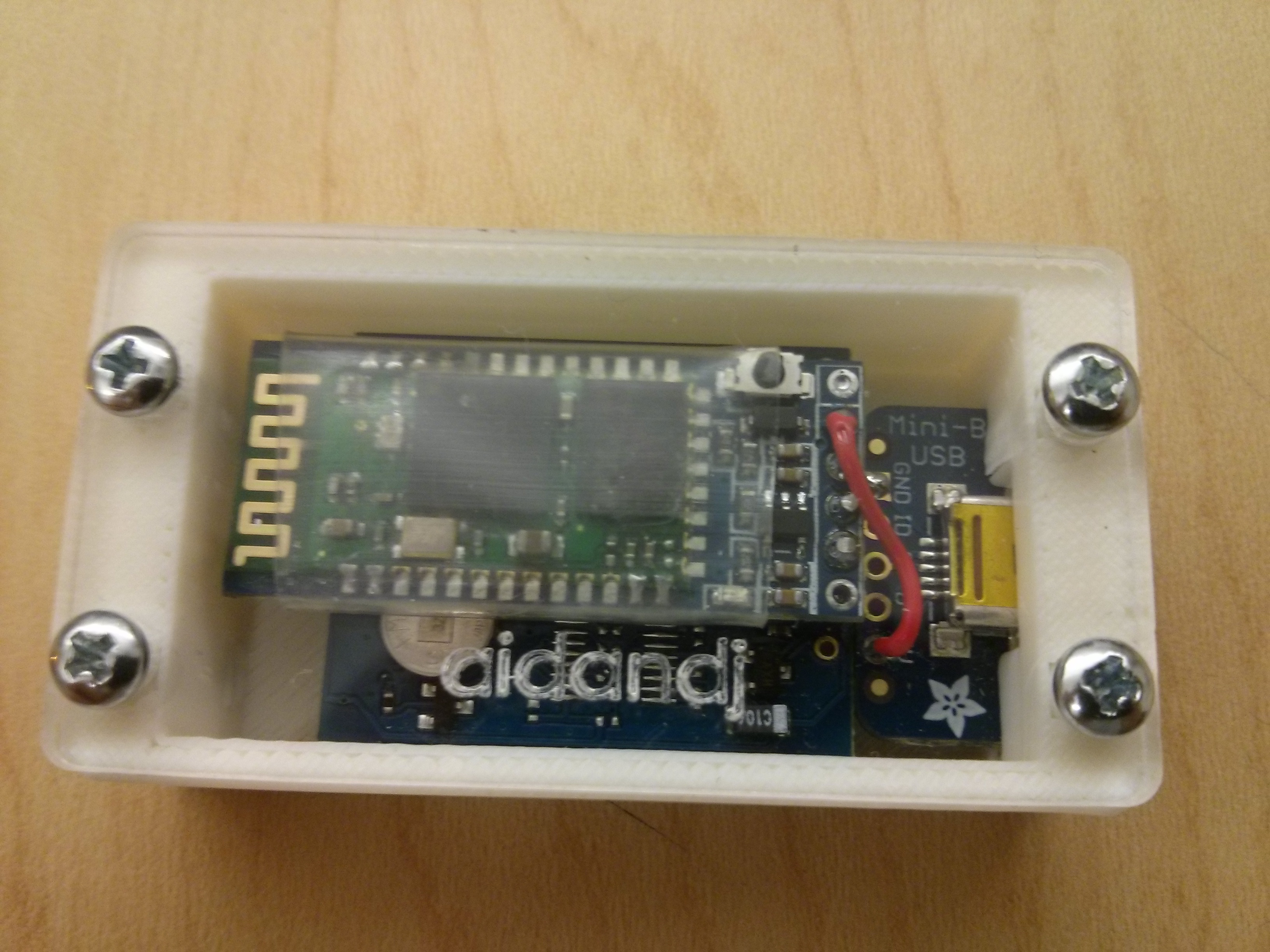

Case printed and cut:

aidandj is offline
Old 02-18-2015, 03:40 PM
  #31
Newb

Join Date: Dec 2014
Posts: 30
Total Cats: 0
Default

I zee
1 bluethoot module
1 GPS module
1 mini USB for power suply

Is that all?
No extra arduino to translate the GPS code because the output trok GPS is what Android neer
Only set the baut and code of the bluethoot module and your good to go?
creon is offline
Old 02-18-2015, 11:12 PM
  #32
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,495
Total Cats: 1,636
Default

So the chip that Schuyler linked doesn't have flash memory so the 10hz setting doesn't stick. Because of this I switched to a different chip that has flash, but that won't be here for another couple weeks.
aidandj is offline
Old 02-19-2015, 02:48 AM
  #33
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,329
Total Cats: 81
Default

Originally Posted by aidandj View Post
So the chip that Schuyler linked doesn't have flash memory so the 10hz setting doesn't stick. Because of this I switched to a different chip that has flash, but that won't be here for another couple weeks.
D: I already ordered it. #YOLO. It gets an atmeta chip to program it errytime I guess.

EDIT: it's 3am and i'm cramming for a test, but I went and got a double 1/4 pounder with cheese and I think something of that magnitude deserves a break. Look through the manual at the Electrical Programmable Fuse (eFUSE). My understanding is you set it up the way you want it, send the binary code, and it burns the current settings to the chip. One time use, hence the "fuse" part. Worth looking in to. http://www.reyax.com/Module/GPS/RYN25AI/RYN25AI.pdf
Schuyler is offline
Old 02-19-2015, 09:11 AM
  #34
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,495
Total Cats: 1,636
Default

Already did. eFuse is cant set the refresh rate, only the baud rate. I even confirmed with the manufacturer.
aidandj is offline
Old 02-19-2015, 09:20 AM
  #35
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,495
Total Cats: 1,636
Default

Good luck in your test. The flash chip is only 18 dollars btw.
aidandj is offline
Old 02-19-2015, 10:20 AM
  #36
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,932
Total Cats: 318
Default

Originally Posted by creon View Post
I zee
1 bluethoot module
1 GPS module
1 mini USB for power suply

Is that all?
No extra arduino to translate the GPS code because the output trok GPS is what Android neer
Only set the baut and code of the bluethoot module and your good to go?
These GPS modules output serial (as well as i2c), so you dont need anything else. Youre just transmitting serial over bluetooth.
Full_Tilt_Boogie is offline
Old 02-19-2015, 10:33 AM
  #37
Newb

Join Date: Dec 2014
Posts: 30
Total Cats: 0
Default

this tread now becomes more intresting
thanks for the reply Tom
creon is offline
Old 02-19-2015, 11:04 AM
  #38
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,495
Total Cats: 1,636
Default

Just got off the phone with ublox, and there is definitely no way to set navigation rate in eFuse. Oh well.
aidandj is offline
Old 02-19-2015, 11:28 AM
  #39
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,329
Total Cats: 81
Default

Meh I'll cost me $2 to add an ATMEGA328 chip to it, just more work. I think I have 4-5 them somewhere, so I'll probably just do that since I already have the chip. Props (but I'm mobile and don't know how) for digging in to that though, good to know.
Schuyler is offline
Old 02-19-2015, 11:30 AM
  #40
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,495
Total Cats: 1,636
Default

I have the command for changing the rate somewhere written down too, but its pretty simple. I'm buying the flash chip just for science. Funny how this has cost me more than the Qstarz module.
