Old 12-10-2009, 12:58 PM   #81
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

I know the dash profiles are different, but I was talking about the top of the gauge hoods. Are they remotely close?
rharris19 is offline   Reply With Quote
Old 12-10-2009, 06:28 PM   #82
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default



Could that black piece be incorporated in or would you risk busting the whole bumper from an off if the diffuser gets hit? Could the whole bumper be made out of polyurethane?
jacob300zx is offline   Reply With Quote
Old 12-10-2009, 06:44 PM   #83
Junior Member

Join Date: Feb 2008
Posts: 126
Total Cats: 1
Default

I'd be willing to work with you on the nose if you want. I already have glassed in my vents on my RB nose. I personally think that it could come down further and be flat to meet a splitter (like I've modded mine to do). Additionally, to appeal to a broader audience, you probably need to keep the turn signal openings. I'd prefer to move the brake ducts to the splitter via NACA ducts and keep the front sealed, then offer a set of functional canards as bolt ons to the flat surface. I'm also working on a new splitter design which will be more functional than the flat piece I am using, and several others are using too. it couldn't be just glass, but I bet you could replicate what I am doing with glass over a core of alumilite...

I also wouldn't really want to widen the nose as I would prefer to use wheel spats to block the tire and integrate them into the front aero. It might be slightly more drag than the way proposed earlier, but the front splitter can be a lot more effective this way. And for turbo cars, I think thr front grip is more important than the drag change.

I'm in dallas, and Trey knows how to get hold of me if you are interested.
Matt [exz3owner] is offline   Reply With Quote
Old 12-10-2009, 07:11 PM   #84
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

This might be a stupid question, but Ive loved the idea of door bars since I first learned about them, and now with Hustlers thread saying they rock, I want them all the more. Are they usable without a roll bar? I assume they just bolt to the car where the lower mount of a roll bar would go, but I dont know because I dont have a car with a bar to examine.
icantthink4155 is offline   Reply With Quote
Old 12-10-2009, 07:18 PM   #85
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

I personally think you should stick with the things like door bar and alike where the market isnt saturated.
Braineack is offline   Reply With Quote
Old 12-10-2009, 08:20 PM   #86
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

what about a cover plate for people who delete the passenger side airbag and dont want a gaping hole?
WonTon is offline   Reply With Quote
Old 12-10-2009, 08:59 PM   #87
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

I would have to agree with Matt on the brake ducting being taken out of the front bumper. Essentially just have the front sealed up minus the front inlet for intercooler and radiator airflow... However, there is probably not as much of a market for this unfortunately. But I do like the idea of widening the front bumper some so it can work better if the car is flared or has wider fenders similar to Garage Vary's GT kit...
thagr81 us is offline   Reply With Quote
Old 12-10-2009, 10:32 PM   #88
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

I'd love to have door bars that protruded out into the door like this (For the most protection from side impacts)...I know this isn't for everybody, but I think more than a few would go for it.....I personally would build a sheetmetal tub to clean up the door and still allow the bar to protrude out. You could even probably just make these as a weld in kit to make things a little easier on your end.

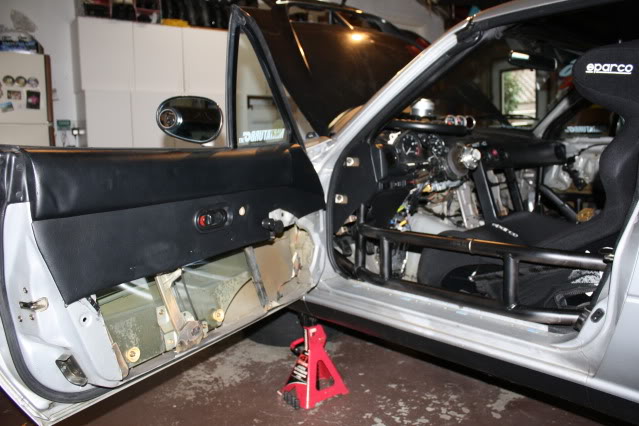

Name:  IMG_1268.jpg
Views: 1
Size:  77.6 KB

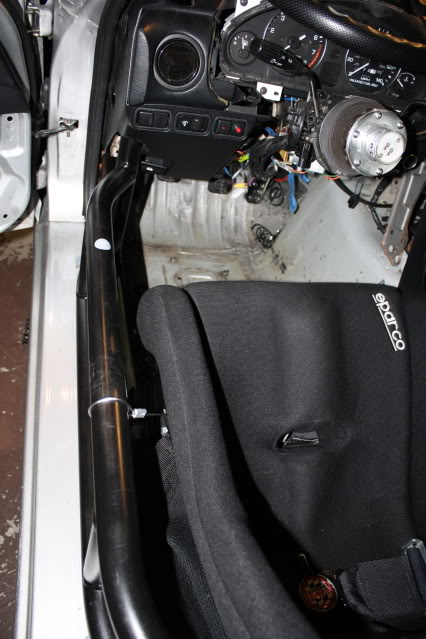

Name:  IMG_1272.jpg
Views: 1
Size:  69.0 KB

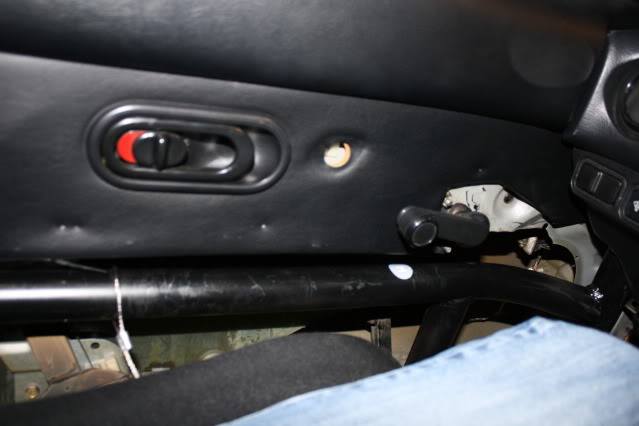

Name:  IMG_1276.jpg
Views: 1
Size:  44.3 KB
Cspence is offline   Reply With Quote
Old 12-10-2009, 11:04 PM   #89
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Quote:
Originally Posted by thagr81 us View Post
I would have to agree with Matt on the brake ducting being taken out of the front bumper. Essentially just have the front sealed up minus the front inlet for intercooler and radiator airflow... However, there is probably not as much of a market for this unfortunately. But I do like the idea of widening the front bumper some so it can work better if the car is flared or has wider fenders similar to Garage Vary's GT kit...
I bet he sells 50 if he gets 949 to throw one on the OGK.


Quote:
Originally Posted by Cspence View Post
I'd love to have door bars that protruded out into the door like this (For the most protection from side impacts)...I know this isn't for everybody, but I think more than a few would go for it.....I personally would build a sheetmetal tub to clean up the door and still allow the bar to protrude out. You could even probably just make these as a weld in kit to make things a little easier on your end.
Thats a full cage bud, wouldn't work for door bars.
jacob300zx is offline   Reply With Quote
Old 12-10-2009, 11:33 PM   #90
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by thagr81 us View Post
I would have to agree with Matt on the brake ducting being taken out of the front bumper. Essentially just have the front sealed up minus the front inlet for intercooler and radiator airflow... However, there is probably not as much of a market for this unfortunately. But I do like the idea of widening the front bumper some so it can work better if the car is flared or has wider fenders similar to Garage Vary's GT kit...
I may switch to belly-pan/splitter brake ducts too because its worked so well for Matt. hmmmm
hustler is offline   Reply With Quote
Old 12-10-2009, 11:55 PM   #91
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by jacob300zx View Post


Could that black piece be incorporated in or would you risk busting the whole bumper from an off if the diffuser gets hit? Could the whole bumper be made out of polyurethane?
If you support the splitter correctly in the front with a good frame, this shouldn't be a problem. I don't have the machinery to make polyurethane.
rharris19 is offline   Reply With Quote
Old 12-11-2009, 12:03 AM   #92
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by Matt [exz3owner] View Post
I'd be willing to work with you on the nose if you want. I already have glassed in my vents on my RB nose. I personally think that it could come down further and be flat to meet a splitter (like I've modded mine to do). Additionally, to appeal to a broader audience, you probably need to keep the turn signal openings. I'd prefer to move the brake ducts to the splitter via NACA ducts and keep the front sealed, then offer a set of functional canards as bolt ons to the flat surface. I'm also working on a new splitter design which will be more functional than the flat piece I am using, and several others are using too. it couldn't be just glass, but I bet you could replicate what I am doing with glass over a core of alumilite...

I also wouldn't really want to widen the nose as I would prefer to use wheel spats to block the tire and integrate them into the front aero. It might be slightly more drag than the way proposed earlier, but the front splitter can be a lot more effective this way. And for turbo cars, I think thr front grip is more important than the drag change.

I'm in dallas, and Trey knows how to get hold of me if you are interested.
I am not really worried about people trying to use this on a street car, so the turn signals will probably be covered.

How much lower does the bumper need to go?

On the sides, would you leave it unchanged in front of the tire? I know you say using canards. How big and how many? I am just having a hard time picturing that for some reason.
rharris19 is offline   Reply With Quote
Old 12-11-2009, 12:09 AM   #93
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by Cspence View Post
I'd love to have door bars that protruded out into the door like this (For the most protection from side impacts)...I know this isn't for everybody, but I think more than a few would go for it.....I personally would build a sheetmetal tub to clean up the door and still allow the bar to protrude out. You could even probably just make these as a weld in kit to make things a little easier on your end.


Without it being part of a cage, you really don't get any more function out of this design than the standard. I will probably just stick with the simple door bars for now. If I am wrong about it, then I may revisit this idea.
rharris19 is offline   Reply With Quote
Old 12-11-2009, 12:17 AM   #94
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

I might want to put that on a street car.Thats my direction.
(G)
Reverend Greg is offline   Reply With Quote
Old 12-11-2009, 12:23 AM   #95
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Quote:
Originally Posted by Reverend Greg View Post
I might want to put that on a street car.Thats my direction.
(G)
Well hell
rharris19 is offline   Reply With Quote
Old 12-11-2009, 01:40 AM   #96
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

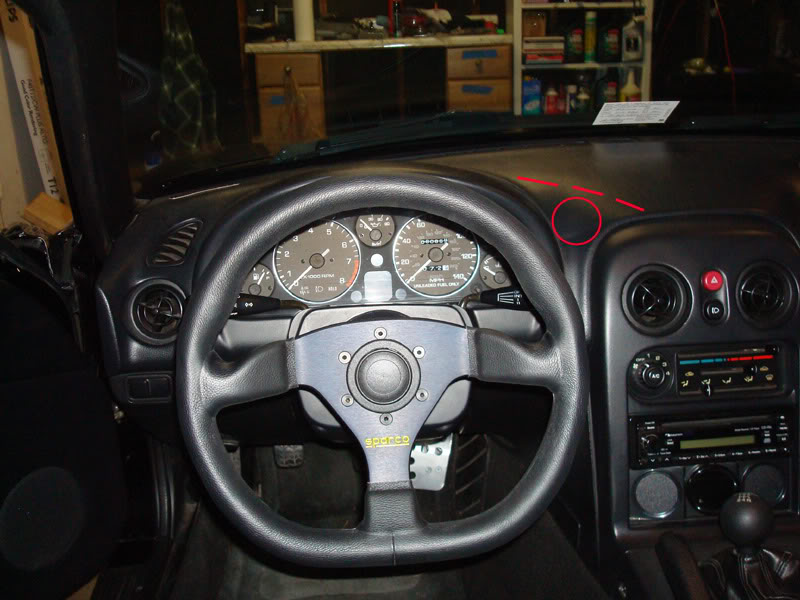

If you're looking for gauge mounting ideas, I'd like a single gauge pod that fits in the little nook to the right of the gauge cluster. Preferably something that would contour or transition reasonably well between the gauge hood & dash. Not 100% sure if this is practical since I don't have an unmounted gauge to experiment with at the moment. But a gauge in that spot would be plenty visible while on track.

Name:  gaugepodiwant.jpg
Views: 1
Size:  80.1 KB
ScottFW is offline   Reply With Quote
Old 12-11-2009, 08:57 AM   #97
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Matt,

Post details about your ideas with some representative photos. I know you have more knowledge on this subject than most with all the aero work you have been working on. BTW, you never emailed me back...
thagr81 us is offline   Reply With Quote
Old 12-11-2009, 10:08 AM   #98
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Quote:
Originally Posted by rharris19 View Post
I know the dash profiles are different, but I was talking about the top of the gauge hoods. Are they remotely close?
I gotcha... the shapes are remotely close, but they have their differences. My 1.8 hood would not fit the 1.6 when I swapped dashes and had to find a 1.6 hood. The guages however fit without a problem. Hope this helps...
Machismo is offline   Reply With Quote
Old 12-11-2009, 10:33 AM   #99
Junior Member

Join Date: Feb 2008
Posts: 126
Total Cats: 1
Default

crap, did I miss your last email? I'll need to go dig. Sorry. I've been travelling a lot recently. you mind resending?

here is a shot of the front of the car under load. You can see the front bumper extension I made. It probably adds 2.5" in the center, but less on the sides. The important part is it provides a 90* mating point for the splitter. Even with as low as my car is, without the splitter, this bumper gets on a trailer no problem. ignore the canards in this photo. The fabricator that built them didn't follow the drawings, so they don't mate well, and are at the wrong angles and the design isn't that great.

[img]
http://farm4.static.flickr.com/3397/...9b60ba90_b.jpg
[/img]
Matt [exz3owner] is offline   Reply With Quote
Old 12-11-2009, 10:39 AM   #100
Junior Member

Join Date: Feb 2008
Posts: 126
Total Cats: 1
Default

and for the canard design, this is what I'd be looking for. they could be a bolt on accessory sold for the bumper.

http://gallery.me.com/andrewbrillian...12580435510001

While I know you don't care about street cars that much, if you think about volume and wide appeal, there aren't very many track only cars in the US. But you do have a lot of "mostly track" cars. I personally think leaving out the marker lights would limit the audience dramatically. But I don't really care for my personal car.
Matt [exz3owner] is offline   Reply With Quote
