Old 12-11-2009, 10:54 AM   #101
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Matt, the email has been resent... Not a problem on the delay.

Unfortunately, Flickr doesn't work here at work for me, but I think I know what you are talking about as far as the bumper extenders. It is a similar concept to what is used in Nascar to get an additional area of downforce over the front splitter and also force air into the opening for the radiator in their case. I was planning to do something similiar, but if it were prebuilt into the bumper that would be optimal for integrity and sealing. Glad you joined the conversation.
thagr81 us is offline   Reply With Quote
Old 12-11-2009, 10:59 AM   #102
Junior Member

Join Date: Feb 2008
Posts: 126
Total Cats: 1
Default

here is an attached photo instead. This has a shot of most of the ideas in kinda mad max form. I'd like to refine them and make them more integrated, not bolt on.

oh - I'd also be interested in helping make some fenders that would help with aero and cooling as well. getting air out of the wheel wells would probably help cooling more than hood vents would.
Attached Thumbnails
What else do track drivers want?-miata.jpg
Matt [exz3owner] is offline   Reply With Quote
Old 12-11-2009, 11:42 AM   #103
Junior Member

Join Date: Feb 2008
Posts: 126
Total Cats: 1
Default

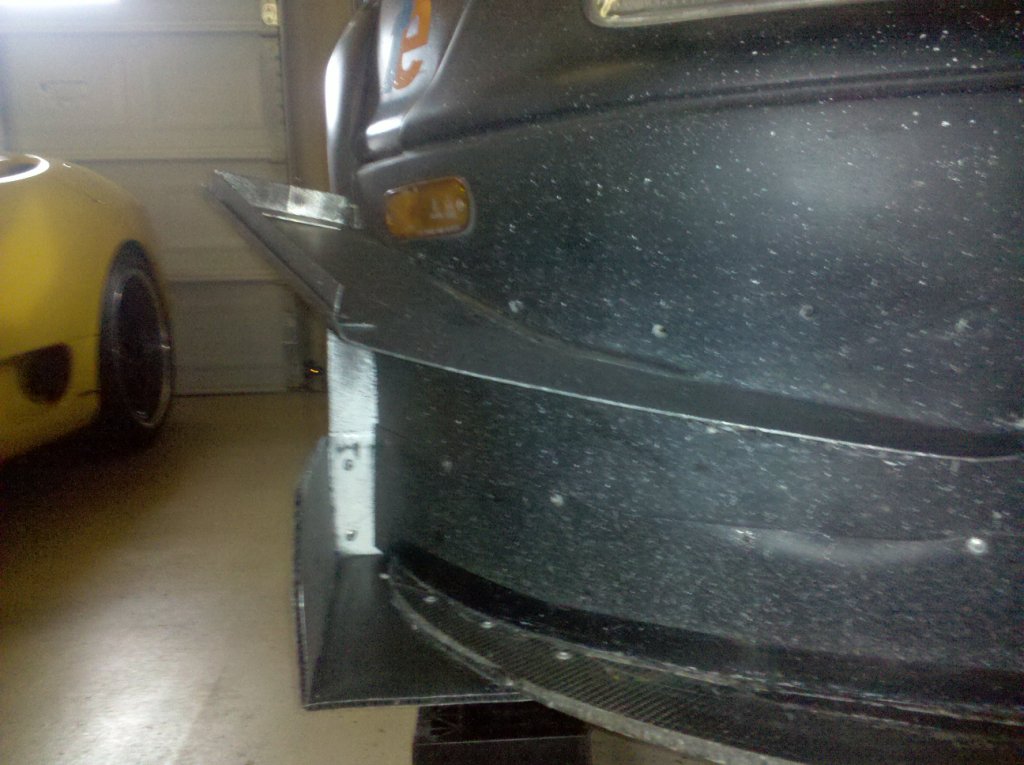

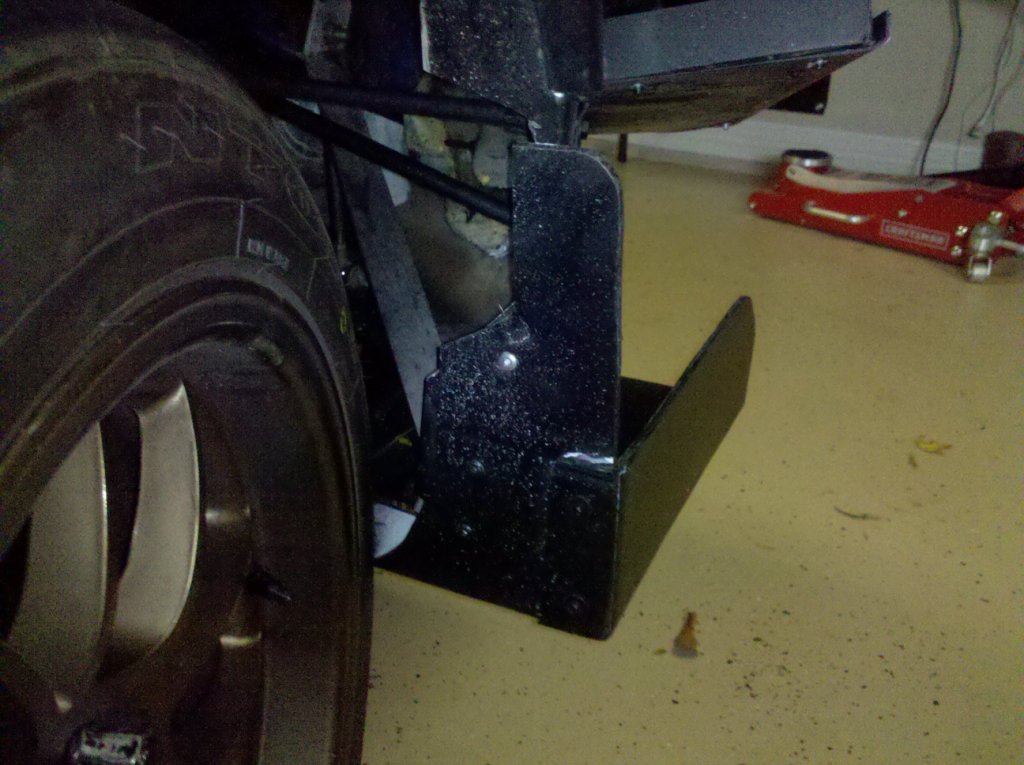

and here are some shots of the wheel spats I was talking about. AAA speedway was actually a cool track to test aero on because of all the grit in the air. It destroyed paint. I had a fresh spray on the whole front end of my car, and the white pock marks really show where air got trapped. The wheel spat that is white now was 100% black saturday morning. if you know how aero works, you can then see where the places that downforce is being created. A huge percent of the air that hit the frontal area got pushed around the side and hit that area. The winglets on the edge of the splitter were very effective when combined with the wheel spats.

Matt
Attached Thumbnails
What else do track drivers want?-2009-12-11-09.05.23.jpg   What else do track drivers want?-2009-12-11-09.06.42.jpg
Matt [exz3owner] is offline   Reply With Quote
Old 12-11-2009, 12:09 PM   #104
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Oh my... that front end has really progressed since my last viewing!
Machismo is offline   Reply With Quote
Old 12-11-2009, 01:18 PM   #105
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Ah ha... I see what you did there. I am still trying to figure out a way to setup cooling via the fenders myself without paying HUGE sums of money for the ones I sent you in a previous email. Like the idea of the spats too... And yes, that is a lot of paint removed in one event. o.O
thagr81 us is offline   Reply With Quote
Old 12-11-2009, 01:21 PM   #106
Junior Member

Join Date: Feb 2008
Posts: 126
Total Cats: 1
Default

all I need is a set of stock fenders that I can use to mock up the design. I'm not cutting my carbon ones, but if anyone knows a set I can get near dallas for reasonable money, let me know.
Matt [exz3owner] is offline   Reply With Quote
Old 12-11-2009, 01:24 PM   #107
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

I will check and let you know if I come across anything Matt... Would love to save some money on an effective cooling solution rather than hood vents.

Matt, you have PM with info on a fender lead...

But yeah Robert, if you want to design something that will perform well on the track I would honestly consider working with Matt on the design of the bumper. They have more work and resources put into that one aspect than I have into my entire build...

Last edited by thagr81 us; 12-11-2009 at 01:36 PM.
thagr81 us is offline   Reply With Quote
Old 12-11-2009, 02:07 PM   #108
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

I would love to work with as many expirienced people as possible to get this to somethign that could benefit the most with the least compromises.

Matt: You seem to have some well thought out designs and would be more than happy to work with you on incorporating those. Your expirience with areo on the track would be useful in making this bumper.

I am goign to be open and say that I know little about aero in general, so any help from people who do understand it and have worked with it, has been and will continue to be, helpful.
rharris19 is offline   Reply With Quote
Old 12-11-2009, 02:34 PM   #109
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Holy crap this is going to be dope, Matt's aero knowledge and Roberts fiberglass skills = win. Thanks for helping us all out guys! I'm in for this bumper when completed and I'll look for some fenders for you Matt.
jacob300zx is offline   Reply With Quote
Old 12-11-2009, 02:48 PM   #110
Junior Member

Join Date: Feb 2008
Posts: 126
Total Cats: 1
Default

there are plenty of people here who know what they are talking about. Most probably just haven't tried to build it. Happy to help.

If there is a splitter designed that is more complex than a piece of wood, would people want it?
Matt [exz3owner] is offline   Reply With Quote
Old 12-11-2009, 03:07 PM   #111
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Explain?^^^
jacob300zx is offline   Reply With Quote
Old 12-11-2009, 03:13 PM   #112
Junior Member
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

My guess would be a slightly raised center section on the splitter to further accelerate the air moving under the car.
Chris Swearingen is offline   Reply With Quote
Old 12-11-2009, 03:15 PM   #113
Junior Member

Join Date: Feb 2008
Posts: 126
Total Cats: 1
Default

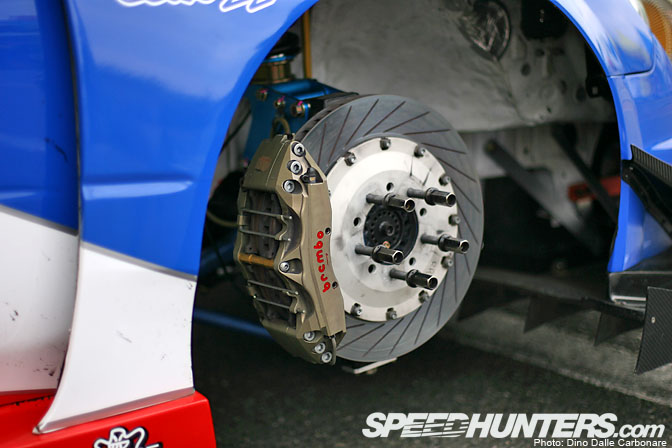

I hate using cheesy japanese body kits as a reference, but these guys are onto something...
Attached Thumbnails
What else do track drivers want?-img_0107%5B1%5D.jpg
Matt [exz3owner] is offline   Reply With Quote
Old 12-11-2009, 03:22 PM   #114
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

Quote:
Originally Posted by Chris Swearingen View Post
My guess would be a slightly raised center section on the splitter to further accelerate the air moving under the car.


like this. middle section has a nice smooth bevel.
Braineack is offline   Reply With Quote
Old 12-11-2009, 03:23 PM   #115
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

A front diffused splitter, curving up as it goes under the bumper?

splitters diffusers airdams.pdf

like what this guys talking about?
jacob300zx is offline   Reply With Quote
Old 12-11-2009, 03:28 PM   #116
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Directional vains on the bottom of the diffuser to direct airflow where it needs to go? Didn't we discuss this in some of our emails?
thagr81 us is offline   Reply With Quote
Old 12-11-2009, 03:36 PM   #117
Junior Member
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

Quote:
Originally Posted by jacob300zx View Post
A front diffused splitter, curving up as it goes under the bumper?

Attachment 14457

like what this guys talking about?
Never heard Simon McBeath referred to as "this guy" before. He kind of wrote the book on aero, okay actually several


and on the raised center section I was thinking more like
Chris Swearingen is offline   Reply With Quote
Old 12-11-2009, 03:41 PM   #118
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

hey look at that....if you take my idea of the integrated chin spoiler 'scooper'...that wouldn't be too hard:

Braineack is offline   Reply With Quote
Old 12-11-2009, 03:48 PM   #119
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Quote:
Originally Posted by thagr81 us View Post
Directional vains on the bottom of the diffuser to direct airflow where it needs to go? Didn't we discuss this in some of our emails?
Yup since your forcing the air to follow the splitter/diffuser it needs the vains to keep the air on the splitter and not pushing out the sides...right?


Quote:
Originally Posted by Chris Swearingen View Post
Never heard Simon McBeath referred to as "this guy" before.
where's your link sucka
jacob300zx is offline   Reply With Quote
Old 12-11-2009, 03:54 PM   #120
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Quote:
Originally Posted by jacob300zx View Post
Yup since your forcing the air to follow the splitter/diffuser it needs the vains to keep the air on the splitter and not pushing out the sides...right?
Precisely... Or ending up where you don't want it.
thagr81 us is offline   Reply With Quote
