Old 12-11-2009, 04:41 PM   #121
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I need a carbon-fiber gatoride catch can.

hustler is offline   Reply With Quote
Old 12-11-2009, 04:42 PM   #122
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
hey look at that....if you take my idea of the integrated chin spoiler 'scooper'...that wouldn't be too hard:

I thought that was my idea that you photoshopped for me. lol

hustler is offline   Reply With Quote
Old 12-11-2009, 04:44 PM   #123
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

something to that matter. i think you were complaining about the scooper being too low and i suggested something like that.

Name:  Teamwork.jpg
Views: 1
Size:  36.2 KB
Braineack is offline   Reply With Quote
Old 12-11-2009, 04:52 PM   #124
Junior Member

Join Date: Feb 2008
Posts: 126
Total Cats: 1
Default

only problem with that idea is that you aren't making any downforce on the front of that splitter if you are allowing the air to pass through a hole to some sort of cooler.

But Calton, yes, a lifted center sections with directional veins and naca ducts for brakes, and an oil cooler. :P complicated piece. I think I'm starting on it this weekend.
Matt [exz3owner] is offline   Reply With Quote
Old 12-11-2009, 05:34 PM   #125
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Sounds like a pretty trick piece Matt... Keep us updated.
thagr81 us is offline   Reply With Quote
Old 12-11-2009, 06:06 PM   #126
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

Quote:
Originally Posted by matt [exz3owner] View Post
only problem with that idea is that you aren't making any downforce on the front of that splitter if you are allowing the air to pass through a hole to some sort of cooler.
+1
sixshooter is online now   Reply With Quote
Old 12-11-2009, 06:18 PM   #127
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

well i was saying, you could notch the lip and make it happen, similar to what i had illustrated long ago.
Braineack is offline   Reply With Quote
Old 12-11-2009, 07:14 PM   #128
Junior Member

Join Date: Feb 2009
Location: The Woodlands, TX
Posts: 328
Total Cats: 12
Default

Quote:
Originally Posted by Matt [exz3owner] View Post
If there is a splitter designed that is more complex than a piece of wood, would people want it?
I was going to buy an APR splitter from Slick Auto, but if you guys make a better one, I'll wait and buy yours.
Double O 86 is offline   Reply With Quote
Old 12-13-2009, 05:48 AM   #129
Newb

Join Date: Dec 2009
Posts: 6
Total Cats: 0
Default

Cheap aero nose with bolt on splitter, I'd say. There's a TON of benefit to that splitter but even a mild off will demand replacement, hence the need for cheap price. I think the rear wing options have been covered plenty.

The latest aero trends seem to include venting fenders a lot, a la Ferrari's 458 (holes on top of the fronts). The high pressure build-up can be relieved this way apparently so a pair of vented plastic fenders for MX5 might have potential.
Uberwagon is offline   Reply With Quote
Old 12-13-2009, 06:01 AM   #130
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by Uberwagon View Post
Cheap aero nose with bolt on splitter, I'd say. There's a TON of benefit to that splitter but even a mild off will demand replacement, hence the need for cheap price.
What you need is a splitter that mounts independently of the nose. If the splitter attaches to the nose, the nose has to be heavy in order to support it and then you tear both of them off when you inevitably go into the weeds. Splitters need big, sturdy metal frames bolted to the subframe or unibody, and the nose should be sturdy enough to bolt canards to, but no sturdier (read: heavier).
Savington is online now   Reply With Quote
Old 12-13-2009, 06:50 AM   #131
Senior Member
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

Quote:
Originally Posted by jacob300zx View Post
A front diffused splitter, curving up as it goes under the bumper?

Attachment 14457

like what this guys talking about?
Even if you were to place a diffuser under a splitter to better direct air, I wouldnt doubt that the air would redirect itself anyways right as it passes the splitter. To better that system, you probably could incorporate some type of undertray to the splitter. I've always thought that an undertray extending from under the tranny, protruding out pass the front bumper to also act as a splitter would be an excellent idea. This too can be independent of a nose. I think this plus a more aerodynamic nose will benefit some greatly

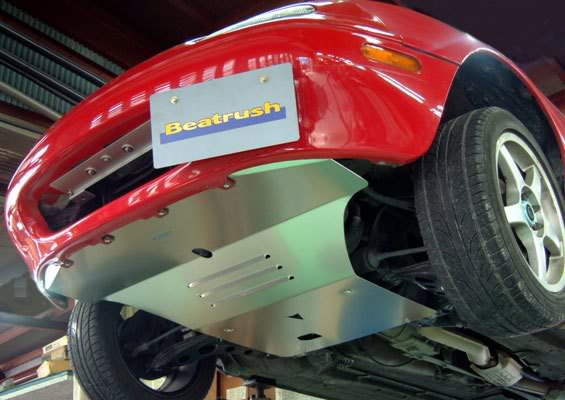

Like this for example, but extending pass the bumper to act as a splitter too
Name:  gomiata_2083_81669788.jpg
Views: 1
Size:  42.4 KB

Last edited by Sam Amporful; 12-13-2009 at 07:14 AM.
Sam Amporful is offline   Reply With Quote
Old 12-14-2009, 02:02 AM   #132
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

You want the splitter to be mounted to the car's frame, and not the nose.

Also, it helps to attach the leading edge of the splitter with tension cables rather than rigid rod ends so you get some upward compliance for when you run over stuff.
JKav is offline   Reply With Quote
Old 12-14-2009, 09:15 AM   #133
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

Still need gauge pod on top of my gauge pod. And I bet you can make several of them at a time.
sixshooter is online now   Reply With Quote
Old 12-14-2009, 09:42 AM   #134
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Matt [exz3owner] View Post
only problem with that idea is that you aren't making any downforce on the front of that splitter if you are allowing the air to pass through a hole to some sort of cooler.

But Calton, yes, a lifted center sections with directional veins and naca ducts for brakes, and an oil cooler. :P complicated piece. I think I'm starting on it this weekend.
Unless air exits through the hood, right?


That big metal belly pan does not act like a splitter becuase it still lets air go under the car...right?
hustler is offline   Reply With Quote
Old 12-14-2009, 11:04 AM   #135
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Quote:
Originally Posted by hustler View Post
That big metal belly pan does not act like a splitter becuase it still lets air go under the car...right?
If you are talking about the Beatrush belly pan. It appears that it has slots in it to evacuate air, however it appears that where they are would be in a high pressure area due to the air hitting that transition point. It would be better off further toward the back, but it does look nice I suppose.
thagr81 us is offline   Reply With Quote
Old 12-14-2009, 11:10 AM   #136
Junior Member

Join Date: Feb 2008
Posts: 126
Total Cats: 1
Default

that beatrush panel's shape would induce lift because of the downward ramp half way back. think of it as an upside down deck spoiler you'd put on your trunk.

Trey - A splitter "catches" the air that is coming off the nose of the car and is pushed down by its force. This is more of what causes the downforce than not allowing air under the car. As for the air fron your duct exiting the hood, I guess theoretically you are right, but that air is going to loose speed and become really dirty in your engine bay. The effects won't be the same. But what you are doing is forcing a ton of air through that opening because of the pressure created by the splitter. So you wouldn't need as big of an opening if it was placed at this point in comparison to if it were elsewhere.
Matt [exz3owner] is offline   Reply With Quote
Old 12-14-2009, 11:18 AM   #137
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Thanks, but my engine is really clean so it should be OK. After yesterday, I want aero on this car. I need a quick-release splitter and an extra trunk for a top fuel wing.


...well I still need a few more hours to get comfortable with the car still, then add the aero, but all in due time. In the middle of 5th I can feel the front lift and the bumps get really smooth...oh, and the brakes don't work. I had to brake really, really early in 3 and 7 at ECR because I was too afraid to go deeper with the lift and the crest in braking. Most of the corners were 3rd gear so not too fast, I have lots of work to do.
hustler is offline   Reply With Quote
Old 12-14-2009, 12:02 PM   #138
Elite Member
Thread Starter
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Matt: If you are making a center section lifted for your splitter, are you saying the bumper I am working on should have that lift int he middle? I may be misunderstanding you.

I am going to try to work on this a fair amount during the christmas time to possibly get it out and testing during the first couple challange dates.
rharris19 is offline   Reply With Quote
Old 12-14-2009, 12:06 PM   #139
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,560
Default

Quote:
Originally Posted by rharris19 View Post
are you saying the bumper I am working on should have that lift int he middle?
Please don't do that.
sixshooter is online now   Reply With Quote
Old 12-14-2009, 12:07 PM   #140
Junior Member

Join Date: Feb 2008
Posts: 126
Total Cats: 1
Default

no, just make the bumper flat across the bottom. If someone wants an additional vent, they can cut it in. You won't be able to see the rise in the splitter by just looking at if from the outside.

If you want to work with my bumper that already has the drop and the vents filled in, you are welcome to borrow it.
Matt [exz3owner] is offline   Reply With Quote
