The Better Bilstein Ebay Coilover Thread - Page 24 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Suspension, Brakes, Drivetrain discuss the wondrous effects of boost and your miata...

Reply



LinkBack Thread Tools Search this Thread
Old 04-03-2015, 09:30 AM   #461
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,457
Total Cats: 607
Default

Quote:
Originally Posted by Schuyler View Post
So, you allstar sleeve fanboyz are making me consider it worth the additional cost for the added adjustability with the sleeve a little lower.

-$58 for the 4 perches! More than the $43 ebay kits right there :(
-$64 for the sleeves.
So, $121 in sleeves and perches.

$15 for two sets of spring isolaters (total 4) (Energy Suspension 9-6103R)

$52 for 4 thrust bearings.

Plan is to run 500-550/325-350. QA1 or Summit both have me at about $50-60 a spring. So, unless someone says "HEY SCHUYLER BUY MY SPRINGS", Let's say $200 for new springs.

$21 for 4 Energy Suspension Bump Stops 7-6104G

So we're at $409 before shocks are even factored in.

Though, I have seen somewhere in here (don't remember if it was someone knowledgeable or not) suggesting that spring isolators were enough and thrust bearings are not necessary. That, combined with buying used springs, would cut down on costs by $100 or more.

Planning to just buy new bilsteins, and the b6 HD seems to be the best option.

Car will be daily driven for 2 or 3 HPDEs a year, and a handful of autocross just for lols.

Questions/Comments/Suggestions appreciated.
HEY SCHUYLER BUY MY SPRINGS

(I have a thread in the FS section)
concealer404 is offline   Reply With Quote
Old 04-03-2015, 09:36 AM   #462
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 1,867
Total Cats: 87
Default

Quote:
Originally Posted by Schuyler View Post
So, you allstar sleeve fanboyz are making me consider it worth the additional cost for the added adjustability with the sleeve a little lower.

-$58 for the 4 perches! More than the $43 ebay kits right there :(
-$64 for the sleeves.
So, $121 in sleeves and perches.

$15 for two sets of spring isolaters (total 4) (Energy Suspension 9-6103R)

$52 for 4 thrust bearings.

Plan is to run 500-550/325-350. QA1 or Summit both have me at about $50-60 a spring. So, unless someone says "HEY SCHUYLER BUY MY SPRINGS", Let's say $200 for new springs.

$21 for 4 Energy Suspension Bump Stops 7-6104G

So we're at $409 before shocks are even factored in.

Though, I have seen somewhere in here (don't remember if it was someone knowledgeable or not) suggesting that spring isolators were enough and thrust bearings are not necessary. That, combined with buying used springs, would cut down on costs by $100 or more.

Planning to just buy new bilsteins, and the b6 HD seems to be the best option.

Car will be daily driven for 2 or 3 HPDEs a year, and a handful of autocross just for lols.

Questions/Comments/Suggestions appreciated.
For what you're doing the thrust bearings are overkill. And you only need isolators on one end of the spring. And buying Conealer404's springs cuts the costs more.
bahurd is offline   Reply With Quote
Old 04-03-2015, 09:42 AM   #463
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 283
Total Cats: -25
Default

I only see 4 spring isolators in his list...I don't think he's intending to put more than one on each corner.
huesmann is offline   Reply With Quote
Old 04-03-2015, 09:43 AM   #464
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,457
Total Cats: 607
Default

Correct. That ES part number is for a pair.
concealer404 is offline   Reply With Quote
Old 04-03-2015, 09:45 AM   #465
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,457
Total Cats: 607
Default

Oh yeah, and i got the rest of my ****.

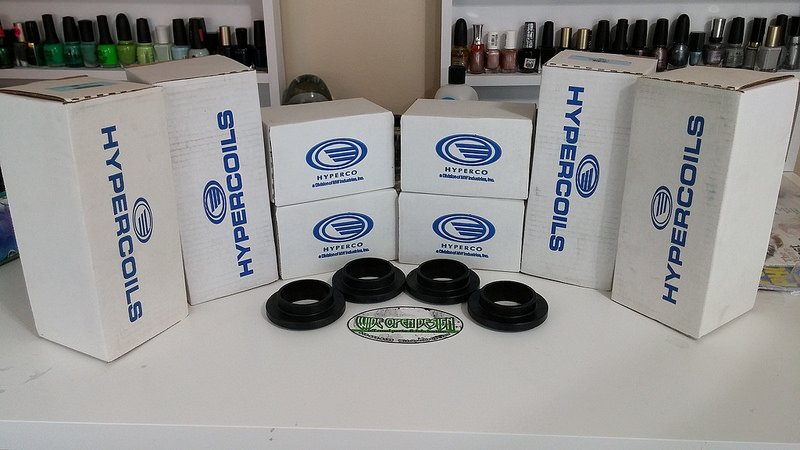

Hyperco goodies by concealer404, on Flickr

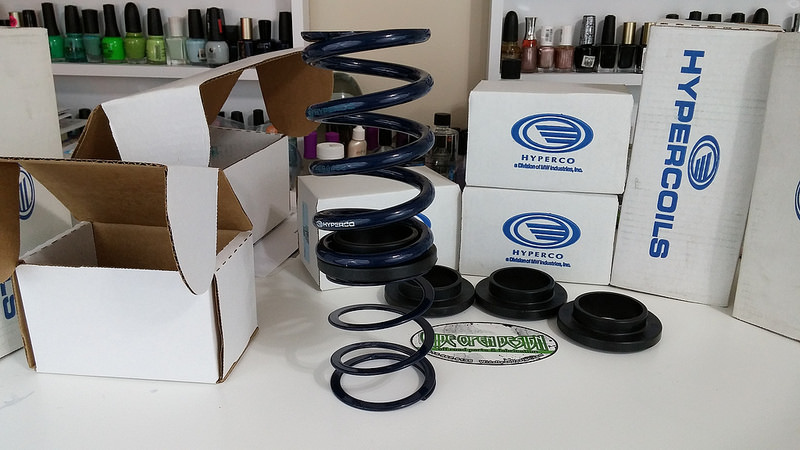

Poor man's Xidas by concealer404, on Flickr
Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-16730055749_cba10c6a5d_c.jpg   The Better Bilstein Ebay Coilover Thread-16728567788_dfe9e7f217_c.jpg
concealer404 is offline   Reply With Quote
Old 04-03-2015, 09:45 AM   #466
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 283
Total Cats: -25
Default

Nice nail polish!

Are the tender springs really necessary?
huesmann is offline   Reply With Quote
Old 04-03-2015, 09:50 AM   #467
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 1,867
Total Cats: 87
Default

Quote:
Originally Posted by huesmann View Post
I only see 4 spring isolators in his list...I don't think he's intending to put more than one on each corner.
Your point?

Quote:
Originally Posted by huesmann View Post
Nice nail polish!

Are the tender springs really necessary?
Not if you don't want them. Some of us do. It's been discussed in this thread.
bahurd is offline   Reply With Quote
Old 04-03-2015, 09:55 AM   #468
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,457
Total Cats: 607
Default

Quote:
Originally Posted by huesmann View Post
Nice nail polish!

Are the tender springs really necessary?

The tender springs are like my underwear: Depends.
concealer404 is offline   Reply With Quote
Old 04-03-2015, 10:15 AM   #469
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 283
Total Cats: -25
Default

Quote:
Originally Posted by bahurd View Post
Your point?
Uh, my point is that you admonished him that you only need an isolator on one end of each spring. Since there are 4 springs, that leads a person to believe you were admonishing him to not buy more than 4 isolators. Which he already hadn't planned to do, given his "total 4" comment.
huesmann is offline   Reply With Quote
Old 04-03-2015, 12:20 PM   #470
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 1,867
Total Cats: 87
Default

Quote:
Originally Posted by huesmann View Post
Uh, my point is that you admonished him that you only need an isolator on one end of each spring. Since there are 4 springs, that leads a person to believe you were admonishing him to not buy more than 4 isolators. Which he already hadn't planned to do, given his "total 4" comment.
Well, I guess I did give friendly advice. But I'm not sure it was said in earnest.
bahurd is offline   Reply With Quote
Old 04-03-2015, 04:23 PM   #471
Junior Member

Join Date: Aug 2014
Location: Mitchygan
Posts: 105
Total Cats: 9
Default

Having them myself, I would not get the 104G bumpstops. They are bump STOPS and have little give to them. I cut mine down a bit but I still think they are excessive. If I take them apart anytime soon, I'm going with the Honda bumpstops people keep bringing up.

Why do you need spring isolators and thrust bearings? If you're that worried about the budget, go without them. I paid for, and still see QA1 high travel springs on Summit for $37.

If you're buying everything brand new and insisting on expensive details like thrust bearings, a lot of the cost effectiveness goes away. The money would probably be better spent on a revalve, tender/helper springs, or just getting a more expensive shock to start with.
OptionXIII is offline   Reply With Quote
Old 04-03-2015, 04:29 PM   #472
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,457
Total Cats: 607
Default

I went with the whole hog, minus thrust bearings. This was to future-proof the setup. A revalve is in the future.

Last edited by concealer404; 04-03-2015 at 04:42 PM.
concealer404 is offline   Reply With Quote
Old 04-03-2015, 08:44 PM   #473
Newb

Join Date: Jun 2013
Posts: 34
Total Cats: 1
Default

semi related. according to the fcm video he says he prefers the shock profile of the stock showas more than the bilsteins. so is it better to build up on stock showas? assuming there is a chance of getting revalved bilsteins in the future
awdracer is offline   Reply With Quote
Old 04-03-2015, 10:48 PM   #474
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 948
Total Cats: -249
Default

I'd think that the poly spring isolators would somewhat function like thrust bearings allowing a bit of spring rotation.
wannafbody is offline   Reply With Quote
Old 04-04-2015, 07:58 PM   #475
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,338
Total Cats: 77
Default

Quote:
Originally Posted by concealer404 View Post
HEY SCHUYLER BUY MY SPRINGS

(I have a thread in the FS section)
PM Sent.

Quote:
Originally Posted by OptionXIII View Post
Having them myself, I would not get the 104G bumpstops. They are bump STOPS and have little give to them. I cut mine down a bit but I still think they are excessive. If I take them apart anytime soon, I'm going with the Honda bumpstops people keep bringing up.

Why do you need spring isolators and thrust bearings? If you're that worried about the budget, go without them. I paid for, and still see QA1 high travel springs on Summit for $37.

If you're buying everything brand new and insisting on expensive details like thrust bearings, a lot of the cost effectiveness goes away. The money would probably be better spent on a revalve, tender/helper springs, or just getting a more expensive shock to start with.
I'll look for an alternative to the bumpstops. I have a friend that may be helping me with the shocks, only reason I'm shopping new there.

They changed the part number of the QA1s, but I have found the new part number on Summit as you've described. Thanks.

More expensive shock being? Cheapest price I've seen (everyday regular for sale price) is $112 a shock for the bilsteins. So $450 new. Only next step up I've had anyone tell me to consider is the Tein Flex at $1020.
Schuyler is offline   Reply With Quote
Old 04-07-2015, 04:04 PM   #476
Newb

Join Date: Oct 2014
Location: YVR
Posts: 6
Total Cats: 0
Default

A lot of literature refers to NB Hard-S and MSM Bilsteins as being best bang for buck. However, I'm having a hell of a time finding anything decent locally, not to mention that I could have new aftermarket Bilstein Sport's (BE5-6550/6551) for a bit more.

My goals are lowered ride height, improved handling, and ride quality in that order. Is it worth waiting to find a set of Hard-S/MSM's, or should I just go for new? My plan is to use NB top hats up front and ISC 1.5's in the rear, DIY ghettocat bumpstops, Allstar sleeves, and probably 500f/375r. This will be for a weekend driven NA with the occassional AutoX and track day in between.
jing is offline   Reply With Quote
Old 04-08-2015, 07:00 AM   #477
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,406
Total Cats: 1,259
Default

New Hard-S were around $97 each from Mazda motorsports last time I checked. Not sure on the MSMs.
sixshooter is offline   Reply With Quote
Old 04-08-2015, 08:52 AM   #478
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,457
Total Cats: 607
Default

I wouldn't bother seeking out MSMs. Just one of those things that if they're available on the used market for close to the same price, sure.

New? Don't think it matters. If you were concerned about a couple percent performance difference, you wouldn't be in this thread.
concealer404 is offline   Reply With Quote
Old 04-08-2015, 05:47 PM   #479
Newb

Join Date: Oct 2014
Location: YVR
Posts: 6
Total Cats: 0
Default

Found a set of Hard-S locally but the seller isn't willing to move much on price. Can't justify spending close to $300 for a set of used factory shocks, and now I'm reading that I I'll be riding on the bump stops with my desired ride height, which is 1 finger gap or less (12" from the hub?)

Now I'm considering just going for a set of Tein Flex's to save myself the headache. It'll practically be the same price wise anyways since I plan to buy everything new.
jing is offline   Reply With Quote
Old 04-08-2015, 07:57 PM   #480
Junior Member

Join Date: Aug 2014
Location: Mitchygan
Posts: 105
Total Cats: 9
Default

Extended top hats are not that hard to make if you've got the equipment.

Screw lows, aim for performance.
OptionXIII is offline   Reply With Quote
