Old 04-16-2015, 08:42 AM   #501
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,440
Total Cats: 602
Default

No, i did mean the coupler, i just can't fathom how it'll ever come in contact with the sleeves on my setup as shown.
concealer404 is offline   Reply With Quote
Old 04-17-2015, 08:49 AM   #502
Junior Member
iTrader: (1)

Join Date: Jan 2013
Location: Davidson, NC
Posts: 157
Total Cats: -1
Default

Does OP have a link to the eBay coilovers that actually have different spring rates front to rear?
Dustin is offline   Reply With Quote
Old 04-17-2015, 08:56 AM   #503
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,440
Total Cats: 602
Default

Quote:
Originally Posted by Dustin View Post
Does OP have a link to the eBay coilovers that actually have different spring rates front to rear?

They've changed so many times, it's hard to tell.

Original posting was for the black sleeve/perches and blue springs combo. They were 450/325.

There were some red ones floating around at one point that were a 400/300 i think.
concealer404 is offline   Reply With Quote
Old 04-17-2015, 09:03 AM   #504
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 1,852
Total Cats: 85
Default

The Ebay set I bought (and never used) are the same wire diameter + coil spacing front/back so the rate would be the same. Good luck finding something with a the rate you actually want. Easier to just build from the parts lists using quality stuff. IMHO
bahurd is offline   Reply With Quote
Old 04-17-2015, 09:04 AM   #505
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,440
Total Cats: 602
Default

Yeah, like picking what you want out of the 4 pairs of springs i have for sale.
concealer404 is offline   Reply With Quote
Old 04-17-2015, 09:13 AM   #506
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 1,852
Total Cats: 85
Default

Quote:
Originally Posted by concealer404 View Post
Yeah, like picking what you want out of the 4 pairs of springs i have for sale.
Bumped it up for ya. Geez it was like 5 pages deep!
bahurd is offline   Reply With Quote
Old 04-17-2015, 09:20 AM   #507
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,440
Total Cats: 602
Default

Woot! Yeah i don't like spamming bumps on my stuff. Bites me in the *** sometimes i think.
concealer404 is offline   Reply With Quote
Old 04-18-2015, 11:35 PM   #508
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 948
Total Cats: -249
Default

Jessie's Kits on Ebay has silver springs with aprox. 550# springs front and rear.
wannafbody is offline   Reply With Quote
Old 04-20-2015, 01:25 PM   #509
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,440
Total Cats: 602
Default

I think i need to check mine to make sure i didn't put the sleeves on upside down. Mine are a LOT lower on the shock than anyone elses', and we only moved the circlip down about one inch.
concealer404 is offline   Reply With Quote
Old 04-20-2015, 01:26 PM   #510
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,799
Total Cats: 1,249
Default

Quote:
Originally Posted by concealer404 View Post
I think i need to check mine to make sure i didn't put the sleeves on upside down. Mine are a LOT lower on the shock than anyone elses', and we only moved the circlip down about one inch.
Depends on your sleeves. Most of the Ebay ones don't slide down over the C-clip, they just sit on top of it. So you probably have the nicer sleeves that slide over the c-clips.
aidandj is offline   Reply With Quote
Old 04-20-2015, 01:34 PM   #511
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,440
Total Cats: 602
Default

Quote:
Originally Posted by aidandj View Post
Depends on your sleeves. Most of the Ebay ones don't slide down over the C-clip, they just sit on top of it. So you probably have the nicer sleeves that slide over the c-clips.

I do. I have Spec Miata/AllStar/CordyCord sleeves.

But mine sit a LOT lower than Bahurd's did. He had to cut his rear sleeves to get them to clear the top of the shock. I didn't cut mine, only moved the circlip down about an inch, and i'm WELL below the top of the body.
concealer404 is offline   Reply With Quote
Old 04-20-2015, 01:34 PM   #512
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,799
Total Cats: 1,249
Default

Both MSM shocks?
aidandj is offline   Reply With Quote
Old 04-20-2015, 01:35 PM   #513
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,440
Total Cats: 602
Default

Yep yep.
concealer404 is offline   Reply With Quote
Old 04-20-2015, 01:35 PM   #514
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,799
Total Cats: 1,249
Default

Odd
aidandj is offline   Reply With Quote
Old 04-20-2015, 02:58 PM   #515
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 1,852
Total Cats: 85
Default

Quote:
Originally Posted by concealer404 View Post
I do. I have Spec Miata/AllStar/CordyCord sleeves.

But mine sit a LOT lower than Bahurd's did. He had to cut his rear sleeves to get them to clear the top of the shock. I didn't cut mine, only moved the circlip down about an inch, and i'm WELL below the top of the body.
Rear, sleeve to where the shock body begins to taper = 3-7/8"
Front, sleeve to where the shock body begins to taper = 7"

bahurd is offline   Reply With Quote
Old 04-20-2015, 03:01 PM   #516
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,440
Total Cats: 602
Default

Well... maybe i'm ok then. I'm pretty sure that's not a mistake i would have made, i just got a bit freaked out. I was going back through the thread and saw how much you had to cut off of yours to just get where yours ended up.

I didn't cut mine at all.

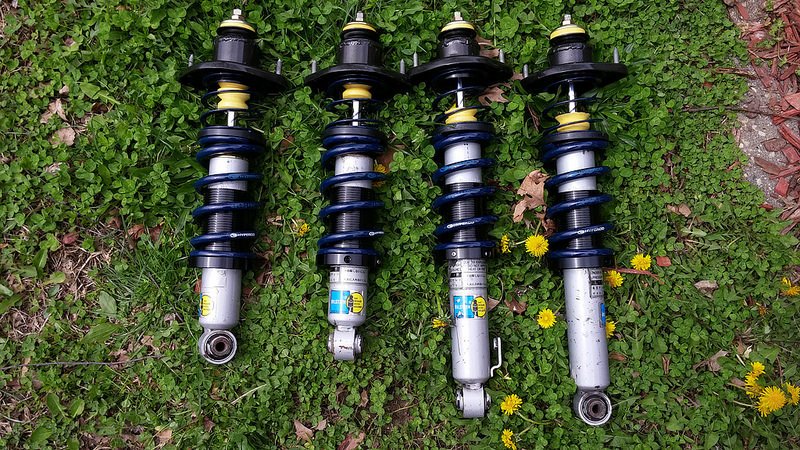

For reference again.

Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-17157209305_92b27a359d_c.jpg
concealer404 is offline   Reply With Quote
Old 04-20-2015, 03:05 PM   #517
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 1,852
Total Cats: 85
Default

Quote:
Originally Posted by concealer404 View Post
Well... maybe i'm ok then. I'm pretty sure that's not a mistake i would have made, i just got a bit freaked out. I was going back through the thread and saw how much you had to cut off of yours to just get where yours ended up.

I didn't cut mine at all.

For reference again.

I cut the rears only because if I ever wanted to put extended top hats on I could without taking everything apart. Figured the upper 1 inch didn't matter anyway so this would give clearance if needed in the future.

I can measure the sleeve length if you want.
bahurd is offline   Reply With Quote
Old 04-20-2015, 03:21 PM   #518
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 7,440
Total Cats: 602
Default

Nah don't sweat it. This setup is on my dining room floor right now, i can do what i need to do in about 5 minutes.
concealer404 is offline   Reply With Quote
Old 04-21-2015, 04:35 PM   #519
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 948
Total Cats: -249
Default

Here's a potential source for revalving Bilsteins. Approximately $500 for a set of shocks only.

Two-Six Motorsports Shock Packages
wannafbody is offline   Reply With Quote
Old 04-21-2015, 05:40 PM   #520
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 280
Total Cats: -24
Default

Quote:
Originally Posted by wannafbody View Post
Here's a potential source for revalving Bilsteins. Approximately $500 for a set of shocks only.
Shows as $1650 for me.

I see it's a package, but I don't see any solo shocks.
huesmann is offline   Reply With Quote
