Old 03-22-2016, 03:50 PM   #741
Junior Member
iTrader: (1)

Join Date: Jan 2016
Location: Indianapolis, IN
Posts: 132
Total Cats: 21
Default

Is the sleeve around the shock too big to fit up in the extended top hat?
zellers88 is offline   Reply With Quote
Old 03-22-2016, 03:53 PM   #742
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 466
Total Cats: 22
Default

You sure the noise isn't the sleeves hitting the tophats? Not sure who made your tophats but are they big enough to accommodate the coilover sleeve inside? At your ride height I have a hard time believe that the control arms are hitting.

Edit: Zellers beat me to it.

With that said I would gladly purchase those tophats from you if you can't get them to work. I have some NB hats I could throw in as well.
90civichhb is offline   Reply With Quote
Old 03-22-2016, 04:03 PM   #743
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 825
Total Cats: 79
Default

Just by looking at it, I would expect coil bind would happen before the sleeves could hit the top hat? There looks like less than 2" between the spring seat and the sop of the sleeve. Maybe the coils can compress to smaller than that.

If that's the case, I doubt there's any off-the-shelf top hat that can clear coilover sleeves. My eBay sleeves (which granted have a little clearance in diameter) are like 2.3" OD, which is about the same diameter as the chassis hole.
acedeuce802 is offline   Reply With Quote
Old 03-22-2016, 04:24 PM   #744
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 2,056
Total Cats: 135
Default

itskv

I use the Two Six top hats with the same MSM shocks on my NB. I have my sleeves (Allstar) cut back enough for the shock bodies to fit up inside the top hats. Never had any 'metal to metal' sounds.

You should check the top of the sleeves (your fronts don't look cut back much at all) for any contact.

Otherwise, I have 7" fronts where you have 6" but 7" rears.

Regarding your comment on "droop", raising the car UP or letting the tire drop DOWN does the same thing. Maybe you are hearing a front spring unseat but I guess it'd need to be a pretty big pothole.

I'm also @ 12-1/4F & 12-1/2R but the collars are at the bottom & fully engaged on the sleeves. NB...
bahurd is offline   Reply With Quote
Old 03-22-2016, 06:51 PM   #745
Newb

Join Date: Mar 2014
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by bahurd View Post
itskv

I use the Two Six top hats with the same MSM shocks on my NB. I have my sleeves (Allstar) cut back enough for the shock bodies to fit up inside the top hats. Never had any 'metal to metal' sounds.

You should check the top of the sleeves (your fronts don't look cut back much at all) for any contact.

Otherwise, I have 7" fronts where you have 6" but 7" rears.

Regarding your comment on "droop", raising the car UP or letting the tire drop DOWN does the same thing. Maybe you are hearing a front spring unseat but I guess it'd need to be a pretty big pothole.

I'm also @ 12-1/4F & 12-1/2R but the collars are at the bottom & fully engaged on the sleeves. NB...

Hey Bahurd,

The pictures i posted were beforecut in the fronts. I had cut them down 20mm from the top, tried not to cut too much cause of the inner sleeve that holds the sleeve in place.

How much had you cut them? I can either cut them or move the sleeves down. Can the circlips be reused?
itskv is offline   Reply With Quote
Old 03-22-2016, 07:06 PM   #746
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 2,056
Total Cats: 135
Default The Better Bilstein Ebay Coilover Thread

Quote:
Originally Posted by itskv View Post
Hey Bahurd,

The pictures i posted were beforecut in the fronts. I had cut them down 20mm from the top, tried not to cut too much cause of the inner sleeve that holds the sleeve in place.

How much had you cut them? I can either cut them or move the sleeves down. Can the circlips be reused?
If I recall, the two six hats are 3/4" so 20mm should be fine. And you'd be compressing the bump stops anyway so you should be good.

What are your spring rates? Sorry on phone app...
bahurd is offline   Reply With Quote
Old 03-23-2016, 02:44 AM   #747
Newb

Join Date: Mar 2014
Posts: 10
Total Cats: 0
Default

Quote:
Originally Posted by bahurd View Post
If I recall, the two six hats are 3/4" so 20mm should be fine. And you'd be compressing the bump stops anyway so you should be good.

What are your spring rates? Sorry on phone app...
Bahurd,

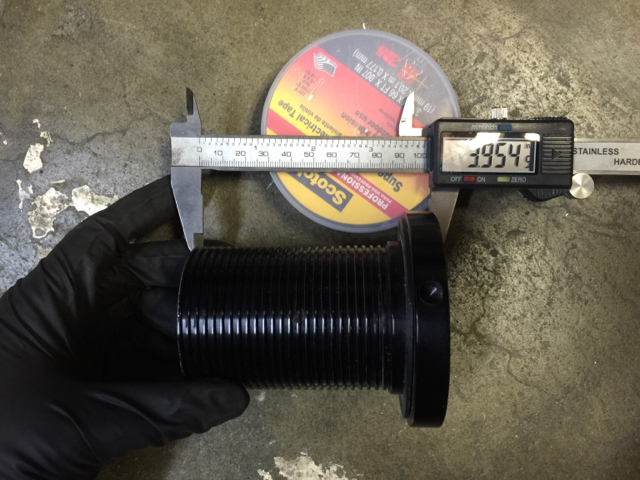

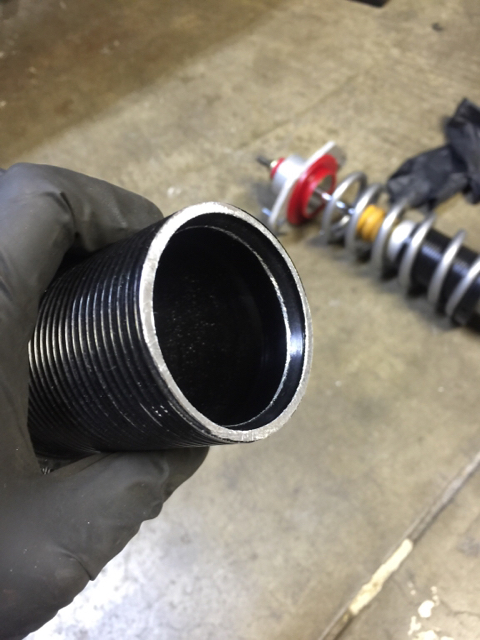

The fronts were initially cut 20mm, today I took off another 5mm. This leaves the sleeves at 4", 100mm. I also did this to the rears.

I have 6" 600lb, 7" 400lb.

Almost all of the noises are gone! I still get some of the contact noises from abrupt bumps/potholes. I'm not purposely slamming my suspension into these bumps, cruising at 30-40mph on some empty roads with imperfections.

So far, I am happy with it now. I may entertain the idea of bump stop spacers/packers to take up some of the travel by having the bump stops activated earlier...


Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-df5bc90d5dbe87faab3e591875c852d1.jpg   The Better Bilstein Ebay Coilover Thread-37b6c3bea7fc7e39129bdf8707d09087.jpg
itskv is offline   Reply With Quote
Old 05-04-2016, 11:06 PM   #748
Junior Member

Join Date: Jan 2016
Location: Allen, Texas
Posts: 60
Total Cats: 2
Default

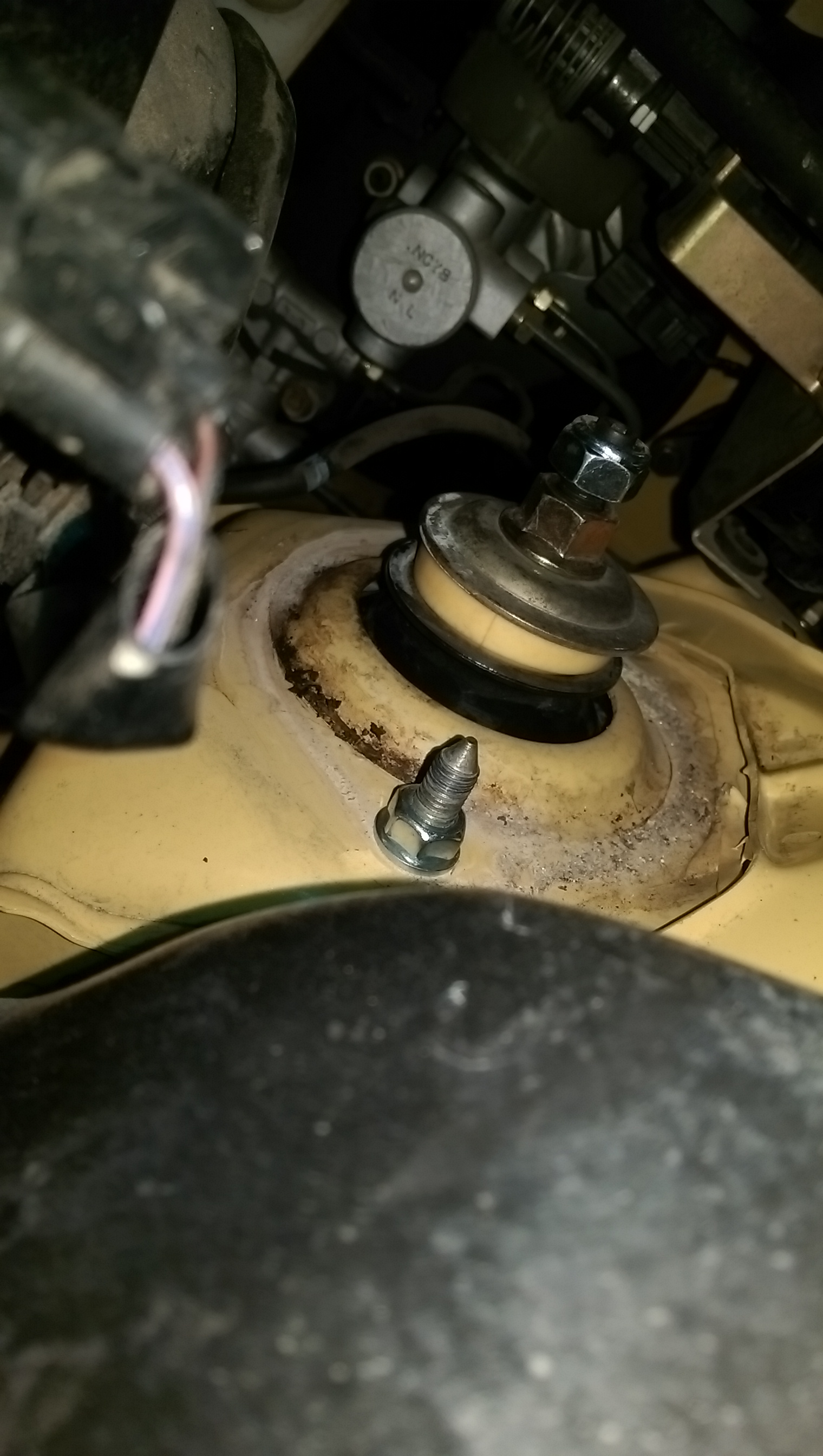

How does this look? I only hand tightened the shocks, I didn't want to go macho man and end up destroying my shocks.
Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-od5ooih.jpg
crispyBYM is offline   Reply With Quote
Old 05-23-2016, 02:21 PM   #749
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,755
Total Cats: 123
Default

I was under the impression that MSM shocks were physically longer than the Hard S shocks, but when I went to swap them that doesn't appear to be the case. I'm not sure if I'm just too dumb and didn't understand what I was reading or if this is a common misconception. The Hard S shocks did compress farther, so maybe that's what I was the source of my confusion.

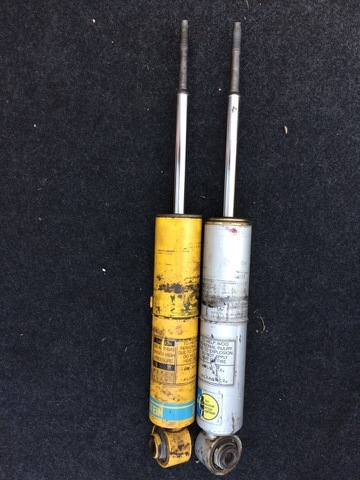

Any way, picture of rear shocks next to each other (Hard S off a 10AE on left, MSM on right). They were physically the same size, length and height. The MSM shocks were tougher to compress but otherwise identical.

Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-img_1506.jpg

Last edited by pdexta; 05-25-2016 at 09:34 AM. Reason: Compression depth confirmed to be the same
pdexta is offline   Reply With Quote
Old 05-23-2016, 02:21 PM   #750
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,755
Total Cats: 123
Default

.
Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-img_1506.jpg

Last edited by pdexta; 05-23-2016 at 08:56 PM. Reason: Double post
pdexta is offline   Reply With Quote
Old 05-23-2016, 02:27 PM   #751
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,810
Total Cats: 265
Default

Fronts are the same too right ? MSM vs Hard S?
Girz0r is offline   Reply With Quote
Old 05-23-2016, 02:35 PM   #752
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,647
Total Cats: 444
Default

Quote:
Originally Posted by Girz0r View Post
Fronts are the same too right ? MSM vs Hard S?

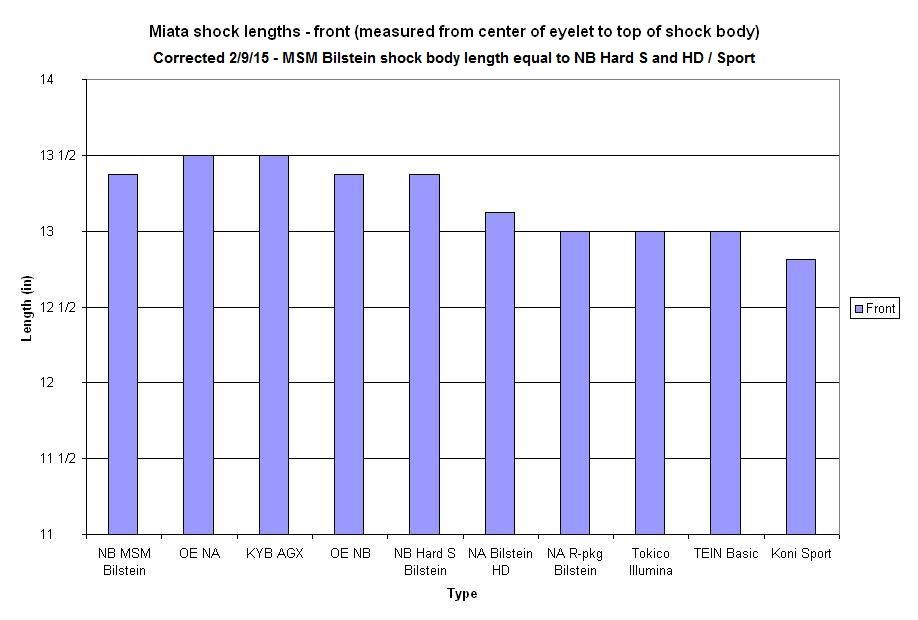

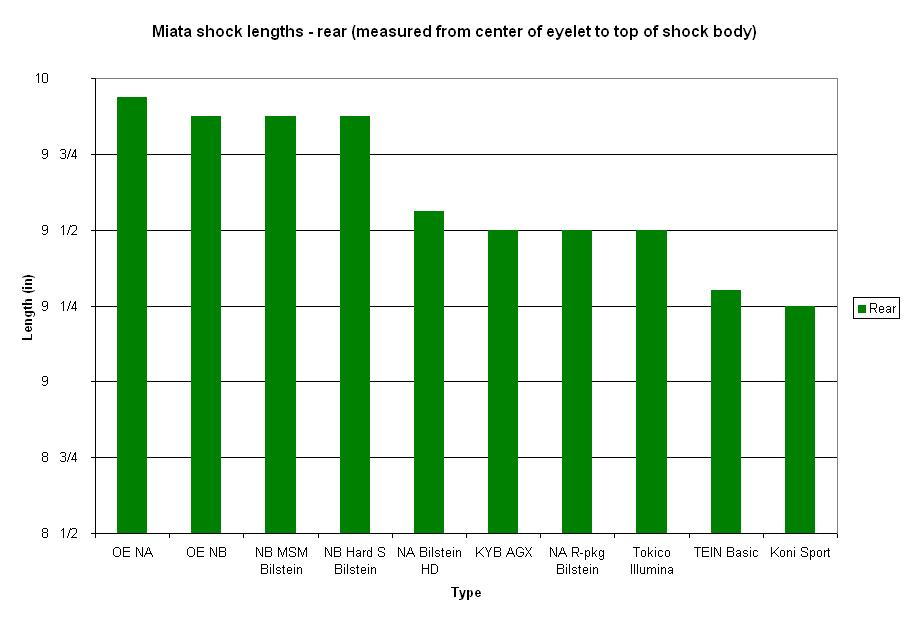

See here:

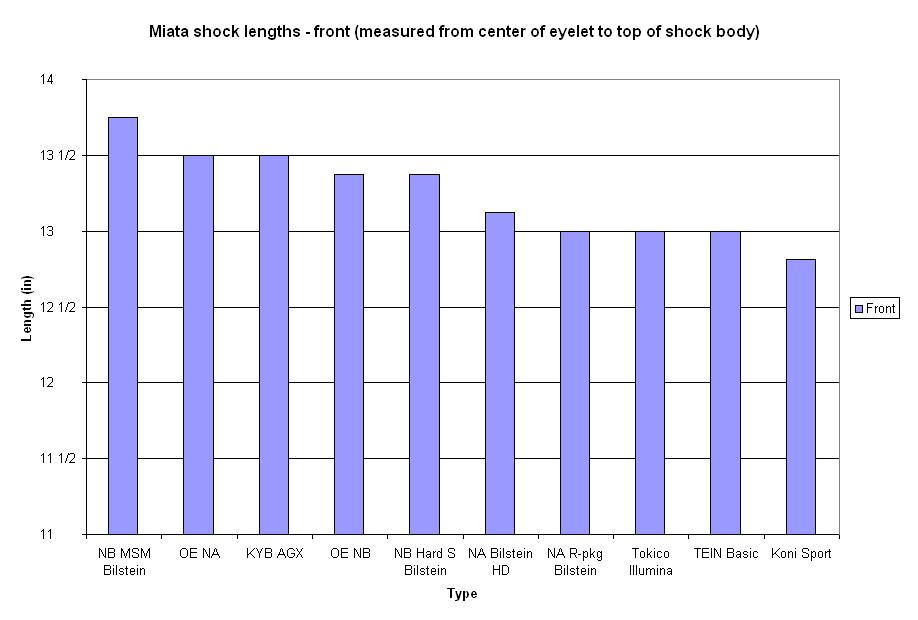

Some of the confusion stems from the earlier, uncorrected version of the front lengths:

Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-na_nb_miata_front_shock_lengths.jpg   The Better Bilstein Ebay Coilover Thread-na_nb_miata_rear_shock_lengths.jpg
mgeoffriau is offline   Reply With Quote
Old 05-23-2016, 02:38 PM   #753
Elite Member
iTrader: (7)

Join Date: Apr 2013
Location: Ohio
Posts: 2,056
Total Cats: 135
Default

^ beat me to it!
Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-80-na_nb_miata_front_shock_lengths_a5a3c21246e875994ac8825775947d6fb6ceb940.jpg   The Better Bilstein Ebay Coilover Thread-80-na_nb_miata_rear_shock_lengths_e18b88f91cc75d397955b7b82be29165b28da4dd.jpg

Last edited by bahurd; 05-23-2016 at 02:39 PM. Reason: redundant
bahurd is offline   Reply With Quote
Old 05-23-2016, 07:04 PM   #754
Junior Member

Join Date: Jan 2015
Posts: 100
Total Cats: 7
Default

Quote:
Originally Posted by pdexta View Post
The Hard S shocks did compress farther, so maybe that was the source of my confusion.

... The Hard S compressed about an inch farther down....
That doesn't sound right. I have a set of Hard S and a set of MSMs and when they've been off the car they both compress the full length of the shaft to the shoulder (end of the chromed part of shaft).

When you compress the MSM fully, is there still a length (about an inch) of chromed shock shaft left? (would be a bit of a worry, on lowered cars that's a good portion of the bump travel available!).
Junkwhale is offline   Reply With Quote
Old 05-23-2016, 09:06 PM   #755
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,755
Total Cats: 123
Default

Damnnnn, I wish I'd seen that chart before going to all that trouble of tracking down another set and pulling them out. Thanks for posting though, hopefully it saves other people some time/money.

Quote:
Originally Posted by Junkwhale View Post
That doesn't sound right. I have a set of Hard S and a set of MSMs and when they've been off the car they both compress the full length of the shaft to the shoulder (end of the chromed part of shaft).

When you compress the MSM fully, is there still a length (about an inch) of chromed shock shaft left? (would be a bit of a worry, on lowered cars that's a good portion of the bump travel available!).
That was my experience. I'd certainly be interested if someone else found another result. My test method of bouncing on them in the driveway was far from scientific but the MSM shock definitely didn't seem to want to go down as far for me.
pdexta is offline   Reply With Quote
Old 05-24-2016, 06:23 PM   #756
Junior Member

Join Date: Jan 2015
Posts: 100
Total Cats: 7
Default

Quote:
Originally Posted by pdexta View Post
That was my experience. I'd certainly be interested if someone else found another result. My test method of bouncing on them in the driveway was far from scientific but the MSM shock definitely didn't seem to want to go down as far for me.
I've got some MSMs sitting in my lounge atm, I'll try it when I'm home and get a pic.
Junkwhale is offline   Reply With Quote
Old 05-25-2016, 04:12 AM   #757
Junior Member

Join Date: Jan 2015
Posts: 100
Total Cats: 7
Default

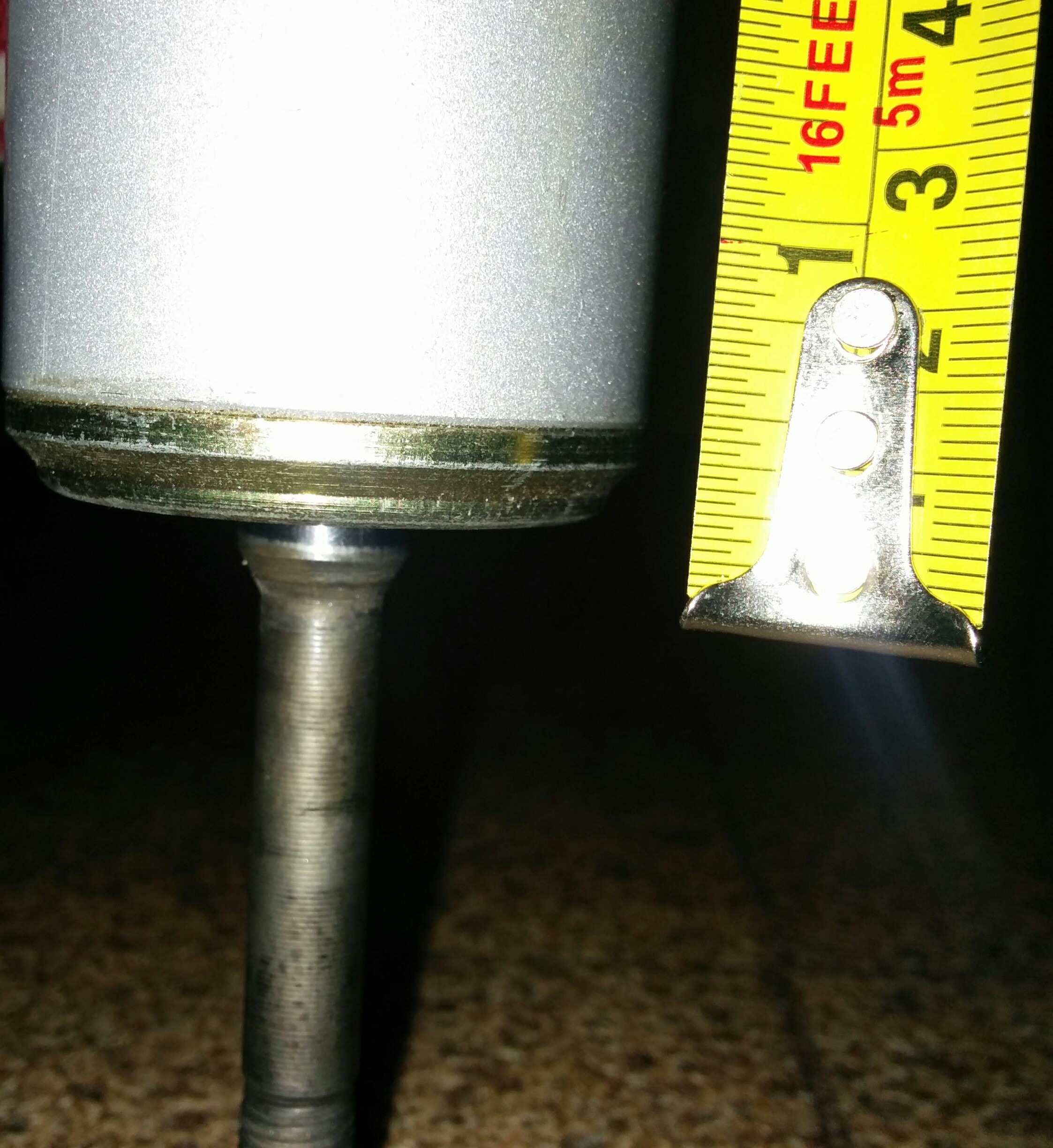

Not the best pic - surprisingly hard to keep it fully compressed and take a photo at the same time:


(that's a rear msm bilstein btw)
Attached Thumbnails
The Better Bilstein Ebay Coilover Thread-hgnqo0j.jpg
Junkwhale is offline   Reply With Quote
Old 05-25-2016, 09:31 AM   #758
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,755
Total Cats: 123
Default

Quote:
Originally Posted by Junkwhale View Post
Not the best pic - surprisingly hard to keep it fully compressed and take a photo at the same time:

(that's a rear msm bilstein btw)
Thanks for doing that. Looks just like what my Hard S did, mine must have gotten hung up somehow (I'll edit my post above). It looks like MSM and Hard S are identical as far as size, length, and compression depth.
pdexta is offline   Reply With Quote
Old 05-25-2016, 09:44 AM   #759
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,810
Total Cats: 265
Default

Quote:
Originally Posted by Fat Cat Motorsports
The OE NB shocks are a study in going from comfortable to firmer to very stiff (Showa to Hard S Bilstein to Mazdaspeed Bilstein). We have a video here explaining the differences. The latter two (Hard S and MSM Bilstein) may feel stiffer than the aftermarket NB HD or Sport but actually have less mid and high speed damping which is vital for control on larger bumps. Unfortunately, putting stiffer springs on any NB Bilstein can be a disappointing experience if you live in an area with broken pavement.

http://www.fatcatmotorsports.com/FAQ2.htm
FWIW.
Girz0r is offline   Reply With Quote
Old 05-25-2016, 07:37 PM   #760
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Speaking of lengths, can any of you who have these apart measure from the middle of the eyelet to the top of the snap ring?
Leafy is offline   Reply With Quote
