Suspension, Brakes, Drivetrain discuss the wondrous effects of boost and your miata...
Sponsored by:
Sponsored by:

The Better Bilstein Ebay Coilover Thread


Old 06-12-2019, 02:10 PM
  #1921
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,369
Total Cats: 1,649
Default

I have so many vintage parts on my car.
concealer404 is online now
Old 06-12-2019, 03:52 PM
  #1922
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 19,329
Total Cats: 2,434
Default

If you get the front end up to five and a quarter you won't need an extended top hat with a reasonable length bump stop and those spring rates. I've done it.
sixshooter is offline
Old 06-12-2019, 04:05 PM
  #1923
Junior Member

Join Date: May 2011
Location: Miami
Posts: 231
Total Cats: 19
Default

For whatever it is worth, I run a higher ride height than either Ben or Vteckkiller2000 and I still benefitted from having extended front top hats. While not "necessary" they did offer a benefit even at what I would think would be a medium ride height. I don't know pinch weld heights but I think I was at 12.4 front and 12.6 rear.
andym is offline
Old 06-12-2019, 05:28 PM
  #1924
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 6,132
Total Cats: 1,513
Default

Bottoming resistance is not one dimensional.

Spring rate
Spring rate linearity: one spring or helpers
Damping force
Nitrogen volume and pressure balance
Bump stop durometer
Bump stop length
Ride height
Vehicle weight
Added weight from intermittent loads: fuel, cargo, passenger
Mount geometry

So just referring to ride height is only part of the picture. A ride height that allows WRC style jumps on one Miata might bottom incessantly on another Miata at the same ride height.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 06-13-2019, 11:19 PM
  #1925
Newb

Join Date: Aug 2017
Location: Charlotte, NC
Posts: 13
Total Cats: 0
Default

Originally Posted by sixshooter View Post
That may make it ride a bit poorly, haha.

Either elevate the car to 5.25/5.5 and/or put the 1in spacers up front and some 1.5in spacers in the back.
Set ride height to 5.25/5.5 and wouldn't you know it, not being on the bumpstops full time makes it ride much better.

I still feel every crack on the road, but that's probably more to do with stiff 200TW tires that I'm not used to plus 20 year old bushings and an aluminum racing seat with minimal padding that transfers all the vibrations straight up my spine.
sublimeMX5 is offline
Old 06-14-2019, 04:52 PM
  #1926
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,828
Total Cats: 290
Default

Just got my billies on and about to setup my ride height. Do you guys usually weight the drivers seat with your approx weight when doing this? Seems like a good idea.
Fireindc is offline
Old 06-14-2019, 05:11 PM
  #1927
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,369
Total Cats: 1,649
Default

I don't bother unless i'm corner weighting. But i'm also a smolboi and i run a lot of spring. Sliding scale from there, as you get more into the "less spring, more boi" area, it might become more necessary.
concealer404 is online now
Old 06-14-2019, 07:32 PM
  #1928
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 6,132
Total Cats: 1,513
Default

Originally Posted by Fireindc View Post
Just got my billies on and about to setup my ride height. Do you guys usually weight the drivers seat with your approx weight when doing this? Seems like a good idea.
NA/NB sit a bunch lower in LR with driver in car with equal preload left to right. But that's technically no wedge so the car is still fairly neutral. Raise LR to make it look more even results n massive wedge. Meaning the handling is now messed up bad. Corner weighting can reduce that visual wedge and also eliminate the actual wedge entirely. Raising LR and also raising LF to keep cross weights near 50%. So it's higher on left side but handles better.

Our standard recommendation for those that do not have scales is to dial in the exact same preload distance across the axle and ignore the weird ride height even though it burns in your mind. Can't deal with that visual, get it corner weighted.. or buy scales.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 06-15-2019, 01:11 AM
  #1929
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,828
Total Cats: 290
Default

Originally Posted by emilio700 View Post
NA/NB sit a bunch lower in LR with driver in car with equal preload left to right. But that's technically no wedge so the car is still fairly neutral. Raise LR to make it look more even results n massive wedge. Meaning the handling is now messed up bad. Corner weighting can reduce that visual wedge and also eliminate the actual wedge entirely. Raising LR and also raising LF to keep cross weights near 50%. So it's higher on left side but handles better.

Our standard recommendation for those that do not have scales is to dial in the exact same preload distance across the axle and ignore the weird ride height even though it burns in your mind. Can't deal with that visual, get it corner weighted.. or buy scales.
This is extremely helpful, thanks Emilio!
Fireindc is offline
Old 06-16-2019, 11:02 PM
  #1930
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,828
Total Cats: 290
Default

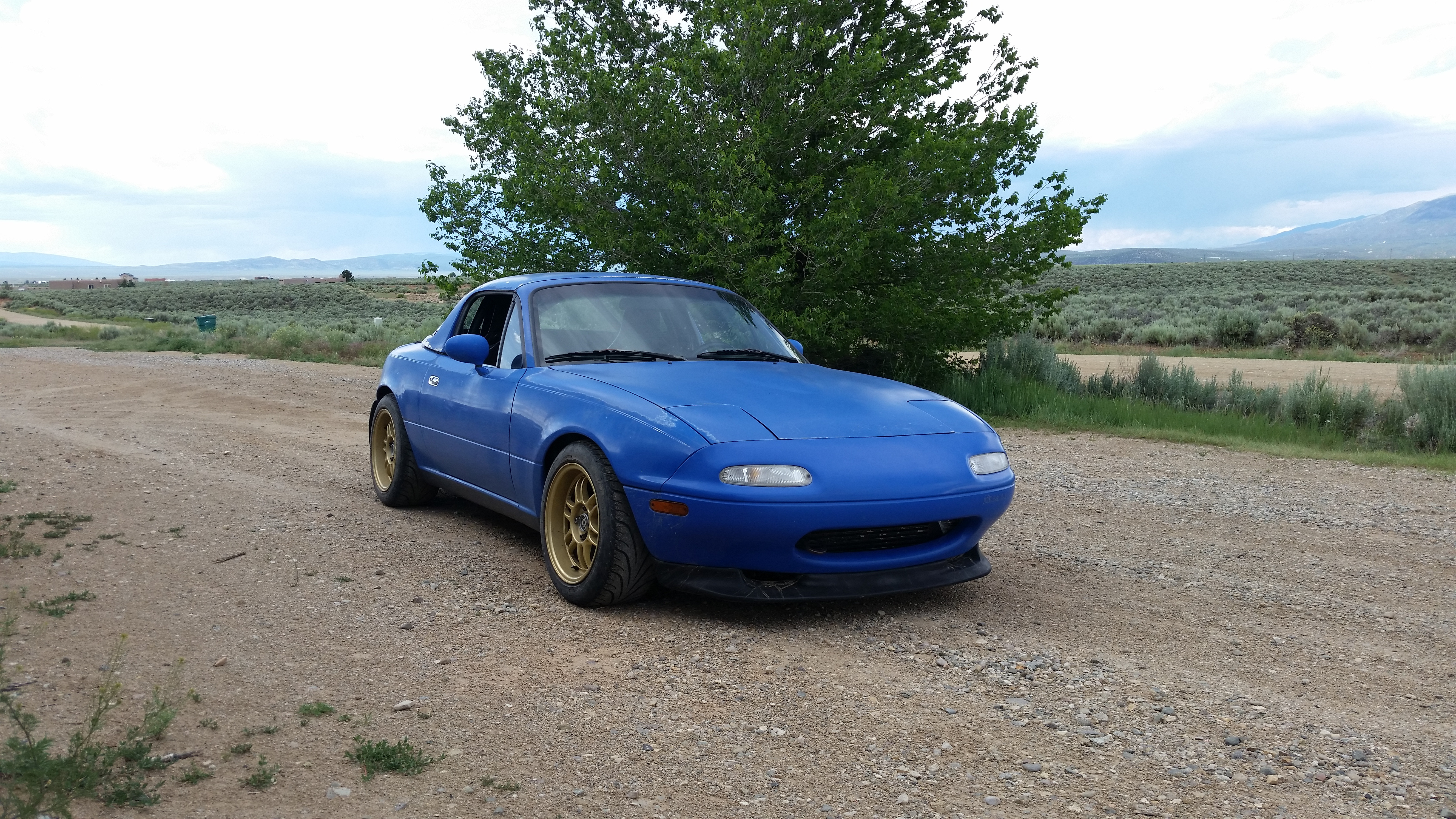

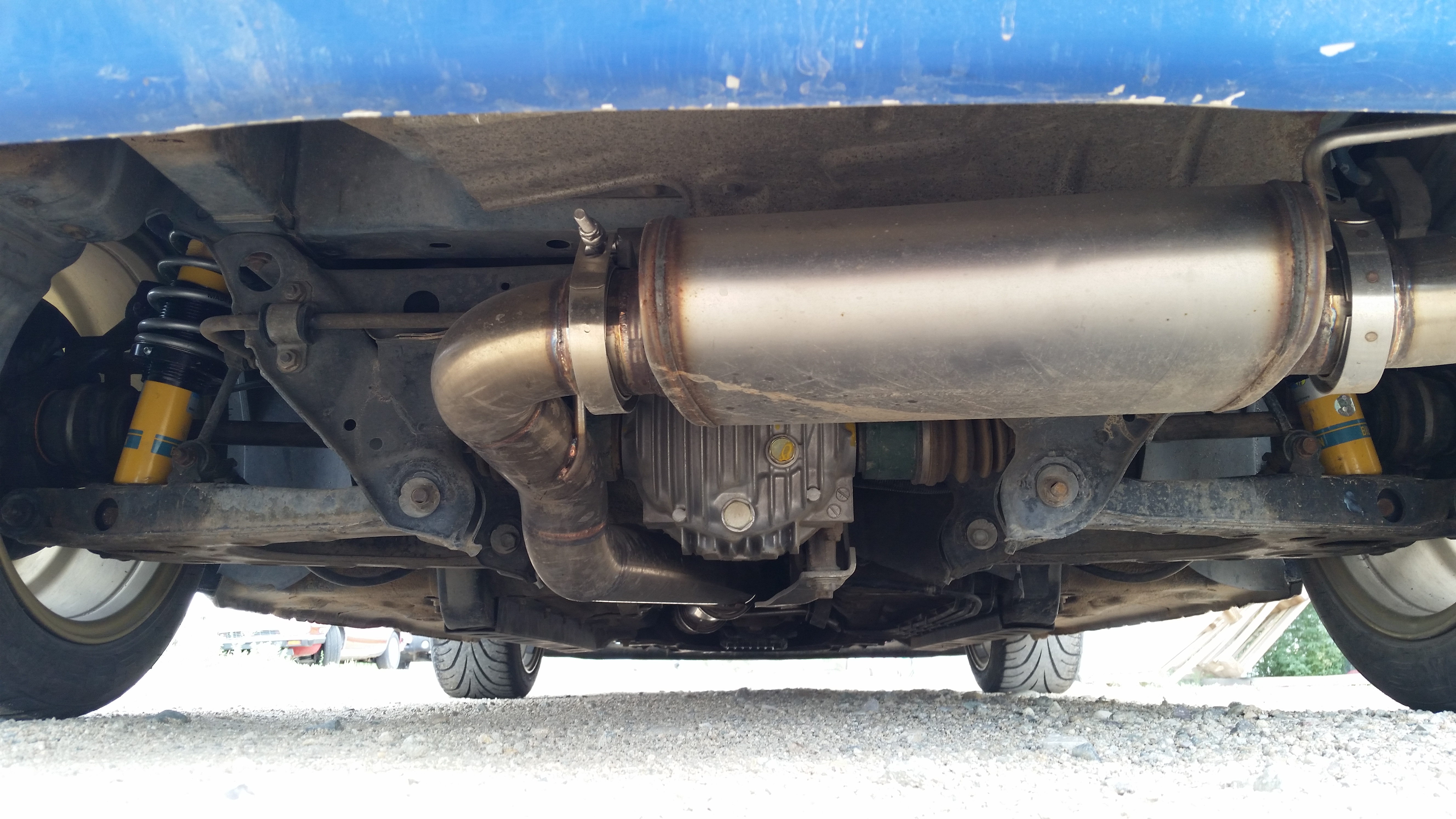

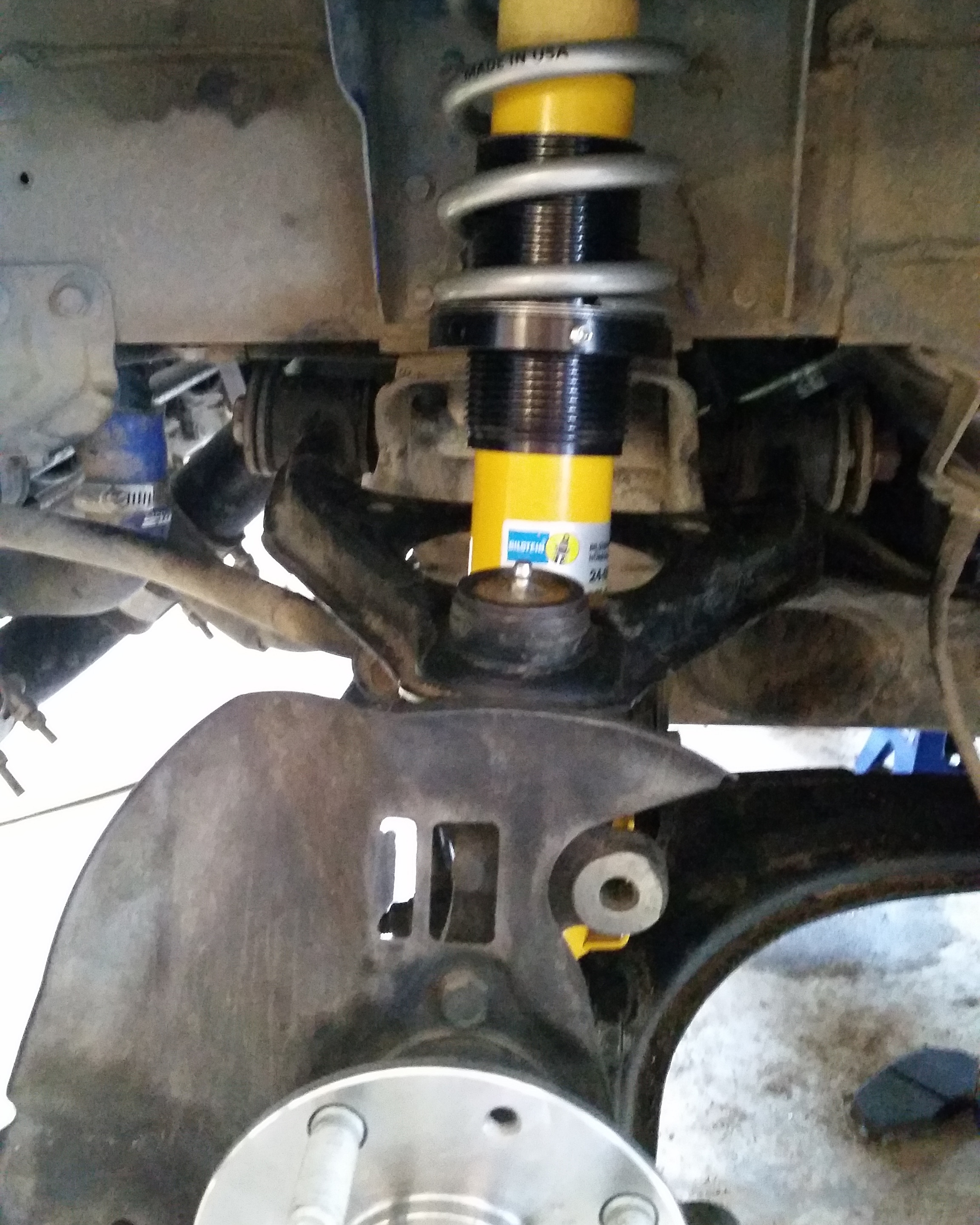

I got my bilsteins installed, first impressions are very good. Very smooth almost factory feeling ride but still plenty stiff when throwing the car around. So much better down the 1/2 mile dirt road I live on. Actually has travel over speedbumps and eats up potholes very well. Can't wait to get it aligned this week.





It's currently setup on at 5.25 front pinch weld height, the higher end of the spec for the 949 "supermiata" alignment (which will accompany this setup later this week).
Fireindc is offline
Old 06-21-2019, 08:13 PM
  #1931
Newb

Join Date: Feb 2019
Posts: 11
Total Cats: 0
Default

I have come to the conclusion that everyone was right about NA HD Bilsteins. I knew they would ride rough, but jeebus! I am worried about my car rattling apart. 450/300 springs FCM 36mm yellow bumps, ride height is 5.25f 5.5r pinch weld, nb top hats FCM bushing etc.
The handling is great, but damn I cringe when a bad street is ahead. Not sure I can handle it. I am not into them for much money, so that is fine. All used parts, I can resale.

There are some lightly used MSM shocks for sale local. If I switch to those and some twosix extended top hats will my ride quality be vastly improved?

Last edited by SeanBonham; 06-22-2019 at 10:07 AM.
SeanBonham is offline
Old 06-21-2019, 08:29 PM
  #1932
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,369
Total Cats: 1,649
Default

Yes.
concealer404 is online now
Old 06-21-2019, 10:26 PM
  #1933
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 19,329
Total Cats: 2,434
Default

Originally Posted by concealer404 View Post
Yes.
Yes
sixshooter is offline
Old 06-21-2019, 10:26 PM
  #1934
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 19,329
Total Cats: 2,434
Default

Originally Posted by concealer404 View Post
Yes.
Yes.
sixshooter is offline
Old 06-21-2019, 10:26 PM
  #1935
Moderator
iTrader: (12)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 19,329
Total Cats: 2,434
Default

Originally Posted by sixshooter View Post
Yes.
Yes
sixshooter is offline
Old 06-21-2019, 10:52 PM
  #1936
Junior Member

Join Date: Oct 2018
Location: Tampa FL
Posts: 175
Total Cats: 13
Default

Originally Posted by sixshooter View Post
Yes
Yes.
HowPrayGame is online now
Old 06-25-2019, 11:50 AM
  #1937
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,828
Total Cats: 290
Default

All I know is that I'm in love with my setup. See my posts above. I just followed the standard formula with NB bilsteins and extended tophats.
Fireindc is offline
Old 06-26-2019, 01:47 PM
  #1938
Newb

Join Date: Feb 2019
Posts: 11
Total Cats: 0
Default

Originally Posted by Fireindc View Post
All I know is that I'm in love with my setup. See my posts above. I just followed the standard formula with NB bilsteins and extended tophats.
What bushings did you use with your top hats? That's the only piece I need to figure out.
SeanBonham is offline
Old 06-26-2019, 05:57 PM
  #1939
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,828
Total Cats: 290
Default

Originally Posted by SeanBonham View Post
What bushings did you use with your top hats? That's the only piece I need to figure out.
I used the bushings that came with the ISC tophats on the bottom and OEM bushings on the top. Though you could just as well have used OEM top and bottom.

The bushings had a little 3/8" protrusion and I drilled out the tophats so that the bushing seated into them instead of sitting on top of them. This should keep things centered. Hope that makes sense/helps.
Fireindc is offline
