What is the spring rate of the tender spring for the racelands? If they are around 5# they are worthless if they are 100# then they are of value.
wannafbody is offline   Reply With Quote
Old 12-05-2010, 03:27 PM   #62
Junior Member
iTrader: (1)

Join Date: May 2010
Posts: 70
Total Cats: 0
Default

Quote:
Originally Posted by Thucydides View Post
I think what Bernie's saying here is that without shims or some other way of differentiating between low and high speed damping you're stuck with a single and mostly linear damping rate. Damping still occurs as the fluid moves past the ports/holes, but you can't set up a different damping rate (the slope of the graph) for low speed.

Those shims can be tuned to open and blow off pressure by the tuner. At low speeds they can be set to stay put, forcing the shock fluid through the bleed hole. When a large hit occurs (high speed event), the pressure spike forces the shims to deflect which opens additional ports. The damping curve now follows a different slope.

More or less bleed, and how it is combined with the control provided by the shim stack and piston ports, can sometimes mean shocks will have roughly similar plots but will arrive at those plots using different components.
I understand the basics of how shims work. But I'm curious what you aren't seeing on that graph vs. what happens in the "real world." Bernie mentioned changing the displacement on the dyno. Perhaps that has something to do with simulating different conditions.

Quote:
Originally Posted by wannafbody View Post
What is the spring rate of the tender spring for the racelands? If they are around 5# they are worthless if they are 100# then they are of value.
The rate is fine. The question is the diameter. Is it the same?
Disaster is offline   Reply With Quote
Old 12-05-2010, 03:32 PM   #63
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,313
Total Cats: 1,335
Default

Not to offend anyone, but it's pure comedy to read guys rationalizing how a $250 set of no-name Chinese steel twintubes inside a mock coilover's dyno "look like Xida's". If you look closely and understand what a FvS plot represents (reading between the lines so to speak), they are quite different. As Bernie has mentioned several times on the forum, dyno's don't tell the whole story anyway. There are a very few here that have driven on Raceland's and Xida's on the same track that would probably share the laugh.

They are no more alike that a Chevy Aveo is a like BMW M5 because they both have four wheels (look the same) and have the similar shape speed vs time acceleration curve. We're literally comparing something equivalent to $9.99 Pep Boys OEM replacement shock mechanism to AST/JRZ/Moton's. Naturally, after all the work I put into getting the Xida's made for you guys, I bristle and the ill-informed inferring that these $10 shocks are "similar".
emilio700 is offline   Reply With Quote
Old 12-05-2010, 03:46 PM   #64
Junior Member
iTrader: (1)

Join Date: May 2010
Posts: 70
Total Cats: 0
Default

Quote:
Originally Posted by emilio700 View Post
Not to offend anyone, but it's pure comedy to read guys rationalizing how a $250 set of no-name Chinese steel twintubes inside a mock coilover's dyno "look like Xida's". If you look closely and understand what a FvS plot represents (reading between the lines so to speak), they are quite different. As Bernie has mentioned several times on the forum, dyno's don't tell the whole story anyway. There are a very few here that have driven on Raceland's and Xida's on the same track that would probably share the laugh.

They are no more alike that a Chevy Aveo is a like BMW M5 because they both have four wheels (look the same) and have the similar shape speed vs time acceleration curve. We're literally comparing something equivalent to $9.99 Pep Boys OEM replacement shock mechanism to AST/JRZ/Moton's. Naturally, after all the work I put into getting the Xida's made for you guys, I bristle and the ill-informed inferring that these $10 shocks are "similar".
I apologize for making that particular comparison. I was not trying to say these were in the same stratosphere. It's nice to have guys like you developing products for the Miata community like the Xidas and 6UL's. I've already got a set of your wheels and am seriously considering the Xida Clubsports as my next upgrade.

I was just trying to understand one particular criticism regarding the curves being too linear by showing how your Xida's are quite linear after the transition as well.

It sounds like the devil is in the details...particularly around that transition area and at low speeds. Also, as is often mentioned, monotubes are a bit like big brakes in their ability to dissipate heat. I wonder the Raceland twintubes would be better or worse with the big external tube cover (would it act as an insulator or a heat sink?)
Disaster is offline   Reply With Quote
Old 12-05-2010, 03:57 PM   #65
I'm Miserable!

Join Date: Mar 2010
Posts: 112
Total Cats: 0
Default

It's like stuffing socks in your pants and going to the club. In the end, everyone is disappointed.

Quote:
Originally Posted by wannafbody View Post
So is Bernie gonna throw some Penske shocks inside the Raceland shell and create the ultimate sleeper shock?
Bernie S. is offline   Reply With Quote
Old 12-05-2010, 04:41 PM   #66
Junior Member

Join Date: Jan 2010
Location: Nashville, TN
Posts: 117
Total Cats: 1
Default

Quote:
Originally Posted by Thucydides View Post
Any luck finding an upgraded insert?
I'd need the dimensions of the raceland inserts. Knowing my luck upgraded inserts don't exist for whatever the size is.

Quote:
Originally Posted by Bernie S. View Post
The idea of putting a monotube inside of a tube and then mounting that instead of just mounting the original monotube would only be for when you need to "hide" a shock (cheater).
I'm thinking more along the lines of using the raceland housings instead of something like a ground control sleeve.
mcarp22 is offline   Reply With Quote
Old 12-05-2010, 04:53 PM   #67
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

Quote:
Originally Posted by mcarp22 View Post
I'd need the dimensions of the raceland inserts. Knowing my luck upgraded inserts don't exist for whatever the size is.



I'm thinking more along the lines of using the raceland housings instead of something like a ground control sleeve.
It's pointless. You'd probably have a shock rattling around in a tin can. With proper sized sleeves the fit is snug. If you want cheap, Get OBX coilovers from Ebay and pair them with decent shocks.
wannafbody is offline   Reply With Quote
Old 12-05-2010, 07:46 PM   #68
Junior Member

Join Date: Jan 2010
Location: Nashville, TN
Posts: 117
Total Cats: 1
Default

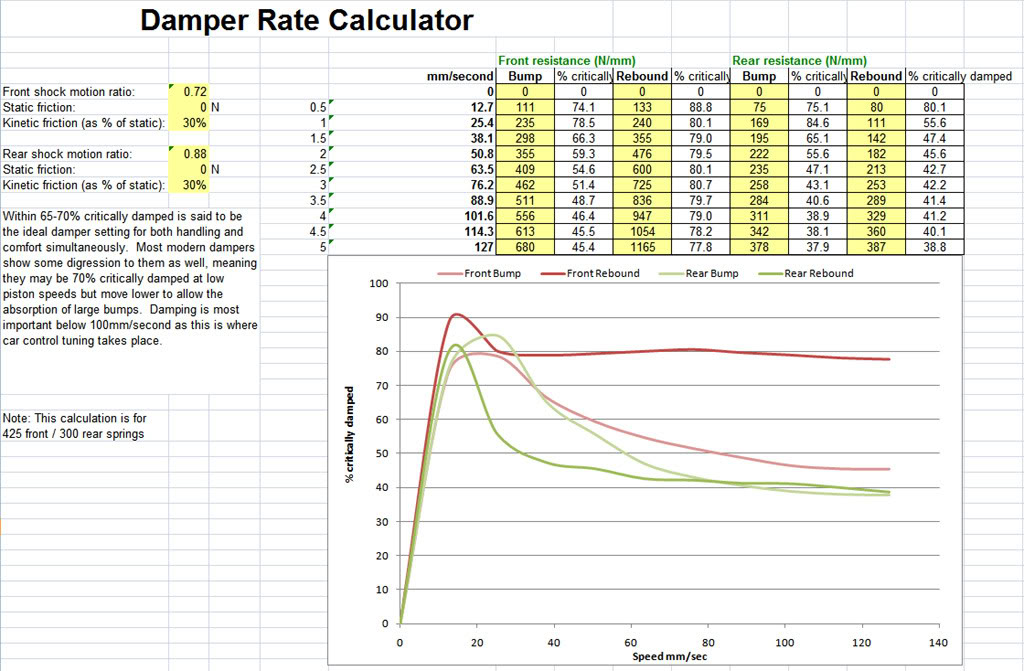

Here's what I've found:

Name:  racelanddampercalc.jpg
Views: 30
Size:  141.3 KB
mcarp22 is offline   Reply With Quote
Old 12-05-2010, 07:49 PM   #69
Junior Member
iTrader: (1)

Join Date: May 2010
Posts: 70
Total Cats: 0
Default

Quote:
Originally Posted by mcarp22 View Post
Here's what I've found:
What shocks are these? I notice they share the same low rebound for the rears as the Racelands.
Disaster is offline   Reply With Quote
Old 12-05-2010, 08:00 PM   #70
Junior Member

Join Date: Jan 2010
Location: Nashville, TN
Posts: 117
Total Cats: 1
Default

Quote:
Originally Posted by Disaster View Post
What shocks are these? I notice they share the same low rebound for the rears as the Racelands.


They're the racelands from this thread.
mcarp22 is offline   Reply With Quote
Old 12-05-2010, 08:23 PM   #71
Junior Member
Thread Starter

Join Date: Jun 2008
Location: Fairfield, California
Posts: 418
Total Cats: 0
Default

Mike, that's an interesting worksheet. Is is public domain or something you purchased?
Thucydides is offline   Reply With Quote
Old 12-05-2010, 08:40 PM   #72
Junior Member

Join Date: Jan 2010
Location: Nashville, TN
Posts: 117
Total Cats: 1
Default

Quote:
Originally Posted by Thucydides View Post
Mike, that's an interesting worksheet. Is is public domain or something you purchased?
http://forums.nasioc.com/forums/show....php?t=1292451
mcarp22 is offline   Reply With Quote
Old 12-05-2010, 08:46 PM   #73
Junior Member
iTrader: (1)

Join Date: May 2010
Posts: 70
Total Cats: 0
Default

Quote:
Originally Posted by mcarp22 View Post

They're the racelands from this thread.
You guestimated points from the Raceland shock dyno and then stuck them into a Subaru STI "damper rate calculator." Explain to me what your thought process was? Did you update it with Miata wheel rates and the like? This chart doesn't seem to differentiate between compression and rebound damping. Is it suggesting compression and rebound should both be 70% critically damped?

I'd be careful about reading the low end points off Bernie's dyno run. He suggested he might need to do something to highlight that area better which suggest resolution might be an issue.
Disaster is offline   Reply With Quote
Old 12-05-2010, 08:59 PM   #74
90R
Junior Member
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

90R is offline   Reply With Quote
Old 12-05-2010, 09:00 PM   #75
Junior Member

Join Date: Jan 2010
Location: Nashville, TN
Posts: 117
Total Cats: 1
Default

Quote:
Originally Posted by Disaster View Post
Explain to me what your thought process was?
I wanted to express the shock dyno in terms of critical damping % relative to my car and springrates.

Quote:
Originally Posted by Disaster View Post
Did you update it with Miata wheel rates and the like?
Yes, all of the items were updated to reflect my Miata. *sigh* Give me a little credit here.

Quote:
Originally Posted by Disaster View Post
This chart doesn't seem to differentiate between compression and rebound damping. Is it suggesting compression and rebound should both be 70% critically damped?
I think that is just a guideline/suggesion, it is up to the end-user to interpret the chart properly. Perhaps someone with a bit better knowledge of shock forces could explain how bump / rebound should relate when configured properly.
mcarp22 is offline   Reply With Quote
Old 12-05-2010, 11:22 PM   #76
I'm Miserable!

Join Date: Mar 2010
Posts: 112
Total Cats: 0
Default

The full data files for the shocks are below. This contains all four shocks dynoed at both 5ips and 10ips.

Please read my previous post on how to view the files in the Roehrig program.

RaceLand.zip
Bernie S. is offline   Reply With Quote
Old 12-05-2010, 11:25 PM   #77
90R
Junior Member
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

bernie,
do you have measurements of the insert bodies? were the inserts dry fit or oil bath?
90R is offline   Reply With Quote
Old 12-05-2010, 11:39 PM   #78
I'm Miserable!

Join Date: Mar 2010
Posts: 112
Total Cats: 0
Default

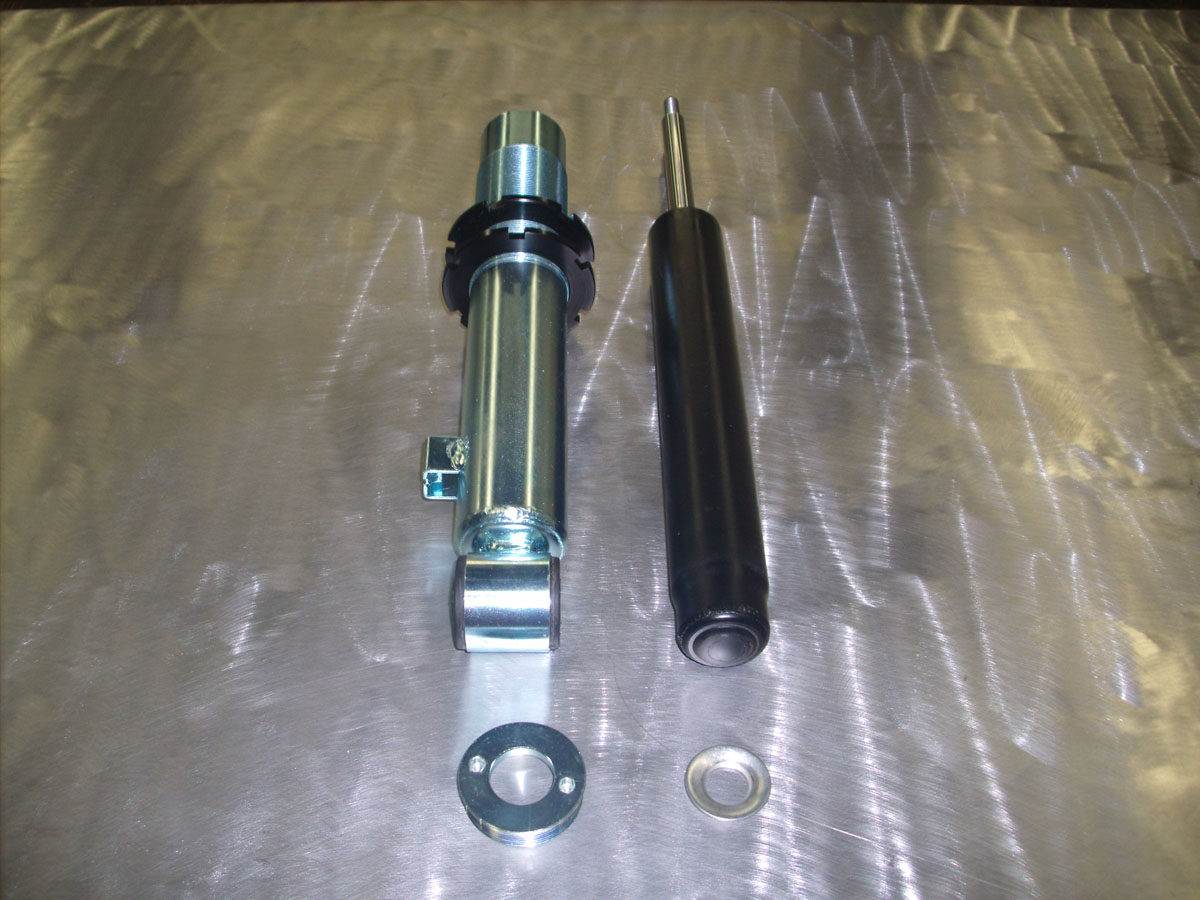

Here is a picture of a front apart. I can have the measurements tomorrow, I am already home from the office tonight.

Quote:
Originally Posted by 90R View Post
bernie,
do you have measurements of the insert bodies? were the inserts dry fit or oil bath?
Raceland Dyno Test Results-gedc0001.jpg
Bernie S. is offline   Reply With Quote
Old 12-05-2010, 11:44 PM   #79
90R
Junior Member
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

that would be great, thanks
90R is offline   Reply With Quote
Old 12-06-2010, 12:42 AM   #80
Junior Member
Thread Starter

Join Date: Jun 2008
Location: Fairfield, California
Posts: 418
Total Cats: 0
Default

Quote:
Originally Posted by mcarp22 View Post
Thanks, Mike.

Jim
Thucydides is offline   Reply With Quote
