Old 10-20-2015, 09:59 PM   #81
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,838
Total Cats: 1,255
Default

I thought bob broke all of his under power in 4th gear. Isn't he 350ish ft/lbs?
aidandj is offline   Reply With Quote
Old 10-20-2015, 10:15 PM   #82
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 429
Total Cats: 11
Default

Yeh he brakes 4th most of the time but think it is a result of hammering the trans auto crossing with 275 hoosiers and yes he doesn't get into 4th, but it is flexing the case and weakening things. His tq. is around 310 ish if I remember right, his hp is 380 something but he dials it back to 330 ish.
jmann is offline   Reply With Quote
Old 10-20-2015, 10:16 PM   #83
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,838
Total Cats: 1,255
Default

Has his quafie fixed things? Other than the broken 5th?
aidandj is offline   Reply With Quote
Old 10-20-2015, 11:06 PM   #84
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 429
Total Cats: 11
Default

I don't see Bob like I used to when I lived in Anacortes a few mins. away since moving to Grants Pass. But he kept the Q 5spd in the car to finish the autocross season with the toasted 5th gear, so he didn't do any track days this year. I haven't talked to him lately so I don't know what his thoughts are for the future.
jmann is offline   Reply With Quote
Old 10-20-2015, 11:13 PM   #85
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,386
Total Cats: 182
Default

Quote:
Originally Posted by jmann View Post
Bob's problem is more then just hp issues. I have nearly the sane hp and have had no issues with my six and do numerous track days each year. I have helped Bob replace a few of his trans in years past. I think running 275 hoosiers and mainly hard on and off the power doing mainly autocrossing has more to do with his trans issues then just shear hp or tq..
What flywheel type/weight and clutch do you run?
patsmx5 is offline   Reply With Quote
Old 10-20-2015, 11:52 PM   #86
Junior Member

Join Date: May 2008
Location: Grants Pass, OR.
Posts: 429
Total Cats: 11
Default

I run a Act 9# pro lite steel flywheel with a 6 pad disc and a stage 1 pressure plate.
jmann is offline   Reply With Quote
Old 10-21-2015, 01:42 AM   #87
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 605
Total Cats: 16
Default

Quote:
Originally Posted by SchmoozerJoe View Post
I'd go through stock T5s in my 250hp/225tq '89 fox body on a regular basis... and that was before the nitrous.

Usually it'd be third gear that decided to grenade on me.

And, I wasn't even "that" hard on the drag strip launches... 2.0 sixty foots on street tires.
Thanks Joe, do you think those were the non world class? If you look at the history of the T5, they did seem to get progressively better. The people I've been talking to seem to be painting a different picture. A case of your mileage may vary. As this goes forward it will be interesting to see where stock vs built goes.
I have an extra bell housing, ready to be cut down and am looking for a v-6 T5 to start piecing this together. I'm hoping the pilot bearing will be off the shelf, if anyone knows chime in.

Tim, if you extend that piece through the freeze plug/cap you could put the shifter in the right place. Top plate would have to be extended too and a rubber plug with a hole in it for the extended piece to fit through. There is also a dimensional chart that shows which trans is the longest.

Post links of anything interesting you come across. Here's one that talks about the history of the T5
T5 History in Ford Mustangs with specifications for World class and non-World class T5's Modern Driveline
2manyhobyz is offline   Reply With Quote
Old 10-21-2015, 03:49 AM   #88
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 589
Total Cats: 28
Default

They were definitely the non World Class... I remember when those hit the scene. Right about the same time the Tremecs did.

Speaking of which, wasn't/isn't there a bolt in Tremec replacement for the T5?

Not the T-56 but something that pre-dated it?

Then there was also a T5-R iirc? Totally going from memory here...
SchmoozerJoe is offline   Reply With Quote
Old 10-21-2015, 08:41 AM   #89
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,667
Total Cats: 210
Default

Would this same adapter work with a TKO-500? or would it be too big for the tunnel?
Full_Tilt_Boogie is offline   Reply With Quote
Old 10-21-2015, 09:05 AM   #90
Supporting Vendor
Thread Starter

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 15
Default

The T5 I've used was made by Tremec. Not sure, but I think all new ones are Tremec's.

The Tremec T5 is seven pounds lighter than the stock 5 speed.

Stifter adapter goes straight aft out the freeze plug hole. It is all as stiff as the T5 stock stuff.

The pilot bearing needs an ID of 17 mm, other dims, of course, remain the same as stock.

corky
Corky Bell is offline   Reply With Quote
Old 10-21-2015, 11:55 AM   #91
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,838
Total Cats: 1,255
Default

Do you still plan on making a cast aluminum piece?
aidandj is offline   Reply With Quote
Old 10-21-2015, 05:28 PM   #92
Senior Member

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 522
Total Cats: 21
Default

I still haven't heard anything in regards to price or timeframe. How much development is left before there is a running prototype? How much longer until there is something for sale?

This sounds like it could be an awesome alternative to a 6 speed + 3.6 swap the next time my 5 speed dies (the r+p gears add like 600 bucks to the cost and 6sp + 4.1 rear is horribly short). A nearly indestructible gearbox with ratios almost the same as the stock five speed sounds pretty good. Oh yeah and it's a bunch lighter than the stock tranny. Even the long overdrive gear wouldn't really be that horrible, but it sounds like they are commonly available with .75 overdrives, so .

edit- I'm an idiot, corky said on page 3:
Quote:
A new TOB sleeve, driveshaft and rear trans mount have yet to be made. I hope to get it all done in 6 to 8 weeks. And the PPF attachment, of course.

Any part, or all parts. Your choice.

Last edited by AlwaysBroken; 10-21-2015 at 05:41 PM.
AlwaysBroken is offline   Reply With Quote
Old 10-21-2015, 05:31 PM   #93
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,838
Total Cats: 1,255
Default

He said no price yet. This project started in 2011 so don't hold your breath on a timeline
aidandj is offline   Reply With Quote
Old 10-21-2015, 06:16 PM   #94
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,401
Total Cats: 2,249
Default

2069
18psi is offline   Reply With Quote
Old 10-22-2015, 12:20 PM   #95
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,338
Total Cats: 229
Default

Quote:
Originally Posted by 2manyhobyz View Post

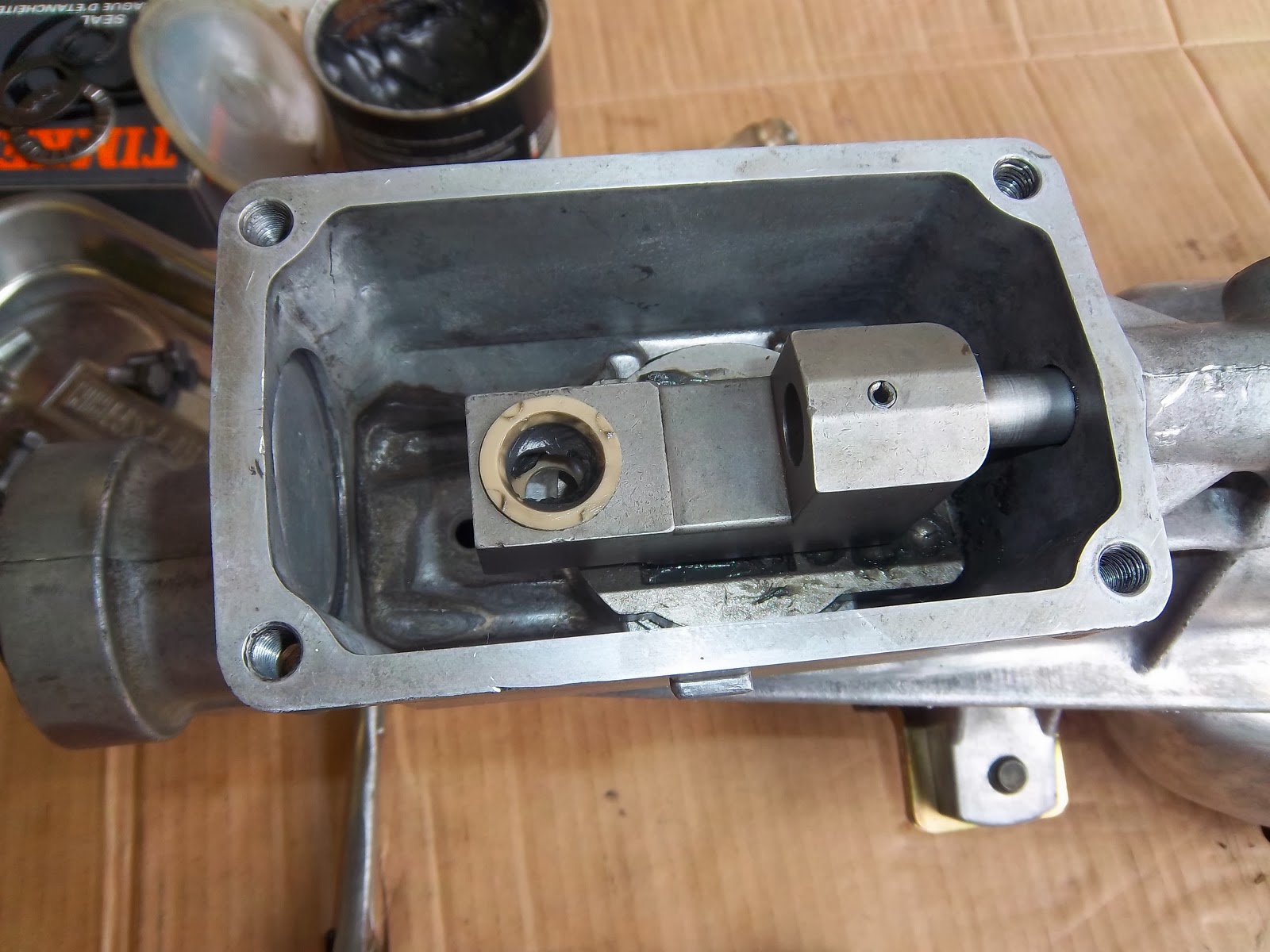

Tim, if you extend that piece through the freeze plug/cap you could put the shifter in the right place. Top plate would have to be extended too and a rubber plug with a hole in it for the extended piece to fit through. There is also a dimensional chart that shows which trans is the longest.
How does one extend 'that piece' is my question. The only thing I could think of would require too much disassembly but I could be missing something obvious. Or maybe the target audience wouldn't mind getting into the trans innards since they may be doing it anyway if rebuilding a junkyard trans. I'd want(ed) something I could bolt onto a pretty new T5z.

And the rubber plug needs to seal the extended shift rod while allowing the rod to move fore/aft and rotate.

My guess: Corky's solution is on the ghetto side of clever. If he machines an extended shift rod that bolts/clamps the stock shift detent gizmo, it'll have to also be sturdy enough to hold the shaft in place concentric with the above fancy seal.

Attached Thumbnails
A tranny option-100_5936.jpg
TurboTim is offline   Reply With Quote
Old 10-23-2015, 09:11 AM   #96
Supporting Vendor
Thread Starter

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 15
Default

Tim,
From the picture, knock out the freeze plug and that is the extent of disassembly. The add on stuff requires 10 minutes to complete. Simple, stout, and easy. Sorry, not cheap.

Negative on the casting. I made one and did not like the result. The patterns were hugely difficult (for me), it was heavy, expensive, and a bitch to machine.

After deciding a sloppy driveshaft was the worst load the bell housing could get and the resulting stress analysis, I remain convinced a welded aluminum assy will work/live just fine. Welds are certainly not T6 strength, nor is the surrounding material within about a quarter of an inch. The deteriorated strength does not drop to condition 0, rather to about twice that. Material thickness and adequate filler rod will take care of the strength needs quite well. The margins remain high.

I have broken five drive shafts thus far. Four on race tracks. None failed in torsion.
The accompanying violence is more fun than one should normally have. Also suggests it's a good idea to figure out how they work, which I think I did, plus take the needed precautions to avoid. Although a long time ago, the respect for the huge loads involved remains relatively clear.

Steel housings are needed for sanctioned drag racing. Aluminum is good everywhere else. Welding aluminum is more fun anyway.

Schedule and cost... Give me about two weeks and I should have some decent info.

While this stuff is clearly fun, I sure don't want to be working on it another 54 years.

corky
Corky Bell is offline   Reply With Quote
Old 10-23-2015, 10:34 AM   #97
Senior Member

Join Date: Jun 2015
Location: TAMPA, FL
Posts: 522
Total Cats: 21
Default

nevermind

Last edited by AlwaysBroken; 10-23-2015 at 11:35 AM. Reason: apparently I'm an asshole for asking obvious questions
AlwaysBroken is offline   Reply With Quote
Old 10-23-2015, 10:44 AM   #98
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,838
Total Cats: 1,255
Default

Quote:
Originally Posted by AlwaysBroken View Post
Two questions:

1) Rough ballpark- is this going to be more or less expensive than the current best option of 6 speed + 3.6 rear (roughly 1200 bucks)? Not having to swap the R&P will save about 600 dollars. Do you anticipate junkyard T5s to be a decent option?

2) Rough ballpark again- if it's going to be more expensive than 6sp+3.6rnp, by how much? 2x? 3x? 4x?
Dude seriously? You have asked like 5 ******* times. He could make some number up right now but what happens when its completely wrong? You talk **** about it.

Just wait for a damn answer
aidandj is offline   Reply With Quote
Old 10-23-2015, 11:03 AM   #99
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,057
Total Cats: 908
Default

Quote:
Originally Posted by AlwaysBroken View Post
Two questions:

1) Rough ballpark- is this going to be more or less expensive than the current best option of 6 speed + 3.6 rear (roughly 1200 bucks)? Not having to swap the R&P will save about 600 dollars. Do you anticipate junkyard T5s to be a decent option?

2) Rough ballpark again- if it's going to be more expensive than 6sp+3.6rnp, by how much? 2x? 3x? 4x?
At the end of the day I would guess the total cost of the swap to be between $2000-$4500. These numbers come completely out of my ***, but they are numbers for you.

Honestly if there was a $1200 solution, we would have already figured it out. Every alternative trans idea I have seen over the past 10 years has always ended up in the price range I quoted above, if not much more.
shuiend is online now   Reply With Quote
Old 10-23-2015, 12:00 PM   #100
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,634
Total Cats: 440
Default

T5s pop up on craigslist all the time. I'm in a shitty car buying area and there are 7 available locally. The average asking price is $500.
That would be the beauty of this option, but you would have to be very careful of which version you're getting.
That being said, what does the hivemind say the most desirable T5 would be?
Everything I have experienced or read says that 90 and up world class T5s are the strongest.
I'm unsure whether some packages received stronger stuffs or not.
Monk is offline   Reply With Quote
