Old 01-12-2016, 04:10 PM   #141
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,740
Total Cats: 463
Default

Yep lots. Picked this one up for $200 with flywheel and clutch.
The V6 T5s are not as strong; even the later ones. According to this, I was a few years off on the strongest options.
How to ID a T5
In short, 90-95 are the strongest, but 94-95 has a longer input shaft.
In a mustang application, for 94-98 they continued to use the same VSS sending unit and various internal speedometer gears as before, but the hole for the speedometer cable is plugged. Although it is still mechanically driven, the speedometer only receives an electronic signal. Conceivably, the hole could be unplugged on a 94-95 to use a cable. I'll find out soon enough.
Also, the camaro T5s are mechanical and put the shifter location in roughly the same spot as the mustangs.
Monk is offline   Reply With Quote
Old 01-12-2016, 04:12 PM   #142
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

But doesnt the v6 trans not have the shitty .64 overdrive?

How much weaker?
aidandj is offline   Reply With Quote
Old 01-12-2016, 04:16 PM   #143
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,740
Total Cats: 463
Default

About 35 lb ft worth.
Attached Thumbnails

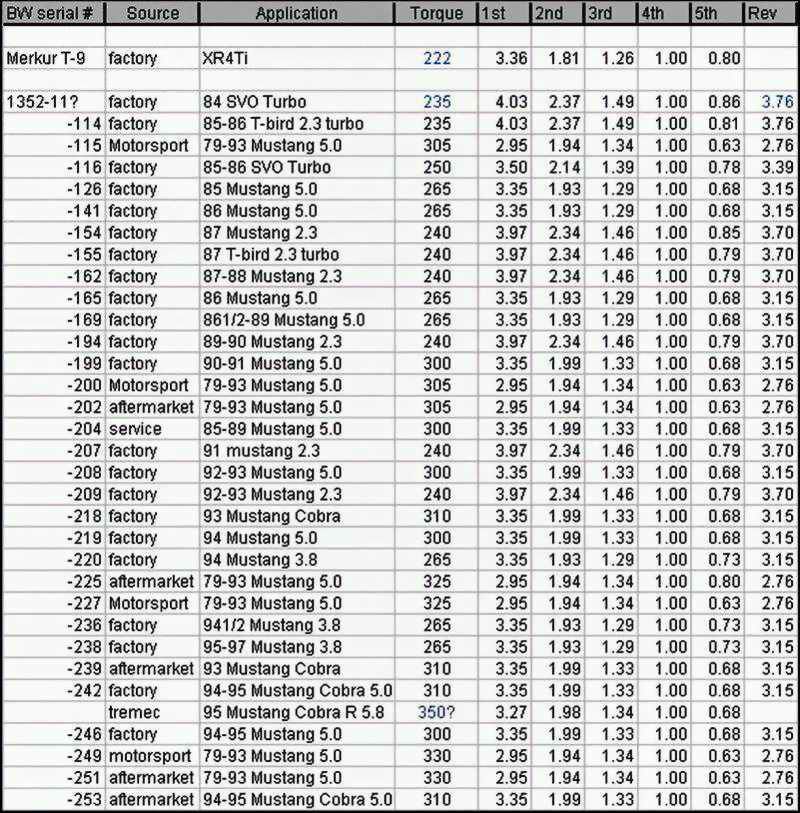

A tranny option-80-t_5specsheet_4d12a73d4ec6f04cb1d66c3b4d38d7ea18caa852.jpg
Monk is offline   Reply With Quote
Old 01-12-2016, 04:18 PM   #144
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

Yes yes. I read your link. See your texts.

Now I have a dilema. TurboTim says he hates the .64 overdrive.

But i like the extra 65ft/lb capability.
aidandj is offline   Reply With Quote
Old 01-12-2016, 04:20 PM   #145
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,457
Total Cats: 244
Default

.63 is an enormous drop from 1.0 4th. I have destroyed my 5th synchro after 4000 miles??? something like that. I now have to...wait....unnaturally long for the rpms to drop before shifting. May not be an issue with miata flywheels though.

It is nice cruising on the highway, until you want the squirt-thru-traffic-without-shifting torque you're used to with the miata's .8 5th.

I'm going to go with one of the ~$300 .8x 5ths at some point.
TurboTim is offline   Reply With Quote
Old 01-12-2016, 04:21 PM   #146
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

drop should be fine with a twin disc flywheel. much lightness.
aidandj is offline   Reply With Quote
Old 01-12-2016, 07:48 PM   #147
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

The camaro is supposed to be further back than the mustang.
Leafy is offline   Reply With Quote
Old 01-12-2016, 07:49 PM   #148
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,210
Total Cats: 1,231
Default

My '97 -238 box has a .73 5th. The 35ft.lb difference is negligible, because if you're going to break the 265ft.lb version, the 300ft.lb version won't be long for the world anyway. I fully expect to build mine at some point, probably with the tight-ratio G-Force gearset.
Savington is online now   Reply With Quote
Old 01-12-2016, 07:50 PM   #149
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default



Its a 65ft/lb difference if you get the 90-93 v8 box.I'm retarded and can't read. Idk if I'm shooting for 380ish ft/lbs I might have a chance of that holding in a light car.

At least longer than the axles do.

And if I need to build it then I get to pick my own ratios anyways.
Attached Thumbnails

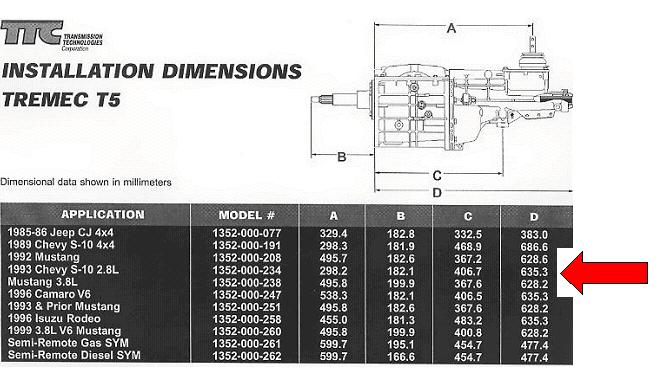

A tranny option-eu7lazl.png

Last edited by aidandj; 01-12-2016 at 08:03 PM.
aidandj is offline   Reply With Quote
Old 01-12-2016, 07:53 PM   #150
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

nearly 2 inches longer than the mustang with the camaro tail housing based on that graphic.
Leafy is offline   Reply With Quote
Old 01-12-2016, 07:58 PM   #151
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

Miata is 32" front input shaft to shifter.

93 and prior is 26.65
Camaro is 28.34"

Still pretty far away.

My plan is to copy this shifter extension:

Another t45 Tbird in progress... - Page 2 - TCCoA Forums

Looking at it I actually want some room behind the freeze plug, if its only 4 inches forward my shifter linkage will be tight.

So I think the 6" forward is perfect for adapting this kind of shifter extension.

aidandj is offline   Reply With Quote
Old 01-12-2016, 08:08 PM   #152
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

I wonder how bad a longer version of the rear offset shift shift style shifter would actually feel. They already offset the stock 5.0 shifter back like 2 inches. Just the bigger the offset the more the shift plane tilts backwards, IE the more up and down movement that is involved when going forwards and backwards with the shifter.
Leafy is offline   Reply With Quote
Old 01-12-2016, 08:09 PM   #153
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

Make one for the miata and test it out.
aidandj is offline   Reply With Quote
Old 01-12-2016, 08:42 PM   #154
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Yeah I tried to sketch it out but I've just got to make it to see. At least its super duper easy to make a new shifter rod for the t5 since it bolts on.
Leafy is offline   Reply With Quote
Old 01-12-2016, 08:45 PM   #155
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

Quote:
Originally Posted by Leafy View Post
Yeah I tried to sketch it out but I've just got to make it to see. At least its super duper easy to make a new shifter rod for the t5 since it bolts on.
Just cut and weld a Miata one. Do you have a running Miata?
aidandj is offline   Reply With Quote
Old 01-12-2016, 08:46 PM   #156
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

I have 2, but only spare shifters are miata roadster.
Leafy is offline   Reply With Quote
Old 01-12-2016, 08:48 PM   #157
I'm Miserable!
iTrader: (5)

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,925
Total Cats: 1,437
Default

Quote:
Originally Posted by Leafy View Post
I have 2, but only spare shifters are miata roadster.
Hmm. Maybe I'll try.

I really like the look of that extension i posted though.
aidandj is offline   Reply With Quote
Old 01-12-2016, 08:57 PM   #158
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Yeah but the long lever arm really only requires welding and some drilling and cutting of steel bar.
Leafy is offline   Reply With Quote
Old 01-12-2016, 08:58 PM   #159
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,210
Total Cats: 1,231
Default

Also requires cutting the car, which isn't OK with a lot of people.
Savington is online now   Reply With Quote
Old 01-12-2016, 08:59 PM   #160
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Does it? You've got a few inches at the top of the tunnel to play with.
Leafy is offline   Reply With Quote
