Old 01-12-2016, 09:14 PM   #161
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,634
Total Cats: 440
Default

Nice find aidan. I thought that might be the case, but I couldn't find the dimensions.
Those railroading are easy to find, and much cheaper than the s10 version.
Monk is offline   Reply With Quote
Old 01-12-2016, 09:20 PM   #162
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,904
Total Cats: 1,075
Default

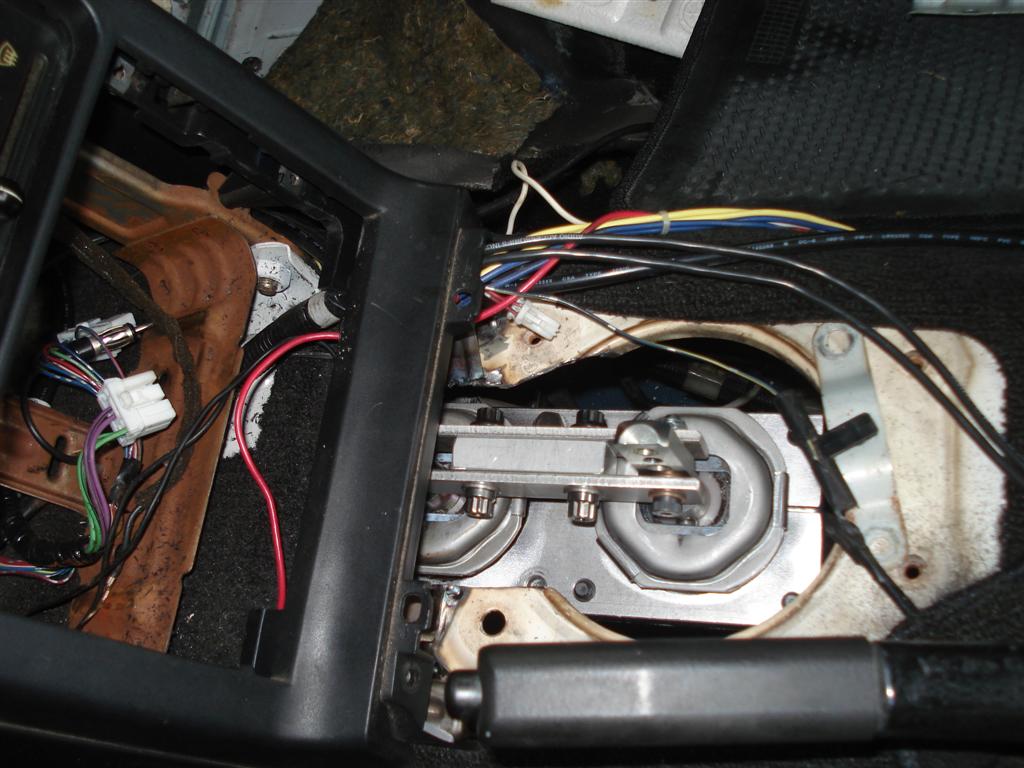

Quote:
Originally Posted by Leafy View Post
Does it? You've got a few inches at the top of the tunnel to play with.
It does.

Attached Thumbnails
A tranny option-shifter3.jpg
Savington is online now   Reply With Quote
Old 01-12-2016, 09:25 PM   #163
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,866
Total Cats: 1,260
Default

For sav's purposes cutting the car might not work, but for me and leafy cutting it is fine.

Check out that link Sav. Use the freeze bplug to extend the shifter, then machine a bushing to accept an oil seal that presses into the freeze plug location.

Extend the shift rod and bam.
aidandj is offline   Reply With Quote
Old 01-12-2016, 09:26 PM   #164
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,866
Total Cats: 1,260
Default

Quote:
Originally Posted by Savington View Post
It does.

Is that picture the standard Ford location?

2inches back might work with serious cutting, which I don't want to do. This is still a street car.
aidandj is offline   Reply With Quote
Old 01-12-2016, 09:27 PM   #165
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,921
Total Cats: 93
Default

Thats more cutting that I can stomach too. 1" 1lb. Back to the freeze plug solution. Man if you could get away from having to make the bushing and just use a rubber grommet that would be easier.
Leafy is offline   Reply With Quote
Old 01-12-2016, 11:40 PM   #166
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 47
Default

My apologies for not reading far enough back to see if these are answered:

Post OD of freeze plug and shift rod, I have a shaft seal that might work if the dimensions are good. At the very least the rod extension could be tailored to work with the seal. How much longer are you thinking on the rod? A few inches? Or a foot?
matthewdesigns is offline   Reply With Quote
Old 01-12-2016, 11:55 PM   #167
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,866
Total Cats: 1,260
Default

Any shaft seal can work with a bushing cut to the size of the freeze plug.

Extension would be 6".

I can't get any more details on the extended coupling without a box in my hands. Which I'm working on.
aidandj is offline   Reply With Quote
Old 01-13-2016, 03:20 AM   #168
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,752
Total Cats: 18
Default

Sub'd

Ran a lot of N20 and boosted Mustang Foxbodys back in the day 400-500 whp and only broke 3rd on the street a few times. Drag strip was another story. I bet with the 1000lbs less these T5's would be very durable in our cars. And the T5 is buttery smooth, really missed that when upgraded my Stang to a TKO.
IcantDo55 is offline   Reply With Quote
Old 01-13-2016, 08:56 AM   #169
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,340
Total Cats: 229
Default

Quote:
Originally Posted by aidandj View Post
Is that picture the standard Ford location?
it's a new T5z from ford. Supposed to be the same as 90's mustangs. but if it's in the correct spot for the BP, that'd be a coincidence.

Quote:
Originally Posted by aidandj View Post
For sav's purposes cutting the car might not work, but for me and leafy cutting it is fine.

Check out that link Sav. Use the freeze bplug to extend the shifter, then machine a bushing to accept an oil seal that presses into the freeze plug location.

Extend the shift rod and bam.
But how do you attach the extended shift rod to the original shift rod? Shift gate/detents are part of the thing that's attached to the original shift rod, so keeping that seems required.

EDIT: IMHO machining a piece that rigidly attaches to that piece AND is easy to install is the fun part. I trust Andrew will create something clever.
TurboTim is offline   Reply With Quote
Old 01-13-2016, 10:14 AM   #170
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,866
Total Cats: 1,260
Default

I was going to move the shift gates and detents bit back to where the new shifter mounts.

I pictured a chunk of aluminum milled out, with 3 sides for rigidity.

Again, I need my hands on a trans to confirm a lot.
aidandj is offline   Reply With Quote
Old 01-13-2016, 01:01 PM   #171
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,634
Total Cats: 440
Default

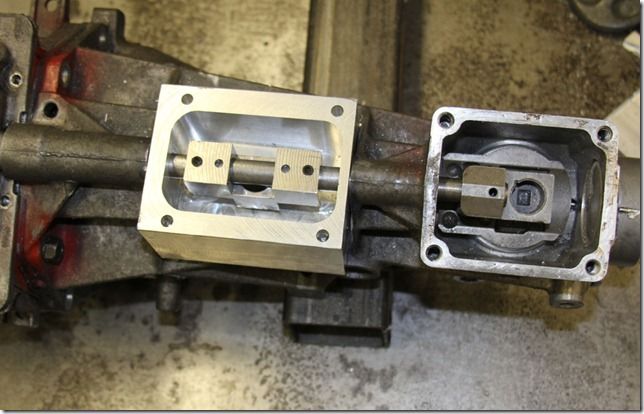

This guy moved the box forward, but the block with detent should be the same.

T5 shifter relocation housing | TR6 Arrow Head
Attached Thumbnails
A tranny option-80-t5_shifter_relocation_housing_1_thumb_b9e2476497e2ad599e74567e3b72377f8149b555.jpg
Monk is offline   Reply With Quote
Old 01-13-2016, 01:29 PM   #172
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,866
Total Cats: 1,260
Default

See I plan on putting the end of that shifter under the extension, and coupling the 2 together.
aidandj is offline   Reply With Quote
Old 01-13-2016, 08:34 PM   #173
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,921
Total Cats: 93
Default

Seems like there's two ways to go about it. Take that detent cup part off the rod and use a ridged shaft coupler to connect the extension, you've got to then relocate the cup and detend stuff to the back. The back part then has the upper shift bits on it, you buy that from like pro5.0 or whatever.

Or you make an adapter that presses into the shift ball spot and has a shaft coupler integrated. Then the rear housing just has to have a simple socket for the shifter ball.
Leafy is offline   Reply With Quote
Old 01-13-2016, 08:38 PM   #174
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,866
Total Cats: 1,260
Default

Quote:
Originally Posted by Leafy View Post
Seems like there's two ways to go about it. Take that detent cup part off the rod and use a ridged shaft coupler to connect the extension, you've got to then relocate the cup and detend stuff to the back. The back part then has the upper shift bits on it, you buy that from like pro5.0 or whatever.

Or you make an adapter that presses into the shift ball spot and has a shaft coupler integrated. Then the rear housing just has to have a simple socket for the shifter ball.
In my mind #1 is easier.
aidandj is offline   Reply With Quote
Old 01-13-2016, 08:40 PM   #175
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,921
Total Cats: 93
Default

#2 sounds monumentally easier to me. You dont have to **** around with the 10 tiny spring loaded parts in the turret.
Leafy is offline   Reply With Quote
Old 01-13-2016, 10:51 PM   #176
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,866
Total Cats: 1,260
Default

Ok I agree, I see what you mean now.
aidandj is offline   Reply With Quote
Old 01-13-2016, 10:53 PM   #177
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,921
Total Cats: 93
Default

basically what this guy did but without the U joint and with a ball and socket joint at the bottom of the shift rod.
Leafy is offline   Reply With Quote
Old 01-13-2016, 10:55 PM   #178
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,866
Total Cats: 1,260
Default

I like it. Could be easily sealed with a shaft seal.

Did he just not seal it?
aidandj is offline   Reply With Quote
Old 01-13-2016, 10:55 PM   #179
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,921
Total Cats: 93
Default

I dont think he got that far.
Leafy is offline   Reply With Quote
Old 01-13-2016, 10:56 PM   #180
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,866
Total Cats: 1,260
Default

Looking forward to seeing it in your car
aidandj is offline   Reply With Quote
