Default Brain MS3 no Fuel pump

Hey,

MS3 from Brain on a 05 miata, the fuel pump does not start, where should I look ?

I checked continuity on harness and it is ok, I check the FP circuit and it looks fine (continuity checked too), I noticed that D8 and R16 are missing.

Thanks
Elior

Last edited by elior77; 09-26-2016 at 02:59 AM.
elior77 is offline   Reply With Quote
Old 09-27-2016, 06:40 AM   #2
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,916
Total Cats: 1,469
Default

Is this on a MSM?
Braineack is offline   Reply With Quote
Old 09-27-2016, 06:46 AM   #3
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Check if R40 is installed.
Reverant is offline   Reply With Quote
Old 09-27-2016, 08:16 AM   #4
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 420
Total Cats: -117
Default

Not an MSM - it is a 2004 NB sport,

As I understand it R16 from the fuel pump circuit is needed and missing - I installed it - will test tomorrow.

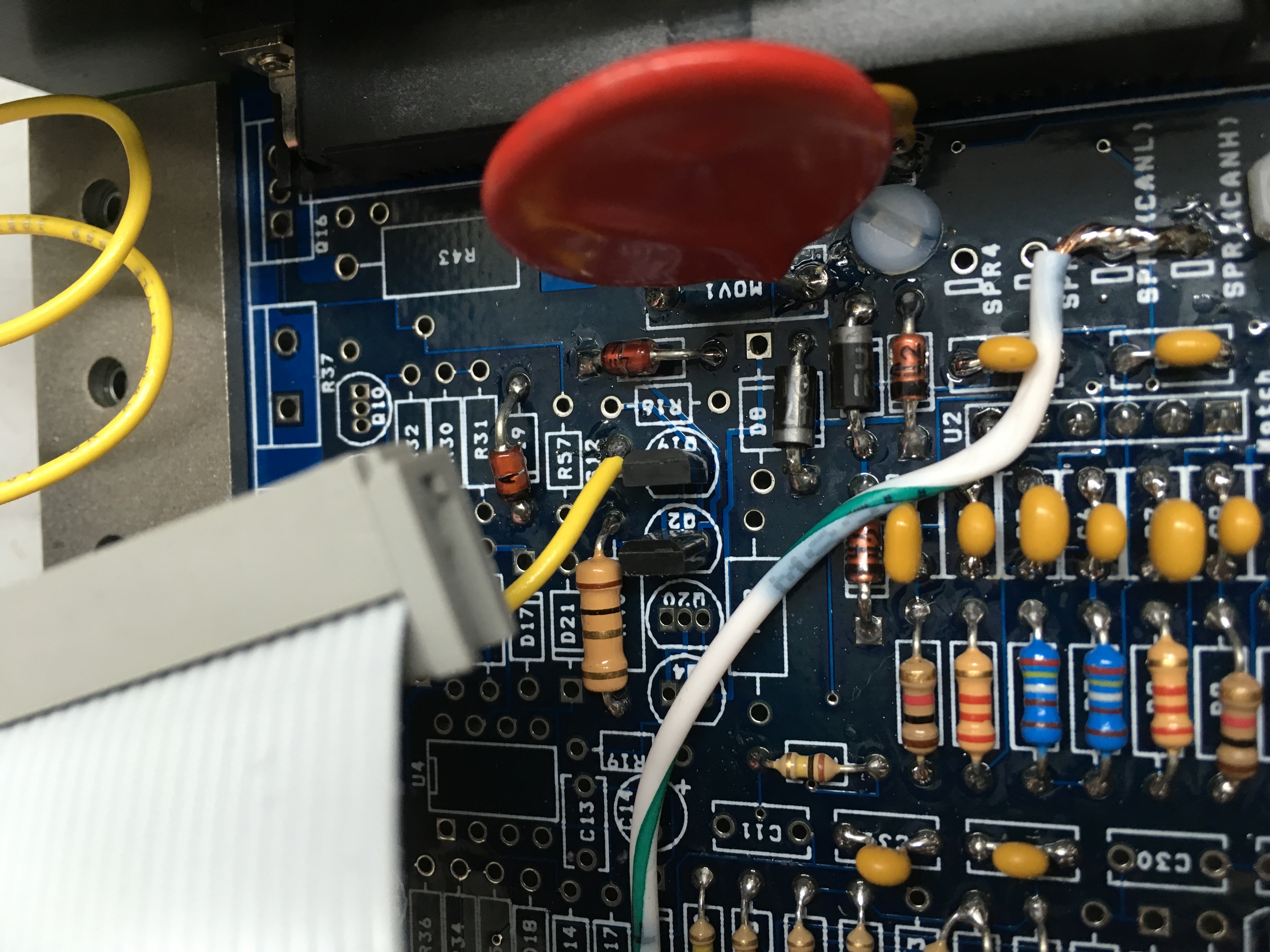

In the pic you can see the missing R16 and that R40 is there.
Attached Thumbnails
Brain MS3 no Fuel pump-img_5337.jpg
elior77 is offline   Reply With Quote
Old 09-27-2016, 08:22 AM   #5
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,916
Total Cats: 1,469
Default

Yes, that's required. Sigh...


sorry about that one.
Braineack is offline   Reply With Quote
Old 09-29-2016, 03:01 AM   #6
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 420
Total Cats: -117
Default

It works fine now.

The reading from the AEM WB was ok just a little of on TS/MS, since the first time I tried to calibrate it, it does not read anything anymore ... the AEM output wire does read normal (changing) numbers...

Please advise.

Thanks
Elior.
elior77 is offline   Reply With Quote
Old 09-29-2016, 06:59 AM   #7
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,916
Total Cats: 1,469
Default

hmmm. Nothing about the calibration should make it stop inputting. Is it possible the connection got severed when you fixed the unit? Or changed the wbo2 to a different input in software by mistake? What happens if you try re-calibrating for AEM UEGO again?
Braineack is offline   Reply With Quote
Old 09-29-2016, 07:01 AM   #8
Junior Member
Thread Starter

Join Date: Nov 2012
Posts: 420
Total Cats: -117
Default

I tried a few pre-cal WB that are there, with no success, it was running good just a bit off, I tried to change the cal nums and the moment I pressed "write" it stooped responding and is showing full rich.

I will check the WB input settings again.


I think I got it, I disabled EGO control and I disabled the "EGO Sensor type", that would disable the WB input reading ?
elior77 is offline   Reply With Quote
Old 09-29-2016, 07:08 AM   #9
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,916
Total Cats: 1,469
Default

yeah, even with EGO disabled, you need to make sure the sensor type is correct.
