Post your DIY aero pics


Old 04-19-2016, 03:02 PM
  #1121
Junior Member

Join Date: Apr 2016
Posts: 223
Total Cats: 0
Default

Thanks man, I'm pretty excited with how it turned out. We'll see how well it performs on the track this weekend.
ApexAddict is offline
Old 04-19-2016, 09:26 PM
  #1122
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

only thing I don't like about the Lotus diffusers is their outer channels are pretty much worthless due to tire squirt contaminating the airflow.
motormechanic is offline
Old 04-20-2016, 03:09 AM
  #1123
Junior Member

Join Date: Apr 2016
Posts: 223
Total Cats: 0
Default

Originally Posted by motormechanic View Post
only thing I don't like about the Lotus diffusers is their outer channels are pretty much worthless due to tire squirt contaminating the airflow.
What's tire squirt? As in the air that's being directed off the tires?
ApexAddict is offline
Old 04-20-2016, 03:49 PM
  #1124
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

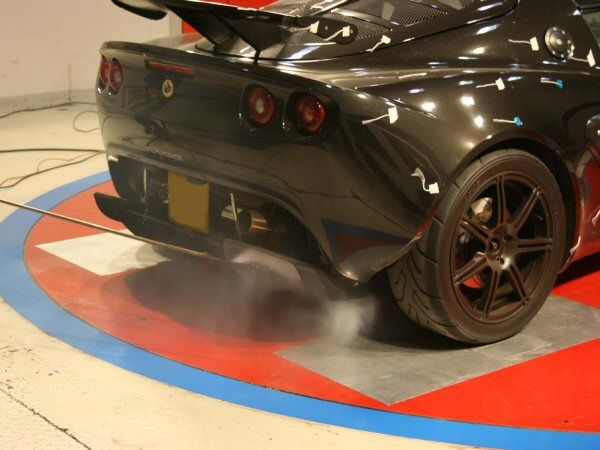

it is the turbulent air that is a result of the rotating tire moving through it. There is a way to fix it though, and that would be to add a fence to the outside edge of the channels that extends forward.

Attached Thumbnails Post your DIY aero pics-80-sidetunnelflowsstalled_1b_1047116a06efcd886ea63984727346563ccd4617.jpg
motormechanic is offline
Old 04-20-2016, 06:00 PM
  #1125
Junior Member

Join Date: Apr 2016
Posts: 223
Total Cats: 0
Default

A fence? What do you mean? Sorry for my lack of knowledge, I'm basically clueless when it comes to aero. I'm assuming I just make some sort of an extension on the outter sides to kind of block out the turbulence?
ApexAddict is offline
Old 04-21-2016, 01:12 AM
  #1126
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

correct, extend the outside fin further downward and forward.
motormechanic is offline
Old 04-21-2016, 01:38 AM
  #1127
Junior Member

Join Date: Apr 2016
Posts: 223
Total Cats: 0
Default

Right on, I'm assuming just riveting a sheet of aluminum should work fine?
ApexAddict is offline
Old 04-21-2016, 09:26 PM
  #1128
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

yup
motormechanic is offline
Old 04-22-2016, 02:11 AM
  #1129
Junior Member

Join Date: Apr 2016
Posts: 223
Total Cats: 0
Default

ApexAddict is offline
Old 04-22-2016, 02:52 AM
  #1130
Newb

Join Date: Dec 2014
Posts: 30
Total Cats: 0
Default

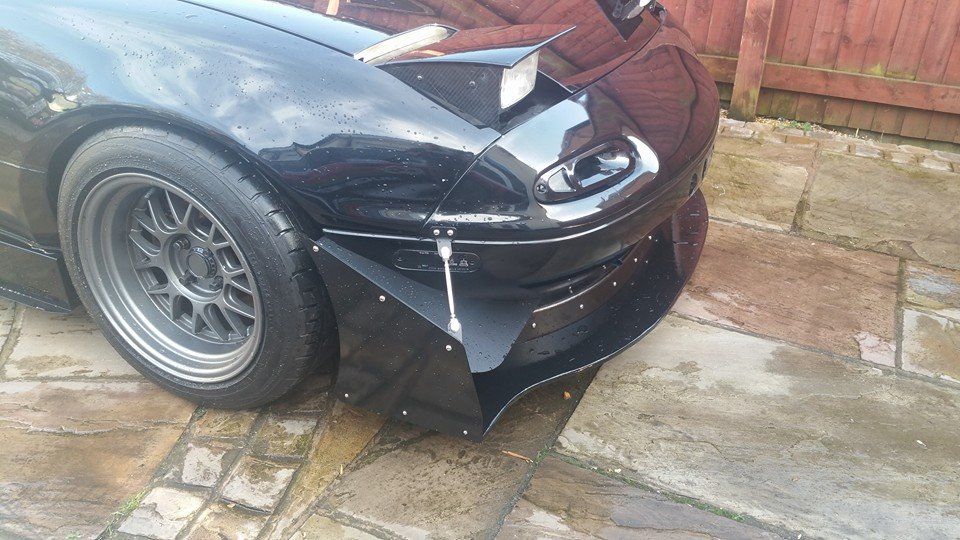

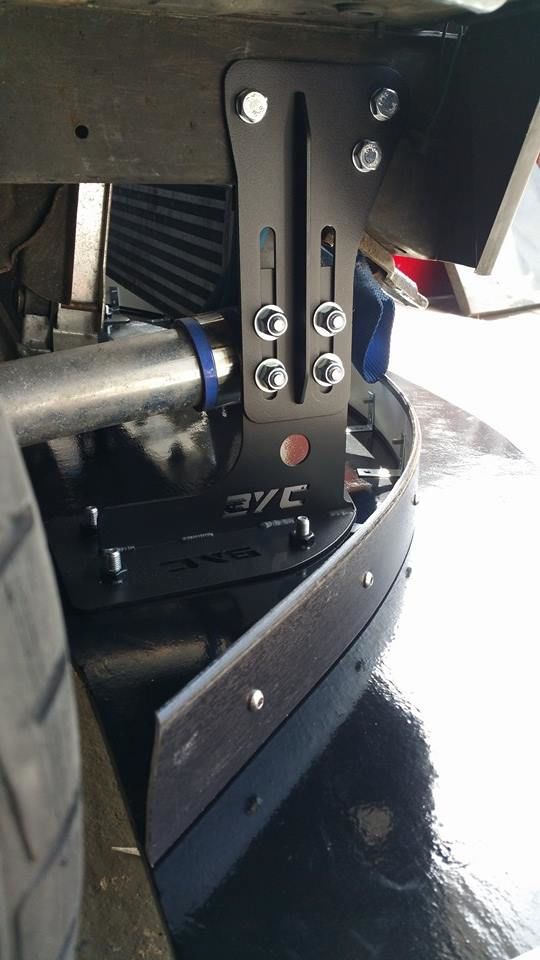

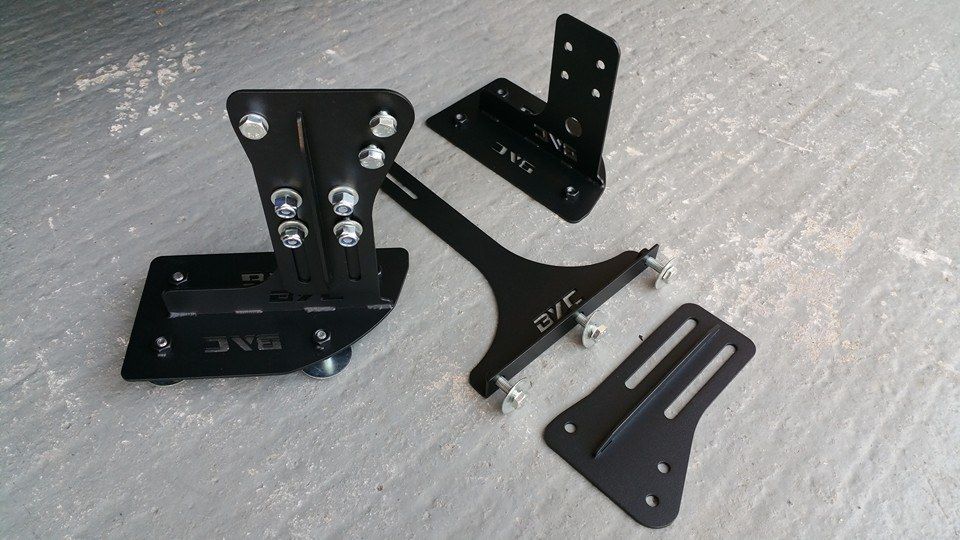

just spotted on facebook
https://www.facebook.com/Backyardcivics/




Attached Thumbnails Post your DIY aero pics-80-13007360_1075499055827180_614880404926720499_n_f5297104a62cd8bf429df9aa13eea1ef116d84c5.jpg   Post your DIY aero pics-80-13015673_1075704119140007_6269221239353259100_n_cd0a6481644e84047fd43537e9cfedccec6ccb05.jpg   Post your DIY aero pics-80-13082718_1075704089140010_2601368790645422726_n_677d6267e785e24a121971ad3eae3b0c525ea5df.jpg
creon is offline
Old 04-22-2016, 03:29 AM
  #1131
Junior Member

Join Date: Apr 2016
Posts: 223
Total Cats: 0
Default

Wow that looks great, if only I had enough power to fully utilize all that down force.
ApexAddict is offline
Old 04-22-2016, 09:19 AM
  #1132
Junior Member

Join Date: Mar 2010
Posts: 489
Total Cats: 24
Default

Going to suck when you bend that up going 4 off.
FatKao is offline
Old 04-22-2016, 10:50 AM
  #1133
Junior Member

Join Date: Jul 2014
Location: Canberra, sort of
Posts: 302
Total Cats: 15
Default

Originally Posted by FatKao View Post
Going to suck when you bend that up going 4 off.
That was my first thought. I try and build in a weak point for those occasions, and when I look again at that design, I think the weak point is the lower part attached to the splitter, where the round hole is. Just unbolt, apply a BFH, and it should straighten enough to work ok if not win a beauty contest.
Gee Emm is offline
Old 04-22-2016, 12:33 PM
  #1134
Junior Member

Join Date: Apr 2016
Posts: 223
Total Cats: 0
Default

Originally Posted by FatKao View Post
Going to suck when you bend that up going 4 off.
Ouch that's a good point, I didn't even think about that.
ApexAddict is offline
Old 04-22-2016, 03:57 PM
  #1135
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

needs more center/frontal support.
motormechanic is offline
Old 04-22-2016, 11:11 PM
  #1136
Junior Member

Join Date: Feb 2013
Location: Arvida, Québec, Canada
Posts: 48
Total Cats: 4
Default

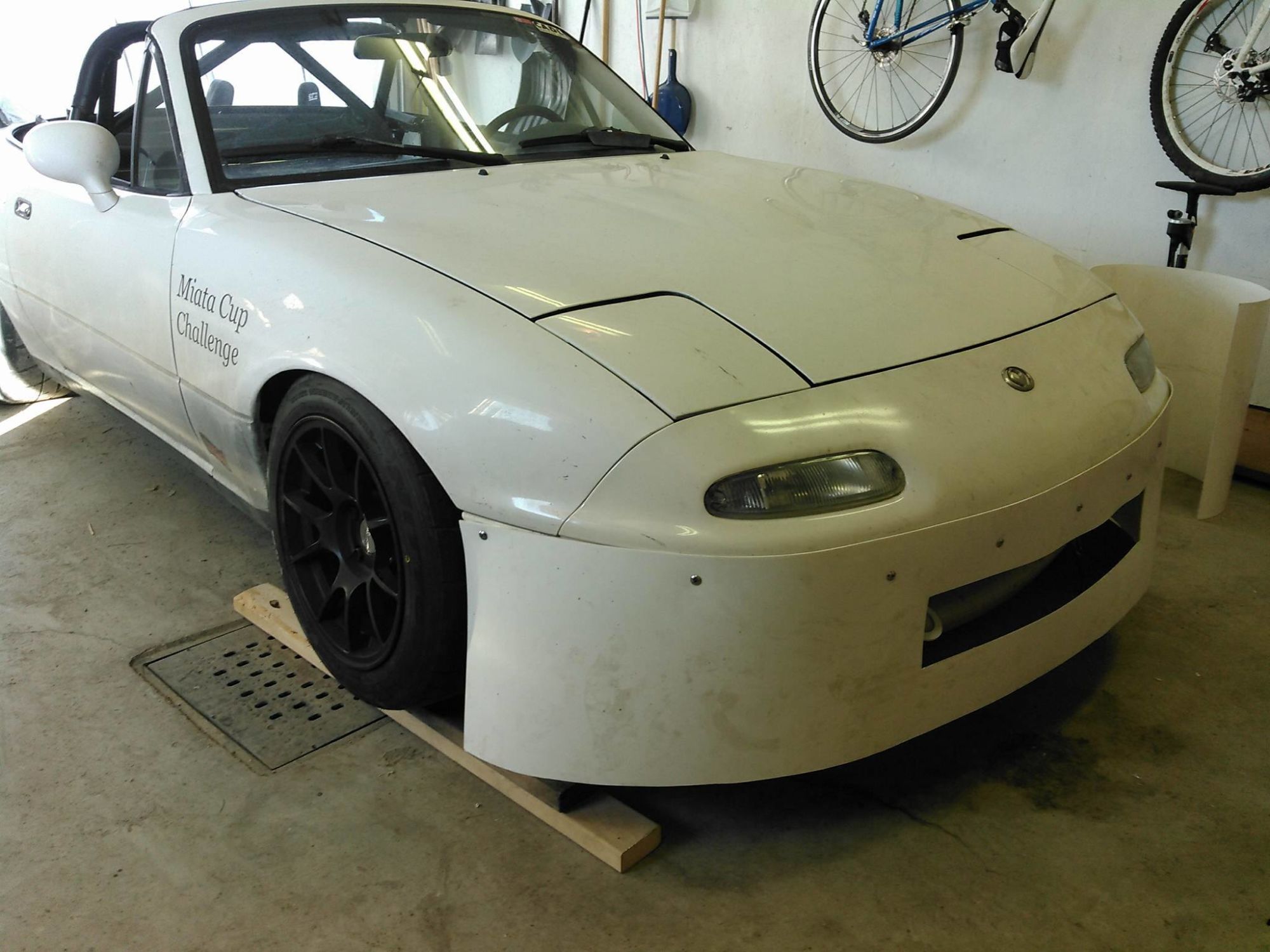

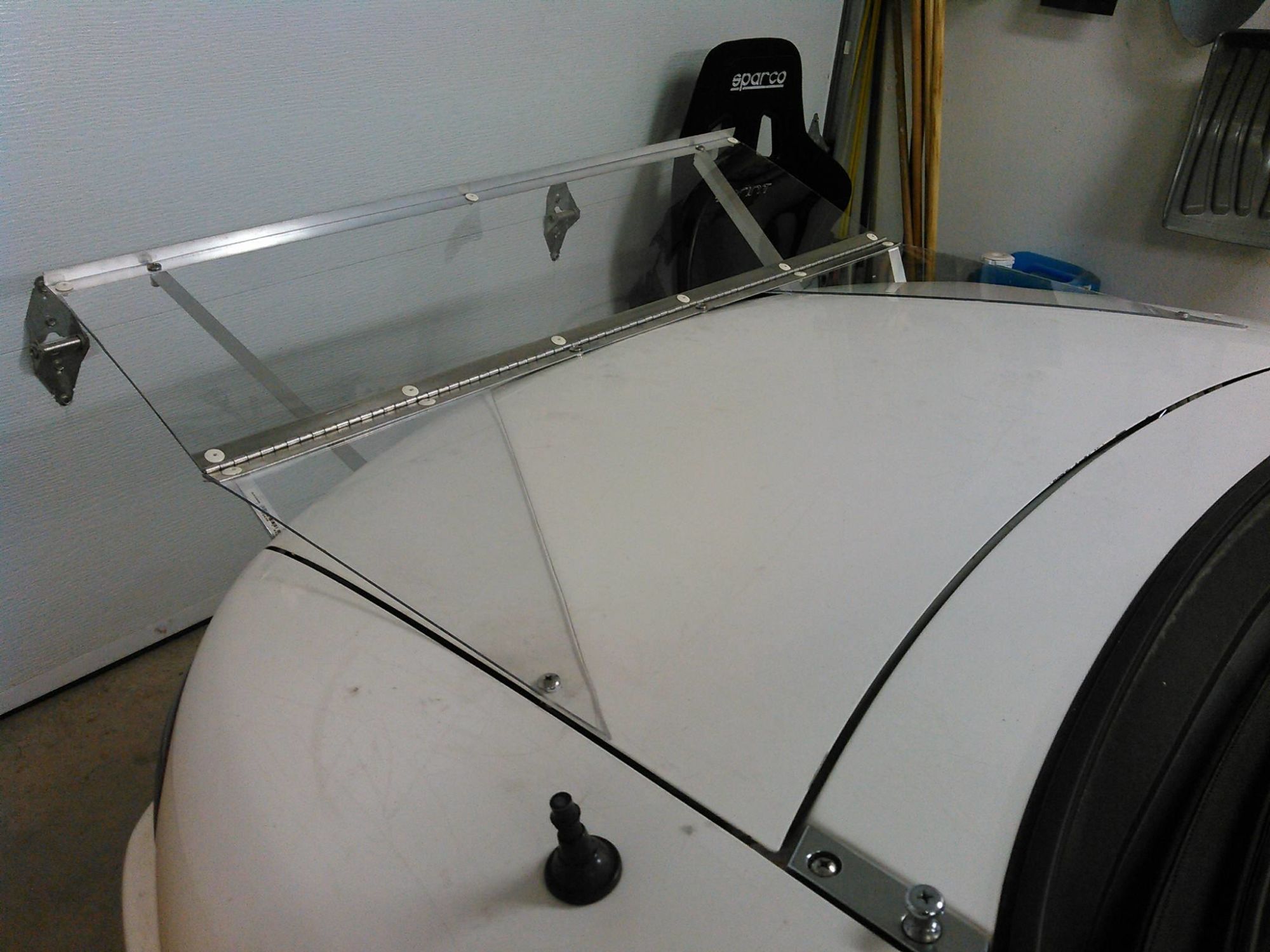

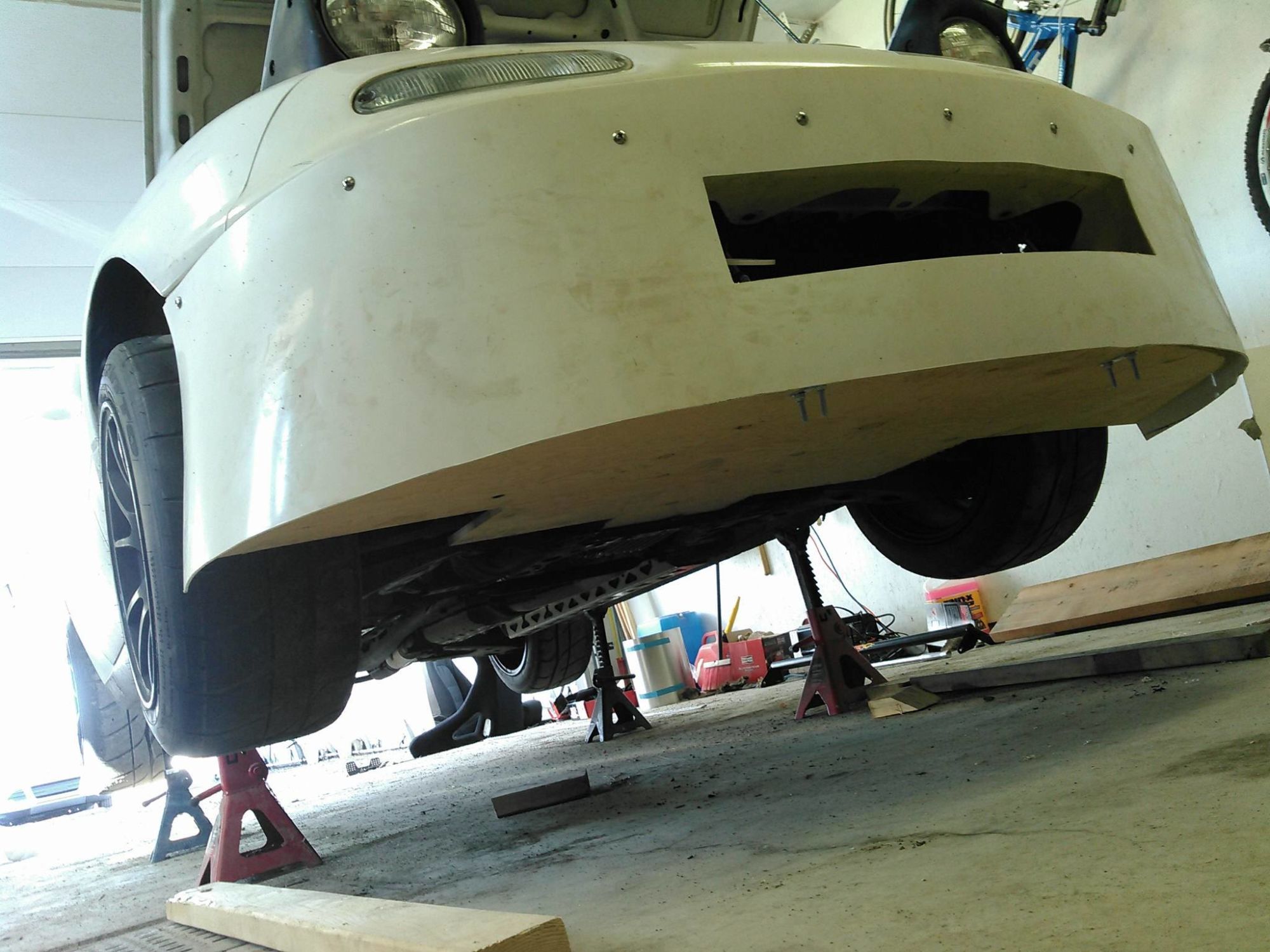

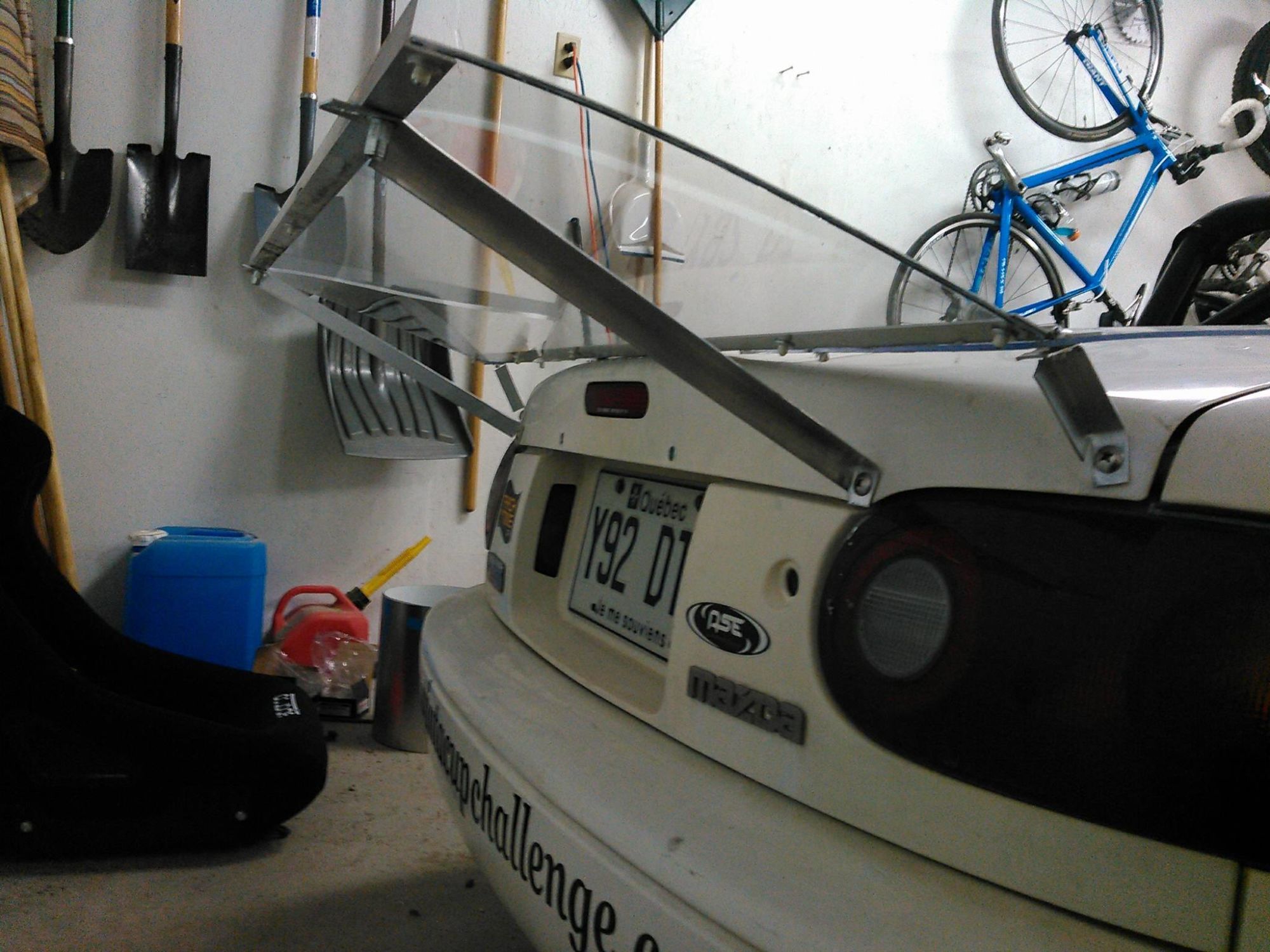

Almost finished my aero setup for this year! Should try it tomorrow to see if I need a center brace for the spoiler.









Attached Thumbnails Post your DIY aero pics-80-13035409_10153468607455969_1501899550_o_0a765b440ea4ff7643c8b43ba239c1820c875549.jpg   Post your DIY aero pics-80-13054587_10153468607410969_486222103_o_40c0e9f9055c5c570111a03bf3f3bddf7035004e.jpg   Post your DIY aero pics-80-13062594_10153468606305969_214802686_o_9c0146a37f6ac1beb8079a440d22f6285bfec560.jpg   Post your DIY aero pics-80-13073053_10153468606265969_863845_o_f0a37e726283df1bd658a9beec70a42702c05ec4.jpg
Dalardan is offline
Old 04-23-2016, 08:32 AM
  #1137
Junior Member

Join Date: Dec 2012
Location: Charlotte, NC
Posts: 329
Total Cats: 25
Default

Took me a second to realize the garage door hinges weren't part of the spoiler, LOL.
Supe is offline
Old 04-25-2016, 12:44 AM
  #1138
Junior Member

Join Date: Apr 2016
Posts: 223
Total Cats: 0
Default

Originally Posted by Dalardan View Post
Almost finished my aero setup for this year! Should try it tomorrow to see if I need a center brace for the spoiler.









That air dam looks nice, what'd you make it out of?
Originally Posted by Supe View Post
Took me a second to realize the garage door hinges weren't part of the spoiler, LOL.
LOL same here
ApexAddict is offline
Old 04-25-2016, 07:05 AM
  #1139
Junior Member

Join Date: Feb 2013
Location: Arvida, Québec, Canada
Posts: 48
Total Cats: 4
Default

Couldn't find some localy or from sponsors, so got it from there :

Colored Plastic Rolls, 10 Ft.
Dalardan is offline
Old 04-25-2016, 10:05 AM
  #1140
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 6,029
Total Cats: 1,745
Default

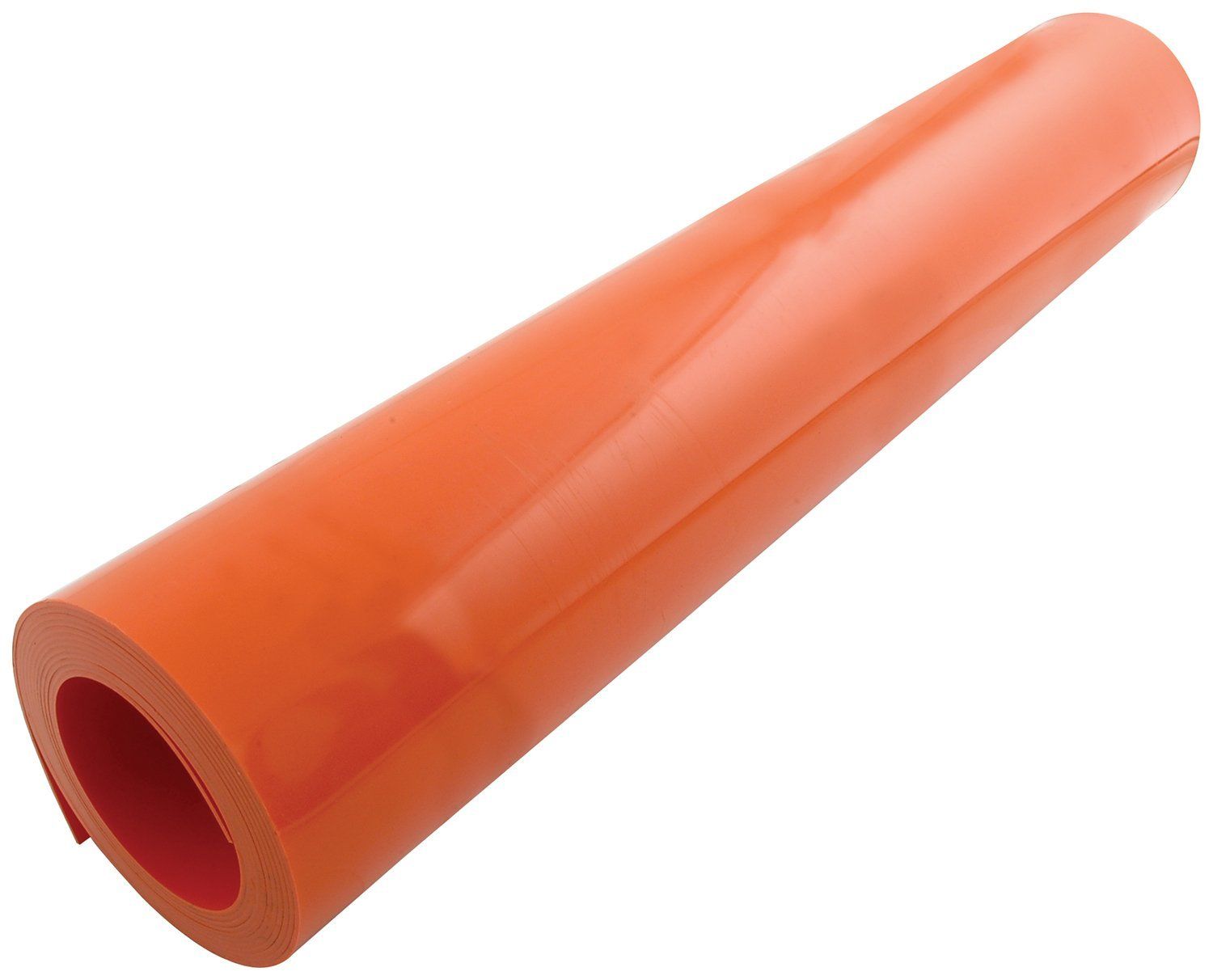

Allstar 24" sheet plastic, which is wide enough for a Miata air dam. Comes in a roll. .070 is not quite stiff enough for air dams, use the .100. Google search, it's everywhere.

http://ecx.images-amazon.com/images/...L._SL1500_.jpg


Attached Thumbnails Post your DIY aero pics-80-61arok7bqtl_sl1500__de3cd03c604eef087e2dcdb91804068dc879d15e.jpg
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR

Last edited by emilio700; 04-25-2016 at 01:44 PM.
emilio700 is offline
