Old 05-29-2012, 12:44 AM
  #121
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 611
Total Cats: 51
Default

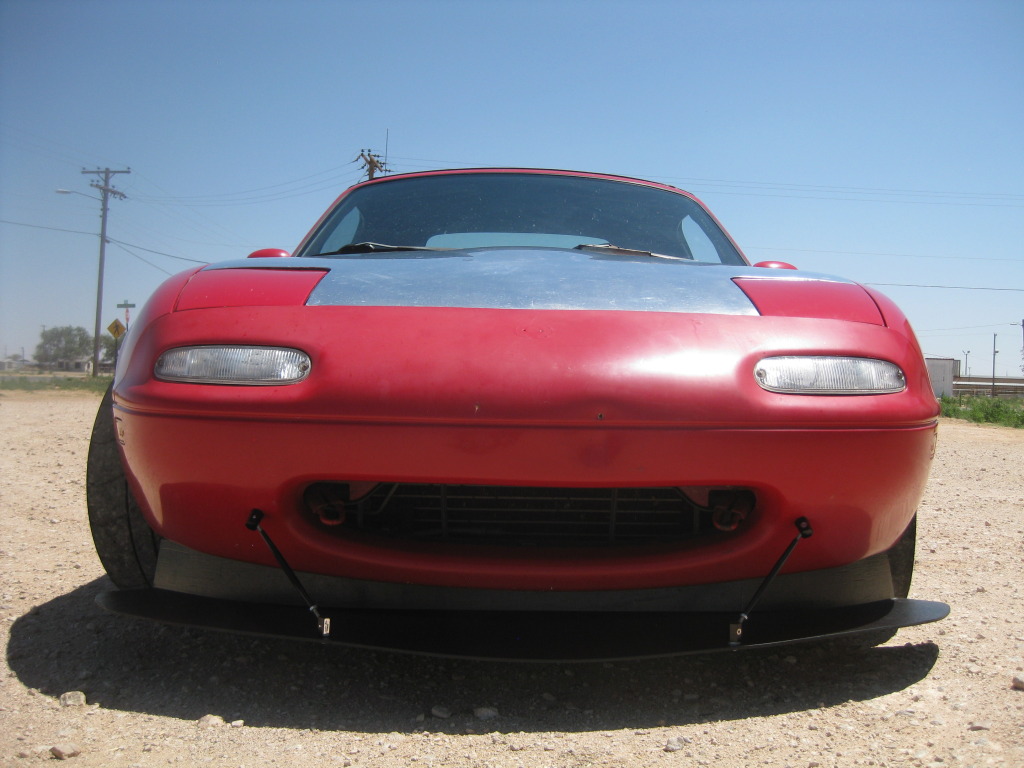

Attached Thumbnails Post your DIY aero pics-img_1033.jpg
1993ka24det is offline
Old 05-29-2012, 06:40 AM
  #122
Newb
iTrader: (1)

Join Date: Jul 2011
Posts: 16
Total Cats: 0
Default

hey this question is more for Handy Man and lightyear, did your set change from lets say before splitter and wing to after, did you lower ride height or add rake to help with aero or did u leave the setup as is,
mikaelhgn is offline
Old 05-29-2012, 08:02 AM
  #123
Senior Member

Join Date: Aug 2009
Location: melbourne aus
Posts: 515
Total Cats: 90
Default

I have not changed suspension settings. But I am still playing around with it. Basically will go off tyre temp readings, lap times, etc. And make adj. The local track is very rough, but in a month I will be at Phillip island track, and can really play with all the aero/ chassis. It's a fast and smooth track. About 2 minute track, with a very high top speed coming onto a long straight, then into a very fast turn 1. Good for seeing results for tuning of aero.
lightyear is offline
Old 05-29-2012, 08:41 AM
  #124
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 18
Default

You probably don't want to change your setup to help with the aero (except maybe lowering ride height), you want to change your setup to better take advantage of it's effects.

If the aero is working worth a damn your suspension will see a higher load, so stiffer springs might be a good idea.

It also might be a good idea to actually run a higher ride height. With the airdamn/splitter you can still close the gap between the car and the road, and with a higher ride height your suspension geometry may be less compromised... but I haven't looked into Miata suspension geometry enough to know for sure how lowering effects it, I'm sure someone else here can comment on that.

The splitter does have a LOT of red paint on the underside from rubbing on curbing

P.S. I'd recommend using jam nuts or some other locking mechanism on your turnbuckles. I had mine loosen up a lot during a single session. If I'd stayed out much longer I may have lost the splitter.

Last edited by Handy Man; 05-29-2012 at 08:59 AM.
Handy Man is offline
Old 05-29-2012, 09:29 AM
  #125
Newb

Join Date: Oct 2010
Posts: 24
Total Cats: 22
Default

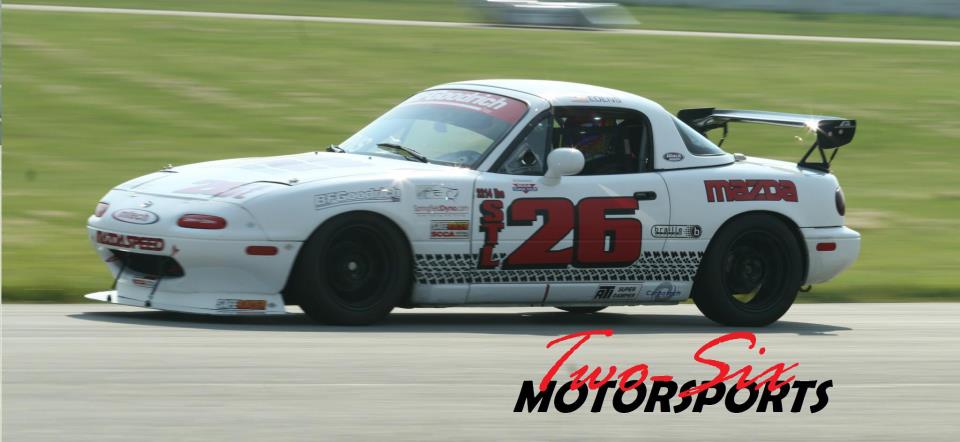

Our STL Miata at Gateway Motorsports Park. Wing is APR "SCCA Spec" Splitter is custom built to SCCA STL rules

Attached Thumbnails Post your DIY aero pics-578112_377772602260169_452116377_n.jpg
Edens is offline
Old 05-30-2012, 02:06 AM
  #126
Junior Member
iTrader: (1)

Join Date: Apr 2012
Posts: 187
Total Cats: 3
Default

[QUOTE=Handy Man;882835]You probably don't want to change your setup to help with the aero (except maybe lowering ride height), you want to change your setup to better take advantage of it's effects.

If the aero is working worth a damn your suspension will see a higher load, so stiffer springs might be a good idea.

It also might be a good idea to actually run a higher ride height. With the airdamn/splitter you can still close the gap between the car and the road, and with a higher ride height your suspension geometry may be less compromised... QUOTE]

Agreed, especially if you have no flat undertray in the center. Running a higher ride height with a rough undertray (as the stock miata has) will reduce the positive lift effect it produces. Ideally you want the splitter 3" off the ground. Too low and the ground effects begin to trail off and become negated. Too high and you're not "choking" enough air to create a lower pressure area under the car. Remember, the ground and the car need to form a venturi tube.
motormechanic is offline
Old 05-30-2012, 07:05 AM
  #127
Newb
iTrader: (1)

Join Date: Jul 2011
Posts: 16
Total Cats: 0
Default

Agreed, especially if you have no flat undertray in the center. Running a higher ride height with a rough undertray (as the stock miata has) will reduce the positive lift effect it produces. Ideally you want the splitter 3" off the ground. Too low and the ground effects begin to trail off and become negated. Too high and you're not "choking" enough air to create a lower pressure area under the car. Remember, the ground and the car need to form a venturi tube.[/QUOTE]

I dont know, i say even without an undertray you will see some gains by just the fact that u lowered the car and you are controlling airflow under it with a splitter. Alot of guys on this thread have said that they have run lower that 3" with out any ill effects, bear with me hear for a moment, when u lower the car at all with splitter or not ur basically creating this venturi if the car is flat ie; same ride height all 4 corners, because of the shape of the front bumper of the Miata it will naturally have some lift but if u raise the rear of the car thereby using the front bumper as the choke point then u will see gains, ever notice how nascar did it before they went to the setup they have now they didnt have flat bottom cars they used a higher rear bumper as part of their areo package.
mikaelhgn is offline
Old 06-05-2012, 04:54 PM
  #128
Senior Member

Join Date: Aug 2010
Location: Maumelle, AR
Posts: 613
Total Cats: 3
Default

Originally Posted by Edens View Post
Our STL Miata at Gateway Motorsports Park. Wing is APR "SCCA Spec" Splitter is custom built to SCCA STL rules
you should post some pics of the splitter you built for my car
ianferrell is offline
Old 06-06-2012, 05:21 PM
  #129
Newb

Join Date: Oct 2010
Posts: 24
Total Cats: 22
Default

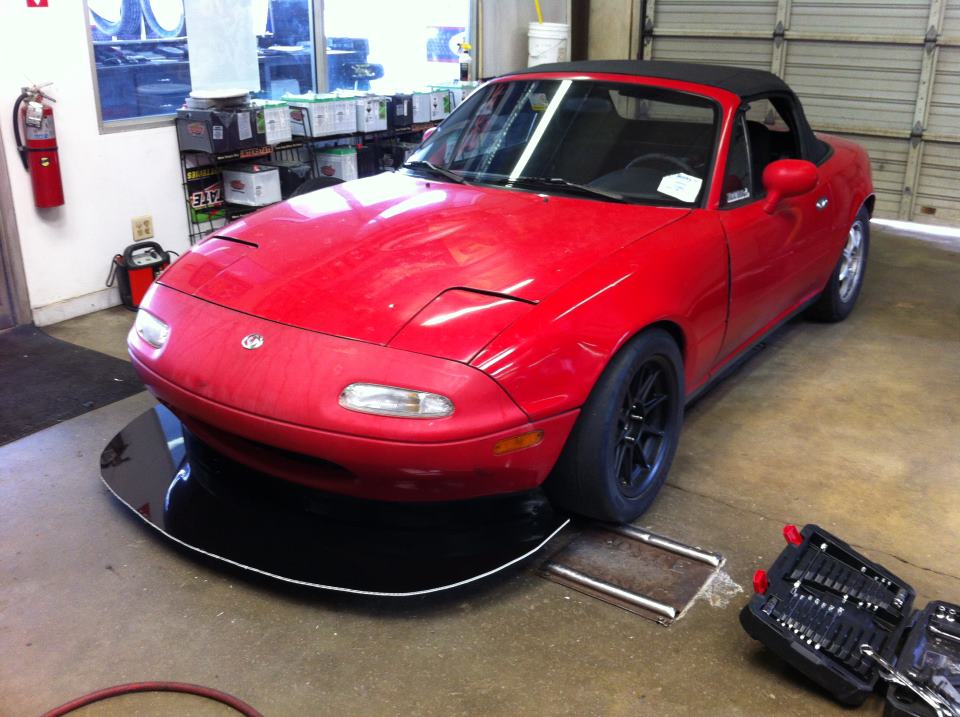

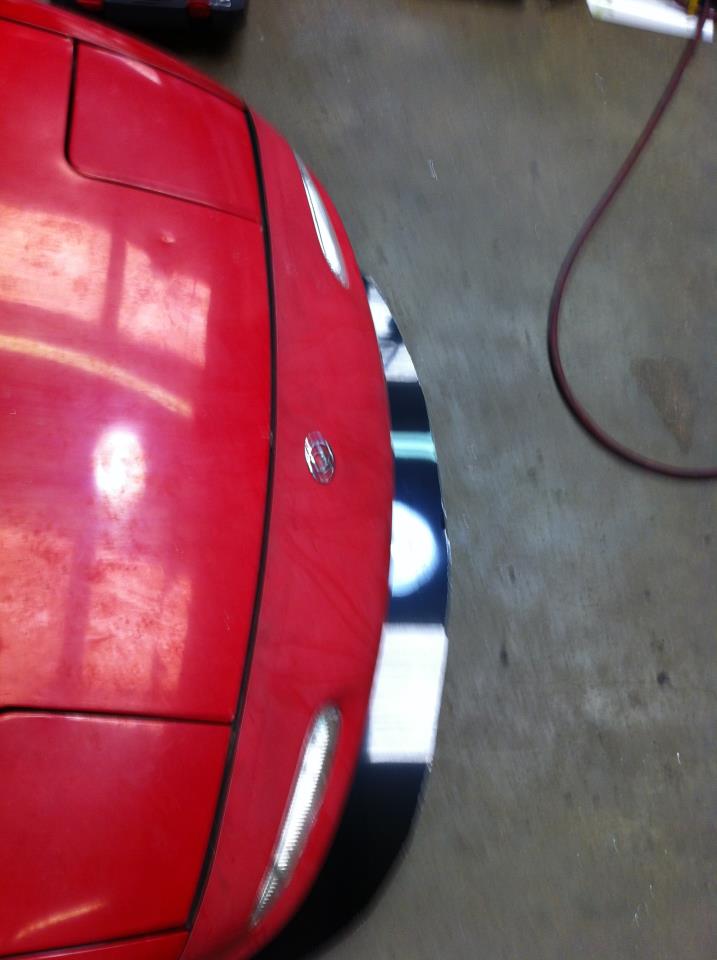

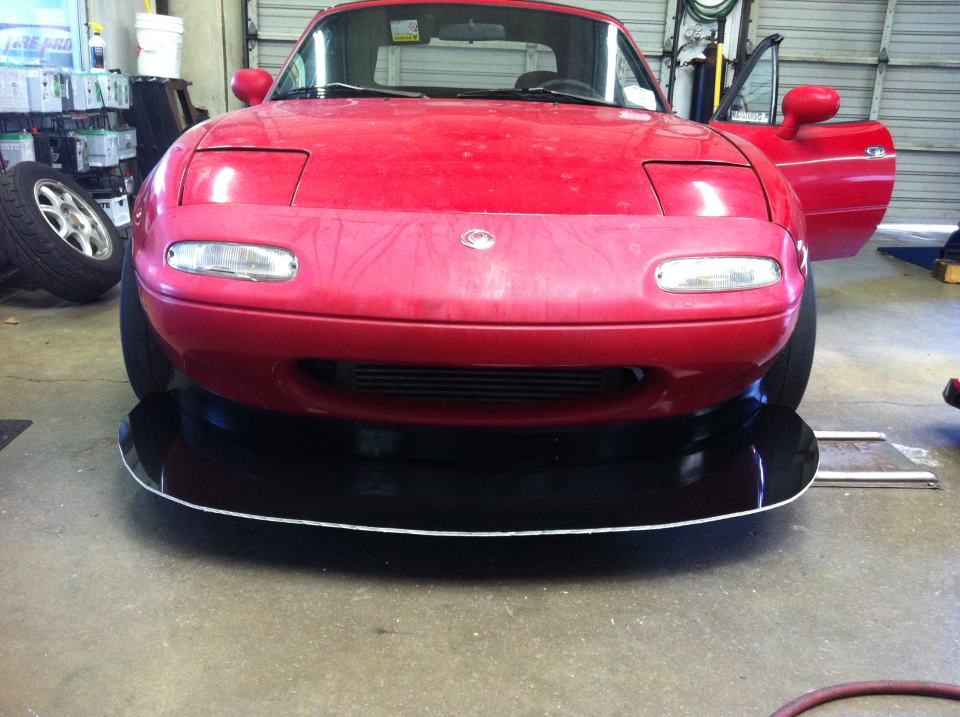

Not the best pics, but here you go. Built to SCCA SSM specs (6" past front bumper) will have front supports to help support the front. Also goes all the way back to centerline of front axle and as wide and will fit between tires at full lock.





Attached Thumbnails Post your DIY aero pics-555215_388971737806922_1191240360_n.jpg   Post your DIY aero pics-581166_389149684455794_725922507_n.jpg   Post your DIY aero pics-205258_388997481137681_1529168412_n.jpg
Edens is offline
Old 06-06-2012, 05:32 PM
  #130
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,094
Total Cats: 368
Default

Originally Posted by Edens View Post
Our STL Miata at Gateway Motorsports Park. Wing is APR "SCCA Spec" Splitter is custom built to SCCA STL rules

Hey, I 've seen that car at Hallett.
hustler is offline
Old 06-06-2012, 06:29 PM
  #131
Senior Member

Join Date: Aug 2009
Location: melbourne aus
Posts: 515
Total Cats: 90
Default

You are going to need a serious wing for that front splitter. I never have understeer on fast corners, only over steer. So a standard sized splitter to stop lift is all i think most people will need.
lightyear is offline
Old 06-06-2012, 07:02 PM
  #132
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 946
Total Cats: -252
Default

Edens, that splitter is freaking huge.
wannafbody is offline
Old 06-07-2012, 04:11 AM
  #133
Elite Member

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,053
Total Cats: 11
Default

Pikes peak edition?
Laur3ns is offline
Old 06-07-2012, 12:41 PM
  #134
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,888
Total Cats: 46
Default

Crazy talk Street Mod edition.
vehicular is offline
Old 06-07-2012, 01:11 PM
  #135
Elite Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,553
Total Cats: 92
Default

You do have to remember that at 30-65 MPH, you're going to need all the downforce you can get.
Midtenn is offline
Old 06-07-2012, 01:26 PM
  #136
Junior Member

Join Date: Mar 2010
Posts: 489
Total Cats: 24
Default

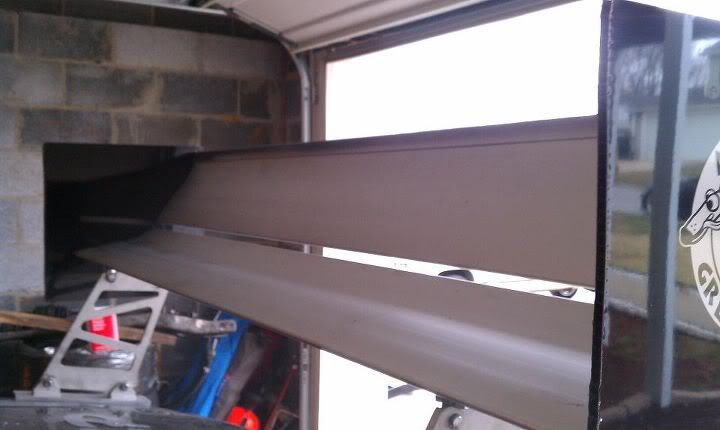

And SSM runs wings that look like
Attached Thumbnails Post your DIY aero pics-7fnro.jpg
FatKao is offline
Old 06-07-2012, 04:25 PM
  #137
Junior Member

Join Date: Jun 2011
Location: Houston
Posts: 409
Total Cats: 18
Default

Yea. In SSM for autox drag is of 0 concern. You should already be making more power than you can put down 90% of the time, so all you care about for aero is max downforce.
Handy Man is offline
Old 06-09-2012, 03:38 AM
  #138
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 798
Total Cats: 25
Default

Originally Posted by Handy Man View Post
Handy Man - quick questions for you or anyone else who built an air dam like yours:

Do you just rivet it on over the OEM bumper or do you cut the lower part of the bumper cover out? Do you put any material to back the rivets or is the skin strong enough? I've seen Crusher in person and Emilio left the bumper cover underneath but Crusher is in a more constant state of evolution. I'm going to replicate something similar to what you did when I can scrape the cash together to get a wing. I don't see much point until then since my a** would just beat me to the corner exit on a regular basis... Thanks!
mr_hyde is offline
Old 06-09-2012, 04:33 AM
  #139
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,380
Total Cats: 835
Default

Originally Posted by Edens View Post
triple88a is online now
Old 06-09-2012, 08:39 AM
  #140
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,447
Total Cats: 6
Default

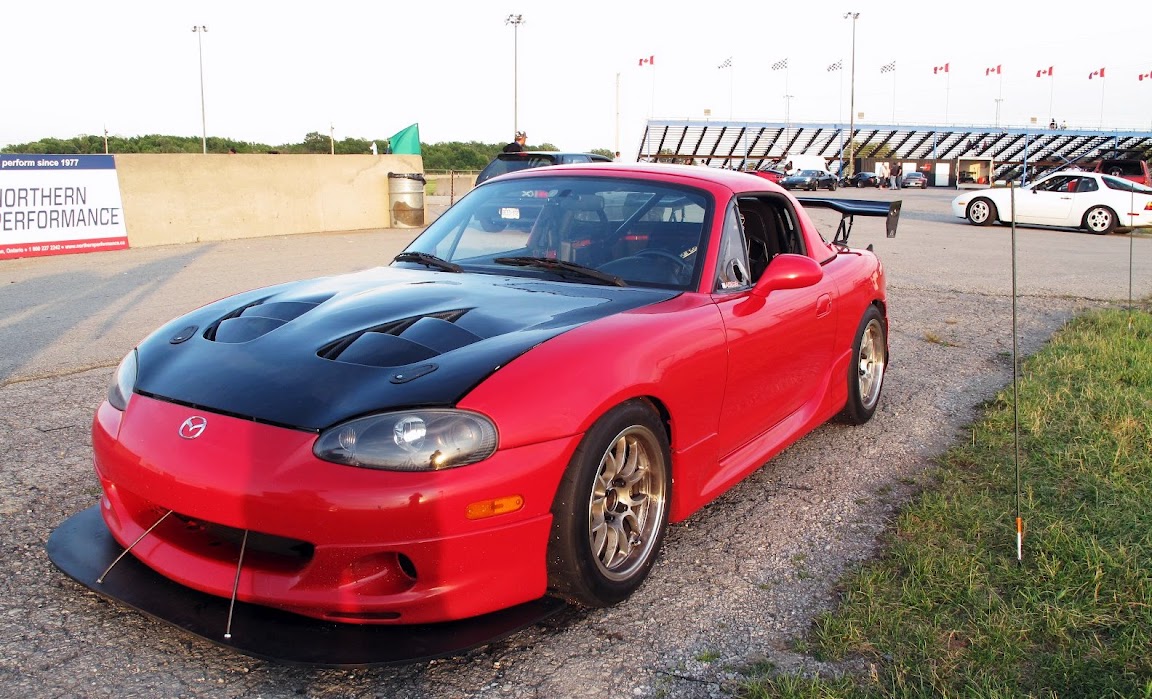

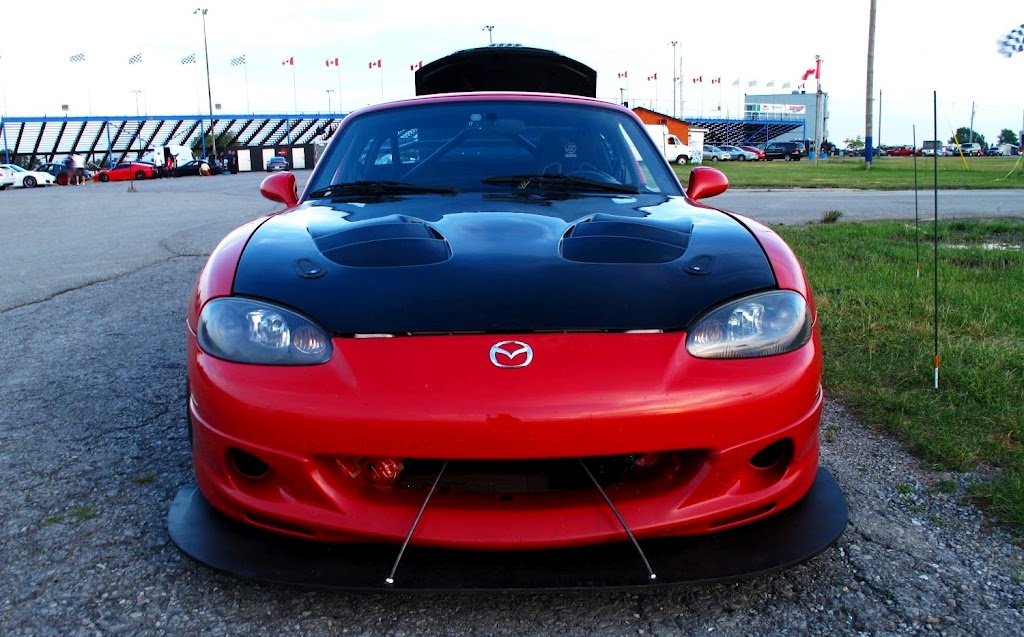

12mm birch water cut, 2 - 8mm threaded rod front supports, 2 - 1" x 1/8" metal bar supports behind bumper between fog light holes and mouth, 4 - 10mm bolts to the subframe. Extends to the rear of the front lower control mounting point. I can stand on it.





Posted these earlier


Attached Thumbnails Post your DIY aero pics-img_2758.jpg   Post your DIY aero pics-img_2746.jpg
dgmorr is offline
