Old 03-01-2016, 08:18 AM   #541
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

Aahso, thanks girz. I have not actually seen one. In my view, the "flat" guy looks okay.

Psyber: Das ist nicht was Ich haben .... meant no jab, but tested many manifolds.

The cast manifold winds up kinda locked in and resists mods. It's also heavy. The fabed manifolds float off into space if not anchored. Castings are the cheapest to make, not counting the pattern work. Patterns are fun to make save an allergy to sawdust.

I like castings, provided one can get inside the things and clean them up. Several other problems exist that I'd like to solve. The throttle position winds up in a clumsey spot and does not inherently contribute to an easy uniform distribution. Better locations all look a bit odd.

Regardless, I'm in the middle of trying to figure it out with thoughts of a new casting. Suggestions are welcome, and I'll consider anything.

corky
Corky Bell is offline   Reply With Quote
Old 04-14-2016, 03:21 PM   #542
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Glad this thread is fairly recent, I've had a couple of problems with my manifold but no one else has started a thread discussing the same problems as me.

First let me say that I love the manifold, it's seems very well designed and for a race car application is is so much cleaner looking And simple vs oem. This is on a 1.6l car so all the oem upgrades discussed in this thread don't really apply to me.

I have had some problems with the welds on my manifold. The first runner has cracked at the weld twice before, at the manifold, so I built a brace between the first and second runner, but it then cracked again.

I also recently did a boost leak test to troubleshoot some power loss issues and discovered a hairline crack 80% of the way around the #4 runner at the plenum. This isn't a place that supports weight and is very bizarre to me. While diagnosing these issues I found two other pinholes in the welds in my particular manifold. Has anyone else complained of these problems or had similar issues?

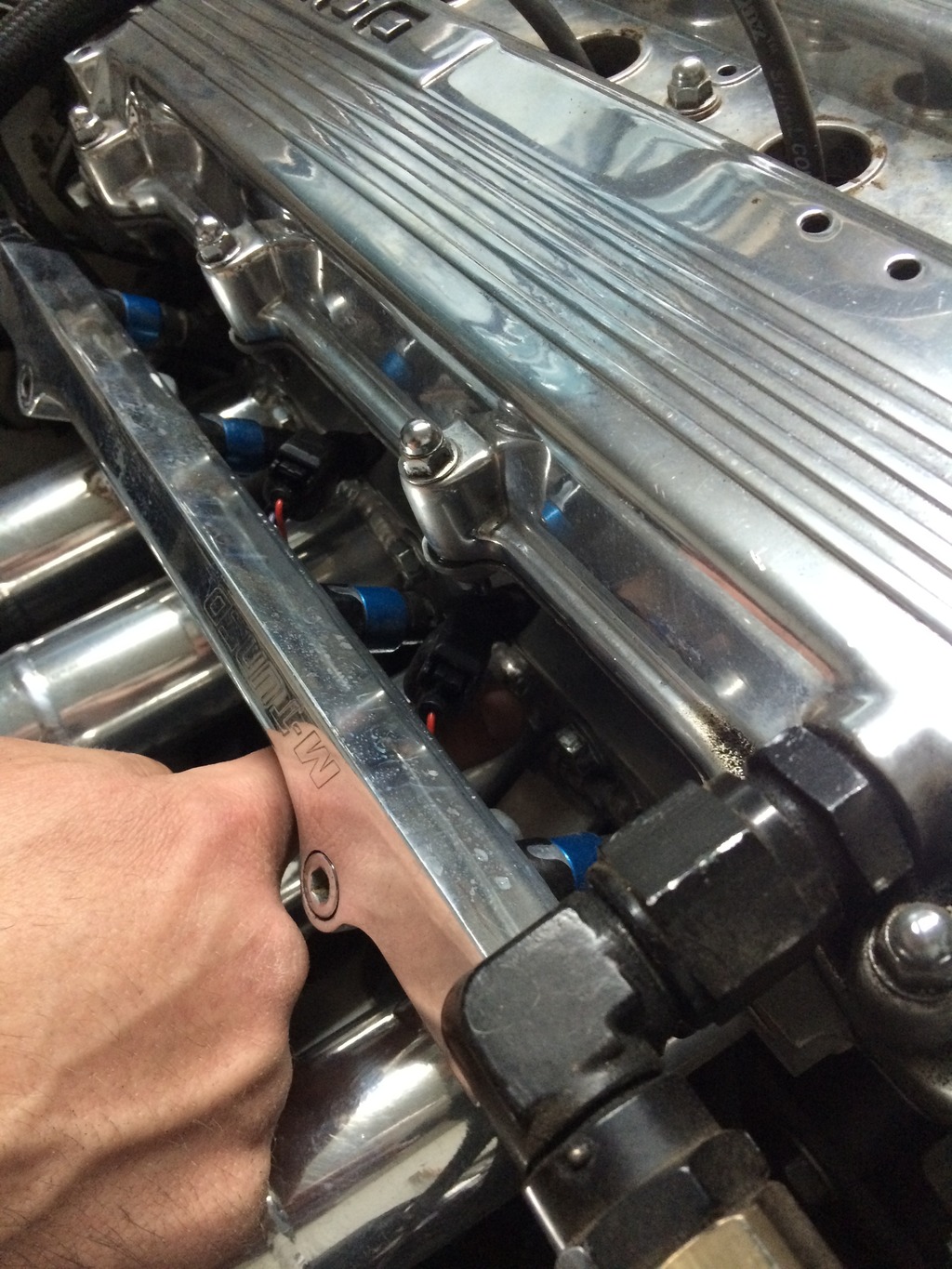

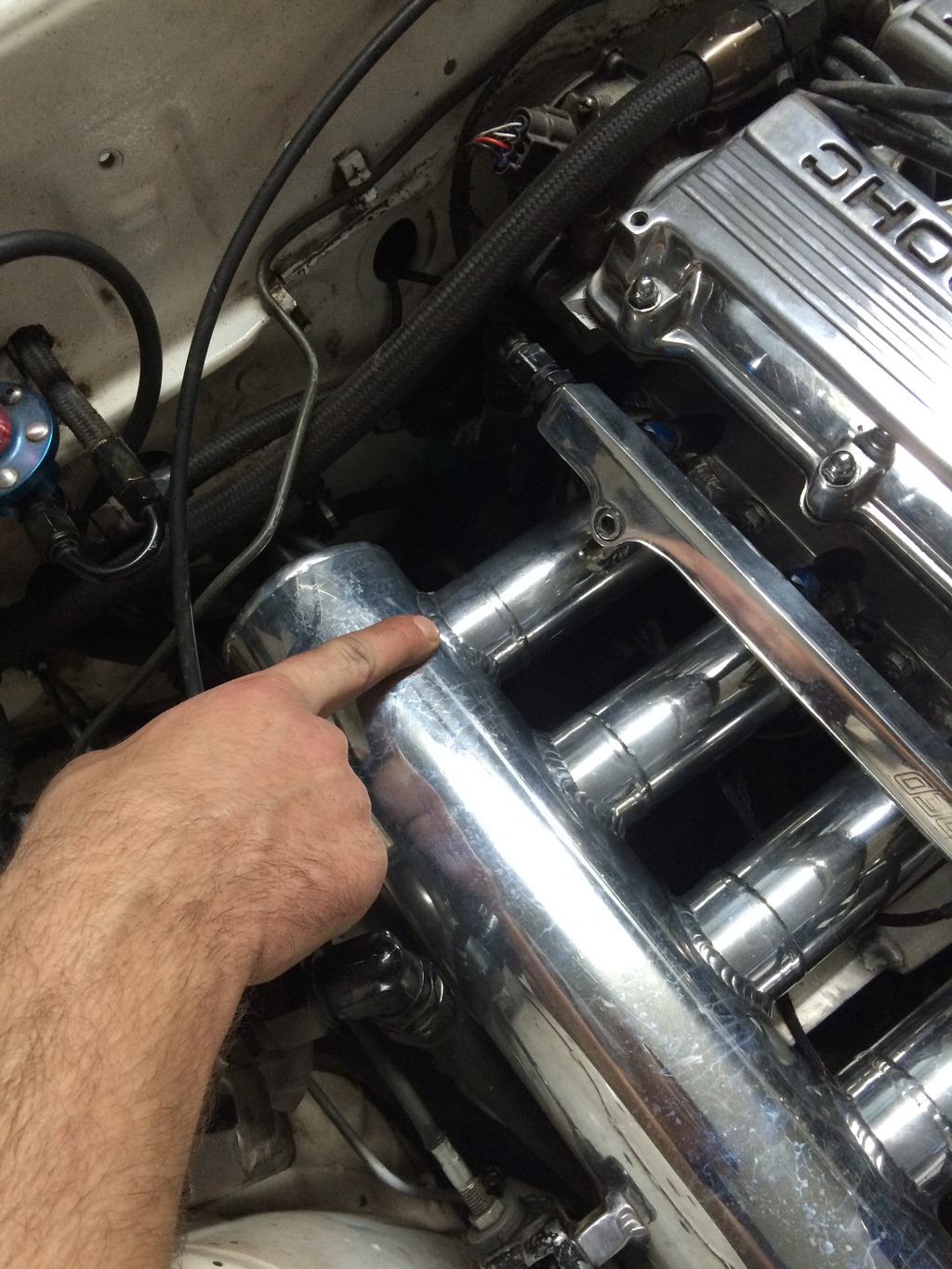

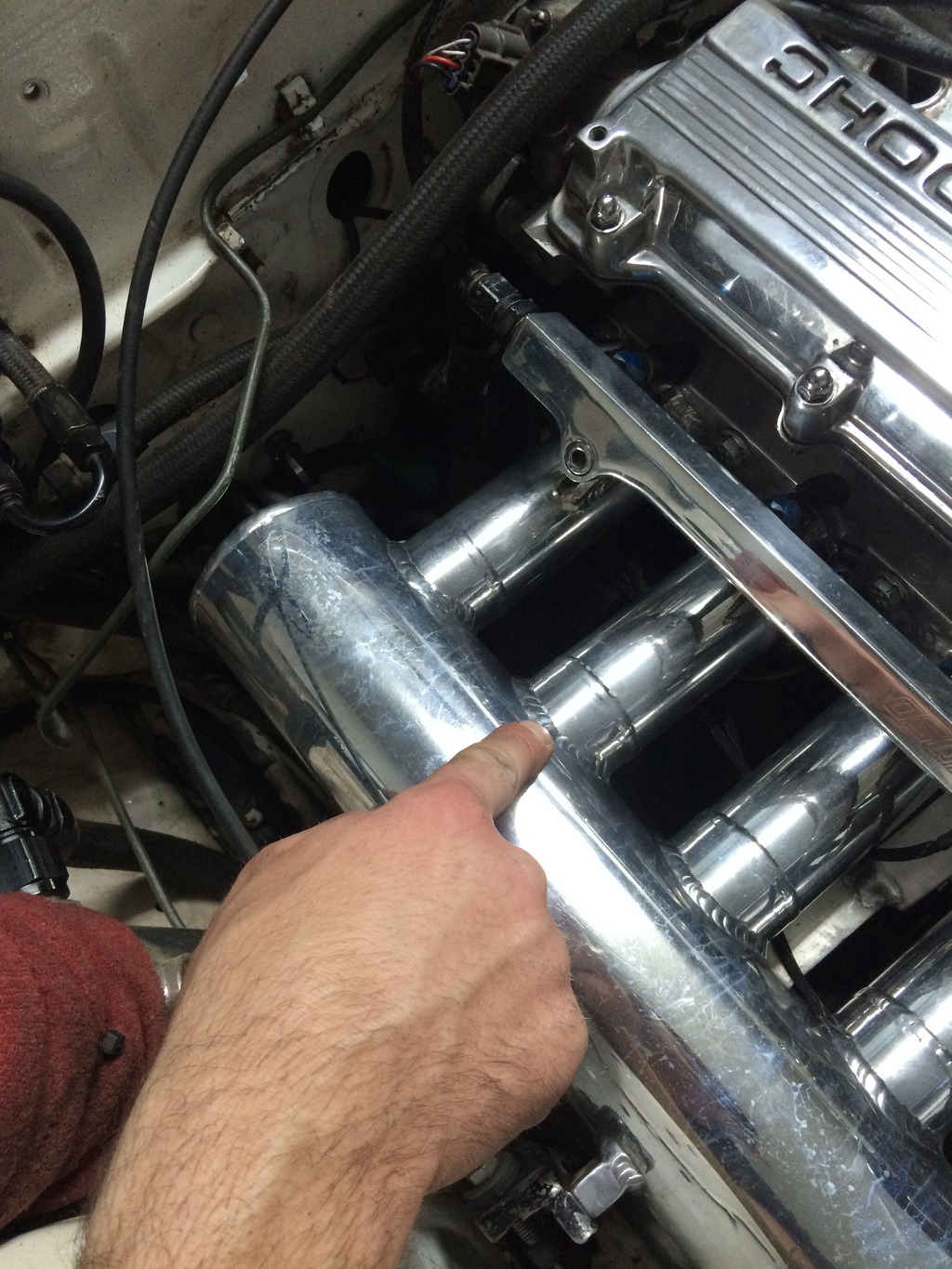

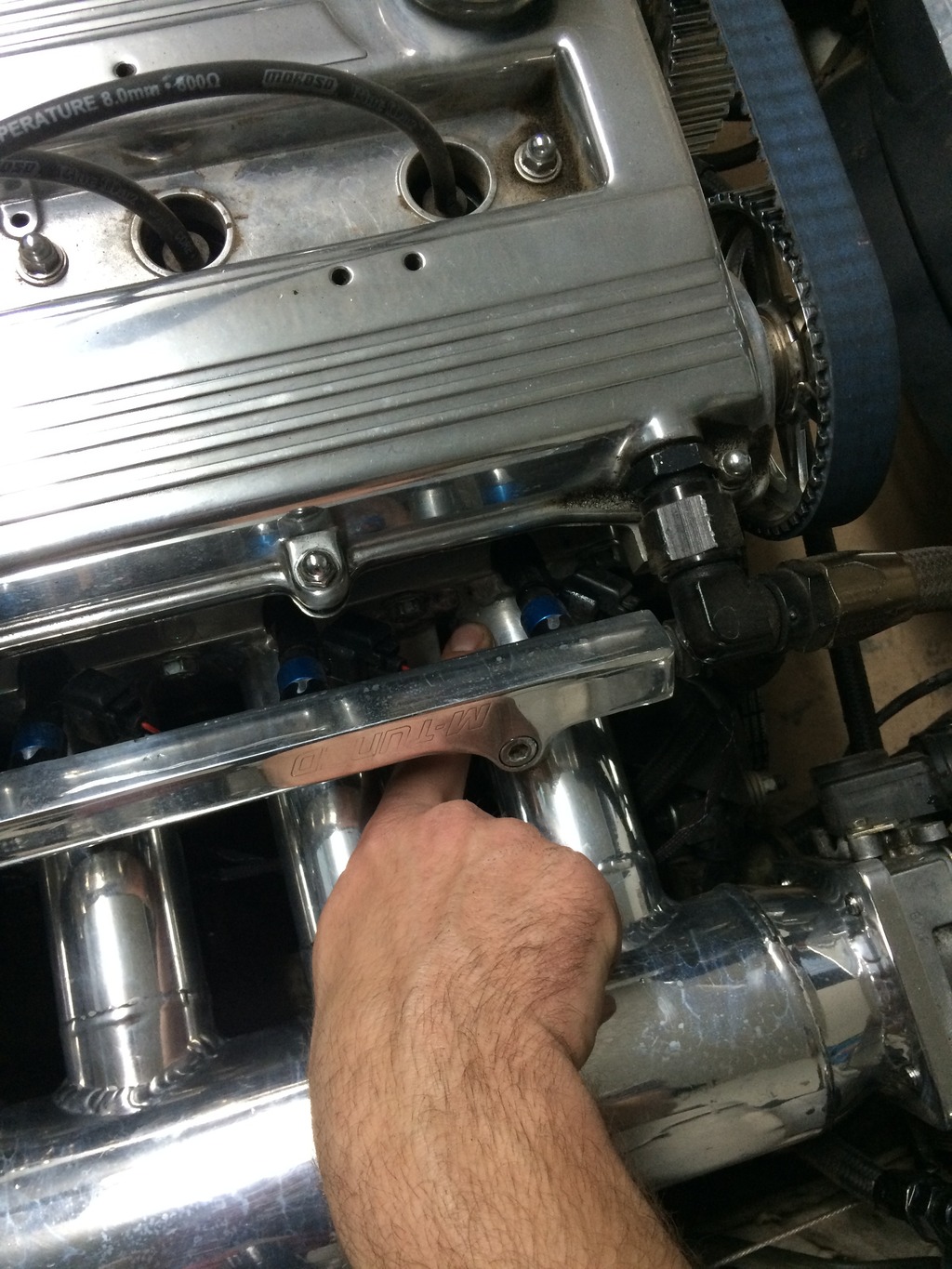

Here are some pics of the locations.

Cracked on the top and the bottom of #4 but not connected in the middle welder said that the crack really opened up once he started welding it to repair it.


Pinhole in #3 in the weld


Pinhole in #2 by the flange in the weld


#1 crack


Again, I'm not trying to pour salt or damage anyone's reputation, just some problems I've encountered and kind of want to hear if anyone else had the same experience or if corky has seen this before. I do really like the manifold a lot but I don't want to keep chasing cracks.
Attached Thumbnails
Begi Intake Manifold-701ad2f5-aa2a-4a82-97ed-09fb4f531afd.jpg   Begi Intake Manifold-17da29d1-7245-4bf0-99be-f2714a72a64a.jpg   Begi Intake Manifold-c308ef0d-aa33-41f9-bdbe-588106cab90e.jpg   Begi Intake Manifold-14710b20-f343-45b6-b4a3-128f7c17235b.jpg
theshdwconspracy is offline   Reply With Quote
Old 04-14-2016, 03:46 PM   #543
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Those sound like vibration cracks. Which can be cause from many different things. Did the support brace help? What motor mounts are you using? what is your rev limiter?
Thanks,
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 04-14-2016, 04:01 PM   #544
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Quote:
Originally Posted by Stephanie Turner View Post
Those sound like vibration cracks. Which can be cause from many different things. Did the support brace help? What motor mounts are you using? what is your rev limiter?
Thanks,
Stephanie
The motor mounts are solid metal, the limiter was 7200 spark cut and is now 7500 spark cut.

The support brace initially was only 1 piece of flat stock from the flange to the plenum, which cracked once, so I added another piece of flat stock from the middle of the brace to the top of the flange. This time the brace didn't crack but the runner cracked again in the same place
theshdwconspracy is offline   Reply With Quote
Old 04-14-2016, 05:30 PM   #545
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,714
Total Cats: 320
Default

Quote:
Originally Posted by theshdwconspracy View Post
The motor mounts are solid metal
psyber_0ptix is offline   Reply With Quote
Old 04-14-2016, 06:08 PM   #546
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Quote:
Originally Posted by theshdwconspracy View Post
The motor mounts are solid metal, the limiter was 7200 spark cut and is now 7500 spark cut.

The support brace initially was only 1 piece of flat stock from the flange to the plenum, which cracked once, so I added another piece of flat stock from the middle of the brace to the top of the flange. This time the brace didn't crack but the runner cracked again in the same place
I would guess that it is the bolded part that is causing the issue.
shuiend is online now   Reply With Quote
Old 04-14-2016, 06:09 PM   #547
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

How so?

I know solid mounts increase vibration/nvh into the car, but that's not the discussion here.
18psi is offline   Reply With Quote
Old 04-14-2016, 06:17 PM   #548
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,859
Total Cats: 273
Default

Quote:
Originally Posted by 18psi View Post
How so?

I know solid mounts increase vibration/nvh into the car, but that's not the discussion here.
I'd say it's relevant to the main cause

Pinholes may or may not be due to welding.
Girz0r is offline   Reply With Quote
Old 04-14-2016, 06:18 PM   #549
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

Quote:
Originally Posted by Girz0r View Post
I'd say it's relevant to the main cause

Pinholes may or may not be due to welding.
so 'splain to me how it's relevant

also plz 'splain to me how pinholes in a welding bead can be anything OTHER than bad welding?
18psi is offline   Reply With Quote
Old 04-14-2016, 06:23 PM   #550
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,859
Total Cats: 273
Default

Quote:
Originally Posted by 18psi View Post
so 'splain to me how it's relevant

also plz 'splain to me how pinholes in a welding bead can be anything OTHER than bad welding?
Increased viberation on dem' thar solid motor mounts makes for a hootin wobbly mani for some cracks to form.

Pinholes may not even be pinholes but small cracks forming. Though bad welds would cause pinholes

Cracking at the beginning of the runner would support guesses that the vibration caused the cracks.
Girz0r is offline   Reply With Quote
Old 04-14-2016, 07:02 PM   #551
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

how does a solid mount increase vibration to a part that's already on the vibrating engine
18psi is offline   Reply With Quote
Old 04-14-2016, 07:44 PM   #552
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
how does a solid mount increase vibration to a part that's already on the vibrating engine
The purpose of engine mounts are to reduce vibration by taking energy from the engine moving (the vibration) and dampening it (turning that energy into heat). This reduces the movement of the engine. That's how dampers work, whether it's engine mounts, dampers on your suspension, etc. No dampening will result in more movement.

Regarding the manifold posted, as already said holes are from bad welding. Cracking could be several things. Multiple cracks suggest a fatigue failure. My first guess is the design is the problem. Thin metal hanging unsupported, it vibrates enough to cause a fatigue failure. Solution would be to use thicker materials, reduce the overhang to reduce loading, or brace it to reduce loading. My opinion is that while solid motor mounts aren't ideal, whatever manifold you're running should be strong enough to handle that no problem. I'm sure the OEM cast manifold would run a million miles without cracking on a BP with solid motor mounts, because it's strong enough to no fatigue fail under those conditions.
patsmx5 is offline   Reply With Quote
Old 04-14-2016, 07:46 PM   #553
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

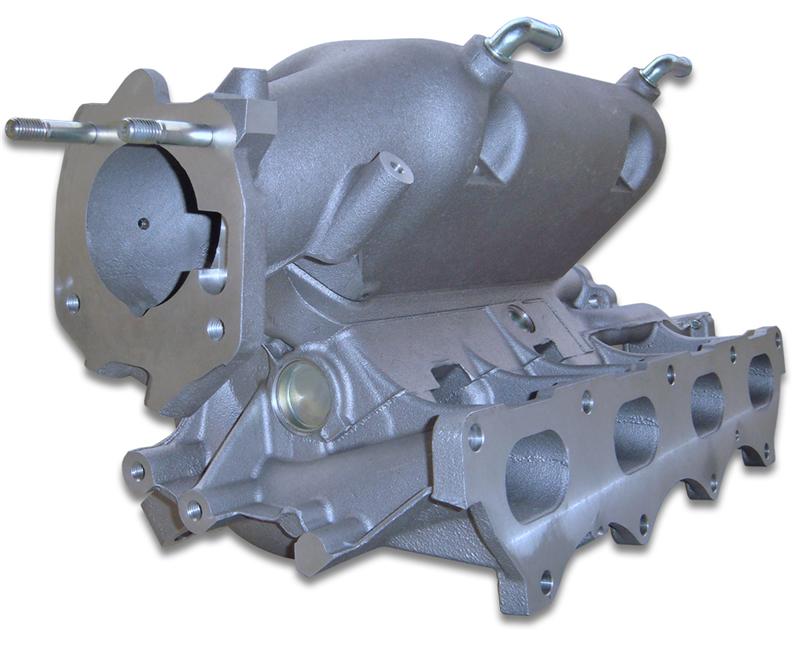

As an example, here's a stock miata manifold. It's FULL of bracing cast into it for strength. That's there for a reason.

Attached Thumbnails
Begi Intake Manifold-d0e2a0bb-0256-496e-9b70-439159b23e38-800.jpg
patsmx5 is offline   Reply With Quote
Old 04-14-2016, 07:49 PM   #554
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,859
Total Cats: 273
Default

There is no give to the harsh vibrations or anything (rubber) to dampen the increased nvh.

I guess an example would be upgrading to stiffer motor mounts that increase nvh and shake the entire vehicle. Having a solid mount must rattle everything else like crazy.

Tie in a connected intercooler pipe & plumbing to a mounted intercooler, maybeh it's pulling & pushing on the vibrating manifold

OOoooooor, some weak welds to begin with The increased nvh & vibrations probably don't help the situation.
Girz0r is offline   Reply With Quote
Old 04-14-2016, 07:53 PM   #555
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

Quote:
Originally Posted by patsmx5 View Post
The purpose of engine mounts are to reduce vibration by taking energy from the engine moving (the vibration) and dampening it (turning that energy into heat). This reduces the movement of the engine. That's how dampers work, whether it's engine mounts, dampers on your suspension, etc. No dampening will result in more movement.

Regarding the manifold posted, as already said holes are from bad welding. Cracking could be several things. Multiple cracks suggest a fatigue failure. My first guess is the design is the problem. Thin metal hanging unsupported, it vibrates enough to cause a fatigue failure. Solution would be to use thicker materials, reduce the overhang to reduce loading, or brace it to reduce loading. My opinion is that while solid motor mounts aren't ideal, whatever manifold you're running should be strong enough to handle that no problem. I'm sure the OEM cast manifold would run a million miles without cracking on a BP with solid motor mounts, because it's strong enough to no fatigue fail under those conditions.
that's where I was going with it: it might not be helping the issue, but I really don't think it's the main reason for the crack.
I think the main issue is a weak design, followed by bad welding.
18psi is offline   Reply With Quote
Old 04-14-2016, 08:02 PM   #556
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
that's where I was going with it: it might not be helping the issue, but I really don't think it's the main reason for the crack.
I think the main issue is a weak design, followed by bad welding.
Yeah. If I designed and sold an intake manifold, it would be designed differently. At a minimum to keep to the design of BEGIs manifold, I'd weld in bracing by the flange and plenum, much like the braces cast on the OEM manifold. But I'd take the same approach the OEM would take, make it strong enough that it never fails, not strong enough that it shouldn't fail.
patsmx5 is offline   Reply With Quote
Old 04-14-2016, 08:06 PM   #557
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

Quote:
Originally Posted by 18psi View Post
how does a solid mount increase vibration to a part that's already on the vibrating engine
get in a miata with solid mounts and youll understand right away.
Braineack is offline   Reply With Quote
Old 04-14-2016, 08:33 PM   #558
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

Quote:
Originally Posted by Braineack View Post
get in a miata with solid mounts and youll understand right away.
we're talking about the engine.

not the car.

I've driven one with solid mounts actually.
18psi is offline   Reply With Quote
Old 04-14-2016, 09:11 PM   #559
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Phx, AZ
Posts: 357
Total Cats: 1
Default

Quote:
Originally Posted by Girz0r View Post
There is no give to the harsh vibrations or anything (rubber) to dampen the increased nvh.

I guess an example would be upgrading to stiffer motor mounts that increase nvh and shake the entire vehicle. Having a solid mount must rattle everything else like crazy.

Tie in a connected intercooler pipe & plumbing to a mounted intercooler, maybeh it's pulling & pushing on the vibrating manifold

OOoooooor, some weak welds to begin with The increased nvh & vibrations probably don't help the situation.
I will say that my local welder said the original welds didn't look great, that they weren't hot enough. When I mentioned Bell/Corky he initially looked shocked, but maybe took a guess that they subbed out the welding and perhaps had been welded by someone a little novice.

Again, I'm not out to bash, just trying to see if this is common or just a me thing, I don't know how many people even own these things, they aren't exactly "inexpensive".
theshdwconspracy is offline   Reply With Quote
Old 04-14-2016, 09:22 PM   #560
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,930
Total Cats: 526
Default

I keep laughing at how you guys don't seem to get what Vlad is saying.

Engine vibrates. With rubber mounts, me no feel vibration. With solid mounts, me feel vibration.

it's like you guys think that solid mounts actually make the engine itself vibrate more. that doesn't make any sense. engine vibrates the same, no?
turbofan is offline   Reply With Quote
