Old 03-25-2013, 12:27 PM   #461
Junior Member
iTrader: (2)

Join Date: Mar 2013
Posts: 68
Total Cats: 0
Default

I think Il just stick with my 01 manifold.
Turbonator is offline   Reply With Quote
Old 02-19-2016, 09:49 AM   #462
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 485
Total Cats: 59
Default

Quote:
Originally Posted by Stephanie Turner View Post
It has been tested, but I have not been in the office to see the results.
I will do that tomorrow!

And don't give me no crap about the color either! It is "BEGi Yellow".
Stephanie
Quote:
Originally Posted by Corky Bell View Post
Our straight tube guy works well above 5000 rpm. Adds a nice 5 to 8%. However, about 3 or 4 % is lost between 4,000 revs and 5,000 revs.

I now have more respect for Mazda's intake manifold designer.

I am absolutely certain my next version will work perfectly everywhere, everywhere, everywhere, everywhere............

Corky

4-5yr old thread bump-

So after searching, and finding only a few threads with very little legitimate information (if there is info ive missed please share it with me) I am trying to figure out whether the above manifold mentioned by Corky is the current version, or if a more efficient manifold has been designed.

Also, the description for the manifold listed on the site is very vague in regards to performance of the manifold. You say the lower HP guys will lost HP and that more than 270hp is needed to see gains from the manifold. Where in the RPM range are those gains typically seen? And what sort of gains are we looking at?
Downmented is offline   Reply With Quote
Old 02-19-2016, 02:59 PM   #463
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

The manifold mentioned by me above, it is not in production. The bent runner manifold.....

The manifold mentioned by Corky, the straight runner, is in production. That is the only one we produce. The gains you will see with the manifold are usually 4500-5000 rpm to the revlimiter. Depending on the engine and modifications, gains are usually 20+ horsepower. We have always tested and seen about a 20 hp gain over a stock intake manifold. That said, I don't have a lot of dyno sheets for this particular part. But I've never seen less than 20 hp.
Hope it helps,
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 02-19-2016, 03:03 PM   #464
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Quote:
Originally Posted by Stephanie Turner View Post
The manifold mentioned by me above, it is not in production. The bent runner manifold.....

The manifold mentioned by Corky, the straight runner, is in production. That is the only one we produce. The gains you will see with the manifold are usually 4500-5000 rpm to the revlimiter. Depending on the engine and modifications, gains are usually 20+ horsepower. We have always tested and seen about a 20 hp gain over a stock intake manifold. That said, I don't have a lot of dyno sheets for this particular part. But I've never seen less than 20 hp.
Hope it helps,
Stephanie
So you definitely have a few then.
Let's see them.
18psi is offline   Reply With Quote
Old 02-19-2016, 03:24 PM   #465
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

My server crashed a few weeks ago, and dyno sheets is one of the folders not backed up along with some photos. I will see if I can get the data off the drive. The last dyno sheet that was sent to me, and the one I am looking for, was a friend of Braineak's. Brad? It was a 1.6L, GT2560 running 14 psi - if I remember the details. I know it was posted on the forum back in early to mid 2009.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 02-19-2016, 03:44 PM   #466
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

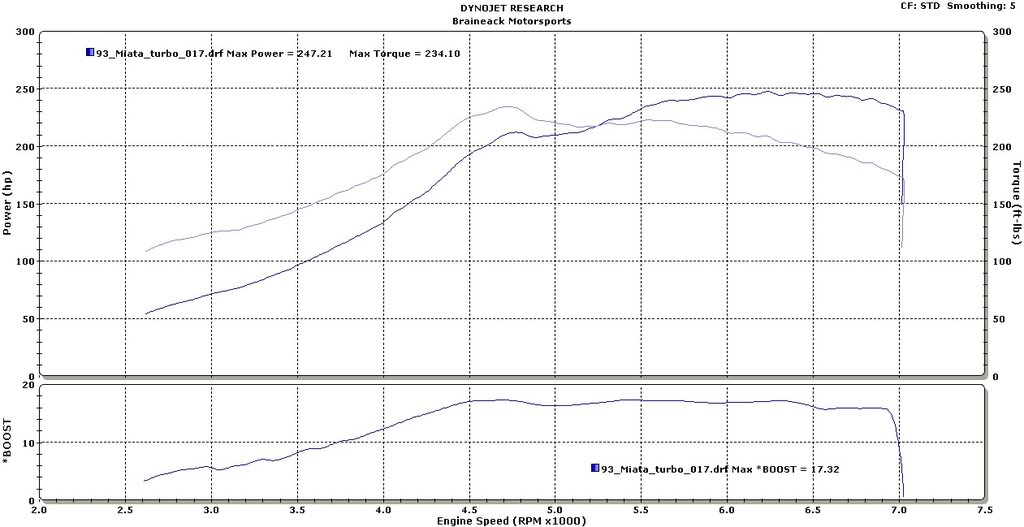

was a 1.6L running a 2871




trying to find the before. or maybe this was the before...
Attached Thumbnails
Begi Intake Manifold-80-undefined_688180abb69bfc069f3ba800a55096499c1f15c0.png
Braineack is offline   Reply With Quote
Old 02-19-2016, 03:49 PM   #467
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 485
Total Cats: 59
Default

Quote:
Originally Posted by Braineack View Post
was a 1.6L running a 2871




trying to find the before. or maybe this was the before...
Any explanation for the drop ~4700rpm?
Downmented is offline   Reply With Quote
Old 02-19-2016, 03:52 PM   #468
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

yeha this was the before, i know he hit 261rwhp when we went back to the dyno with no other changes:

https://www.miataturbo.net/dynos-tim...261rwhp-35950/
Braineack is offline   Reply With Quote
Old 02-19-2016, 03:52 PM   #469
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by Downmented View Post
Any explanation for the drop ~4700rpm?
boost control issues. this was back on MS1 and it was running open loop EBC that wasn't playing nicely on the dyno. it was tuned agressively to help spool on street, but on that tdyno it was causing it to spike.
Braineack is offline   Reply With Quote
Old 02-19-2016, 03:56 PM   #470
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

so 247 to 261 is still not 20
and I'm assuming that was with everything else completely unchanged?
18psi is offline   Reply With Quote
Old 02-19-2016, 03:59 PM   #471
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

just slapped it on and went back to dyno.

I want BEGi to find the mold to the old cast one and release it again. That IM was a winner.
Braineack is offline   Reply With Quote
Old 02-19-2016, 04:24 PM   #472
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Quote:
Originally Posted by 18psi View Post
so 247 to 261 is still not 20
and I'm assuming that was with everything else completely unchanged?
I could have sworn power was 270 ish hp. I will still try and retrieve it, I know there is a copy somewhere here. Maybe I am thinking of another car as I was wrong with the turbo. It was 6 years ago! LOL. My apologies for being wrong. I will still try and retrieve it, I know there is a copy somewhere here. It's not on my old computer, so it must be a server file I need to retrieve.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 02-19-2016, 04:32 PM   #473
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Quote:
Originally Posted by Braineack View Post
I want BEGi to find the mold to the old cast one and release it again. That IM was a winner.
I AGREE 100%!!!!!!

We have had a problem finding a quality aluminum foundry here in Texas to do these. The last two foundries sent us crap for castings. I will have to look out of state to see what I can find. We still have the pattern, so it's do-able if I can get around Corky and the foundry does not require pouring more than 10 pieces at a time.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 02-19-2016, 07:14 PM   #474
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by Braineack View Post
I want BEGi to find the mold to the old cast one and release it again. That IM was a winner.
^THIS^
FrankB is offline   Reply With Quote
Old 02-20-2016, 01:29 PM   #475
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

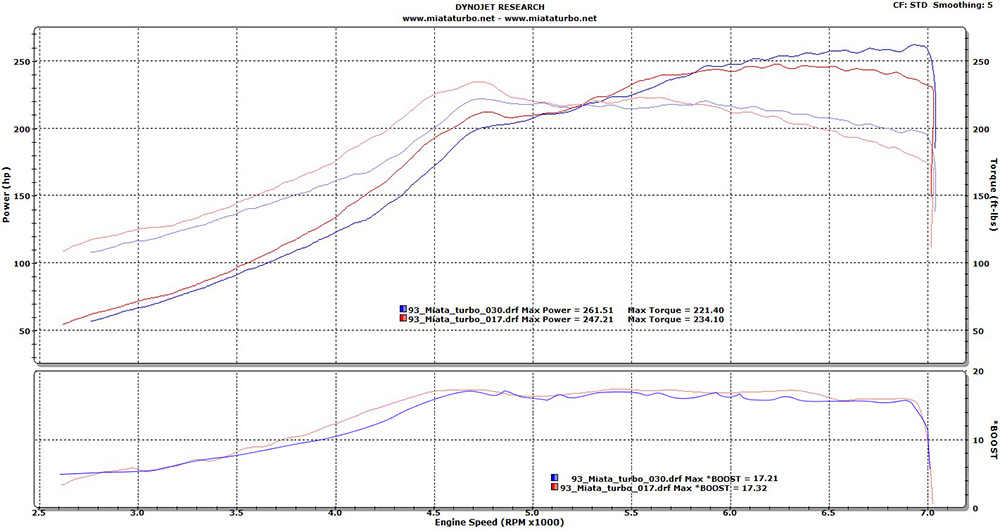

here I found it:






i have the log file, it's showing a peak of about 220kPa, dropping to 200kPa at redline.

so about 17psi dropping to 14psi.
Attached Thumbnails
Begi Intake Manifold-80-undefined_e8abd7a4baaf0f50e28f62810568f8c6dfa4b6b0.png   Begi Intake Manifold-80-undefined_ff4484971713108756d1c3b101092e5e85321045.png
Braineack is offline   Reply With Quote
Old 02-20-2016, 01:38 PM   #476
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

so it gains topend and sacrifices lowend. looks about right
and this is vs the 1.6 mani
I wonder if it would be better than a flattop
18psi is offline   Reply With Quote
Old 02-20-2016, 03:42 PM   #477
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

yeah this was a on 1.6L.

this was a really primative build.

MS1. batch fueling. 550cc Rx7 injectors. Open loop EBC that wasn't working well.

I think this thing had potential for huge gains up top, but he decided to sell it shortly after this.
Braineack is offline   Reply With Quote
Old 02-20-2016, 03:48 PM   #478
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Yeah, It's pretty hard to be relevant in today's technology and marketplace when all the "results" are from 7 years ago using technology most here don't even use anymore because it's outdated and retired.

17psi for 230wtq would get laughed at today.

if they bring the old one back I hope someone does proper, modern, testing.
Kinda hard to spend $700 on a part that may or may not make another 15hp

Last edited by 18psi; 02-20-2016 at 04:04 PM.
18psi is offline   Reply With Quote
Old 02-20-2016, 04:45 PM   #479
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by 18psi View Post
Yeah, It's pretty hard to be relevant in today's technology and marketplace when all the "results" are from 7 years ago using technology most here don't even use anymore because it's outdated and retired.

17psi for 230wtq would get laughed at today.

if they bring the old one back I hope someone does proper, modern, testing.
Kinda hard to spend $700 on a part that may or may not make another 15hp
One day I may do testing between my begi cast manifold and a flat top.
shuiend is offline   Reply With Quote
Old 02-20-2016, 04:51 PM   #480
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by 18psi View Post
Kinda hard to spend $700 on a part that may or may not make another 15hp

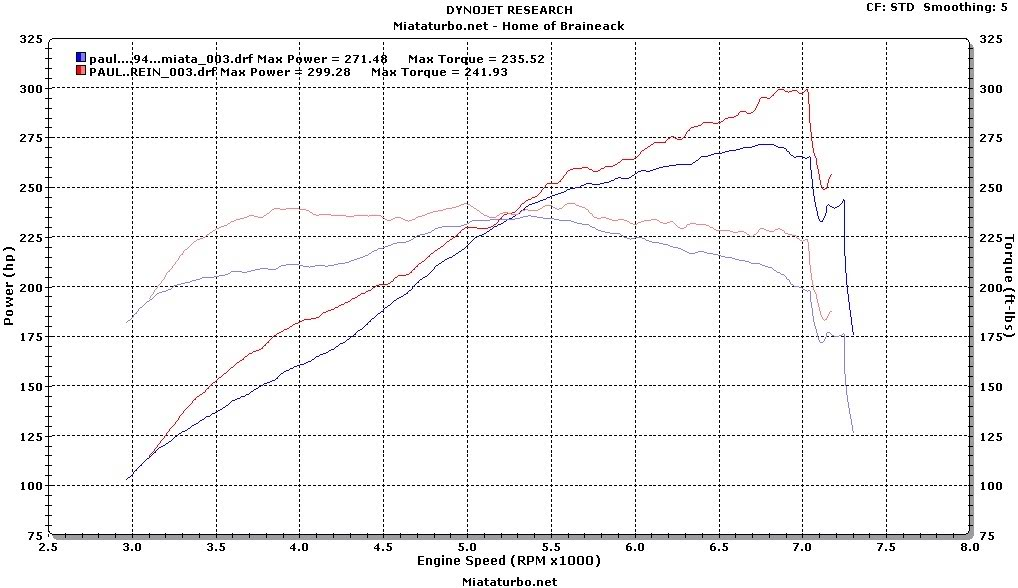

that thing was awesome:



99 motor, swapped to cast BEGI IM -- no other changes. Others had similar results, even the FM testing back in the day showed major gains.
Attached Thumbnails
Begi Intake Manifold-80-undefined_a162b1a04cf3853e64cf825452d6d46722b2eda4.png
Braineack is offline   Reply With Quote
